Rochester Gauges P6293 Series How To Convert

ISO 9001:2008 CERTIFIED

Application

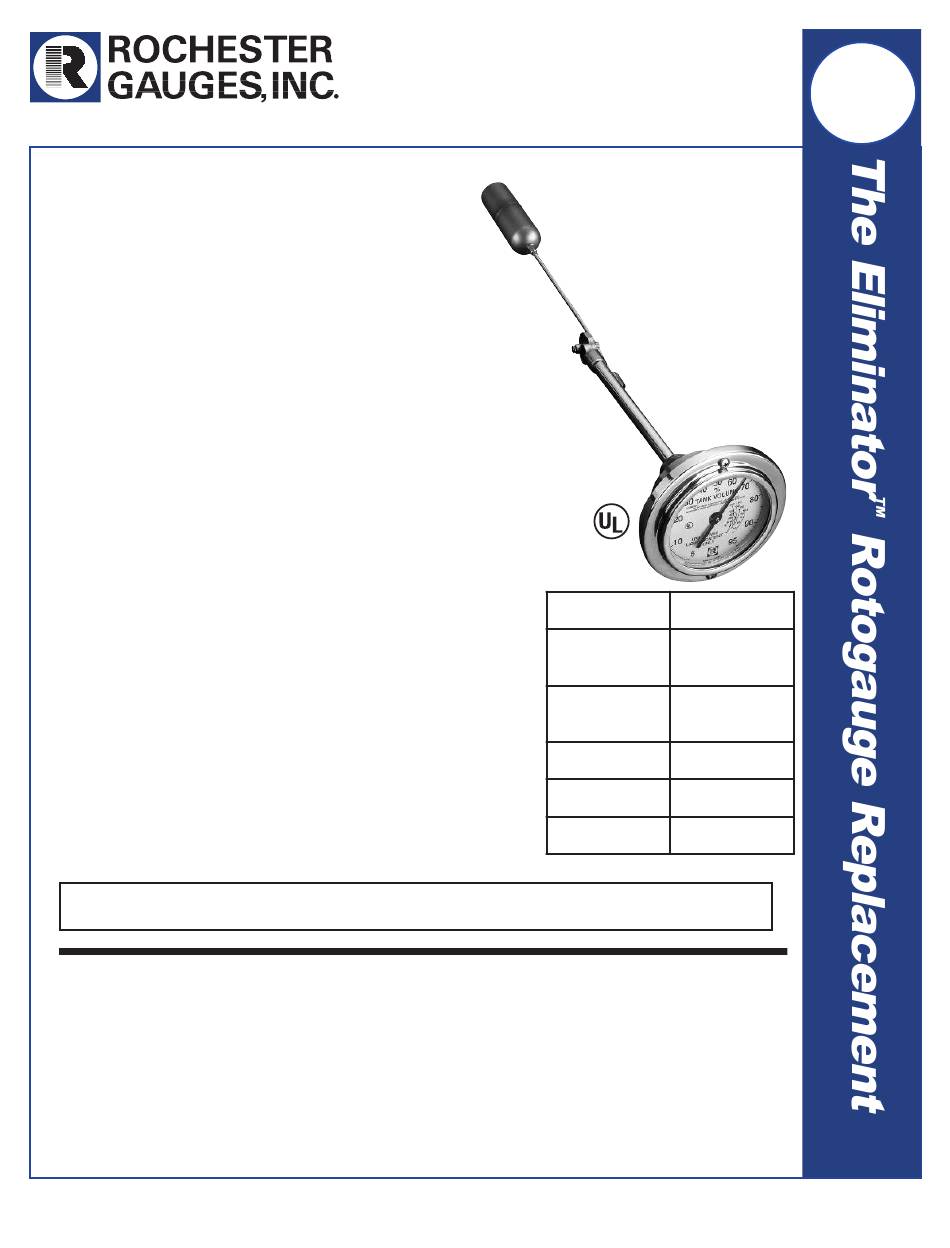

The Eliminator direct-reading float gauge is a direct re place ment
™
for 1" NPT rotary-type gauges in LP and NH
These gauges are de signed for larger tanks up to 84"
[2134mm] in diameter. The Elim i na tor
in filling tanks - its use is re strict ed to tanks with fixed liquid level
gauges, used to determine when the maximum fill level has been
reached. The eliminator can be used in mobile ap pli ca tions up to
72" [1828mm] in diameter.

How To Do The Conversion

1. After the storage tank has been evacuated, remove the ro ta ry gauge
from the 1" NPT open ing at the centerline of the head. Clean and re-
tap the fe male threads.
2. Remove the two screws from the bezel. Put the bezel,
screws and dial chamber aside for the moment. Remove the four
mount ing screws holding the gauge head to the adapt er.
3. Insert the lower portion of the replacement gauge, including the float
bulb, float arm, gear hous ing and counterbalance, into the tank open ing.
4. Apply three wraps of
⁄ " [12mm] wide Te flon tape, or other suitable thread
1
2
seal ant, to the 1" NPT threads on the steel adapt er through which
the gauge support pass es.
5. Screw the adapter into the tank open ing to achieve a leak-tight
joint, and align the gauge mounting holes in the hor i zon tal plane.
6. Using the gasket and four mounting screws supplied, attach the
gauge to the adapter fingertight. Be sure the gauge is right side
up, the bracket tab for lo cat ing dial cham ber should be on the
right. Torque the mounting screws even ly to 140/150 lb.in.,
[16,4Nm] us ing a cross pat tern.
7. Reattach the 4" dial chamber and be zel to the Se nior
gauge head brackets using the two screws supplied.
8. If you end up with the dial cham ber up side down, you cannot
solve the problem by ro tat ing the brack et. You must ro tate the
en tire gauge 180°.
Any Eliminator installed in a tank greater than 44" is excluded
READ COMPLETELY WARNINGS & CAUTIONS BEFORE
ATTEMPTING GAUGE REMOVAL OR INSTALLATION*
THESE INSTRUCTIONS ARE PREPARED TO ASSIST TRADESMEN AND OTHERS QUALIFIED
TO SERVICE LIQUID STORAGE TANK EQUIPMENT. CONSUMERS ARE NOT QUALIFIED TO
PERFORM THE INSTALLATION DESCRIBED BELOW. IF YOU HAVE ANY QUESTIONS CON-
CERNING INSTALLATION OR OPERATION OF THE GAUGE OR GASKET, CONTACT ROCHES-
TER GAUGES, INC. OR ONE OF OUR AUTHORIZED DISTRIBUTORS FOR ASSISTANCE.
CHECK SIDE OF GAUGE HEAD FOR MODEL NUMBER AND ASK FOR GAUGE INSTALLATION
INSTRUCTIONS FOR YOUR MODEL.
See reverse side for dimensional data, materials of construction, performance, and advice on how to order.
Rotogauge Replacement
For LP Gas & NH
storage tanks.
3
is not intended for use
™
from the Rochester Gauge Limited Warranty.
The Measure of Excellence
The Eliminator
3
Part #
Stationary
P6293-R4400
Mobile
Stationary
P6293-R6000
Mobile
Stationary
P6293-R7200
™
Mobile
PM6293-R7200
Stationary
P6293-R8400
™
Service
Fits Tank
Size I.D.
Up Thru 44"
[1210]
44.1" Thru 60"
[1210] - [1524]
60.1" Thru 72"
[1524] - [1829]
60" Thru 72"
[1524] - [1829]
72.1" Thru 84"
[1829] - [2134]
P6293
Series
05/17/13
