Outdoor Enterprise Access Point
WM-OAP8251AG

User Manual

Version 1.0
Document Part Number: 91711110100E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WM-OAP8251AG and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate WM-OAP8251AG

Summary of Contents for Winmate WM-OAP8251AG

  • Page 1: User Manual

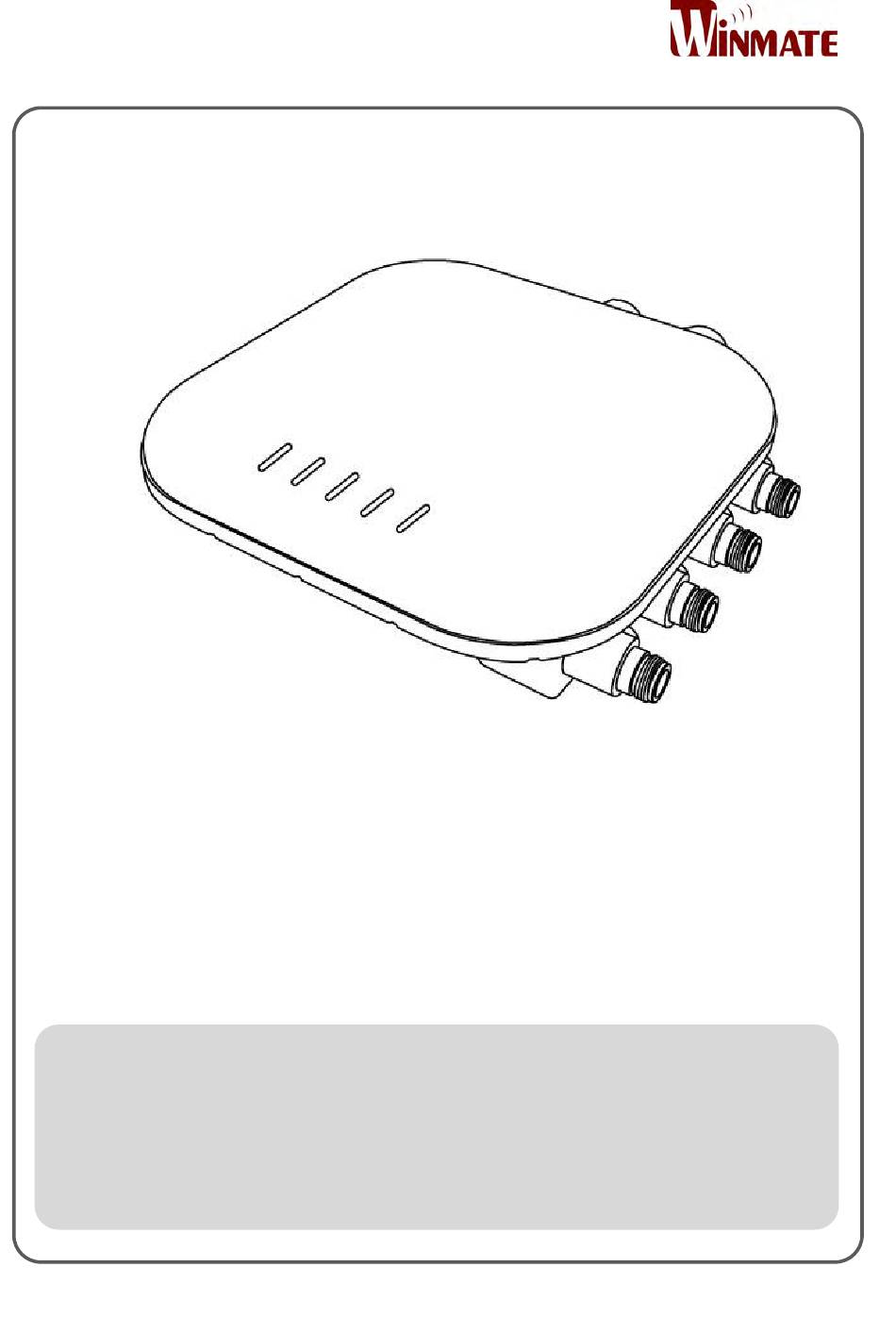

    Outdoor Enterprise Access Point WM-OAP8251AG User Manual Version 1.0 Document Part Number: 91711110100E...
  • Page 2 In the serial numbers the third and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for December). For example, the serial number 1W15Axxxxxxxx means October of year 2015. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 3: Customer Service

    In addition, free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 4 The Protective Conductor Terminal (Earth Ground) symbol indicates the potential risk of serious electrical shock due to improper grounding. Le symbole de Mise à Terre indique le risqué potential de choc électrique grave à la terre incorrecte. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 5 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 41 cm between the radiator & your body. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 6: Ce Interference Statement

    This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 7: Safety Information

    WARNING!/ AVERTISSEMENT! Always ground yourself against electrostatic damage to the device. Toujours vérifier votre mise à la terre afin que l’équipement ne se décharge pas sur vous. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 8: Installation Location

    Veuillez sélectionner soigneusement la position d'installation et veiller à ce que la puissance de sortie finale ne dépasse pas la force de consigne fixée dans les règles correspondantes. Une violation de ces règles pourrait entraî ner de graves sanctions fédérales. Outdoor Enterprise Access Point WM-OAP8251AG viii...

  • Page 9: About This User Manual

    The documentation set for the WM-OAP8251AG provides information for specific user needs, and includes:  The WM-OAP8251AG User Manual – contains detailed description how to use the display, its components and features.  The WM-OAP8251AG Quick Start Guide – describes how to get your WM-OAP8251AG up and running.

  • Page 10: Table Of Contents

    5.3 WDS Bridge Mode ....................35 5.4 WDS Station Mode ....................36 5.5 AP Mesh Mode ......................37 5.6 Mesh Only Mode ...................... 38 Chapter 6: Software Settings ..................... 40 6.1 Main Status ......................40 6.1.1 Save Changes ....................40 Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 11 7.2.3 Email Alerts ....................57 7.3 Time Zone......................... 58 7.3.1 Time Setting ....................58 7.4 Auto Reboot Settings ....................58 7.5 Wi-Fi Scheduler ......................59 7.6 Tools ......................... 60 7.6.1 Ping Test Parameters ..................60 Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 12 7.8 Firmware ........................63 7.8.1 Firmware Upgrade ..................63 7.9 Backup/Restore ......................63 7.10 Log .......................... 64 7.10.1 System Log ....................64 7.10.2 Remote Log ....................64 7.10.3 Logout ......................64 7.10.4 Reset ......................65 Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 13 Introduction This chapter provides the WM-OAP8251AG Outdoor Enterprise Access Point product overview, describes its features and hardware specifications. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 14: Chapter 1: Introduction

    1.1 Overview Thank you for choosing the Winmate® Outdoor Enterprise Access Point. The WM-OAP8251AG is an enterprise class, outdoor dual radio 2.4G (11n) and 5G (11ac Wave2) concurrent 4x4 MU-MIMO access point with built-in internal antenna. The device has two Ethernet ports and one of it is a PSE port that supplies power to the remote unit.

  • Page 15: Hardware Specifications

    Safety UL/cUL 60950-1. 60950-22 (Capable but not Compliance certified) Standard FCC Part 15.247, 15.407 Radio Approvals CE EN300.328, EN301.893 2.4GHz: 27.88dBm Maximum Maximum 5GHz Band 1: 24.84dBm Output Power Output Power 5GHz Band 4: 27.36dBm Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 16: Function Block Diagram

    User Manual Chapter 1 Introduction 1.4 Function Block Diagram The picture below shows the WM-OAP8251AG function block diagram: Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 17: Package Contents

    Chapter 1 Introduction 1.5 Package Contents Carefully remove the box and unpack Outdoor Enterprise Access Point WM-OAP8251AG. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

  • Page 18: Appearance And Dimensions

    User Manual Chapter 1 Introduction 1.7 Appearance and Dimensions This section includes mechanical drawing and dimensions of the WM-OAP8251AG. Unit dimensions (L x W x H): 210mm x 210mm x 51mm Weight: 1.5 kg Front View Description 2.4 GHz Antennas: Detachable 5 dBi 2.4 GHz omni-directional 5 GHz Antennas : Detachable 7 dBi 5 GHz omni-directional LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.
  • Page 19 User Manual Chapter 1 Introduction Rear View Description Ground Mounting Holes: Using the provided hardware, the WM-OAP8251AG can be attached to a wall or pole. Optional M12 Connector Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 20: Hardware Installation

    Hardware Installation This chapter provides information on how to use external I/O and the installation of the WM-OAP8251AG hardware. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 21: Chapter 2: Hardware Installation

    2. Connect another Ethernet Cable into an Ethernet Port on the front panel of the WM-OAP8251AG and the other end to the Ethernet Port on the computer. 3. Screw the provided antennas to the device as shown on the illustration below.

  • Page 22: Stand-Alone Access Point Installation

    D. Screw on the provided antennas to the device as shown on the illustration below. IMPORTANT: The Access Point supports both IEEE 802.3at PoE (Power over Ethernet) and the included power injector. You may use either one as the power source. Do NOT use both at the same time. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 23 Mounting This chapter describes how to mount EAC-PRO Embedded Computer. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 24: Chapter 3: Mounting

    Enterprise Access Point WM-OAP8251AG. 3.1 Wall Mounting the AP To attach the WM-OAP8251AG to a wall using wall mounting kit: A. Mark the four locations of the mounting holes on the flat mounting surface. B. Drill a 37mm deep 8mm hole in the markings and hammer the bolts into the openings.
  • Page 25 User Manual Chapter 3 Mounting C. Place the lock and flat washers on the four hex cap screws and drive the screws to attach the bracket to the back of the Access Point. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 26: Pole Mount The Ap

    Mounting 3.2 Pole Mount the AP To attach the WM-OAP8251AG to a wall using provided pole mounting kit: 1. Attach the device onto the wall by tightening the bolt’s flat washers and nuts to secure the mounting base to the mounting surface.
  • Page 27 3. Thread the open end of the Pole Strap through the two tabs on the Pole Mount Bracket. 4. Lock and tighten the Pole Strap to secure the Pole Mount Bracket to the pole. Horizontal Placement Vertical Placement Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 28: Configuring Your Access Point

    Configuring Your Access Point This chapter describes how to configure Access Point using the web-based configuration interface. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 29: Chapter 4: Configuring Your Access Point

    If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.  The default username and password are admin. Once you have entered the correct username and password, click the Login button to open the web-based configuration page. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 30  If successful, you will be logged in and see the WM-OAP8251AG User Menu. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 31: Building A Wireless Network

    Building a Wireless Network This chapter describes the operating modes of the WM-OAP8251AG. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 32: Chapter 5: Building A Wireless Network

    This chapter describes the operating modes of the WM-OAP8251AG. 5.1 Access Point Mode In Access Point Mode, WM-OAP8251AG behaves likes a central connection for stations or clients that support IEEE 802.11ac/a/b/g/n networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password to associate with the WM-OAP8251AG.
  • Page 33 Chapter 5 Building a Wireless Network The WM-OAP8251AG can be used as a centralized Outdoor Access Point with which other EnGenius Wireless N 2.4 or 5 GHz Outdoor Client Bridges can associate; leveraging the long-range capability of their internal high-gain directional antennas, resulting in a very cost-effective solution to expand a company network over a multiple building campus.

  • Page 34: Wds Ap Mode

    Building a Wireless Network 5.2 WDS AP Mode The WM-OAP8251AG also supports WDS AP mode. This operating mode allows wireless connections to the WM-OAP8251AG using WDS technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling WDS Link settings.

  • Page 35: Wds Bridge Mode

    LANs located a small distance apart want to communicate with each other. The best solution is to use the WM-OAP8251AG to wirelessly connect two wired LANs, as shown in the following diagram. WDS Bridge Mode can establish up to four (4) WDS links, creating a star-like network.

  • Page 36: Wds Station Mode

    User Manual Chapter 5 Building a Wireless Network 5.4 WDS Station Mode Station mode expands the WDS by receiving a wireless signal/service and sharing it through the Ethernet port. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 37: Ap Mesh Mode

    Building a Wireless Network 5.5 AP Mesh Mode Under the AP Mesh mode, the WM-OAP8251AG can be used as the central connection hub for station or clients that support IEEE 802.11 b/g/n network. Under this mode, the WM-OAP8251AG can be configured with the same Mesh SSID and security password in order to associate with other WM-OAP8251AGs, as well as connect with clients under the same SSID and encryption signatures.

  • Page 38: Mesh Only Mode

    Building a Wireless Network 5.6 Mesh Only Mode Under the Mesh-only mode, the WM-OAP8251AG can be configured with the same Mesh SSID and security password in order to associate with other Mesh enabled WM- OAP8251AGs, instead of connecting with clients.
  • Page 39 Software Settings This chapter describes how to set up the system. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 40: Chapter 6: Software Settings

     The Device Information section shows general system information such as Device Name, MAC Address, Current Time, Firmware Version, and Management VLAN ID. Note: VLAN ID is only applicable in Access Point or WDS AP mode. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 41 Operating Mode, Frequency, and Channel. Since the ENH1750EXT supports multiple-SSIDs, information about each SSID, the ESSID, and security settings, are displayed. Note: Profile Settings are only applicable in Access Point and WDS AP modes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 42: Connection

    Click the connection link under the Overview menu. This page displays the current status of the WDS link, including WDS Link ID, MAC Address, Link Status and RSSI. Note: Only applicable in WDS AP and WDS Bridge modes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 43: The Mesh Link List

    Gateway: Displays the Default Gateway of this device. Leave it blank if you are unsure of this setting. Primary/Secondary DNS: Displays the primary/secondary DNS address for this device. Save: Click Save to confirm the changes. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 44 This delay is provided so that when a new bridge comes onto a busy network, it analyzes data traffic before participating in the network. Priority: Specifies the Priority Number. A smaller number has a greater priority than a larger number. Save: Click Save to confirm the changes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 45: Wireless Settings

    Band Steering works within the Access Point by directing 5 GHz-capable clients to that band. Save: Click Save to confirm the changes. 6.4.2 Wireless Network 2.4 GHz/5 GHz This page displays the current status of the Wireless settings of the WM-OAP8251AG. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 46 Data Rate: Select a data rate from the drop-down list. The data rate affects throughput of data in the WM-OAP8251AG. Select the best balance for you and your network but note that the lower the data rate, the lower the throughput, though transmission distance is also lowered.

  • Page 47: Ssid Profiles 2.4 Ghz/5 Ghz

    VLAN ID for packets to pass through the Access Point with a tag. Wireless Security: See the Wireless Security section. Isolation: Check the box to restrict clients from communicating with different VIDs. Save: Click Save to accept the changes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 48: Wireless Security

    Chapter 6 Software Settings 6.4.4 Wireless Security The Wireless Security section lets you configure the WM-OAP8251AG’s security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly recommend that you use WPA2-PSK. Auth Type: Select Open System or Shared Key.

  • Page 49: Wireless Advanced

    ASCII format, the Key must be from 8~63 characters in length. If using HEX format, the Key must be 64 HEX characters in length. Group Key Update Interval: Specifies how often, in seconds, the Group Key changes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 50: Wpa Mixed-Enterprise: Access Point / Wds Ap Mode

    Please enter the settings of the SSID and initialize the Security mode to WPA Enterprise, as well as setting the Radius Server. Users can then enable Fast Roaming and implement the advanced search feature. Next, set the same Enterprise Encryption with the same SSID on other Access Points in Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 51: Wds Link Settings

    To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There can be a maximum of four (4) Access Points. Note: Only applicable in WDS AP and WDS Bridge modes. 6.5.5.1 WDS Link Settings 2.4 GHz/5 GHz Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 52 Adding a guest network allows visitors to use the Internet without giving out your office or company wireless security key. You can add a guest network to each wireless network for both the 2.4 GHz and 5 GHz frequency bands. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 53 RSSI: Enter the RSSI (Received Signal Strength Index) in order to determine the handover procedure which the current wireless link will terminate. RSSI is an indication of the power level being received by the antenna. Therefore, the higher the RSSI number, the stronger the signal. Outdoor Enterprise Access Point WM-OAP8251AG...
  • Page 54 Management This chapter describes how to manage Access Point settings. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 55: Chapter 7: Management

    Note: If you reconfigure the Management VLAN ID, you may lose your connection to the WM-OAP8251AG. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the WM-OAP8251AG using the new IP address. 7.2 Advanced Settings 7.2.1 SNMP Settings...
  • Page 56 Auth Key: Specifies the authentication key. Priv Protocol: Selects the privacy protocol type: DES. Priv Key: Specifies the privacy key. Engine ID: Specifies the engine ID for SNMPv3. Apply Save: Click Apply Save to apply the changes. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 57: Cli Settings

    Subject: Enter the text to appear in the email subject line. Username: Enter the username for the email account that will be used to send emails. Password: Enter the password for the email account that will be used to send emails. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 58: Time Zone

    7.3 Time Zone 7.3.1 Time Setting This page allows you to set the internal clock of the WM-OAP8251AG. Manually Set Date and Time: Manually specify the date and time. Automatically Get Date and Time: Select this option and enter the IP address of an NTP server or use the default NTP server to have the internal clock synch automatically.

  • Page 59: Wi-Fi Scheduler

    Duration: The Start Time is entered in two fields. The first box is for hours and the second box is for minutes. The End Time is entered in the same format as the Start time. Outdoor Enterprise Access Point WM-OAP8251AG...

  • Page 60: Tools

    7.6 Tools 7.6.1 Ping Test Parameters This page allows you to analyze the connection quality of the WM-OAP8251AG and trace the routing table to a target in the network in the event of an issue. Target IP: Enter the IP address you would like to test.

  • Page 61: Speed Test Parameters/Led Control

    Management 7.6.2 Speed Test Parameters/LED Control This page allows you to power on/off the LEDs for Power, LAN interface, or 2.4 GHz/5 GHz WLAN interface for the WM-OAP8251AG. 7.6.3 LED Control Power: Enables or disables the Power LED indicator. LAN: Enables or disables the LAN LED indicator.

  • Page 62: Account

    Chapter 7 Management 7.7 Account This page allows you to change the WM-OAP8251AG username and password. By default, the username is: admin and the password is: admin. The password can contain from 0~12 alphanumeric characters and is case sensitive. 7.7.1 Account Settings Administrator Username: Enter a new username for logging in into the New Name entry field.

  • Page 63: Firmware

    Restore Saved Settings from a file saved on your computer. If extreme problems occur, or if you have set the WM-OAP8251AG incorrectly, you can use the Reset button in the Revert to Factory Default Settings section to restore all the configurations of the WM- OAP8251AG to the original default settings.

  • Page 64: Log

    When powered down or rebooted, the log will be cleared. 7.10.2 Remote Log This page allows you to setup the Remote Log service for the WM-OAP8251AG. Syslog: Enables or disables the syslog function. Log Server IP Address: Enter the IP address of the log server.

  • Page 65: Reset

    Management 7.10.4 Reset In some circumstances, it may be required to force the device to reboot. Click on Reset to reboot the WM-OAP8251AG. Note that this will delete any configurations to their default settings. Please refer to Backup/Restore section of this User Manual to learn how to backup and save your customized configuration settings in the event of a Restore.
  • Page 66 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
