Winterizing
We recommend using the patented AquaGenie Winter Cover, to order ask for part # H03116N
to order go to aquagenie.com

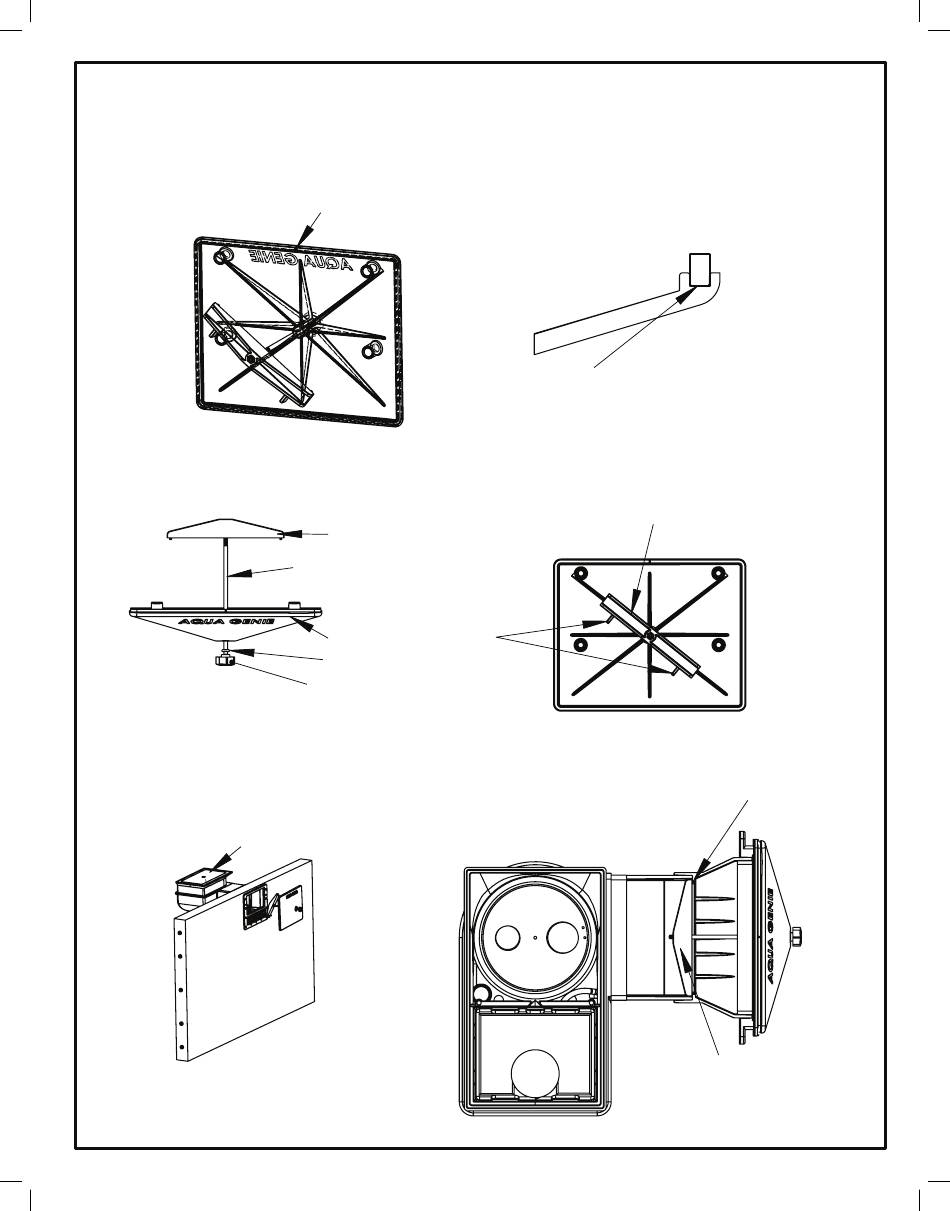

Installing Winter Cover Gasket
To install gasket
1.Start at the top center of the gasket channel (See Sketch#1)
2.Gasket is installed with narrow side of the gasket installed in channel(See Sketch #2)
2.Work gasket into channel making sure is well seated.
Sketch #1
Assemble Winter Cover
1.Place threaded rod through hole in winter cover ,assemble in the correct order. (See Sketch#3)
Note: O-Ring goes between Knob and cover.
Sketch #3
Installing Winter Cover
1. Remove AquaGenie Cover to gain access for installation. (See Sketch #5)
2. Orient brace from top to bottom corner of cover ,with supports facing down. (See Sketch #4)
3. Guide the assembled Winter Cover through Weir opening (you do not have to remove weir assembly) (See Sketch #5). Brace goes
behind lip in pressure throat.
4. Hold the cover against the faceplate with one hand and rotate the brace until it is horizontal.
5. Turn knob by hand until gaskets seats on faceplate. Brace will tighten against lip on pressure throat.
(See Sketch#6) (Caution: over tightening will distort the gasket)
6. Drain water in basket well and follow pump and filter manufacturer's winterizing recommendations.
Remove cover for access
Rev. Level: G
Rev. Level: F
Rev. Date: 11/20/2015
Rev. Date: 10/09/14
Document ID: HM038, Aqua Genie Installation
Document ID: HM038 Aqua Genie Installation
Start here
Brace
Threaded Rod
Supports
Cover
O Ring
Knob
Sketch #5
Narrow side goes in channel
Sketch #2
Sketch #4
Brace at correct angle
Lip on pressure throat
Brace
Sketch #6
