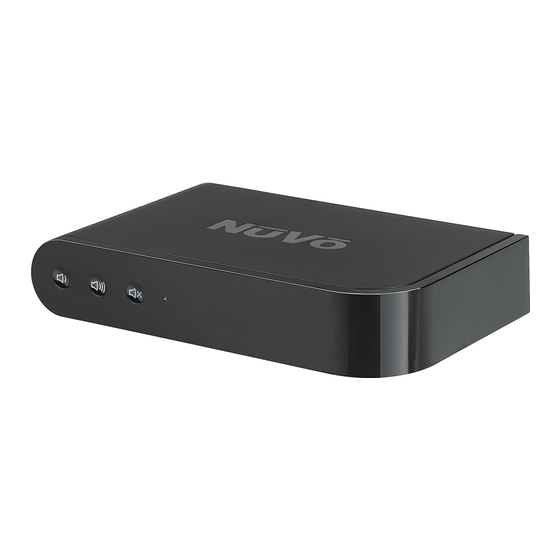

Player P100, P200, and P300
Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nuvo P200 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Nuvo P200

Summary of Contents for LEGRAND Nuvo P200

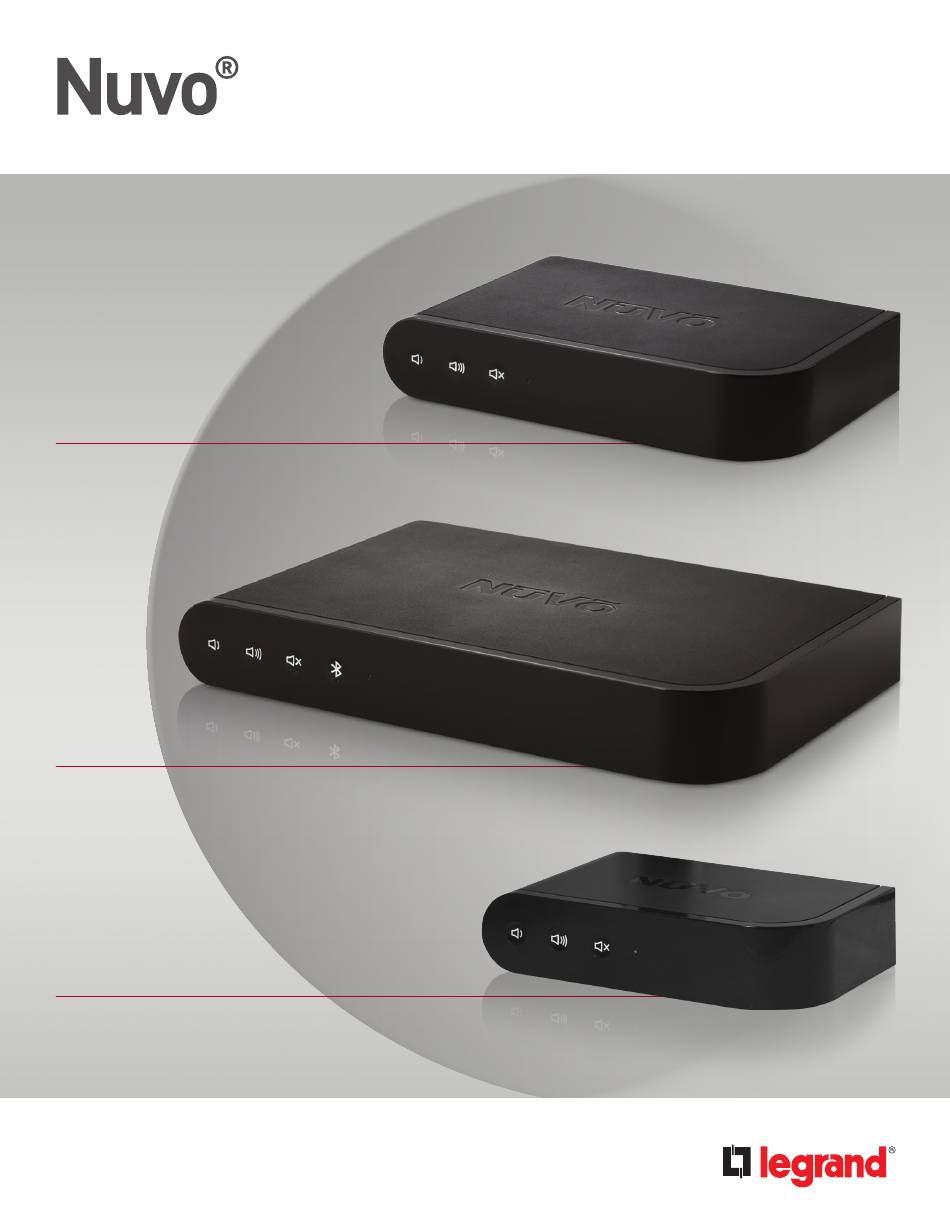

  • Page 1 Player P100, P200, and P300 Product Manual P100 P200 P300...

  • Page 2: Table Of Contents

    Setting Up Your System Using the App Amazon Alexa Voice Control Integration New System Setup Prerequisites Wired Setup Connecting Alexa to Your Legrand Nuvo Player Wireless Setup Setup Additional Music Service Providers Adding a Component to an Existing System Supported Alexa Commands Changing an Existing Ethernet Connected Component To Wireless...

  • Page 3: Quick Links

    QUICK LINKS SETTINGS MENU GENERAL What do all of the options on the settings menu do? What is the Nuvo Player Portfolio System? What is a zone? What wireless configurations are supported by the Nuvo Player Portfolio System? How do I add a component to my system? Where can I can I find more information on my Nuvo Player? Can I change an existing Ethernet connected zone...

  • Page 4: Overview

    OVERVIEW Welcome to the Nuvo Player Portfolio Audio System! This system offers you the opportunity to enjoy your favorite music from any room of your home, at any time, with simplicity of operation. Imagine playing music from your personal library or easily streaming true, high-fidelity music from the Internet by touching a button on your Apple or Android Wi-Fi-enabled portable device.

  • Page 5: Product Features

    PRODUCT FEATURES NV-P100-XX SINGLE ZONE PLAYER (ETHERNET & WIRELESS) FRONT PANEL Item Name Description Volume Down Decreases audio volume Volume Up Increases audio volume Mute Mutes/un-mutes audio LED Indicator Indicates player status BACK PANEL Item Name Description Ethernet RJ45 port for a wired connection to a network router USB** USB connection port for sharing music content from a storage device Audio In...

  • Page 6: Nv-P200-Xx Single Zone Player (Ethernet & Wireless)

    NV-P200-XX SINGLE ZONE PLAYER (ETHERNET & WIRELESS) FRONT PANEL Item Name Description Volume Down Decreases audio volume Volume Up Increases audio volume Mute Mutes/un-mutes audio Bluetooth Connects to saved paired devices, breaks current device connections, allows device discovery, and accepts pairing requests LED Indicator Indicates player status BACK PANEL...

  • Page 7: Nv-P300-Xx Player Preamplifier (Ethernet & Wireless)

    NV-P300-XX PLAYER PREAMPLIFIER (ETHERNET & WIRELESS) FRONT PANEL Item Name Description Volume Down Decreases audio volume Volume Up Increases audio volume Mute Mutes/un-mutes audio LED Indicator Indicates player status BACK PANEL Item Name Description Audio In Combination 3.5mm stereo line-level and mini TOSLINK optical input Audio Out* Combination 3.5mm stereo line level and mini TOSLINK optical output USB**...

  • Page 8: Setup And Installation

    SETUP AND INSTALLATION NETWORK REQUIREMENTS A live Internet connection is necessary for initial setup of your Nuvo Player Portfolio System. For wired Ethernet connectivity, a minimum 100 MB wired network is necessary for proper communication. Wireless-compatible devices use dual band 802.11n wireless communication. To ensure that all components are compatible and communicating correctly, it is strongly suggested that network routers using the older 802.11g protocol be upgraded to support Multicast and UPnP and be Wi-Fi Certified before you proceed with the setup.

  • Page 9: Setting Up Your System Using The App

    SETTING UP YOUR SYSTEM USING THE APP Once you have connected your system to the local network, you are ready to begin adding components in their desired locations, naming those locations for local control, and creating your multi-zone music system. The process is easily done from a compatible mobile device using the Nuvo Player app.

  • Page 10: Wired Setup

    Select Setup my new system (See Figure 2). NOTE: Control my system is used to connect a new mobile device to an existing system. Select your location and press Next (See Figure 3). Select Player as the component (See Figure 4). Select a setup option (See Figure 5).

  • Page 11: Wireless Setup

    WIRELESS SETUP Figure 10 Figure 11 Figure 12 Figure 13 Figure 14 Select No as the response to “Are you using a Nuvo Gateway?” (See Figure 10). Confirm that the component is powered on and has an Ethernet connection to the same network as the mobile device running the Nuvo Player app (See Figure 11).

  • Page 12: Adding A Component To An Existing System

    The screen displays Setup Complete! (See Figure 20). Select Finish and the app jumps to the HOME screen. Remove the Ethernet connection from the player. NOTE: A software update may be necessary for any Nuvo components. If prompted with an update, select Continue to update the firmware. ADDING A COMPONENT TO AN EXISTING SYSTEM See “Add a Nuvo Component”...

  • Page 13: Using The Nuvo Player App

    USING THE NUVO PLAYER APP The Nuvo Player app offers wireless system control from any Wi-Fi-enabled mobile device. The Nuvo Player app is available on the App Store or on Google Play. Both versions offer the same look and control options. When used with tablets, the display is optimized for a view of the complete system’s operation on one screen.

  • Page 14: Bluetooth Playback

    BLUETOOTH PLAYBACK To take advantage of a Bluetooth connection, make sure that your mobile device’s Bluetooth is turned on, and you are connecting to a Bluetooth-capable component. This is done within the mobile device’s settings. See Figure 33 for an example of a Bluetooth setting screen on a mobile device.

  • Page 15: Line In

    LINE IN Each component has a 3.5 mm stereo audio line in on the back panel. This input allows any compatible analog music device to be plugged-in and added to the system as an additional source input. To do this, connect a 3.5 mm stereo audio cable from the audio output on the compatible analog music device into the line in port on the back of the Nuvo component “Product Features”...

  • Page 16: The Settings Menu

    THE SETTINGS MENU The SETTINGS menu has several selections important to the control and operation of your system. Press the (gear icon) located at the bottom of the DASHBOARD (See Figure 40) to access the SETTINGS menu (See Figure 41). On smaller format devices, if you are on the Now Playing screen or browsing musical selections (See Figure 42), the (home icon) at the top of the screen returns the app to the DASHBOARD.
  • Page 17 Figure 45 Figure 46 Figure 47 The ZONE SETTINGS screen contains simple slider adjustments or on/off choices that control the sound for the selected zone. • Bass, Treble, and Balance: These three sliders offer individual control of each sound setting. •...

  • Page 18: Keypads

    KEYPADS Selecting Keypads from the SETTINGS menu (See Figure 51) allows you to manage the keypads on your system (See Figure 52). Figure 51 Figure 52 THIS APP When This App is selected, a page appears with the app’s current software version information, a Reset button that disassociates the app from the system, and scanning options (See Figure 53 –...

  • Page 19: Music Services

    Once music is added, select Music Library (See Figure 58). The MUSIC LIBRARY screen displays the number of songs and file size of the accumulated library. It also shows the individual sources for music content (See Figure 59). Choosing Add Share (See Figure 60) allows you to type in the network path to a directory or shared drive with music content (See Figure 61).

  • Page 20: General

    GENERAL When the General option is selected (See Figure 65), the screen displays four important choices for information about the components of the system (See Figure 66). • About gives specific component information for each zone (See Figure 67). • Software Update shows any software updates available.

  • Page 21: International

    INTERNATIONAL The International selection (See Figure 72), offers a Location setting (See Figure 73). When a country location is set (See Figure 74), the legal wireless broadcast channel is set for the selected region. This is an important selection. Language and Time Zone options are available for further customization (See Figure 75). Figure 72 Figure 73 Figure 74...

  • Page 22: The Music Share Software

    The Music Share Software allows music content from shared network locations and libraries, to be streamed from any zone in the sys tem. From your computer, go to http://www.legrand.us/resources-and-downloads/software-downloads to download the music share software. Follow the prompts for installing the software (See Figure 81).
  • Page 23 You can also choose to share a specific folder or drive on the network. The A specific folder... choice opens a browsing window (See Figure 85). From there you can choose a shared folder with music content or a drive that is shared with the network.

  • Page 24: Troubleshooting

    TROUBLESHOOTING FRONT PANEL LEDS An important indicator of each Nuvo component’s operation is the LED light on the front panel. The color of the LED, and the solid or flashing state, provides a visual reference for the status of operation. Refer to the chart for an explanation of the functions and LED status (See Figure 87).
  • Page 25 Verify the wireless settings of Dual Band 2.4GHz/5GHz devices. NOTE: This will require logging into the customer’s ISP Network Appliance. Legrand recommends that the 2.4GHz and 5GHz wireless networks be assigned separate SSID’s to ensure a consistent connection. Player Portfolio Audio System | Product Manual...

  • Page 26: Amazon Alexa Voice Control Integration

    NOTE: Amazon, Echo, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. PREREQUISITES Enabling voice control of your Legrand Nuvo Player through devices with Amazon Alexa requires the following: • A device with Amazon Alexa, such as Amazon Echo, connected to your home network •...
  • Page 27 Select Register. Sign up for an ARTIK Cloud account or sign in if you already have an account. Select Open. Select Open Alexa. Ensure you are in the Select Skills & Games. Devices section of the Alexa app and then click the Menu icon.
  • Page 28 Read the instructions Use your ARTIK Cloud listed under “Before username and password to you continue.” Confirm sign into your account. your setup, then select Your Samsung ARTIK Cloud Continue. account will link with your Alexa account. This completes your Nuvo Player Alexa skill setup.

  • Page 29: Setup Additional Music Service Providers

    SETUP ADDITIONAL MUSIC SERVICE PROVIDERS To play selections from Music Service Providers (MSPs) other than Amazon Music, link your account for the MSP with Alexa. Each service has a different setup. IMPORTANT: Use the same account information that you use for your MSP app when linking to Alexa using the ARTIK Cloud account. If you do not, you will not be able to access the features unique to your MSP account, such as playlists IHEARTRADIO No account setup is required.

  • Page 30: Specifications

    SPECIFICATIONS IOS AND ANDROID REQUIREMENTS • iOS 6 or later required • Android 2.1x or later required NV-P100-XX AMPLIFIER Input/Output Connectors Line Output Line Input (1) TRS 3.5 mm stereo jack Output Level 0–2.0 V RMS Line Output (1) TRS 3.5 mm stereo jack Output Impedance 5 Ohms Speaker Output...

  • Page 31: Nv-P200-Xx Amplifier

    NV-P200-XX AMPLIFIER Input/Output Connectors Line Output Line Input (1) TRS 3.5 mm stereo jack Output Level 0–2.0 V RMS Line Output (1) TRS 3.5 mm stereo jack Output Impedance 5 Ohms Speaker Output (4) Gold 5-way binding post Signal-to-Noise Ratio, 88 dBA USB 2.0 Connection (Type A) One (1)

  • Page 32: Nv-P300-Xx Preamplifier

    NV-P300-XX PREAMPLIFIER Input/Output Connectors Line Input - Analog Line Input (1) TRS 3.5 mini TOSLINK Combo Input Impedance 10 kOhms Receiver Input Overload 2.0 V RMS Line Output (1) TRS 3.5 mini TOSLINK Combo Signal-to-Noise Ratio, >100 dB SNR Receiver Rated Output USB 2.0 Connection (Type A) One (1)

  • Page 33: Regulatory Compliance

    Ce document contient des informations importantes sur la sécurité et la conformité réglementaire du produit. Pour plus de détails concernant les instructions d’utilisation et d’installation, veuillez consulter notre site Web à l’adresse http://www.legrand.us/nuvo. aspx. Pour nous joindre : Soutien technique :...
  • Page 34 Este documento contiene información importante relativa al cumplimiento normativo y de seguridad del producto. Para obtener información más detallada sobre las instrucciones de uso e instalación, visite nuestra página web en http://www.legrand.us/nuvo.aspx. Póngase en contacto con nosotros: Asistencia técnica: Teléfono gratuito: +1.800.223.4162, opt.
  • Page 35 This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices, USB cables, and Ethernet network cables between components. Responsible party (contact for FCC matters only): Legrand Home Systems Inc., dba Nuvo Technologies 3015 Kustom Drive Hebron, KY 41048 Exposure to Radio Frequency Energy The radiated output power of this device is well below the FCC and EU radio frequency exposure limits.
  • Page 36 Europe - EU Declaration of Conformity A copy of the EU Declaration of Conformity is available at: www.legrand.us/aboutus/sustainability/high-performance-buildings/eco-iconography.aspx This equipment can be used in the following countries: Player Portfolio Audio System | Product Manual...
  • Page 37 Important Safety Information (English) Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water or moisture or let objects or liquids enter the product. Install according to manufacturer's instructions. Clean only with a dry, soft cloth. Do not block the ventilation openings.
  • Page 38 Wichtige Sicherheit Auskunft (Deutsch) Lesen Sie diese Anweisungen. Behalten Sie diese Anweisungen. Beachten Sie alle Warnungen. Folgen Sie allen Anweisungen. Verwenden Sie dieses Produkt nicht in Wassernähe oder bei Feuchtigkeit und vermeiden Sie das Eindringen von Gegenständen oder Flüssigkeiten in das Produkt. lnstallieren Sie immer nach den Anweisungen des Herstellers.
  • Page 39 Informações importantes de segurança (Português) Leia estas instruções. Guarde estas instruções. Tenha em atenção todos os avisos. Siga todas as instruções. Não utilize este produto junto de água ou humidade, nem deixe que os objetos ou líquidos entrem em contacto com o produto. Instale de acordo com as instruções do fabricante.
  • Page 40 Quando decidir descartar este produto e/ou sua bateria, faça-o de acordo com as leis e diretrizes ambientais locais. Para informações sobre o programa de reciclagem da Apple, pontos de coleta e telefone de informações, visile www.legrand.us/nuvo.aspx. Player Portfolio Audio System | Product Manual...
  • Page 41 3015 Kustom Drive Hebron, KY 41048 United States 844.334.8044 www.legrand.us/nuvo...
