Surround Mounting
Brackets
User Manual

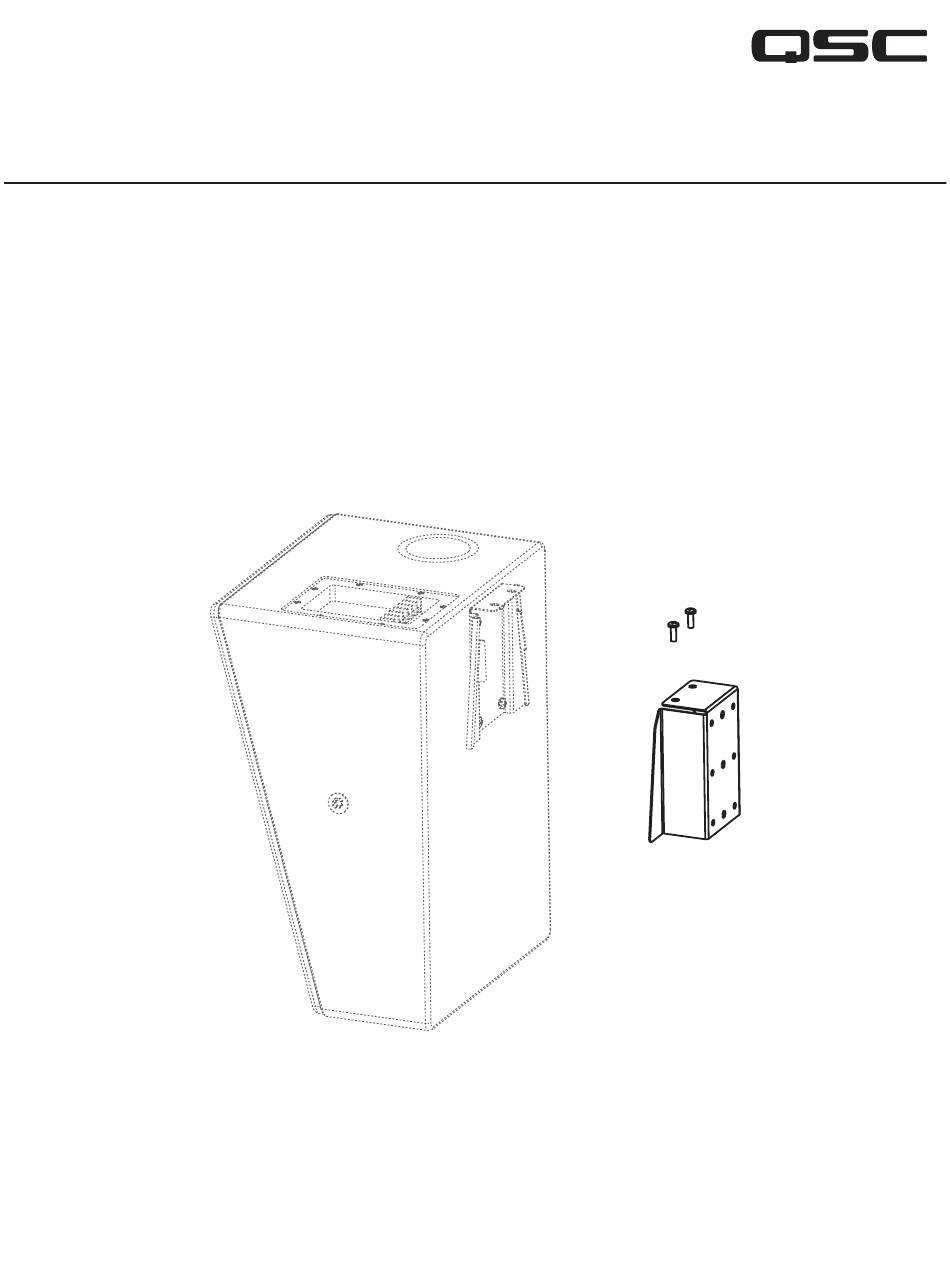

QM-SW (Side Wall, 0°) Surround Mounting Bracket
QM-BW (Back Wall 8°) Surround Mounting Bracket
For the following Cinema Surround Loudspeakers
TD-000381-01-C
*TD-000381-01*
SR-1000
SR-1020
SR-1030
SR-110
SR-110B
SR-1290
SR-1590
SR-18
SR-26
SR-46
SR-800
SR-8100
SR-8101
SR-8200
®
Advertisement
Table of Contents
Related Manuals for QSC QM-BW
Summary of Contents for QSC QM-BW
- Page 1 Surround Mounting ® Brackets User Manual QM-SW (Side Wall, 0°) Surround Mounting Bracket QM-BW (Back Wall 8°) Surround Mounting Bracket For the following Cinema Surround Loudspeakers SR-1000 SR-1290 SR-800 SR-1020 SR-1590 SR-8100 SR-1030 SR-18 SR-8101 SR-110 SR-26 SR-8200 SR-110B SR-46...
- Page 2 EXPLANATION OF SYMBOLS The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty.
- Page 3 These brackets are designed for fixed-angle mounting of QSC's cinema surround loudspeakers. The QM-SW is intended for side wall mounting and has a 0° downward angle (15° baffle angle). The QM-BW is intended primarily for back wall mounting and has an 8° downward angle (23° baffle angle).
- Page 4 Locate installation spot. It must be a structurally capable (1) of supporting at least five times the weight of the loudspeaker. Refer to the loudspeaker's specification sheet or www.qsc.com for weights. NIMPARWRRG!: Open end of wall bracket (4) is to be on the bottom end of the bracket when mounted.
- Page 5 (127 mm) 2.5 in 3.13 in (63.5 mm) (79.4 mm) 1.25 in 1.25 in (31.8 mm) (31.8 mm) QM-BW 6.73 in (170.9 mm) 3.7 in (94 mm) 3.86 in (98.1 mm) =0.344 in (8.74 mm) x 2 1.00 in (25.4 mm) =0.281 in (7.14 mm) x 6...
- Page 6 © 2016 - 2018 QSC, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners.
