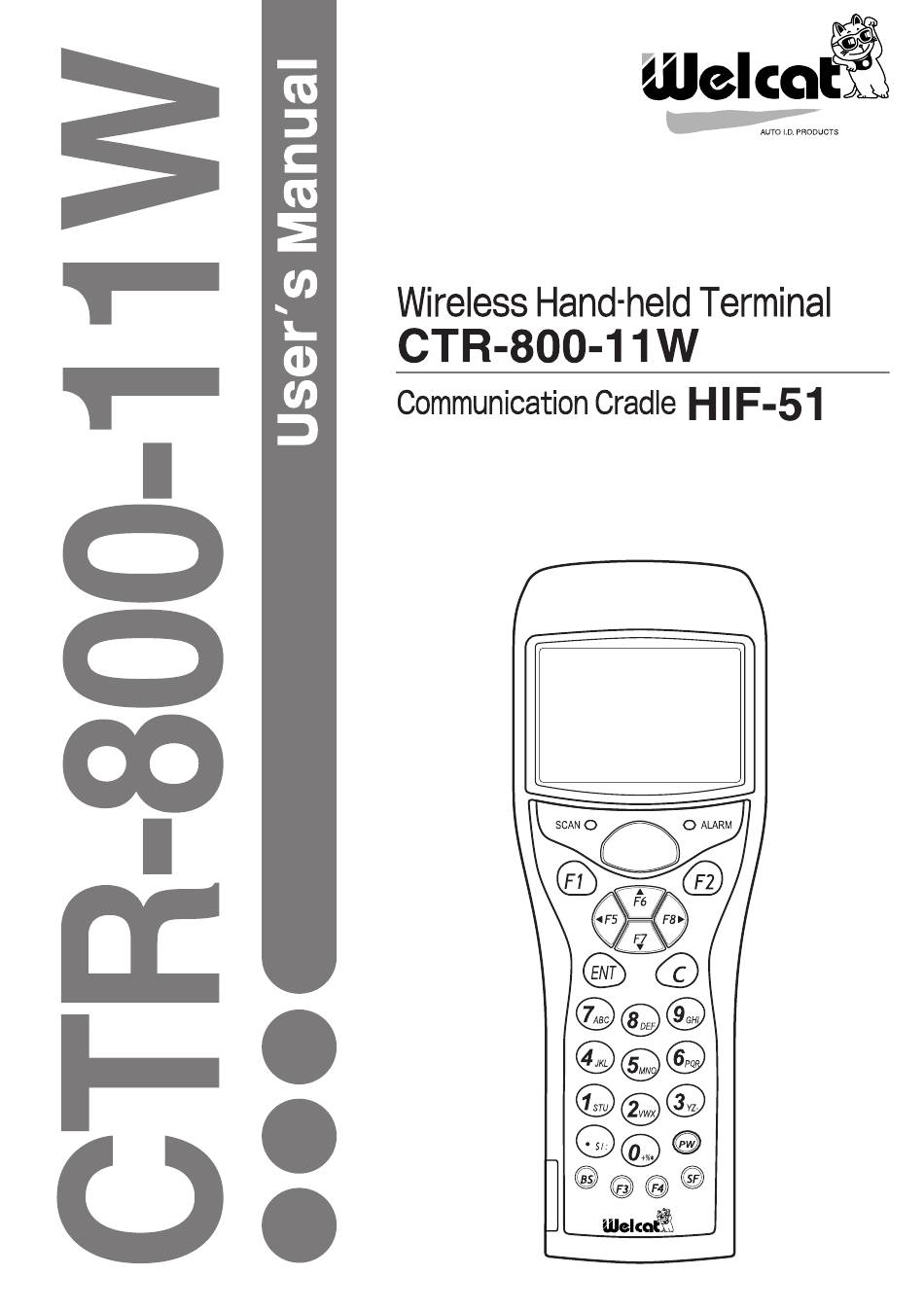

Welcat HIF-51 User Manual

Wireless hand-held terminal; communication cradle
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Welcat HIF-51

Summary of Contents for Welcat HIF-51

  • Page 2 Copyright 2003 Welcat Inc. All rights reserved. This document may not be reproduced whole or in part without prior consent from the publisher. Specifications are subject to change without prior notice. All products and company names mentioned in this manual are the trademarks or...
  • Page 3 SAFETY PRECAUTIONS • Be sure to read these precautions before using this product in order to insure safe operation of the equipment. • Keep this User's Manual on hand for future reference whenever you may need it. Strict observance of these warning and caution indications are a MUST for preventing accidents which could result in bodily injury and substantial property damage.
  • Page 4 Only use the specified AC Do not heat the battery pack, adaptor for Communication nor put it into fire or water. Cradle HIF-51. Doing so could cause battery- Using a different type of AC rupture or leakage of battery fluid...
  • Page 5 Do not charge the battery If battery fluid gets in your pack where any inflammable eyes, wash it out with clean gases may be emitted. water and contact a physi- cian immediately. Doing so could cause battery- rupture or leakage of battery fluid and resulting in a fire, burn, If it is left, there is fear of loss of bodily injury, or serious damage...
  • Page 6 Caution Only use the specified serial cable for Communication Cradle HIF-51. Using a different type of cable could cause communication error or equipment trouble. Do not place or use the ter- Do not place or use the ter- minal in the hot places such...
  • Page 7 Laser Safety This product using the laser comply with US 21CFR1040.10. This equipment is certified as a Class 2 laser product under the U.S. Department of Health and Human Services (DHHS) Radiation Performance Standard according to the Radiation Control for Health and Safety Act of 1968. This means that the equipment does not produce hazardous laser radiation.
  • Page 8 Product Labeling...
  • Page 9 FCC Statement This Device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interfer- ence that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 10 FCC Radiation Exposure Statement The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low pow- er wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used.

  • Page 11: Table Of Contents

    Contents Contents........................ x Introduction ......................xiv Enclosed Items....................xv Notational Information ..................xvi Manual Contents ....................xvii Chapter 1 Quick Guide 1-1 Part Names ....................1-2 1-2 Preparation before Use ................1-4 1-2-1 Equipment Connections ......................1-5 1-2-2 Additional Software ......................1-6 1-3 Wireless Communications................1-7 1-4 Preparation for Data Communication ............1-9 1-5 Data-Communication Method ..............1-11 Chapter 2 Hardware...
  • Page 12 Chapter 3 Software 3-1 CTR-800-11W Software................3-2 3-1-1 Data Storage .......................... 3-3 3-1-2 System Menu ......................... 3-4 3-1-3 CTR-800 Browser ......................... 3-4 Chapter 4 Setup 4-1 Introduction ....................4-2 4-2 System Menu ....................4-3 4-2-1 System Menu Operations ...................... 4-3 4-3 Starting the System Menu................4-5 4-3-1 How to Start the System Menu .....................
  • Page 13 4-8-8 Changing the Font ....................... 4-40 4-9 Status Menu....................4-41 4-9-1 Battery Voltage ........................4-41 4-9-2 OS Version........................... 4-42 4-9-3 Clock............................ 4-42 4-10 Test Menu ....................4-43 4-10-1 RF Test..........................4-43 4-10-2 Serial Communication Test ....................4-47 4-10-3 Barcode Scanning test ....................... 4-48 4-10-4 Screen Display Test ......................
  • Page 14 Chapter 6 Communication Cradle (HIF-51) 6-1 Introduction ....................6-2 6-1-1 Part Names..........................6-3 6-2 Connection....................6-5 6-2-1 Connection with a Host Computer..................6-5 6-3 Daisy Chain Connection................6-6 6-3-1 Configuration Examples - (DIP switch setup) ..............6-7 6-4 Interface .......................6-9 6-4-1 RS-232C Interface......................... 6-9 6-4-2 RS-485 Interface........................

  • Page 15: Introduction

    Introduction Thank you very much for purchasing a CTR-800-11W Wireless Hand-held Terminal. This user manual explains the hardware and the system program of the CTR- 800-11W. We hope the CTR-800-11W will improve efficiency of your business. ●The CTR-800-11W Manual consists of the following. Explains the fundamental functions and operation methods of the CTR- 800-11W.

  • Page 16: Enclosed Items

    ○"WebGlider", an integrated middleware package for web applications (WBG-800-01W) ○5250 Emulator "Handy 5250" for handy terminals (HTN-5250-01) ○PC Connection Cable (HOP-C031) ○Recmmended Printer Connection Cable (HOP-C032) ○Communication cradle (HIF-51) ○HIF-51 PC Connection Cable (WRS-AXC003A) ○HIF-51 Daisy-Chain Connection Cable (STP-C001A) ○File transfer program, Welfer II for Windows...

  • Page 17: Notational Information

    WLAN Wireless LAN Communication A serial communication interface between the CTR-800-11W and a PC. Please purchase separately. cradle (HIF-51) System program The OS stored in the CTR-800-11W System Menu A function of the system program The preinstalled CTR-800-11W browser. In the case where...

  • Page 18: Manual Contents

    Chapter 5: FAQ 付 第 第 Chap. Answers to questions frequently asked. 録 章 章 Chapter 6: Communication Cradle (HIF-51) 第 第 Chap. Explains the Communication Cradle (HIF-51). 章 章 Appendix A: System Menu Factory Settings App. Appendix B: Sample Barcodes App.

  • Page 20: Chapter 1 Quick Guide

    Chapter 1 Quick Guide...

  • Page 21: Part Names

    Chapter 1 Quick Guide 1-1 Part Names Chap. 1. Barcode Sensor The opening from where the barcode is read. 2. LCD (Liquid Crystal Display) Data and characters are displayed on the LCD. 3. LED Indicator If a barcode is read correctly, the light will turn green. 4.
  • Page 22 Special functions can be accessed by pressing this key together with other keys. 13.IrDA Interface Communicates with a communication cradle (HIF-51) or an exclusive printer via IrDA. 14.RS-232C Interface Connects with an exclusive printer or a computer using the optional cable.

  • Page 23: Preparation Before Use

    Please be sure to hold the CTR-800-11W when operating. It may fail if used while placed on the floor. Do not place the CTR-800-11W on top of the communication cradle (HIF-51) as the unit may fall and cause damage to both the communication cradle and the...

  • Page 24: Equipment Connections

    (WRS- AXC003A). The communication cradle communicates via IrDA. ■Purchased Separately Communication cradle (HIF-51) HIF-51 connection cable (WRS- AXC003A) If the communication cradle (HIF-51) is connected by a daisy chain connection (P.6-6), please purchase the daisy chain connection cable (STP-C001A) separately.

  • Page 25: Additional Software

    Chapter 1 Quick Guide 1-2-2 Additional Software In the case where you want to create a system for data communication between the CTR-800-11W and a host computer or build a system using the CTR-800 browser, the following software is required. Chap.

  • Page 26: Wireless Communications

    1-3 Wireless Communications 1-3 Wireless Communications ■ Wireless function of the CTR-800 series Chap. The CTR-800 series is a handy terminal network system incorporating a wireless communication system. The barcode terminal is small, lightweight and excels in portability. It is also suitable for moving around the work place, operating remotely from the computer while collecting barcode data.
  • Page 27 Chapter 1 Quick Guide ■The Wireless Communication System The wireless communication system is based on the IEEE802.11b standard, which is generally used in Wireless Local Area Networks (WLAN). In almost all cases, wireless communication can be performed if the access point used is Chap.

  • Page 28: Preparation For Data Communication

    1-4 Preparation for Data Communication 1-4 Preparation for Data Communication For data communication between a computer and the CTR-800-11W, perform Chap. the following setup. ■ Wireless communications Item Description Reference page SSID Setup Set the SSID (or ESSID) of the P.4-17 CTR-800-11W to the same as that of the access point.
  • Page 29 Chapter 1 Quick Guide Once setup is completed, first perform a wireless test (P.4-43) to see if the terminal can communicate with an access point. Then perform a ping test (P.4-45) to see if network communication between the terminal and computer can be performed.

  • Page 30: Data-Communication Method

    1-5 Data-Communication Method 1-5 Data-Communication Method Once the equipment has been setup, data communication can be performed Chap. using the following procedures. ■In the case of wireless communications The procedure for performing wireless communications is as follows. When you use the DHCP function (P.4-23), "WebGlider" is required. Once setup is completed, first perform a wireless test to see if the terminal can communicate with an access point.
  • Page 31 Chap. 1. Start the host computer in which "Welfer II for Windows" is installed. 2. After connecting the communication cradle (HIF-51) to the host computer using a HIF-51 PC connection cable (WRS-AXC003A), turn ON the communication cradle. When connecting the CTR-800-11W to a host computer directly, use the PC connection cable (HOP-C031).

  • Page 32: Chapter 2 Hardware

    Chapter 2 Hardware...

  • Page 33: Main Features Of The Ctr-800-11W

    Chapter 2 Hardware 2-1 Main Features of the CTR-800-11W 1．Ability to implement a cordless communication system If a terminal is within a service area, the terminal can roam around and communicate via a wireless transmission system. Moreover, when you need to extend the system in the future, you can add terminals with ease.

  • Page 34: Product Specifications

    2-2 Product Specifications 2-2 Product Specifications 2-2-1 Product Specifications NW-7, CODE39, JAN-13/8, UPC-A/E, EAN 13/8, Codes scanned Industrial 2of5, ITF, CODE93, CODE128, and EAN128 Number digits scanned Max. 72 Digits (data digits) Scanner Scanning width Max. 350mm Chap. Light source Red light semiconductor laser Resolution 0.127mm...

  • Page 35: Rs-232C Interface

    Management SNMP agent (SNMPv1) function MIB Support MIB-II (RFC1213) *Partially not supported Welcat Enterprise MIB ■ Display of alarm LED during wireless communications The state and meaning of the alarm LED during wireless communications are as follows. LED state Meaning Communication with an access point is possible.

  • Page 36: Scanning Specifications

    2-2 Product Specifications 2-2-3 Scanning Specifications ■Laser light irradiation angle The angle of the laser light irradiated from the CTR-800-11W is 55.25 degrees. Chap. ■Scanning Depth The range across which a barcode can be scanned is called a "scanning depth." The scanning depth for the CTR-800-11W is as shown in the figure below.
  • Page 37 Chapter 2 Hardware ●Scanning distance range Chap.
  • Page 38 2-2 Product Specifications ■Inclination of a barcode and the angle with which it can be read The following are the three kinds of a barcode inclination. Chap. ●Skew With a distance of 254mm, and a resolution of 0.508mm, scanning is possible up to 60°...
  • Page 39 Chapter 2 Hardware ●Pitch With a distance of 177.8mm and a resolution of 0.508mm, scanning is possible up to 65° perpendicular to the right and left of a barcode. Chap. ●Roll With a distance of 254mm and a resolution of 0.508mm, the roll is the angle with which the laser light irradiates the barcode.

  • Page 40: Battery Pack (Hbc-51)

    2-3 Battery Pack (HBC-51) 2-3 Battery Pack (HBC-51) The battery pack is not included with the CTR-800-11W. Please purchase sepa- rately and use it correctly. Chap. Be sure to follow the precautions below when handling the battery pack. • After purchasing, be sure to fully charge the battery pack before using. •...

  • Page 41: Removing The Battery Pack

    Chapter 2 Hardware 2-3-2 Removing the Battery Pack Release the lock by pulling up the lock lever in the direction (1). When the lock is released, the red indication of a lock lever will disappear. Slide the battery cover in the direction (2). If the battery cover is hard to remove, hold down at point A shown in the illustration then slide in the direction of the arrow.

  • Page 42: Replacing The Worn Out Battery Pack

    2-3 Battery Pack (HBC-51) 2-3-4 Replacing the Worn out Battery Pack A battery pack is an expendable item. Even if the battery pack is used correctly, it will deteriorate gradually in the course of being charged and discharged repeatedly. If the usage time is becoming shorter even after charging for the specified charging time, please replace the existing battery pack with a new one.

  • Page 43: Memory Backup Period (Battery For Backup)

    Chapter 2 Hardware 2-4 Memory Backup Period (Battery for backup) approximately three months. The memory backup period is In addition to the battery pack, a backup battery is built into the CTR-800-11W for maintaining data saved on the S drive and the built-in clock of the CTR- Chap.

  • Page 44: Charging The Backup Battery

    2-4 Memory Backup Period (Battery for backup) 2-4-1 Charging the Backup Battery This section describes the method for charging the backup battery. 1. Put the CTR-800-11W (with no battery pack installed) and one fully charged battery pack at a handy place. 2.

  • Page 45: S Drive Data

    Chapter 2 Hardware 2-4-2 S Drive Data The CTR-800-11W has two drives, the S Drive and the F Drive, where files can be saved. The data entered by a user is saved in the S Drive. If the CTR-800-11W is left for an extended period of time without charging, the contents of the S Drive may be lost because the S Drive is volatile.

  • Page 46: Suspend Function

    2-5 Suspend Function 2-5 Suspend Function The CTR-800-11W supports a suspend function. (P.4-15) The suspend function can be enabled through the System Menu and if selected, the next time the key is pressed on the CTR-800-11W, the suspend function will be used. Chap.

  • Page 47: Screen Output Characters

    Chapter 2 Hardware 2-6 Screen Output Characters ■Double-byte characters Shift JIS (OADG 2byte character set) is used for double-byte characters. The first bytes of Shift JIS are located at 81-9F and E0-FC, and the second at 40-7E and 80-FC. The following table is an extended character list created by our Chap.
  • Page 48 2-6 Screen Output Characters ■Single-byte characters The OADG single-byte character set is used for single-byte characters. The five characters, 80, A0, FD, FE and FF, are extended characters created by our company. Chap. 2-17...

  • Page 50: Chapter 3 Software

    Chapter 3 Software...

  • Page 51: Ctr-800-11W Software

    Chapter 3 Software 3-1 CTR-800-11W Software The CTR-800-11W software consists of the following two types. Controls the basic operation of the CTR-800- 11W. It is equivalent to an OS (operating system) of a personal computer, and is preinstalled in the CTR-800-11W. The System System program Menu, which sets the basic parameters for operation and performs various verifications, is...

  • Page 52: Data Storage

    3-1 CTR-800-11W Software 3-1-1 Data Storage ■Information about the data storage (drive configuration) The CTR-800-11W has two drives for storing data. The S Drive and the F Drive. Maximum Drive Data Retention Capacity ●Volatile memory Once backup Used to store files that battery is discharged are frequently written 32 files...

  • Page 53: System Menu

    Chapter 3 Software ■The files generated by the CTR-800 Browser In the case where the CTR-800 browser is being used for HTTP communication, the following files are created in the S Drive. Since a file with the same name is overwritten, be sure to use a different name than the following file names.

  • Page 54: Chapter 4 Setup

    Chapter 4 Setup...

  • Page 55: Introduction

    Chapter 4 Settings 4-1 Introduction The CTR-800-11W's System Menu can be used for various tasks such as network communication setup, operation setup, the installation of application programs, data file transmission and verification checks, etc. ■System Menu The System Menu is a part of the system program (P.3-2), which is preinstalled in the CTR-800-11W as one of the functions that comprise the operating system.

  • Page 56: System Menu

    4-2 System Menu 4-2 System Menu 4-2-1 System Menu Operations The following keys are used for operating the System Menu. Used to return to the previous menu. Used to select the corresponding menu item. ～ Used to confirm the selected menu item. Turns on the back light.
  • Page 57 Chapter 4 Settings ■About the screen display Depending on the menu (screen) displayed, the characters "F:~" or "S:~" may be displayed on the left-hand side of an item. If these characters are displayed on the left-hand side of an item, they represent the following: "F" = "F Drive" and "S"...

  • Page 58: Starting The System Menu

    ON and the System Menu will be started. 2. The System Menu is displayed immediately after the opening screen. CTR-800-11W (C)2003 Welcat Inc. If an application is set for "Startup" (P.4-7), hold down the scan key and then press the key to start the Chap.

  • Page 59: System Menu List

    Chapter 4 Settings 4-4 System Menu List 1:System 1:Startup 2:COM 1:Speed 2:Data Bits 3:Stop Bits 4:Parity 5:Port 3:Clock 1:Use DHCP 2:Manual Setup 4:LCD 5:Buzzer 1:Buzzer Volume 2:Device Type 6:Scanner 1:Trigger Mode 2:Power Mode 7:Suspend 2:Network 1:RF 1:Basic 1:SSID 2:Roaming 3:DOZE Timeout 4:Tx Speed 2:Security 1:WEP...

  • Page 60: System Setup Menu

    4-5 System Setup Menu 4-5 System Setup Menu 4-5-1 Setting the Programs for Automatic Launch You can set programs to launch automatically when the power is turned ON. In the factory settings, the System Menu is set to launch automatically. When the DHCP function (P.4-23) is enabled, these settings can be made automatically.

  • Page 61: Serial Communication Setup

    Chapter 4 Settings 4-5-2 Serial Communication Setup This section describes how to set up the serial port (RS-232C or IrDA) communication conditions. When the DHCP function (P.4-23) is enabled, these conditions can be set up automatically. 1. From the System Menu, select "1:System." <...

  • Page 62: Clock Setup

    4-5 System Setup Menu 4-5-3 Clock Setup Reference the time on the host computer to set up the system time. You can also set up the time manually. In the case where the DHCP function (P.4-23) is enabled, this setup can be made automatically. In order to receive the time from the host computer, please check the following in advance.

  • Page 63: Adjusting The Screen Contrast

    Chapter 4 Settings 5. In the case where wireless communications has < Clock Setup > failed, the confirmation screen for manual setup will appear after several seconds. Failed to sync clock. If you want to try to receive the time from the server Setup by manual? 1:Retry 2:Manual...

  • Page 64: Buzzer And Vibrator Setup

    4-5 System Setup Menu 4-5-5 Buzzer and Vibrator Setup You can set either the buzzer or the vibrator or both to notify a successful key entry or scan. 1. From the System Menu, select "1:System." 2. Then select "5:Buzzer." < System Config > 1:Startup 5:Buzzer 2:COM...
  • Page 65 Chapter 4 Settings ■Selecting a device 1. Select "2: Device Type" to toggle between the < Buzzer/Vibrator > buzzer and the vibrator. 1:Buzzer Volume 2:Device Type 2. "1:Buzzer" = a beep sounds. "2:Vibrator" = the main body vibrates. < Device Type > 1:Buzzer "3:Both"...

  • Page 66: Scanner Setup

    4-5 System Setup Menu 4-5-6 Scanner Setup Set up the operating conditions for the laser scanner while the application program is running. 1. From the System Menu, select "1:System." < System Config > 2. Then select "6:Scanner." 1:Startup 5:Buzzer 2:COM 6:Scanner 3:Clock 7:Suspend...
  • Page 67 Chapter 4 Settings ■Setting the power save mode You can save the battery power by setting the CTR-800-11W to the battery save mode, as described below. 1. Select "2: Power Mode." < Scanner Setup > 1:Trigger Mode 2:Power Mode ●Continuous On <...

  • Page 68: Suspend Mode Setup

    4-5 System Setup Menu 4-5-7 Suspend Mode Setup This section describes how to set up the suspend function. 1. From the System Menu, select "1:System." < System Config > 2. Then select "7:Suspend." 1:Startup 5:Buzzer 2:COM 6:Scanner 3:Clock 7:Suspend 4:LCD ●Suspend ON After the CTR-800-11W's power is off, and the next time <...

  • Page 69: Network Menu

    Chapter 4 Settings 4-6 Network Menu This section describes how to set up the CTR-800-11W wireless and TCP/IP communications. 4-6-1 Wireless Communications Setup This section describes how to set up the CTR-800-11W for wireless communications with an access point. 4-6-1-1 Operation Setup 1.
  • Page 70 4-6 Network Menu ■SSID Setup Note the following when setting the SSID. The SSID can incorporate up to 32 characters consisting of single byte alphanumeric character and symbol. The characters are case sensitive. Automatic setup is possible when the DHCP function (P.4-23) s enabled.
  • Page 71 Chapter 4 Settings ●SSID (ESSID) SSID is a unique identifier used to allow a terminal (CTR-800-11W) and an access point to communicate. Since a terminal can only communicate with an access point with the same SSID, the risk of a third person illegally accessing information is reduced a little.
  • Page 72 4-6 Network Menu < WEP > ■WEP (refer to P.4-20 for details) 1:WEP Disable WEP can be set to either "Null," "40 bits," or "128 bits." 2:TxKEY_ID KEY1 3:KEY Data ●TxKEY_ID Select the ID used for transmission from KEY1-KEY4 set in the next paragraph "KEY setup."...
  • Page 73 Chapter 4 Settings If the "Shared Key Authentication" system is used, there is a danger that the unen- crypted and encrypted "challenge code" may be intercepted by a third person. If this happens, the WEP key can be easily detected. The "Shared Key Authentica- tion"...
  • Page 74 4-6 Network Menu 4-6-1-3 Detailed Setup 1. From the System Menu, select "2:Network." 2. Then select "1:RF." < Network Config > 1:RF 5:DNS 2:TCP/IP 6:SNMP 3:DHCP 7:MAC 4:FTP 3. Then select "3:Advanced." < RF Setup > 1:Basic 2:Security 3:Acvanced Chap. <...

  • Page 75: Tcp/Ip Setup

    Chapter 4 Settings 4-6-2 TCP/IP Setup Set an IP address and other details for TCP/IP communications. Automatic setup is possible when the DHCP function (P.4-23) is enabled. 1. From the System Menu, select "2:Network." < Network Config > 2. Then select "2: TCP/IP." 1:RF 5:DNS 2:TCP/IP...

  • Page 76: Dhcp Setup

    4-6 Network Menu 4-6-3 DHCP Setup Set whether or not the DHCP client function is used for automatic setup of TCP/IP and various set items. Using the DHCP function, it is possible to download IP address, server address and program/data files to each CTR-800-11W and set them automatically.

  • Page 77: Ftp Setup

    Chapter 4 Settings 4-6-4 FTP Setup Set up for using the FTP client function, as described below. Automatic setup is possible when the DHCP function (P.4-23) is enabled. 1. From the System Menu, select "2:Network." < Network Config > 1:RF 5:DNS 2:TCP/IP 6:SNMP 2.

  • Page 78: Snmp Setup

    4-6 Network Menu 4-6-6 SNMP Setup Make the various SNMP settings. Automatic setup is possible when the DHCP function (P.4-23) is enabled. 1. From the System Menu, select "2:Network." < Network Config > 1:RF 5:DNS 2:TCP/IP 6:SNMP 2. Then select "6:SNMP." 3:DHCP 7:MAC 4:FTP...
  • Page 79 Chapter 4 Settings ■Community (R/W) Setup 1. From the System Menu, select "2:Network." < SNMP > 1:Community(R/Only) 2:Community(R/W) 2. Then select "6:SNMP." 3:Trap 3. Then select "2:Community (R/W)." ●Community name < R/W Community > 1:Community Name The operations permitted for a community name are 2:Manager Address read/write.
  • Page 80 MIB2-SNMP *1 [1.3.6.1.4.1.12392] Welcat Enterprise MIB Non-supported objects are included due to the functional reason of the CTR-800-11W. Welcat Enterprise MIB is described in ASN.1 format. Welcat Enterprise MIB is included in the optional "WebGlider" (for details, please contact our sales department).

  • Page 81: Displaying The Mac Address

    Chapter 4 Settings ●Supported Traps Transmitted after MIB is initialized and the communications Cold Start starts. MIB is initialized when the CTR-800-11W has been turned ON using the PW key. Note that MIB is not initialized when the CTR-800-11W has been turned ON in the resume mode.

  • Page 82: Terminal Id Setup Menu

    4-7 Terminal ID Setup Menu 4-7 Terminal ID Setup Menu Set up the terminal ID of the CTR-800-11W, as described below. The Terminal ID should be set to a unique number for every terminal in both wireless network communications and "Welfer II" serial communications. When the DHCP function (P.4-23) is enabled, this setup can be made automatically.

  • Page 83: File Menu

    Chapter 4 Settings 4-8 File Menu Use this menu to perform various file operations such as file execution, transmission and reception, and displaying file information. 4-8-1 Starting an Application Any application can be started while the System Menu is running. 1.

  • Page 84: Transmitting Files

    4-8 File Menu 4-8-2 Transmitting Files ■ Transmitting Files via Wireless Communications Files can be transmitted via wireless communication from the CTR-800-11W to a host computer through an access point. Communication is performed using the FTP protocol. Before transmitting a file, please check the following. ・...
  • Page 85 Complete ! ・ While transmitting or receiving a file using the communication cradle (HIF-51), do not remove the CTR-800-11W from the communication cradle. ・ When using "Welfer II for Windows" for serial communication, only the last 2 digits of the terminal ID are recognized.

  • Page 86: Receiving Files

    4-8 File Menu 4-8-3 Receiving Files ■ Receiving files via Wireless Communications The CTR-800-11W can receive files transmitted from a host computer via an access point. Communication is performed using the FTP protocol. Before receiving a file, please check the following. ・...
  • Page 87 1. Start the host computer in which "Welfer II for Windows" is installed. 2. Turn ON the power of the communication cradle after connecting the communication cradle (HIF-51) to the host computer using the HIF-51 PC connection cable (WRS-AXC003A) (P.6-1).
  • Page 88 Complete ! While transmitting or receiving a file using the communication cradle (HIF-51), do not remove the CTR-800-11W from the communication cradle. Refer to the software's included manual for information about "Welfer II for Windows"...

  • Page 89: Deleting Files

    Chapter 4 Settings 4-8-4 Deleting Files Delete unnecessary files, as described below. 1. From the System Menu, select "4:File." < File Menu > 1:Execute 5:Test 2. Then select "4:Delete." 2:Send 6:Property 3:Receive 7:Drive 4:Delete 8:8Font 3. Select a file to delete. <...

  • Page 90: Testing Files

    4-8 File Menu 4-8-5 Testing Files Test the stored files to see if any of them are corrupted or not. When this menu item is selected, a test will be performed automatically on the files stored in the S Drive. 1.

  • Page 91: File Information

    Chapter 4 Settings 4-8-6 File Information To view file information, follow the procedure below. The information retrieved is as follows. ・File Name ・File Type ・File Size ・Date on which the file was last modified (Year/Month/Day/Hour/Minute/Second) 1. From the System Menu, select "4:File." <...

  • Page 92: Drive Information

    4-8 File Menu 4-8-7 Drive Information To view the information on a drive you select, follow the procedure below. The information retrieved is as follows. ・Drive Name ・Maximum capacity for the drive ・Available space on the drive ・The number of files currently stored and the number of files that can be created 1.

  • Page 93: Changing The Font

    Chapter 4 Settings 4-8-8 Changing the Font If font files are installed, the font used in an application can be changed. The font used for the System Menu cannot be changed. Only systemt Gothic (12- dot display) can be used. 1.

  • Page 94: Status Menu

    4-9 Status Menu 4-9 Status Menu You can check the information on the CTR-800-11W, as described below. 1. From the System Menu, select "5:Status." < System Menu > 1:System 4:File 2:Network 5:Status 3:TermID 6:Test 4-9-1 Battery Voltage To display the voltage level of the battery pack equipped in the CTR-800-11W, follow the procedure below.

  • Page 95: Os Version

    Chapter 4 Settings 4-9-2 OS Version To display the version information of the CTR-800-11W's system program (OS), follow the procedure below. 1. From the System Menu, select "5:Status." < Status > 2. Then select "2:Version." 1:Battery 2:Version 3:Clock 3. The version number is displayed. Press the <...

  • Page 96: Test Menu

    4-10 Test Menu 4-10 Test Menu From this menu, you can perform various tests on the CTR-800-11W's basic functions. 1. From the System Menu, select "6:Test." < System Menu > 1:System 4:File 2:Network 5:Status 3:TermID 6:Test 4-10-1 RF Test Checking the connectivity of the IP network by executing the wireless communications test and the ping command.
  • Page 97 Chapter 4 Settings ●Timeout Period (1 second by default) Set the Timeout period in seconds. 1 ∼ 255 seconds Possible Setting Range ●Number of Attempts (4 by default) Set the number of attempts that can be made at transmitting the ping. 0 ∼...
  • Page 98 4-10 Test Menu For stable communication performance, we recommended that you use the CTR-800-11W at locations where the LnkQ indicates 4 or more. The LnkQ displayed on the 3rd line and the ASL Indicator displayed on the 5th line do not represent the exact levels of incoming signal strength. Use these levels only as a guide for the wireless reception level.
  • Page 99 Chapter 4 Settings 1. From the System Menu, select "6:Test." < Test Menu > 2. Then select "1:RF." 1:RF 5:Key 2:COM 3:Barcode 4:LCD 3. Then select "4:Search AP." < RF Test > 1:Parameter 2:Site Survey 3:Ping 4:Serarch AP 4. A search for access points will be started. The SSID <...

  • Page 100: Serial Communication Test

    4-10 Test Menu 4-10-2 Serial Communication Test Perform a serial communications test on the CTR-800-11W, as described below. To run the test, preparation for data communication is required. For details, refer to "1-4 Preparation for Data Communication" (P.1-9), or "4-5-2 Serial Communication Setup"...

  • Page 101: Barcode Scanning Test

    Chapter 4 Settings 4-10-3 Barcode Scanning test Perform a barcode scanning test, as described below. A sample barcode can be found in "Sample Barcode" (Appendix B-2). 1. From the System Menu, select "6:Test." < Test Menu > 2. Then select "3:Barcode." 1:RF 5:KEY 2:COM...

  • Page 102: Key Input Test

    4-10 Test Menu 4-10-5 Key Input Test To perform a key input test, follow the procedure below. Along with this test, tests on the buzzer, vibration, and LED light are also performed. 1. From the System Menu, select "6:Test." < Test Menu > 2.

  • Page 103: Other Functions

    Chapter 4 Settings 4-11 Other Functions 4-11-1 Low Voltage Warning If the voltage level of the equipped battery pack decreases, it becomes impossible to perform the following operations with the System Menu. ・Launch of applications ・File transmission, reception, deletion and test ・Clock setup If any of the operations mentioned above is performed <...

  • Page 104: Initialization Of The Ctr-800-11W

    4-12 Initialization of the CTR-800-11W 4-12 Initialization of the CTR-800-11W While using the CTR-800-11W, the contents in the memory storage area may be corrupted for some reasons and the CTR-800-11W may not operate normally. Although almost all those abnormalities are corrected automatically through the System Menu, a serious error may not be able to be corrected.
  • Page 105 Chapter 4 Settings ■Full Initialization This function will erase all files and applications except the OS from the CTR- 800-11W. The "CTR-800 browser" installed at the time of purchase is also erased. Make sure to back up everything before initialization. Prepare a fully charged battery pack before performing a full initialization.

  • Page 106: Chapter 5 Faq

    Chapter 5...

  • Page 107: Q: The Power Does Not Turn On

    Chapter 5 FAQ 5-1 FAQ (Frequently Asked Questions) This chapter lists frequently asked questions, problems and operations that need to be performed to solve problems, and reference pages for items in this manual. Q: The power does not turn ON. ■Is the battery pack equipped correctly? ---- (P.2-11) ■Is the battery pack charged?---- (P.2-9) ■Aren't the battery pack electrodes dirty? ---- (P.2-9)

  • Page 108: Q: The System Menu Does Not Start

    Chapter 5 FAQ Q: The System Menu does not start. ■Is an "User Program" not set to "Startup"? ---- (P.4-7) From the System Menu, select "1:System", then "1:Startup" to set the System Menu for automatic launch. ■To force the launch of the System Menu, hold the scan key then press the key.

  • Page 109: Q: I Cannot Perform Wireless Data Communications

    Chapter 5 FAQ Q: I cannot perform wireless data communications. ■Is the access point connected to the Ethernet LAN? ・ If the LAN cable has fallen out or a link is not established, some access points do not perform wireless communications. <When the Warning LED lights ON>...

  • Page 110: Q: Data Communications Cannot Be Performed Via Irda Or Rs-232C

    Use the PC connection cable (HOP-C031). ・Connection between the communication cradle (HIF-51) and the PC-- -- (P.1-5) Use of daisy chain connection for the communication cradle (HIF-51) ・Use of daisy chain connection for the communication cradle (HIF-51)-- -- (P.6-6) Use the daisy chain connection cable (STP-C001A).

  • Page 111: Q: "Time Out" Was Displayed During Transmission Or Reception Of A File

    "Welfer II for Windows.") ■Is the communication settings made correctly? ---- (P.4-8, 4-16,4-29) ■Are the communication cradle (HIF-51) and the host computer connected correctly? ---- (P.1-5, 6-5) ■Are the CTR-800-11W and the host computer connected correctly?-- -- (P.

  • Page 112: Q: Starting An Application Or Transmission/Reception Of A File Cannot Be Performed

    Chapter 5 FAQ Q: Starting an application or transmis- sion/reception of a file cannot be performed. When the voltage level of the battery pack is low, the CTR-800-11W is unable to handle some functions. Is the battery pack charged? ---- (P.4-50, 2-9) Q: I suspect that the file is corrupt.

  • Page 114: Chapter 6 Communication Cradle (Hif-51)

    Chapter 6 Communication Cradle (HIF-51) This chapter explains about the communication cradle (HIF-51). When you use the communication cradle (HIF-51), please read this chapter also manual included with communication cradle (HIF-51).

  • Page 115: Introduction

    ■About the daisy chain connection The daisy chain connection method connects additional equipment to the last one to form a chain of connection. When using communication cradles (HIF-51) in a daisy chain system, a maximum of 16 units (full length connection of 1200m) can be used.

  • Page 116: Part Names

    4. Power switch 5. AC power connector 6. RS-232C connector Used to connect the communication cradle to the host computer via a HIF-51 PC connection cable (WRS-AXC003A: option). 7. RS-485 Connector × 2 Used to create a daisy chain connection by connecting an communication cradle to other communication cradles (HIF-51) via a daisy chain connection cable (STP-C001A: optional).
  • Page 117 P. 6-6 ■About the power LED If the CTR-800-11W is removed from the communication cradle (HIF-51) during communication, the power LED may remain red for a while. At this point, the communication process is still progressing between the communication cradle (HIF-51) and the host computer.

  • Page 118: Connection

    6-2 Connection 6-2 Connection 6-2-1 Connection with a Host Computer When connecting to a host computer, make certain you have the HIF-51 PC con- nection cable (WRS-AXC003A) on hand. 1. Connect an communication cradle to a host computer using the HIF-51 PC connection cable (WRS-AXC003A).

  • Page 119: Daisy Chain Connection

    Chapter 6 Communication Cradle (HIF-51) 6-3 Daisy Chain Connection By using communication cradles (HIF-51) and daisy chain connection cables (STP-C001A), you can create a daisy chain connection of a maximum of 16 units. In a daisy chain connection, you can transmit one file to two or more terminals at once from a host computer (broadcast transmission).

  • Page 120: Configuration Examples - (Dip Switch Setup)

    800-11W and the unit will go into communication standby mode. Communication will begin once the line becomes available. Press the key to cancel the communication standby mode. 6-3-1 Configuration Examples - (DIP switch setup) ■When using one communication cradle (HIF-51). Chap. ■When using two communication cradles (HIF-51)
  • Page 121 Switch Number Description ON: terminating resistance; OFF: no terminating resistance Do not change these switches. If the DIP switches on the bottom of the communication cradle (HIF-51) are changed unnecessarily, the unit may not operate correctly and it may cause failure.

  • Page 122: Interface

    Terminal Direction Description number name Prohibited Input Receive data Output Transmit data Output Data terminal ready Signal ground Input Data set ready Output Send request Input Transmission possible Prohibited Chap. ● Communication cradle (HIF-51) PC connection cable (WRS-AXC003A) schematic...

  • Page 123: Interface

    Chapter 6 Communication Cradle (HIF-51) 6-4-2 RS-485 Interface Pin number Description Prohibited Prohibited Prohibited Signal line (+) Signal line (-) HIF-51 connection detection line HIF-51 connection detection line When using a daisy chain connection, be sure to use the daisy chain connection cable (STP-C001A).

  • Page 124: Interface Specification

    6-4 Interface 6-4-3 Interface Specification Communication system Full duplex Synchronous system Start-stop synchronization Baud rate 2400-115200bps Data bit length 7 bits / 8 bits Communication Parity Even, odd, none conditions Stop bit length 1 bit / 2 bits RS-232C Flow control RTS/CTS control HDEB-9S Made by Hirose Electric Connector...

  • Page 126: Appendix A System Menu Factory Settings

    Appendix A System Menu Factory Settings...
  • Page 127 Appendix A System Menu Factory Settings System Menu Factory Settings Item Menu Tree Possible Setting Range Factory Settings 1:System→1:Startup System Menu 1:System Menu Startup User Program 1:System→1:COM 2400・9600・19200・ 6:115200bps →1:Speed 38400・57600・ Speed 115200bps 1:System→1:COM 7 bits 2:8 bits →2:Data Bits 8 bits Data Bits 1:System→1:COM...
  • Page 128 Appendix A System Menu Factory Settings Item Menu Tree Possible Setting Range Factory Settings 2:Network→1:RF Disable, 40bits, Disable →2:Security 128bits →1:WEP →1:WEP 2:Network→1:RF KEY1, KEY2, KEY3, 1:KEY1 WEP TxKEY_ID →2:Security KEY4 →1:WEP →2:WEP TxKEY_ID 2:Network→1:RF Setting the contents Key Data →2:Security of each WEP key (1, →1:WEP...
  • Page 129 Appendix A System Menu Factory Settings Item Menu Tree Possible Setting Range Factory Settings 2:Network→5:DNS value which is divided 000.000.000.000 Primary DNS Server →1:Primary Server into four fields by a period 2:Network→5:DNS value which is divided 000.000.000.000 Secondary DNS →2:Secondary Server into four fields by a Server period...

  • Page 130: Appendix B Sample Barcode

    Appendix B Sample Barcode...
  • Page 131 Appendix B Sample Barcode Sample Barcode ■JAN13 4 9 9 4 1 2 1 1 0 4 5 7 9 4 9 9 4 1 2 1 1 0 2 0 7 0 ■JAN8 4 9 1 2 3 4 5 6 4 9 1 1 2 2 3 8 ■UPC-E 0 0 1 2 3 4...
  • Page 132 Appendix B Sample Barcode ■CODE39 (C/D) * 1 2 3 4 5 F * * A B C D E H * ■CODE39 (No C/D) * 1 2 3 4 5 6 * * A B C D E F * App.
  • Page 133 Appendix B Sample Barcode ■NW-7 (C/D) a 1 2 3 4 5 6 $ a b - $ / 4 5 6 / 0 b ■NW-7 (No C/D) c 5 6 7 8 9 0 c d : / + 7 8 9 d ■NW-7 (HEX) a A B C D E F a b D E F A B C b...
  • Page 134 Appendix B Sample Barcode ■ITF (C/D) 1234567895 9876543215 ■ITF (No C/D) 1234567890 9876543210 App. Appendix B-5...
  • Page 135 Appendix B Sample Barcode ■ITF (Standard ITF-14) 0 4 9 1 2 3 4 5 6 7 8 9 0 4 1 1 2 2 3 3 4 4 5 5 6 6 7 5 ■ITF (Extended ITF-16) 0 1 0 4 9 0 3 3 3 3 0 4 9 4 0 9 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 4 ■ITF (Add on version ITF-6) 1 2 3 4 5 7...
  • Page 136 Appendix B Sample Barcode ■CODE128 (Codeset A) ■CODE128 (Codeset B) ! " # $ % & ' ( ) ■CODE128 (Codeset C) 0 1 2 3 4 5 6 7 8 9 0 1 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 App.
  • Page 137 Appendix B Sample Barcode ■EAN128 (Codeset A) ( 0 1 ) 1 4 5 3 0 8 2 5 0 0 0 0 1 3 ( 1 7 ) 0 0 1 2 3 1 ■EAN128 (Codeset B) ( 0 6 ) 1 7 4 5 8 6 6 3 5 2 5 3 0 0 ( 1 4 3 ) 5 4 3 2 1 0 ■EAN128 (Codeset C) ( 1 0 ) 1 3 5 8 9 6 4 5 1 2 3 0 0 4 ( 4 8 ) 4 6 8 1 2 5 App.
  • Page 138 Index...
  • Page 139 Index CODE128 (sample barcode) ..B-7 Ａ CODE39 (sample barcode) ..B-3 codes scanned......2-3 access point......1-5, 1-8 communication cradle ...1-5, 6-2 antenna ........2-4 communication system ....2-4 antenna power output ....2-4 communication via IrDA ....1-5 application program .....3-2 community .......4-25 authen mode ......A-3 community name....
  • Page 140 IP address ....4-25 hand strap........1-3 memory ........2-3 Handy5250.........1-6 memory backup period....2-12 HBC-51 ........2-9 initialization of the .....4-51 HIF-51 ........ 1-5, 6-2 middle power ......4-14 HOP-C031 ........1-5 MRD.......... 2-3 host address ...... 4-43, A-3 Ｎ host computer......6-6 HQC-51/HQC-54 ......2-9 non-volatile memory ....
  • Page 141 Index Ｓ Ｏ S drive ....... 2-14, 3-3, 4-4 open authentication ....4-20 sample barcode ......A-2 operating environment ....2-3 scan key........1-2 operation monitor......1-6 scanning depth......2-5 OS version........ 4-42 scanning distance range ....2-6 Ｐ scanning range......2-5 scanning specifications ....
  • Page 142 Index WRS-AXC003A ......1-5 Ｔ target address ......4-26 TCP/IP ........2-2 TCP/IP communication ....1-8 TCP/IP communications....4-22 TCP/IP setup.......1-9 terminal ID ....... 4-29 testing files....... 4-37 the CTR-800-11W software...3-2 timeout .......A-2, A-4 timeout period ......4-44 transmission range ......2-4 transmission speed ..... 2-4, 4-17 transmitting files (via serial communications)....

This manual is also suitable for:

Ctr-800-11w

Table of Contents
