Summary of Contents for Bear LL6 MINI

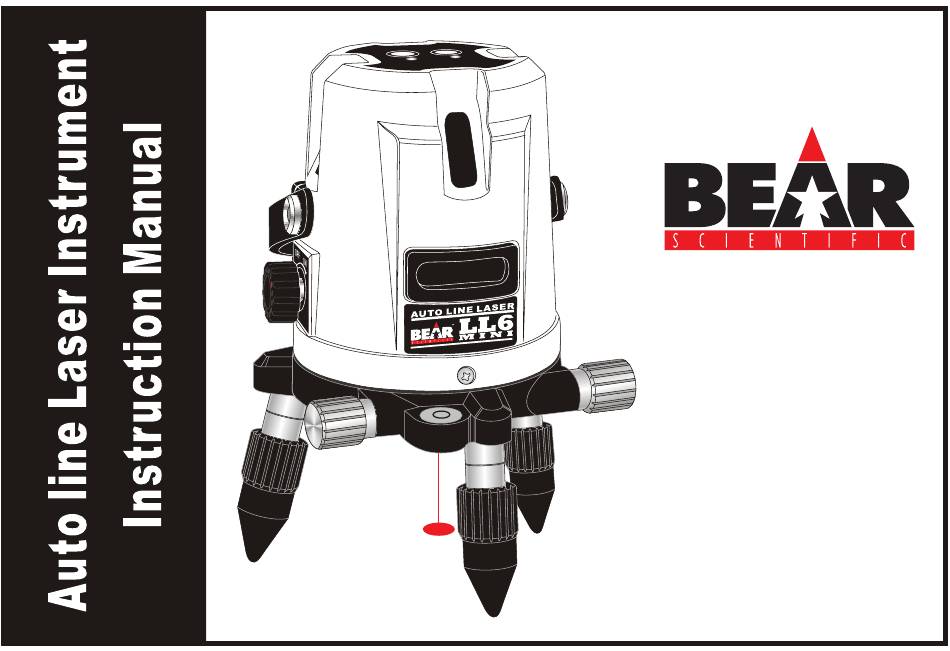

- Page 1 ™ M I N I INDOOR/OUTDOOR...
- Page 2 Thank you for purchasing the Bear LL6-MINI multi-line laser. For trouble-free use of the instrument, please read this instruction manual carefully and keep it for future reference. Place of Purchase : ........Date of Purchase : ...../..../ .... www.bearscientificproducts.com...
-
Page 3: Table Of Contents
Contents 1. Instrument accessories ................Cautions ....................3. Functional description ................4. All laser line functions ................5. Instrument layout ................... 6. Touch panel controls ................7. Operation ....................8. Specifications ..................9. Care & maintenance ................10. Optional accessories ................—... -
Page 4: Instrument Accessories
1. Instrument accessories Standard accessories 1. Multi-line laser instrument 2. Aluminium carrying case 3. Instruction manual 4. Laser glasses 5. Ni-MH batteries (4xAA), B-CHRG smart charger for Ni-MH batteries Optional accessories Pictures page 11 1. Laser line outdoor receiver M I N I M I N I &... -
Page 5: Cautions
2. Cautions 1. The LL6-MINI is clasified as a Class 2M/2a laser product according to United States Government Code of Federal Regulations CFR21. 2. Avoid direct eye exposure to the laser beam. 3. When moving the instrument please turn off the power. 4. -
Page 6: Functional Description
3. Functional description 1. The LL6-MINI produces 4 visible Vertical lines all at 90° to each other, 1 Horizontal line for checking levels, and a plumb point down. All 4 Vertical lines wrap up the walls and onto the ceiling to produce a cross directly above the unit for plumb setting applications. -
Page 7: All Laser Line Functions
4. All laser line functions Plumb Point — 5 —... -
Page 8: Instrument Layout
5. Instrument layout 1. Touch panel 2. Power switch 3. Vertical laser windows 4. Battery cover 5. Horizontal laser window 6. Circular bubble 7. Carrying belt 8. Fine tangent adjustment screw 9. 5/8x11 female thread incorporating plumb down laser point 10. -
Page 9: Touch Panel Controls
6. Touch panel controls 1. Outdoor receiver LED (when LED is ON, function is engaged M I N I and optional B-LLR receiver can be used) 2. Outdoor receiver button 3. Laser LED (On whenever laser is ON) 4. Laser mode button (press to cycle RECEIVER CYCLE BEAMS OUTDOORS... -
Page 10: Operation
7. Operation 1. Open the battery compartment and insert 3 x Alkaline batteries or rechargeable batteries in the correct order (+/-). Close the battery cover. If the unit does not turn on check battery voltage and polarity. 2. Place the LL6-MINI on the floor, countertop or mount it to a tripod. 3. -
Page 11: Specifications
8. Specifications Model LL6-MINI Beam 4V1H1D Light sources Lines: 635nm laser diode / plumb point: 650nm Laser safety class Class 2M/2a Accuracy ±1mm/5m Self leveling range ±3° Working range Up to 40m with receiver Sensitivity of circular level 60´/2mm Incline alarm range ±2°... -
Page 12: Care & Maintenance
9. Care & Maintenance 1. If the instrument is opened (cover removed) by anyone other than an authorised service centre, warranty will be void. 2. Avoid dropping the unit or shaking it as there is a possibility that the accuracy will change. If the instrument has been dropped please return it to your dealer for calibration (charges may apply). -
Page 13: Optional Accessories
12. Optional accessories 2. Multi Function Tripod model B-MFT • Telescopic centre rod – range 450mm • Flat head – 5/8 x 11 male thread 1. Laser Line Outdoor • Large support disc for all laser, optical instruments Receiver and Clamp •... - Page 14 12. Optional accessories (continued) 4. Wall Mount Laser Target 3. Laser Pole model B-WM model MT model LP12-LL 5 section, 32mm diameter pole, extends to total 3.6m ht. Adjustable platform throughout whole height with 5/8 x 11 male thread. Includes carry bag (750mm), holds all 5 sections incl adjusting platform.
- Page 15 5. Bear Small Elevating Tripod 6. Bear Large Elevating Tripod model B-SET model B-LET • Height when closed 15cm • Height when closed 56cm • Height when fully extended 26cm • Height when fully extended 146cm • 5/8 x 11 thread •...
- Page 16 ™ AUTHORISED DEALER:...
