Carestream DryView 5700 Getting Started

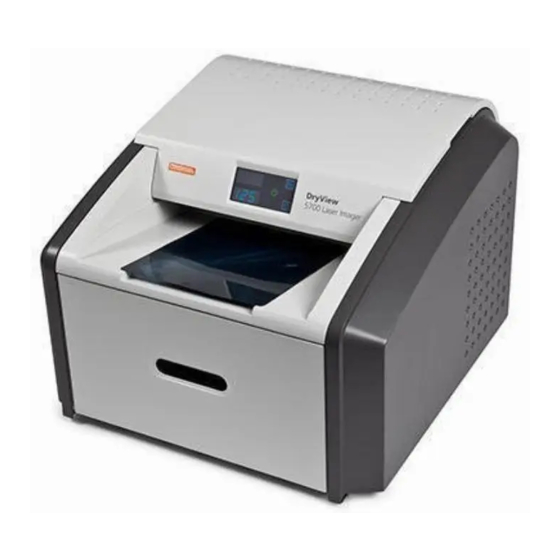

Laser imager
Hide thumbs Also See for DryView 5700:

Advertisement

Table of Contents

Getting Started
Requirements to install the laser imager
Unpack the laser imager.
Use a personal computer to view the documentation on
the publications disc supplied with the laser imager.
Connect a personal computer to the laser imager and
enter the network information.
Configure the laser imager to print from a modality.
Make a backup disk of the configuration.

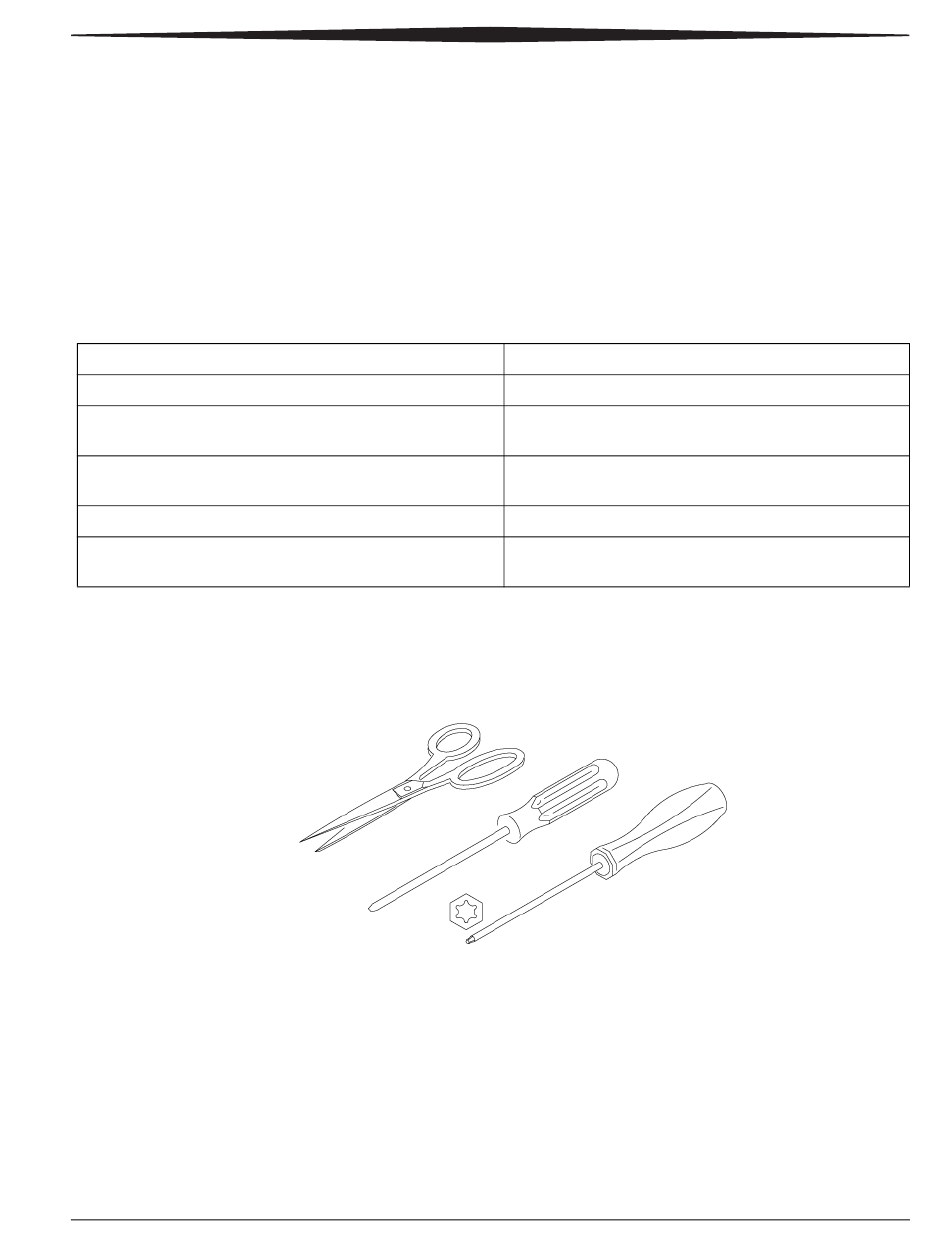

Required tools
Required information
2011-01-05
IMPORTANT:
Task
•
Scissors
•
Straight blade screwdriver
•
Phillips screwdriver
You will need:
•
IP Address and related network information for the laser imager
•
Configuration information for each modality that will print to the laser
imager
This information should have been previously collected and recorded in
the Site Readiness manual that was provided to your site. In the Site
Readiness manual, see the sections, "Network Requirements" and
"Modality Configuration."
If you do not have this Site Readiness manual, contact your dealer.
9G5124_en
The laser imager weighs approximately 53.52 kg (118 lb).
Two people must use safe lifting techniques to move the
laser imager. One person can complete the remaining
steps.
Recommended Skill or Knowledge
Ability to use common hand tools.
Basic personal computer skills.
Familiarity with TCP/IP network addressing
conventions.
Familiarity with DICOM protocol.
Understand personal computer file name
conventions.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DryView 5700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carestream DryView 5700

Summary of Contents for Carestream DryView 5700

  • Page 1 Getting Started Requirements to install the laser imager IMPORTANT: The laser imager weighs approximately 53.52 kg (118 lb). Two people must use safe lifting techniques to move the laser imager. One person can complete the remaining steps. Task Recommended Skill or Knowledge Unpack the laser imager.

  • Page 2: Unpacking The Laser Imager

    Unpacking the laser imager Checking the Check that the following items are included in the accessories box: accessories • Power cord • Network cable • Charcoal filter • Publications disc IMPORTANT: Please read the Safety Manual before you proceed to install or operate the laser imager.
  • Page 3 To move the back shipping brackets, remove: Back cover. 4 screws that fasten the shipping brackets. Back view of laser imager Shipping brackets Reattach the shipping brackets: Shipping brackets reattached Replace the back cover. 2011-01-05 9G5124_en...
  • Page 4 To move the front shipping bracket: Open the front cover. Remove 4 screws that fasten the shipping bracket. Front view of laser imager Shipping bracket FRONT SHIPPING BRACKET (FILTER REMOVED) Reattach the shipping bracket: Shipping bracket reattached Front Shipping Bracket in Storage 9G5124_en 2011-01-05...
  • Page 5 Install the charcoal filter. Front cover Close the front cover. 2011-01-05 9G5124_en...

  • Page 6: Connecting To Electrical Power

    Connecting to electrical power Locate the power cord. The power cord must match the AC power outlets at your site. If you cannot use the power cord that is provided, obtain a suitable power cord locally. You must use an agency-approved power cord rated for adequate amperage with a plug type suitable for your location.

  • Page 7: Applying Power

    Applying power Check that the film supply is closed. Remove the protective covering from the display screen. To start the laser imager, press the power switch on the back of the laser imager to on (|). Wait as the laser imager warms up. The warm-up period might last up to 30 minutes.

  • Page 8: Configuring The Laser Imager

    Configuring the laser imager Setting up your Do this procedure at your computer. computer to Select Start>Settings>Network Connections. communicate with the NOTE: Depending on your operating system, this might be Start>Settings>Network and Dial-up Connections. laser imager Right-click Local Area Connection. Select Properties.

  • Page 9: Configuring Site-Specific Information

    Configuring Start MICROSOFT INTERNET EXPLORER. site-specific information In the Address field, type: 192.168.0.1 Click Go. The main screen for the Web Portal appears. Select your language: Select Wizard > Installation Assistant. Click at the bottom of the screen. The Network Configuration screen appears.
  • Page 10 Are the time zone, date, and time correct? Advance to step 12. Continue with the next step. Will you set the clock manually, or does the site use a time server for sychronization? Manually Synchronization Select the time zone. Select the Enable Time Synchronization check box.

  • Page 11: Completing The Installation

    Completing the installation Laser imager back panel Connect the network cable to the network connector on the laser imager. Connect the other end of the network cable to the nearest building network connector. After the laser imager has completed the warm-up cycle, send an image from each modality that will print to the laser imager.

  • Page 12: Troubleshooting

    Troubleshooting CAUTION Laser imager does not Never pull on the cord to disconnect the plug from the wall outlet. Grasp the plug and pull to disconnect. start Press the power switch on the back of the laser imager off(0), and then on (|), to restart the laser imager.

  • Page 13: Publication History

    Publication History Revision Date Reason for Change 2011-01-05 Gate 2 2011-01-05 9G5124_en...
  • Page 14 Carestream Health, Inc. 150 Verona Street Rochester, New York 14608 © Carestream Health, Inc., 2011 Pub No. 9G5124_en Rev 30...
