Summary of Contents for Vytronix HSG1000

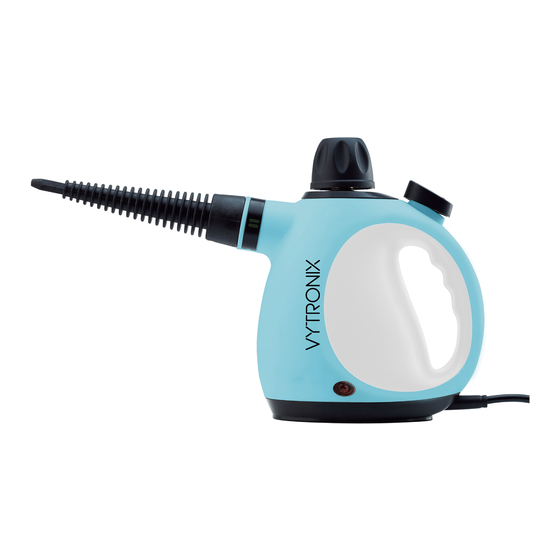

- Page 1 H S G 1 0 0 0 S T E A M C L E A N E R I N S T R U C T I O N MA N U A L w w w . v y t r o n i x . c o m...
-
Page 2: What's In The Box
What’s in the box 1: Power indicator light 8: Concentration nozzle 2: Power cord and plug 9: Filling funnel 3: Steam button 10: Small brush attachment 4: Safety filler cap 11: Angled nozzle 5: Steam outlet nozzle 12: Window/upholstery cloth 6: Steam hose 13: garment/upholstery tool 7: Measuring cup... -
Page 3: Safety Precautions
Safety Precautions This icon represents “Prohibition” This icon represents “Warning” Cleaning and user maintenance must not be carried out by children without supervision. To prevent electrical shock, do not immerse in water or any other liquids. The mains lead of this appliance is not replaceable by the consumer. - Page 4 Before refilling water, ensure to unplug the power cord to disconnect power supply. It is necessary to unplug the power cord after the machine is used, before any maintenance is carried out. Do not add any rust remover, odor-counteracting agent, alcohol or detergent into the tank, this will cause damage.
-
Page 5: Technical Specification
Technical Specification • Rating of power supply: AC 220-240V, 50/60Hz, • Tank capacity: 350ml • Max recommended volume of water: 250ml • Rated power: 900-1050W • Steam pressure: 0.25MPa～0.32 Mpa • Injected steam capacity: 28g/min • Temperature controller: functioning temperature: 132℃; •... - Page 6 Operating Instructions 1. Unpack the product, check the accessories and documents supplied with the product and make sure that the product and accessories are not damaged. 2. Before use, please read the User Manual carefully. The steam cleaner is only for use in households.
-
Page 7: Installation Of Accessories
Installation of Accessories 1. Installation of the concentration nozzle: Hold the concentration nozzle in your hand, align the arrow on the nozzle with the single-line mark on the steam outlet on the machine body, insert and rotate the concentration nozzle in a clockwise direction until the arrow aligns the double-line mark on steam outlet on the machine body, as shown in Figure 1. - Page 8 2. Installation of small brush or angled nozzle: For direct installation onto the steam outlet of the machine, simply align the accessory and push onto the steam outlet in one of 6 positions as shown in Figure 3 and push the spray cup upwards until it is in position.
-
Page 9: Refilling Water During Operation
Refilling water during operation 1. Unplug the power cord and disconnect the power supply. 2. Press down the steam button to release the pressure until no steam is injected out. 3. Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until no steam comes out. - Page 10 After the machine is used 1. After the machine is used, unplug the power cord and disconnect the power supply. 2. Press down the steam button to release the pressure until no steam is injected out. 3. Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until no steam comes out.
-
Page 11: Warranty
Warranty All Vytronix products are supplied with a 1 year manufacturer warranty, please register your warranty at www.vytronix.com using product code: brandnew-vytronix-hsg1000... - Page 12 R e g i s t e r y o u r w a r r a n t y a t w w w . v y t r o n i x . c o m...
