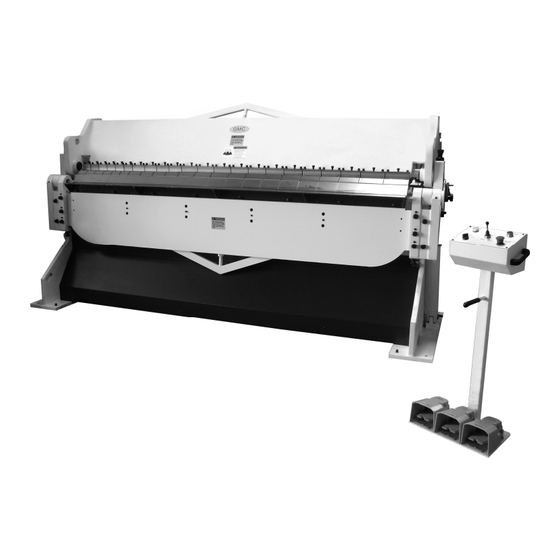

- Page 1 HYDRAULIC BOX & PAN BRAKES MODEL: HBB-0412 / HBB-0410 HBB-0612 / HBB-0610 HBB-0812 / HBB-0810 HBB-1014 / HBB-1010 Operation & Parts Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Warning …………………………………………………………. 2. Machine construction & application …………………………. 3. Specifications …………………………………………………... 4. Transportation and Installation ……………………………….. 5. Safety inspection and safety rules …………………………… 6. Machine adjustment …………………………………………… 7. Lubrication ……………………………………………………… 8. How to use back gauge ……………………………………….. 9. -
Page 5: Machine Construction & Application
Need to fill up the oil tank with Shell #68HD hydraulic oil or equivalent. Please make sure ¾ full of the tank. Need to change hydraulic oil every 3 months or sooner subject to how many hours the machine in use every day. II. Specifications HBB-0412 HBB-0612 HBB-0812 HBB-1014... -
Page 6: Safety Inspection And Safety Rules
2、Installation： When installing machine should be installed in a horizontal on the bottom of foundation, level the machine very well, using leveling pads or foundation bolts. IV. Safety inspection and Safety rules during and/or before operation To ensure safety, it is necessary to do the following inspections for this machine after installation. Check if the transportation procedure has influenced the accuracy and functions of the machine. -
Page 7: Machine Adjustment
Before pressing/switching any button/switch always confirm that the button/switch is the correct one and never touch a switch accidentally. Malfunction and potential danger might result. Do not operate when wearing gloves or loose clothing. Malfunction and potential danger might result. Do not touch switches with wet hands, an electric shock could occur. - Page 8 How to adjust A and B, please pay attention to the following steps: 1) Adjust A: A can be adjusted through No.3 hand wheel left and right to adjust A. 2) Adjust B: Loose No 2 after adjust to the right pressure then tight No.1...
- Page 9 TABLE CROWNING COMPENSATION If the angles of work-piece two sides are both on 90 degree,but middle side only 89 degree,Micro adjusting screws at bending left and bottom beam for compensate the middle has the same angle. 1) Open the top beam,and then turn off the machine power 2) Tight screws A-G at upper beam and folding leaf,and make screw tight following different work-piece crowing situation.
-
Page 10: Lubrication
VI. Lubrication ① ② ③ ④ Please lubricate the following oil fittings four times a day, using lubrication oil # Shell Tonna-33... -
Page 11: How To Use Back Gauge
VII. How to use back gauge This machine comes with a manual back gauge. Before first time use, please install the back gauge first. Two support arms are mounted on the rear side of the table by screw 1 and 2, the stop bar # 6 on the back gauge is mounted by screw 3. - Page 12 VIII、Hydraulic diagram...
-
Page 15: Operation Instruction
Operation Instruction 1)Turn the main power switch on the electric box to “ON” position 2) then power light is on , turn E-STOP RESET clockwise to fully release the E-stop push button, and press bush button for pump start... - Page 16 3） Angle set up: turn the black locking knob(circled in red ) to counter clockwise to release the set-up bar and set up the bending degree you need then tighten the black locking knob, the bending angle degree can be set-up from 0-135°。...
- Page 17 4)-2 on Auto cycle operation mode: Press BEND foot pedal, the bending leaf automatically go up and make bend and then automatically go back to the bottom postion and stops to make one autocycle bending. Or 2 way, push and release the above circled black controller up to BEND position, the bending does the same automatic cycle bending and then stops.
- Page 18 X.Troubleshooting Troubles Possible cause Remedy Hydraulic or pipe has air Start the hydraulic system and forth several times to the maximum stroke, forced exclusion of air; seal the pipeline and system. Somewhere negative Locate a negative pressure at the hydraulic cylinder pressure in the hydraulic and sealed, then exhaust the air.
- Page 19 Parts breakdown manual and parts list...
- Page 23 Desc. Q’ty Note Body 2pcs Hydraulic Cylinder different Connecting plate on hydraulic cylinder Six pyramid end screw set M8X12 Fixed upper pole on hydraulic cylinder cotter 4X40 Fixed bottom pole on hydraulic cylinder eccentric disk shaft bush 12050 SF-1 oil cup Eccentric disc holder Eccentric disk Eccentric disk fixed plate...
- Page 24 Emergency stop stand Bolt seat Head frame shaft Hex nut Hex screw Hexagon socket countersunk head screws M10X25 cover cover U-block Spacer Side plate of U-block Bush 5520 SF-1 Hex cylinder head screw M12X25 Right motor seat Spring washer Hex cylinder head screw M12X40 Bush 4520...
- Page 25 Emergency seat Flat washer Hex cylinder head screw M6X16 Flat washer Adjustable handle M12X25 Touch off cover Inner hexagon socket set screw M10X12 Hex.socker M10X50 Back liner insert tailgate stents hexagon socket cap screws M6X16 flat gasket Keep-off stents hexagon socket cap screws M12X25 Allen flat end set screws M10X25...
- Page 26 1set Upper blade 1set Lower blade pressure block Oil cup M8X1 Copper dash Nylon pressure block Left motor seat folding fan left shaft bush 3820 bush 5020 SF-1 Bending plate banners M12X40 hexagon socket cap screws Bending boy reinforcing plate Hex bolt thread M10X25 standard spring washer...
- Page 27 plate M4X8 cross recess pan head screw hexagon socket cap screws M8X16 carrying handle Operations support foot pedal oil cylinder M6X16 hexagon socket cap screws Flat washer Oil temperature measure oil absorption filter oil meter motor Hydraulic cylinder 进 2.4 出 Motor tube 进...
- Page 29 Note: This manual is only for your reference. Any specification changes and improvement are subject to change without prior to notice. And please the power source voltage in your shop before wiring up this machine. Please be carefully and BE SAFE.
