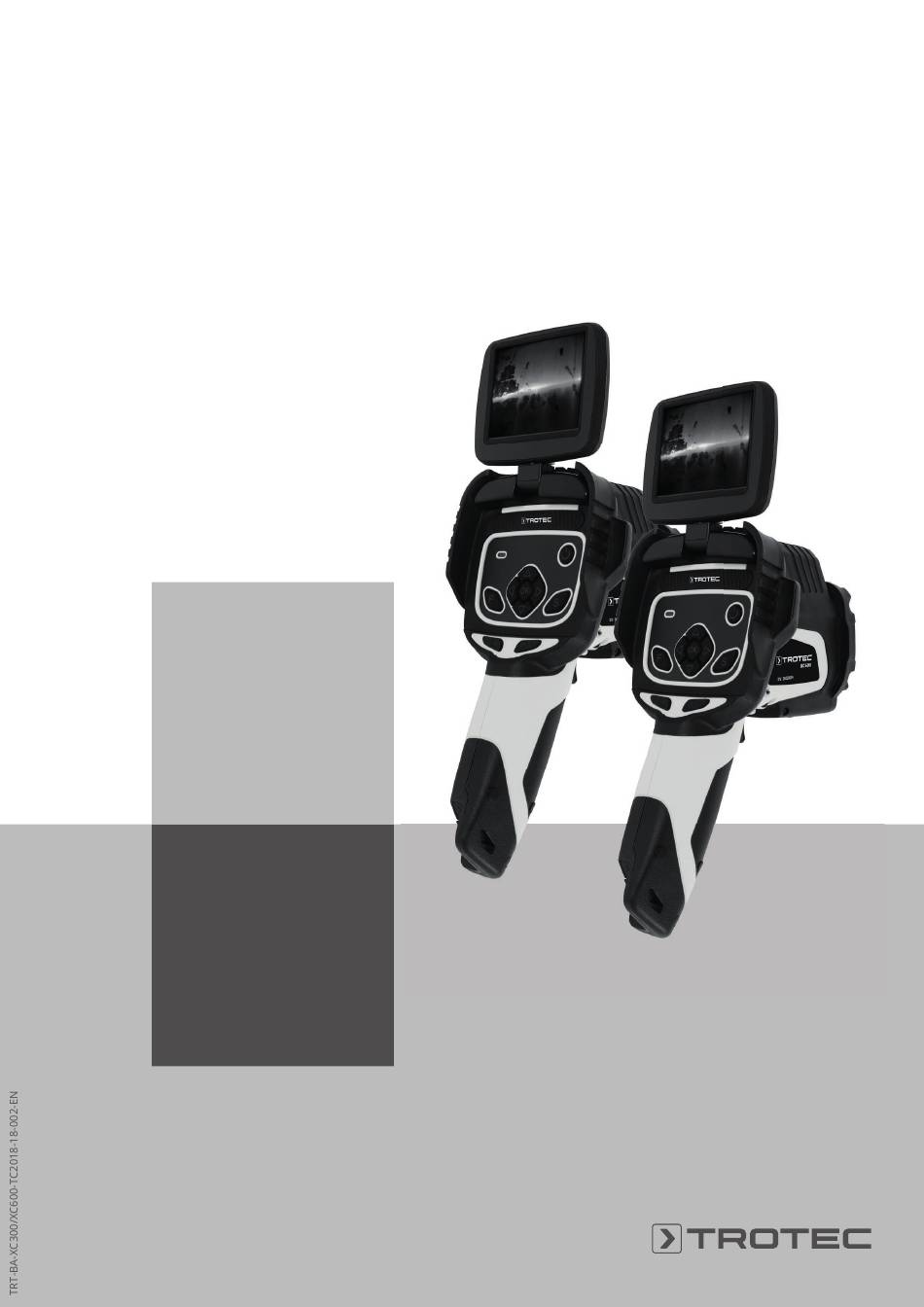

XC300 / XC600
EN
OPERATING MANUAL
THERMAL IMAGING CAMERA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XC300 and is the answer not in the manual?

Questions and answers

Related Manuals for Trotec XC300

Summary of Contents for Trotec XC300

  • Page 1 XC300 / XC600 OPERATING MANUAL THERMAL IMAGING CAMERA...

  • Page 2: Table Of Contents

    Follow the manual device. Keep all safety signs, stickers and labels in legible Information marked with this symbol indicates that the condition. operating manual must be observed. • Do not open the device with a tool. thermal imaging camera XC300 / XC600...
  • Page 3 When working with a laser of class 2, observe the national regulations on wearing eye protection. Do not use the device in potentially explosive areas. Never use the device on persons or animals. Trotec accepts no liability for Warning damages resulting from improper use. In such a case, any Risk of suffocation! warranty claims will be voided.

  • Page 4: Information About The Device

    (or service) section of www.trotec.com. Designation Display Control panel AV output with sealing cap USB type C port Multifunction button Wrist strap holder 1/4" tripod thread Laser pointer Receiver lens for laser beam Infrared lens with protective cap Camera thermal imaging camera XC300 / XC600...
  • Page 5 Activating the manual / focussing of the automatic focus measuring object Battery LED (illuminated Red (battery is charging), while charging) green (battery is fully charged) Arrow button up / Button for menu control, increase SPAN SPAN control thermal imaging camera XC300 / XC600...
  • Page 6 IR videos* on PC via USB 2.0 Voice recording Comments can be stored along with every IR image (optionally available Bluetooth headset required) Ports USB type C, analogue video (PAL / NTSC) Laser Type Semiconductor AIGalnP diode laser class 2, 1 mW / 635 nm red thermal imaging camera XC300 / XC600...
  • Page 7 Impact resistance (falling from) 130 x 125 x 250 mm Physical Dimensions characteristics (length x width x height) Weight 850 g 1/4 inch – 20 Tripod mounting * Saving fully radiometric IR videos requires the optionally available real-time upgrade. thermal imaging camera XC300 / XC600...
  • Page 8 IR videos* on PC via USB 2.0 Comments can be stored along with every IR image (optionally available Bluetooth headset Voice recording required) USB type C, analogue video (PAL / NTSC) Ports Semiconductor AIGalnP diode laser class 2, 1 mW / 635 nm red Laser Type thermal imaging camera XC300 / XC600...
  • Page 9 • 1 x Charger • 1 x Battery (integrated) • 1 x Video cable • 1 x USB type C cable • 1 x Manual • 1 x Transport case • 1 x Temperature test certificate • 1 x Software (via download) thermal imaging camera XC300 / XC600...

  • Page 10: Transport And Storage

    • When storing the device for an extended period of time, remove the battery/batteries. 3. Press the Power button (13) for approx. 5 seconds. ð The buttons on the control panel (2) light up in green. ð The Trotec logo is displayed. thermal imaging camera XC300 / XC600...
  • Page 11 9. Confirm your selection with OK. 10. Press the Set timezone button. 11. Swipe to select the desired timezone. 12. Confirm your selection with OK. ð Date and time have been selected and set. thermal imaging camera XC300 / XC600...
  • Page 12 2. Press the Video button again to stop recording. ð The video is saved. 3. Press the Play button, to play the recorded video directly on the display. thermal imaging camera XC300 / XC600...
  • Page 13 5. Leave the Settings menu. Proceed as follows to equip the camera with a suitable Trotec ð The quick launch button is activated and displayed. lens: 1. Place the lens on the camera as shown below. Before attaching the lens, align the three round holes as shown in the illustration.
  • Page 14 6. In the menu of the analysis software select the item The calibration table that corresponds to the camera is Monitoring – Connect USB or click directly onto the USB bound to the serial number and only valid for the symbol. respective device connected. thermal imaging camera XC300 / XC600...
  • Page 15 6. Deactivate the laser by sliding the selector switch on the display to the left. Info You can also assign this function to the multifunction button (5). Further information on the multifunction button is provided in the chapter Configuring the multifunction button. thermal imaging camera XC300 / XC600...

  • Page 16: Software

    Area Use / edit area 1. Press the C button (17) on the control panel or tap the Trotec logo on the display (1) to open the main menu. Line Use / edit line ð The main menu is displayed on the left-hand side of the display.
  • Page 17 Alarm Temp Enter temperature for alarm mode Use / edit area submenu The following settings can be made in this submenu: • Creating an area • Deleting an area • Making settings for an area thermal imaging camera XC300 / XC600...
  • Page 18 Display deactivated A spot inside the area indicates the lowest temperature. To the right of the area, the lowest temperature inside the area is displayed as a number. thermal imaging camera XC300 / XC600...
  • Page 19 Dual Above Show isotherms within the lower and upper limit (interval) and above the upper limit Info Deactivate the autofocus by pressing the F button (21) to prevent the focus function and the touch-based menu/feature control from influencing one another. thermal imaging camera XC300 / XC600...
  • Page 20 Select the span and level manually and level A.L/S Span and level are constantly set automatically. A.Level Set span manually; level is constantly set automatically. A.Span Set level manually; span is constantly set automatically. thermal imaging camera XC300 / XC600...
  • Page 21 ð The Media menu is displayed again after a few seconds. Taking a photo using the S button (14): 1. Press and hold the S button (14) for approx. 5 s. ð The photo is taken and saved. ð The storage path is briefly shown on the display. thermal imaging camera XC300 / XC600...
  • Page 22 ð The microphone on the display is no longer green. ð Recording of the voice note is completed. 3. To save the voice note, press the Save button. ð The voice note is stored on the device. thermal imaging camera XC300 / XC600...
  • Page 23 Copy selected file Paste copied file Refresh display File menu Use selected folder as storage location for videos The File menu allows you to access the internal system file and photos manager. Return to Media menu thermal imaging camera XC300 / XC600...
  • Page 24 Background Hide Show Reset Reset factory settings Temp. Range Select temperature range: -20 °C to +150 °C or 140 °C to 600 °C Emiss Table List of different emissivities thermal imaging camera XC300 / XC600...
  • Page 25 ð You can now use the connected Bluetooth headset. System info submenu Submenu Settings System information Displays the system information including the serial number and firmware version. The device can be reset to factory settings by pressing the red button. thermal imaging camera XC300 / XC600...

  • Page 26: Emissivity

    945 – 1100 0.52 – 0.61 Nickel chromium 50 – 500 0.95 – 0.98 Surface iron oxide 0.69 alloyed (heat- Fully rusted surface 22 0.66 resistant) Rolled iron plate 0.74 Nickel silver alloy 0.14 thermal imaging camera XC300 / XC600...
  • Page 27 Piece of coal 0.85 Isolation piece 0.91 – 0.94 Glass tube 0.90 Porcelain enamel 0.90 products Porcelain enamel 0.83 – 0.93 designs Solid materials 0.80 – 0.93 Ceramic (vase) 0.90 Film 0.90 – 0.93 thermal imaging camera XC300 / XC600...

  • Page 28: Thermography Terms

    In most cases, the transmission factor can be neglected. If the surface to be thermographed is highly reflective, the share of reflection increases correspondingly and the share of emission decreases. Example: • transmission = 0 • reflection = 0,8 • emission = 0.2 thermal imaging camera XC300 / XC600...

  • Page 29: Errors And Faults

    If the USB type C cable is the USB type C cable damaged. damaged, please replace it with an undamaged one. If the USB type C socket at the device is damaged, please contact the Trotec customer service. thermal imaging camera XC300 / XC600...

  • Page 30: Maintenance And Repair

    Repair Do not modify the device or install any spare parts. For repairs or device testing, contact the manufacturer. thermal imaging camera XC300 / XC600...
  • Page 31 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
