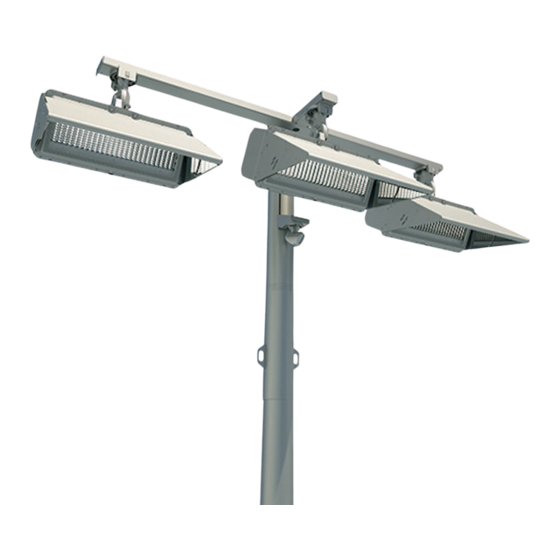

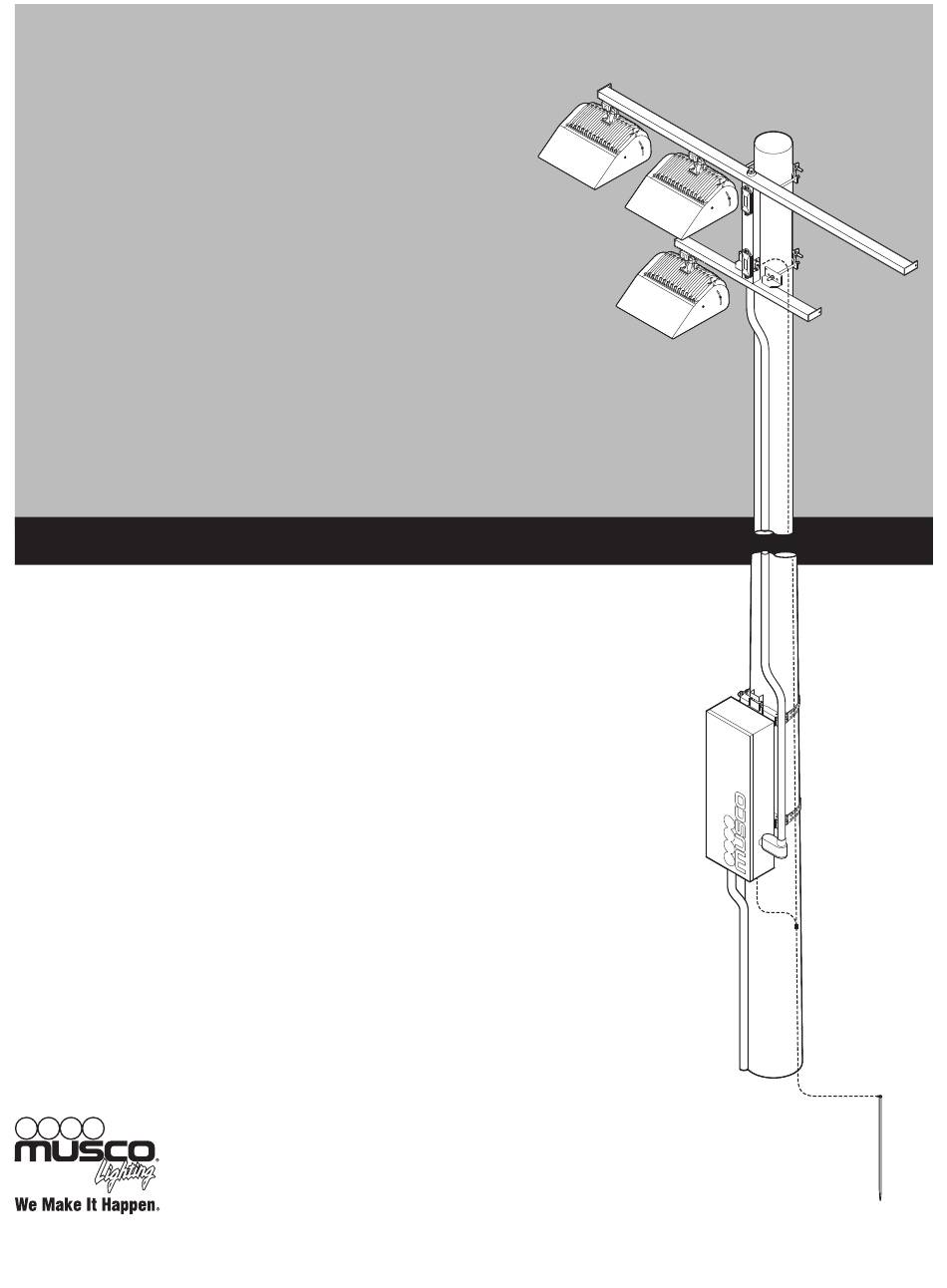

- Page 1 Diode Light Source—LED Installation Instructions: SportsCluster Green Lighting System ™ ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2...
-
Page 2: Table Of Contents
Installation Procedure ................20 Wiring ..................24 Overview .....................24 Installation Procedure ................24 Lightning Ground ..............29 Overview .....................29 Installation Procedure ................29 MKT-3045-1 SCG LED Installation 23 June 2015 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... -
Page 3: Before You Begin
Musco. About These Instructions These instructions outline basic assembly procedures for the SportsCluster Green lighting system. They are not a comprehensive guide to all possible situations. Direct any questions to +1-800-825-6020 or call your local Musco representative. Throughout this manual note these important symbols:... -
Page 4: Standard Tools/Supplies
Poletop luminaire assembly Electrical components enclosure Wire harness Lightning ground equipment and mounting hardware and mounting hardware (contractor supplied)* (contractor supplied)* * May be supplied by Musco. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... -
Page 5: Unloading Instructions
Luminaires, hardware, and other components are shipped in recyclable cardboard packaging. Electrical System Requirements While portions of the SportsCluster Green™ lighting system can be assembled by non-professionals, a qualified electrician must handle the electrical supply installation and hook-up in accordance with national, state, and local codes. Your electrician should review this information before installation begins. -
Page 6: Documents We Provide
• Control system diagram and details • Contactors and cabinets • Lighting circuits • Voltage, phase, and frequency • Full load current for each circuit ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... -
Page 7: Electrical Components Enclosure
36.1 – 42 in (914 – 1067 mm) 114 in (2896 mm) 42.1 – 48 in (1067 – 1219 mm) 132 in (3353 mm) (If present) ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... - Page 8 28.1 – 32 in (711 – 813 mm) 114 in (2896 mm) 14 in (356 mm) 32.1 – 36 in (813 – 914 mm) 132 in (3353 mm) 14 in (356 mm) ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 9: Overview
317/16 in (799 mm) Dimension A in chart allows for approximately 0.75 in (20 mm) gap between upper and lower enclosures. 10 ft (3 m) to ground ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... - Page 10 3. Hanger bracket ½ in 12 ft • (16 N • ⁄ 20 ft • (27 N • Tensioning bolt Strap bracket ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 11 Captive screws Repeat steps 1 – 5 for back-to-back or multiple stacks. Offset mounting straps vertically by 3 – 5 in (75 – 125 mm). ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 12: Poletop Luminaire Assembly
Note: Do not remove temporary protective cover (if present) from luminaire until ready to set pole. Note: The luminaire style may vary from what is shown. MKT-2585- ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 LED, Lumin www.musco.com · lighting@musco.com 20 January... - Page 13 Luminaire may be heavy. Lift carefully with two people to avoid injury. Mounting plate Insert Back of knuckle Temporary protective cover Pivot Pivot Temporary Insert protective cover Mounting plate ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 14 Tighten captive mounting bolts. Torque must not Captive mounting ⁄ bolts exceed 20 ft•lb (27 N•m). To avoid overtightening, use provided 7/16 in combination wrench. MKT-304 Deep Ho Knuckle 19 March ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 15: Setting Poletop Luminaire Assembly
3 in (76 mm) x 11¼ in (286 mm) shallow angle 1¾ in (44 mm) wide 41 in (1041 mm) SCR-1506-1 Part Number: SCR-1121-1 Part Number: SCR-1118-1 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... - Page 16 B, C ⁄ in x 12 in (305 mm) threaded rod with nuts and washers Use middle holes (2) W-shaped bracket (2) Z-shaped bracket, type 1 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 17 9½ in (241 mm) (4) Z-shaped bracket, type 2 threaded rod with Use middle holes nuts and washers Use outer holes (4) Z-shaped bracket, type 1 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 18 (2) 3 in channel x 41 in nuts and washers Use outer holes (1041 mm) (2) 3 in channel x B, C 23½ in (597 mm) Use outer holes ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 19 (1041 mm) (597 mm) threaded rod with nuts and washers (2) 3 in channel x Use outer holes 23½ in (597 mm) Use outer holes ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 20: Overview
26º V 15 MZ 15 MZ 15 MZ 15 MZ 15 MZ Pole Aiming Points luminaire assembly. Field Name I.D. I.D. Project 126' ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com -195 -165... - Page 21 (108 N•m) using 15/16 in open-end torque wrench before lifting pole (see step 5). Instead of turning luminaire assembly, turn pole to align with aiming point. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 22 If erecting pole with luminaire assembly attached, do not attach rigging to luminaire assembly. Follow pole supplier MKT-3045-2_A instructions for lifting SCG LED Installation 29 March 2016 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 *Removed aiming beam burst www.musco.com · lighting@musco.com...
- Page 23 Poletop luminaire assemblies mounted to tapered poles may have different configurations for upper and lower clamps. MKT-304 Pole Clam RWS/BD 1 June 20 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 24: Wiring
If single luminaire is powered from driver, only one pair of wires per driver is required in pole harness. MKT-4272 LED Luminaire Wiring ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com 26 February 2016... -
Page 25: Installation Procedure
Connector Repeat steps 1 – 2 for each stack. Electrical Enclosure harness components enclosure Equipment grounding conductor (green/yellow) ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... - Page 26 Route and connect communication cable in each electrical components enclosure to termination point in next sequential electrical components enclosure per illustration. Drivers Controller MKT-4187 Deep Hou ECE Equip 2 June 20 ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 27 Note: Connect the electrical components enclosure stacks that share a circuit, with conduit below partition in order to route primary wires to distribution lugs. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 28 Match luminaire ID and wire polarity per each wire label. Use the Musco-provided LEVER-NUTS® wire connectors Mid-point cable support (customer provided if required) Enclosure harness *Aluminum (AL), Copper (CU) ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 29 Disconnect is rated for copper wire only. Contact (phase wires and 2 Februa equipment grounding Musco for adaptor or use UL-listed adaptor for conductor) aluminum wire. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
-
Page 30: Lightning Ground
(cross-sectional area of 107.2 mm of 67.4 mm * Copper grounding conductor required for underground connection to grounding electrode. Use properly rated AL to CU connector. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com... - Page 31 Attach with saddle clamp. Backfill excavated area around grounding electrode. Note: Regularly inspect and maintain lightning ground in accordance with applicable laws and regulations. ©2015, 2016 Musco Sports Lighting, LLC · LED ECE 9 · M-1933-en04-2 www.musco.com · lighting@musco.com...
- Page 32 Musco SportsCluster Green™ product referenced or shown may be protected by one or more of the following patents. United States Patent(s): D682459, D695949, D695952, D734525, D734532, 6969034, 7500764, 7918586, 7956551, 7956556, 8104925, 8508152, 8575866, 8789967, 9066401. Canada Patent(s): 158610, 158611. China Patent for Design: ZL201230474541.X, ZL201330222107.7, ZL201330222318.0, ZL201430207133.7, ZL201430388788.9, ZL201430388828.X.
