Summary of Contents for Arachnid E650FS-BK

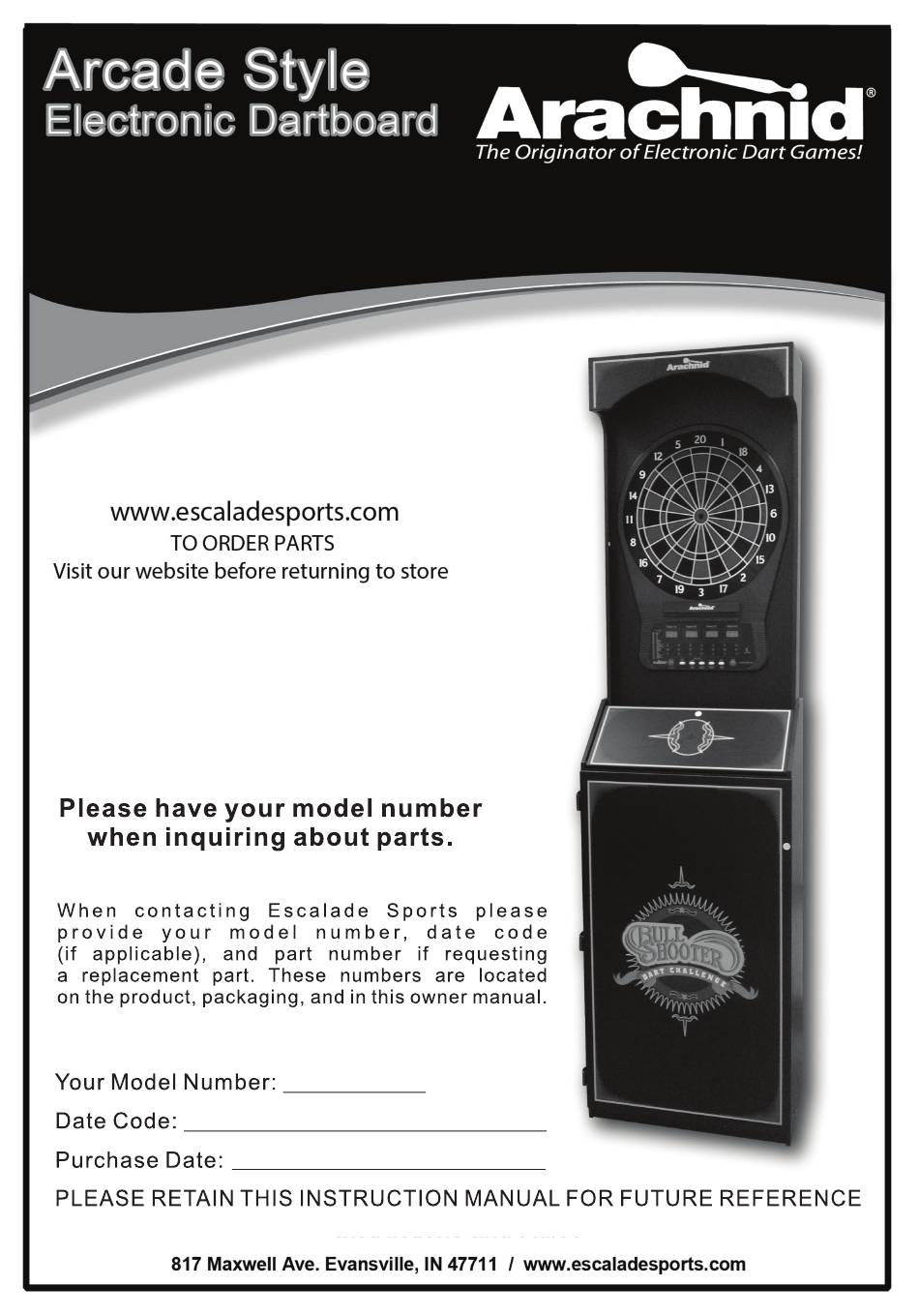

- Page 1 E650FS-BK CPSIA#2-E650FS-BK-...
- Page 3 H9 - 12 x 3.5mm Phillips Round Head Screw (56) H14 - 8.5 x 19mm (Not to Scale) Flat Washer (4) Allen Wrench (1)
- Page 5 Must be flush Important note: Groove from Parts J, N & L must be align before tighten H1 bolts. Support block must face down Important note: Do NOT tighten H5 bolts. Finger tighten only.
- Page 6 Important note: Groove from Parts J, N & L must be align before slide Part R into groove.
- Page 7 Must be flush...
- Page 8 Phillips Round Head Screw (H9). H9 Phillips Round Head Screw - 16 pcs Important note: H9 Screws must be screwed straight. Must be flush Must be flush...
- Page 9 Important note: This step requires help from another adult.
- Page 10 2 pcs...
- Page 11 Attach Upper Cabinet Assembly to Lower Cabinet Assembly using 4 pcs Allen Head Bolts (H13), 4 pcs Flat Washer (H14) and 4 pcs Phillips Flat Head Bolts (H1) See Figure 10. Tighten, but do Not over tighten or strip our H14 & H1 Bolts. H1 Phillips Flat Head Bolt - 4 pcs H13 Allen Head Bolt - 4 pcs H14 - Flat Washer - 4 pcs...
- Page 12 Phillips Round Head Screw (H9). H9 Phillips Round Head Screw - 26 pcs Top Part F must flush with bottom part of Part S. This is UP...
- Page 13 E650FS-BK Part# Descrip on E650FSBK-A Lower Le Side Panel E650FSBK-B Lower Right Side Panel E650FSBK-C Top & Bo om Shelves E650FSBK-D Middle Shelves E650FSBK-E Base Cross Panel E650FSBK-F Lower Back Cover E650FSBK-G Door Panel E650FSBK-J Upper Le Side Panel E650FSBK-K...
