6. INSTALLATION AND CONNECTION

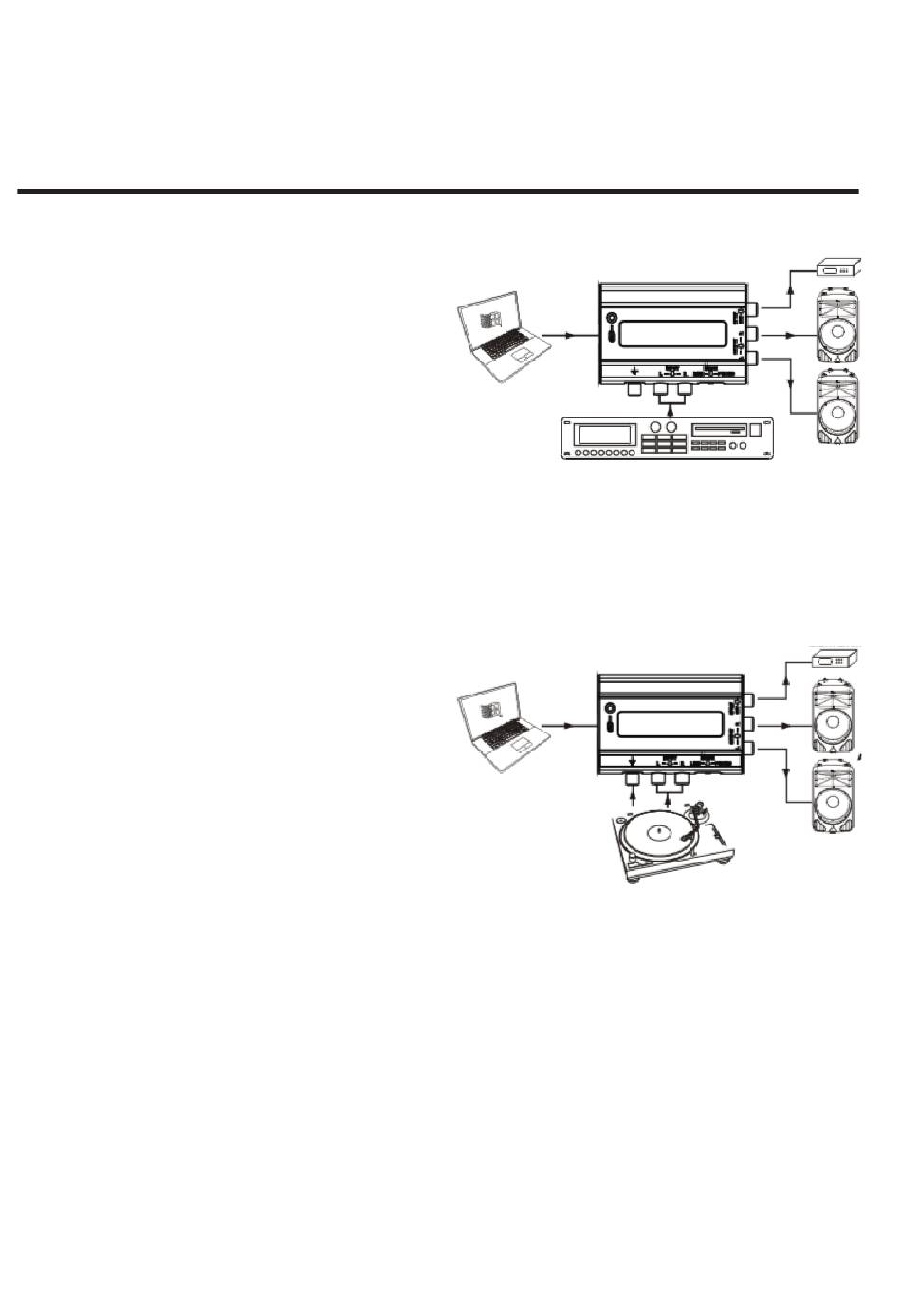

Tape recorder connection
1. Set input mode selective switch to "LINE";
2. Connect output (L&R) of tape recorder and Link
USB 2.0 inputs(L&R) with a RCA cable (left out-
put to left input, right output to right input);
3. Connect Link USB 2.0 output and active moni-
tor speakers with a RCA cable.
4. Link USB 2.0 and PC using an A type inverting B
type connector USB cable.
Note: before connect USB cable, the recording and
playing sound effects will be better, if connect
signal GND of tape recorder to that of amplifier with
two 22AWG or bigger cables from Link USB 2.0 GND.
Phono Connection
1. Set input mode selective switch to PHONO;
2. Connect phono output (L&R) and Link USB 2.0
input interface (L&R) (left output to left input,
right output to right input) using RCA signal
cable;
3. Connect Link USB 2.0 output and active moni-
tor speakers using RCA signal cable
4. Connect Link USB 2.0 GND pillar and phono
GND with a 22AWG or bigger cable.
5. Link USB 2.0 and PC with an A type inverting B
type connector USB cable.
PC
RECORDER
PC
PHONO
Digital AMP
Active Speaker
Digital AMP
Active Speaker
