Velleman High-Q -Kit K3502 Illustrated Assembly Manual
Velleman High-Q -Kit K3502 Illustrated Assembly Manual

Velleman High-Q -Kit K3502 Illustrated Assembly Manual

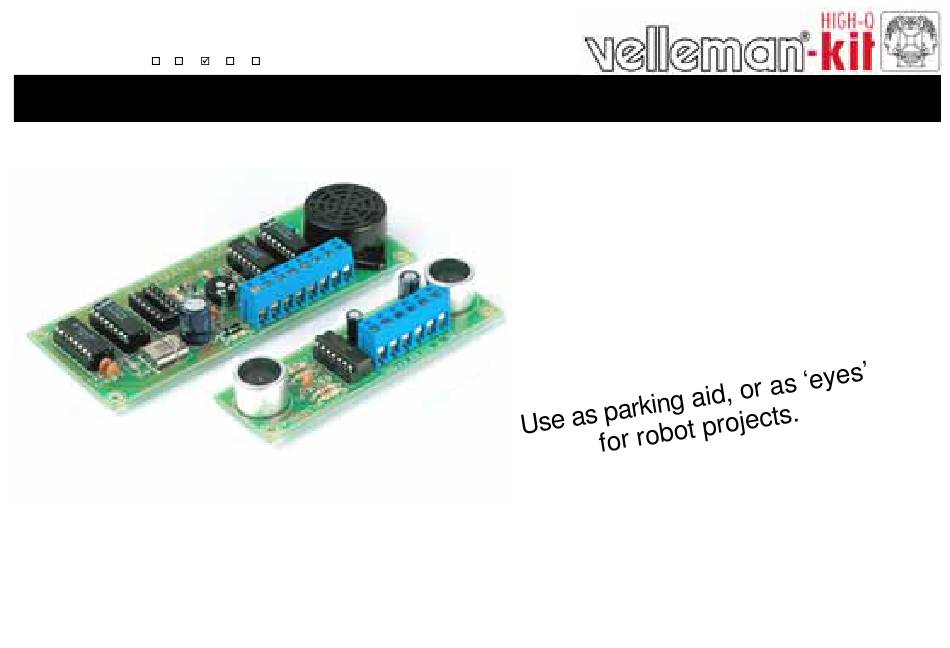

Parking radar, use as parking aid, or as eyes for robot projects

Advertisement

Quick Links

Total solder points: 185
Difficulty level: beginner 1
2
3
4
5
advanced
Parking Radar
K3502
ILLUSTRATED ASSEMBLY MANUAL
H3502IP-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the High-Q Velleman-Kit K3502 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Velleman High-Q Velleman-Kit K3502

  • Page 1 Total solder points: 185 Difficulty level: beginner 1 advanced Parking Radar K3502 ILLUSTRATED ASSEMBLY MANUAL H3502IP-2...
  • Page 2 Features & Specifications If you have problems parking then this kit is for you. Using (ultrasonic) sound waves, whose frequency is beyond our range of hearing, we can "measure" a distance. Consequently, a sensor mounted at the back of the car can give an indication of the distance between your car and the car parked behind you or other obstacles (only at the same height as the sensor).
  • Page 3 Assembly hints 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip.
  • Page 4 REMOVE THEM FROM THE TAPE ONE AT A TIME ! AXIAL COMPONENTS ARE TAPED IN THE COR- RECT MOUNTING SEQUENCE ! You will find the colour code for the resistances and the LEDs in the HALG (general manual) and on our website: http://www.velleman.be/common/service.aspx...
  • Page 5 Construction (A) Assembly of the base PCB : P3502B 1. Jumpers 3. Resistors 5. IC sockets, Watch the position of the notch! R... IC1 : 16p IC2 : 16p IC3 : 14p IC4 : 14p IC5 : 16p R1 : 10M (1 - 0 - 6 - B) R2 : 22K (2 - 2 - 3 - B) 2.
  • Page 6 Construction 7. Electrolytic capacitor. 10. Buzzer 11. IC’s mounting Watch the polarity ! C6 : 470µF PIN 1 C... IC1 : CD4060 or eq. BUZ1 IC2 : CD4020 or eq. IC3 : CD4068 or eq. IC4 : CD4093 or eq. 8.
  • Page 7 Construction (B) Assembly of the receiver PCB : P3502S 1. Resistors 3. Transistor 5. Electrolytic capacitors. Watch the polarity ! T1 : BC547B R... C10 : 10µF C... C11 : 100µF R7 : 15K (1 - 5 - 3) R8 : 15K (1 - 5 - 3) R9 : 15K (1 - 5 - 3)
  • Page 8 Construction 7. Sensors 8. IC mounting SENS 1 : MA40A5S or eq.(marked with T). SENS 2 : MA40A5R or eq. (marked with CTD) PIN 1 IC6 : TL074 Either on the print or connect them to the soldering terminals, Pay attention to the position see chapter concerning the installation in the car.
  • Page 9: Installation In The Car

    Test 3. TEST Connect the points GND, +V, RW, DIS, S1 and S2 of the main PCB to the corresponding points on the receiver PCB. Make sure that the distance between the receiver print and the base print is approx. 50cm. Adjust the trimmer RV1 at the middle position RV1.
  • Page 10 Installation Install the print behind the bores using spacing sleeves, so that the sensors are facing the bores properly without touching the housing. Fig. 1 Fig. 2 B) With the sensors in horizontal position (fig. 2): In this case the sensors are simply mounted on the print. Now realise the gaps in the housing as shown on the drawing 4.0 Install the print behind the bores using spacing sleeves, so that the sensors are facing the bores properly without touching the housing.
  • Page 11 Installation FINE WIRE GAUZE SENSOR FINE WIRE GAUZE SENSOR Fig. 3 CASE CASE Close the housing as watertight as possible f.i. by using silicone. Surch for a suitable place somewhere in the trunk, to built in the base print (by preference as close as possible to the sensor, see below) Find a suitable place, approximately in the middle of the backside of the car, for installing the sensors f.i.
  • Page 12 Connection & use 5. DEFINITIVE CONNECTION Connect the receiver to the base print. Connect the terminal GND of the base print to the - of the car (chassis) Connect the terminal ‘+’ of the base print to the ‘+’ of the reverse light. 6.
  • Page 13 Connection P3502B P3502S...
  • Page 14 Schematic diagram 7. Schematic diagram (Control section)
  • Page 15 8. PCB’s PCB layout P3502S PCB layout P3502B...
  • Page 16 VELLEMAN Components NV Legen Heirweg 33 9890 Gavere Belgium Europe www.velleman.be www.velleman-kit.com Modifications and typographical errors reserved © Velleman Components nv. H3502IP - 2004 - ED2 5 4 1 0 3 2 9 2 9 1 5 9 4...
