Electronic Water Detection Device
C
ONTENTS
This package contains:
• 1 WB-200
• 1 Surface Probe - Unsupervised (W-S-U)
• 1 Installation/Operating Instructions Guide
S
PECIFICATIONS
Power Requirement
Sensitivity
Operating Temp
Output
Probe Options
Max Cable Length
Probe Cable
Console Weight
Console Dimensions
Probe Dimensions
Mounting
Case Material
Warranty
8-28 VDC @ 35mA
8-28 VAC @ 100mA
Will not alarm due to high humidity or condensation.
32˚ to 130˚F (0˚ to 54˚C); non-condensing environment (indoor use only)
1 Form C Relay (N.O./N.C.)
1 Amp @ 30 VDC, resistive
1 Amp @ 24 VAC, resistive
Includes 1 Standard Unsupervised Surface Probe (W-S-U)
Accepts up to 6 Unsupervised Surface Probes (W-S-U) wired in parallel or
Accepts up to 6 Unsupervised Under Carpet Probes (W-UC-U) wired in parallel.
1-2 probes; max recommended distance of 200' (61 m)
3-6 probes; max recommended distance of 100' (30.5 m)
Probes include 15' (4.6 m) cable. Extend using 22-18 AWG twisted pair.
2.4 oz (0.07 kg)
4.1 x 2.36 x 1.18" (10 x 6 x 3 cm) with flanges
Surface: 2 x 3 x 0.88" (5.1 x 7.6 x 2.2 cm)
Under Carpet: 2 x 3 x 0.18" (5.1 x 7.6 x 0.5 cm)
Flanges
ABS
1 Year Limited
EPCOM - contact: sales@epcom.net
San Diego, Cal
(619) 661-9160 (915) 533-5119
El Paso, Tx
(305) 889-1127

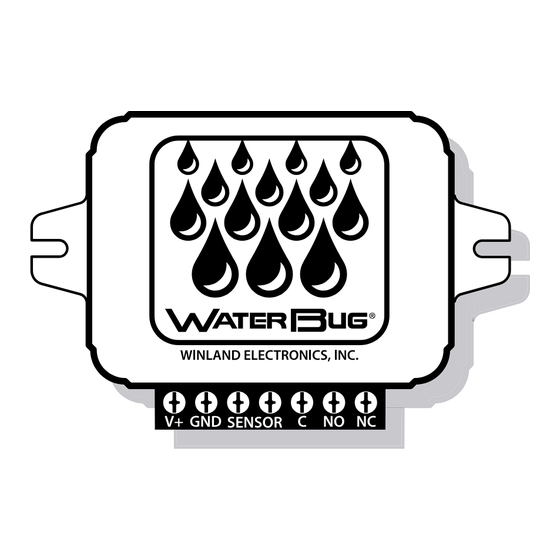

WB-200
Miami, Fl
© 2012 Winland Electronics, Inc.
D-011-0116 Rev C (08/2012)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winland Electronics WaterBug WB-200
Summary of Contents for Winland Electronics WaterBug WB-200
- Page 1 Electronic Water Detection Device ONTENTS WB-200 This package contains: • 1 WB-200 • 1 Surface Probe - Unsupervised (W-S-U) • 1 Installation/Operating Instructions Guide PECIFICATIONS Power Requirement 8-28 VDC @ 35mA 8-28 VAC @ 100mA Sensitivity Will not alarm due to high humidity or condensation. Operating Temp 32˚...
- Page 2 NTRODUCTION Thank you for your purchase of the Winland WaterBug® model WB-200. The WB-200 is completely electronic and is designed to detect water only (distilled and deionized water cannot be detected). The WB-200 is not a self contained warning device. For proper operation, it must be used in conjunction with an alarm system, sounder, etc.
- Page 3 ROCEDURES To test the WB-200 operational status, form a water bridge between the two metallic contact points (See Figure 2) with a moistened finger or cloth. If working properly, the WB-200 will activate the warning device to which it is connected within approximately three seconds.
- Page 4 DDITIONAL ROBES Multiple probes must be connected in parallel to the two “sensor” terminals. The WB-200 accepts up to 6 probes wired per console. W-S-U W-UC-U Water Probe - Surface Water Probe - Under Carpet Unsupervised Unsupervised WEEE Product Recovery/Recycling for EU Customers In an effort to improve waste management in the European Union, the European Union has enacted directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE Directive).
