i94 Intelligent Automatic Battery
Charger
User Manual
[Revision 2.0 October 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2018 Xcell
Advertisement
Table of Contents
Related Manuals for XCell i94
Summary of Contents for XCell i94
- Page 1 Intelligent Automatic Battery Charger User Manual [Revision 2.0 October 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Intelligent Automatic Battery Charger Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or... - Page 3 Intelligent Automatic Battery Charger Personal Precautions and Safety repair is required. • Do not use an extension cord unless absolutely necessary. Use of an • Locate the charger as far away from the • Wear fully enclosing eye protection improper extension cord could result battery as the charger cables allow.
-
Page 4: Table Of Contents
Intelligent Automatic Battery Charger Table of Contents Safety ..............................2 Introduction ............................5 Suitable Battery Types ..........................5 Parts Identification ..........................6 Operation ............................7 Using Charging Cables ..........................7 Charging a Battery ............................. 7 Charging Modes and Display Functions ..................8 Maintenance ............................ -
Page 5: Introduction
Intelligent Automatic Battery Charger Introduction The battery charger is a high-frequency switch mode type that is suitable for charging a range of lead-acid batteries. The charger features a logic controlled 9-stage charging program that monitors battery charge and switches modes automatically to ensure the battery charge is a s close to 100% of the original capacity as possible. -
Page 6: Parts Identification

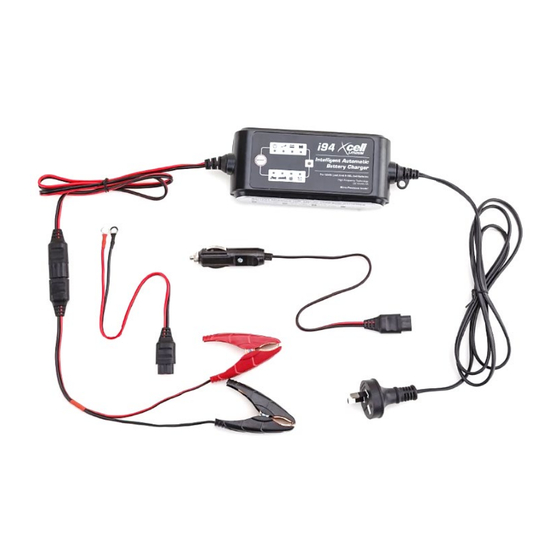

Intelligent Automatic Battery Charger Parts Identification Name Name Battery Charger (includes 240VAC mains input Permanent Battery Connect Cable cable and low voltage DC output cable) Terminal Clamp Battery Connect Cable (shown 12V Vehicle Socket Connect Cable connected to charger output cable) E&OE... -
Page 7: Operation
Intelligent Automatic Battery Charger Operation Substances used in batteries and gases or vapours produced when charging may be extremely flammable – keep clear of naked flames or other ignition sources. • Correct battery polarity MUST be followed. Incorrect polarity may present an explosion or fire hazard. -
Page 8: Charging Modes And Display Functions
Intelligent Automatic Battery Charger Charging Modes and Display Functions A battery must be connected to the charger in order for the charger to function correctly. If no battery is detected, the fault indicator illuminates red – see Troubleshooting. The battery charger features logic controlled "intelligence" to accurately monitor the battery and automatically adjust charging functions to optimise charging. -
Page 9: Maintenance
Intelligent Automatic Battery Charger Maintenance Do not use the charger if any of the electrical cords or terminal clamps have been damaged in any way. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or qualified person in order to avoid a hazard. -
Page 10: Specifications
Intelligent Automatic Battery Charger Specifications Electrical Requirements 220 to 240VAC / 50 to 60Hz 0.45A. Charge Mode Output Slow: 14.4VDC 1.0A. Suitable for 12V batteries up to 20Ah. Fast: 14.4VDC 4.0A. Suitable for 12V batteries up to 80Ah. Winter: 14.7VDC 4.0A. Also recommended for 12V AGM type batteries. - Page 11 ©2018 Xcell. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
