thomann Harley Benton MT100 User Manual

thomann Harley Benton MT100 User Manual

Midi footswitch
Hide thumbs
Table of Contents

Advertisement

Quick Links

MP-100
MIDI footswitch
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harley Benton MT100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann Harley Benton MT100

Summary of Contents for thomann Harley Benton MT100

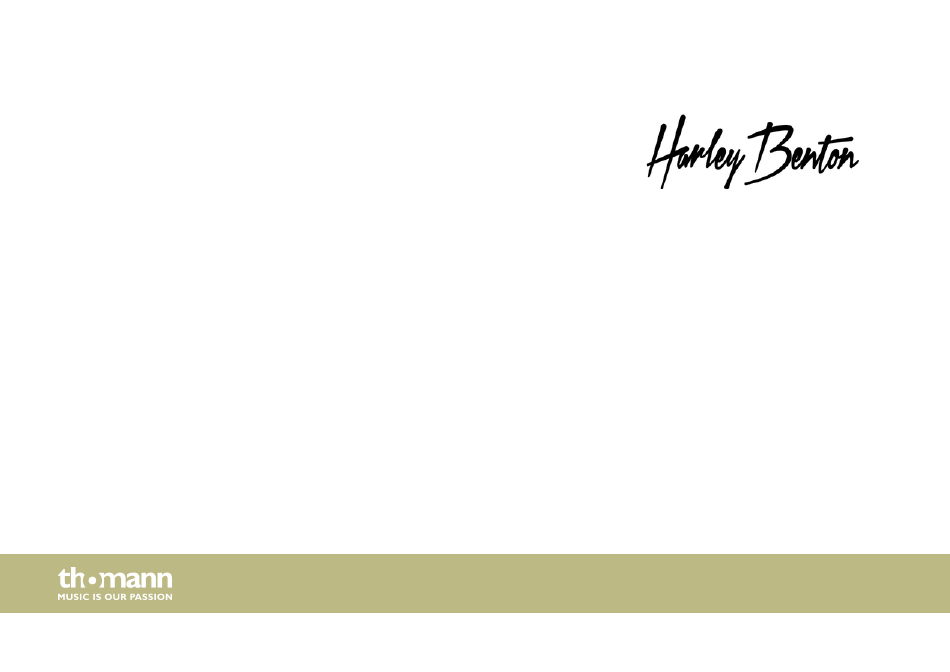

  • Page 1 MP-100 MIDI footswitch user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.12.2018, ID: 432459...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 General notes............................4 1.1.1 Further information........................5 1.1.2 Notational conventions........................ 6 1.1.3 Symbols and signal words......................7 Safety instructions............................. 9 Features............................... 13 Installation and starting up........................ 14 Connections and controls........................15 Operating..............................

  • Page 4: General Information

    General information General information 1.1 General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General information 1.1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 7: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is used to control guitar amplifiers or effect devices via footswitches and MIDI. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 10 Safety instructions WARNING! Incorrect handling of lithium batteries can result in injury In the event of a short circuit, overheating or mechanical damage, lithium bat‐ teries can cause severe injuries. Follow the advice on the correct handling of lithium batteries in the present sec‐ tion.
  • Page 11 Safety instructions NOTICE! External power supply The device is powered by an external power supply. Before connecting the external power supply, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual cur‐ rent circuit breaker.
  • Page 12 Safety instructions NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. MIDI footswitch...

  • Page 13: Features

    Features Features USB/MIDI footswitch for controlling guitar amps or effect devices via mobile end devices and apps (iOS, Mac OS and Android systems) USB MIDI control and standard MIDI control 10 programmable footswitches 2 inputs for effect pedals with display to control the effect parameters (effect pedals not included) 1 USB port 1 MIDI output...

  • Page 14: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 15: Connections And Controls

    Connections and controls Connections and controls Front panel MP-100...
  • Page 16 Connections and controls 1 Display 2 [A]…[D] Footswitch for sending program change and control change MIDI commands [/CHG] Increases the displayed value by one and selects menu items. [/SET] Decreases the displayed value by one and selects menu items. 5 [1]…[4/E] Footswitch for sending program change and control change MIDI commands MIDI footswitch...
  • Page 17 Connections and controls Rear panel 6 [EXP2], [EXP2] Input for connecting an effect pedal, designed as a 6.35 mm jack plug 7 [EXP1] Input for connecting an effect pedal, designed as a 6.35 mm jack plug 8 [MIDI OUT] MIDI output for connecting external devices, designed as DIN connector (5-pin) MP-100...
  • Page 18 Connections and controls 9 [USB] USB interface for power supply and connection of mobile end devices or PC Main switch. Turns the device on and off. Display MIDI footswitch...
  • Page 19 Connections and controls 11 Configuration 12 Dynamic display for [EXP1] (empty if no effect pedal is connected to EXP1) Dynamic display for [EXP2] (empty if no effect pedal is connected to EXP2) 13 Current number of the program change MIDI command 14 Sub-parameter of the sent control change MIDI command (updated only if changed and held for 0.5 s) 15 Sent control change MIDI command (updated only when changed and held for 0.5 s) 16 MIDI channel used...

  • Page 20: Operating

    Operating Operating Inserting a battery The device can be powered by batteries or rechargeable batteries if the device is not con‐ nected to the power supply via a USB cable. Insert 2 x AAA batteries into the battery compartment on the bottom of the device. You can use conventional AAA batteries or rechargeable AAA NiMH batteries.
  • Page 21 Operating Turning the unit on Connect the device to your mobile end device or PC using the supplied USB cable. ð The device is detected automatically. Turn the device on using the main switch. ð The LEDs under the footswitches light up briefly. The display shows the current status of the device.
  • Page 22 Operating Foot switch Configuration Function JAMP Control of effects of the iOS software JamUp BIFX Control of effects of the Biax FX software KMPA Control of effects of the Kemper profiling amp AXEF Control of AXE FX effects ATOM Control of the ATOMIC amplifier effects PC-8x [1]…[4] and [A]…[D] for sending program change MIDI commands.
  • Page 23 Operating Press [/SET] and hold down the button. Switch the device off and on again at the main switch. ð The setup for individual configurations is activated. The display shows the sub‐ menus ‘MIDI.CH’ , ‘CUS1’ and ‘CUS2’ . Press [2] r [3] to switch between the submenus. In the ‘MIDI.CH’...
  • Page 24 Operating Parameter Option Function ABC/123 ABC/123 Display of patch numbers 1A, 1B, 1C or 1, 2, 3 Bank Move 4x, 5x, 8x, 10x Number of selected patches in a group Bank Mode WAI, IMM WAI: Switches to the first patch of the next group with a delay when the footswitch is pressed.
  • Page 25 Operating Parameter Option Function KEY 1 Tog OFF, ON ON: The sub-parameters change between 0 and 64 KEY 2 MOD PC#, CC# PC: Program change MIDI command CC: Control change MIDI command KEY 2 CC# 1…127 Command number of the control change MIDI command KEY 2 Tog OFF, ON ON: The sub-parameters change between 0 and 64...
  • Page 26 Operating Parameter Option Function KEY A MOD PC#, CC# PC: Program change MIDI command CC: Control change MIDI command KEY A CC# 1…127 Command number of the control change MIDI command KEY A Tog OFF, ON ON: The sub-parameters change between 0 and 64 KEY B MOD PC#, CC# PC: Program change MIDI command...
  • Page 27 Operating Parameter Option Function KEY D MOD PC#, CC# PC: Program change MIDI command CC: Control change MIDI command KEY D CC# 1…127 Command number of the control change MIDI command KEY D Tog OFF, ON ON: The sub-parameters change between 0 and 64 Restore factory setting You can use this function to reset the device to its factory default setting.

  • Page 28: Technical Specifications

    Technical specifications Technical specifications Operating supply voltage via USB Operating supply voltage 2 × AAA batteries or AAA NiMH rechargeable batteries Dimensions (W × H × D) 286 mm × 65 mm × 110 mm Weight 950 g MIDI footswitch...

  • Page 29: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 30 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...

  • Page 31: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 32 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility.
  • Page 33 Notes MP-100...
  • Page 34 Notes MIDI footswitch...
  • Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
