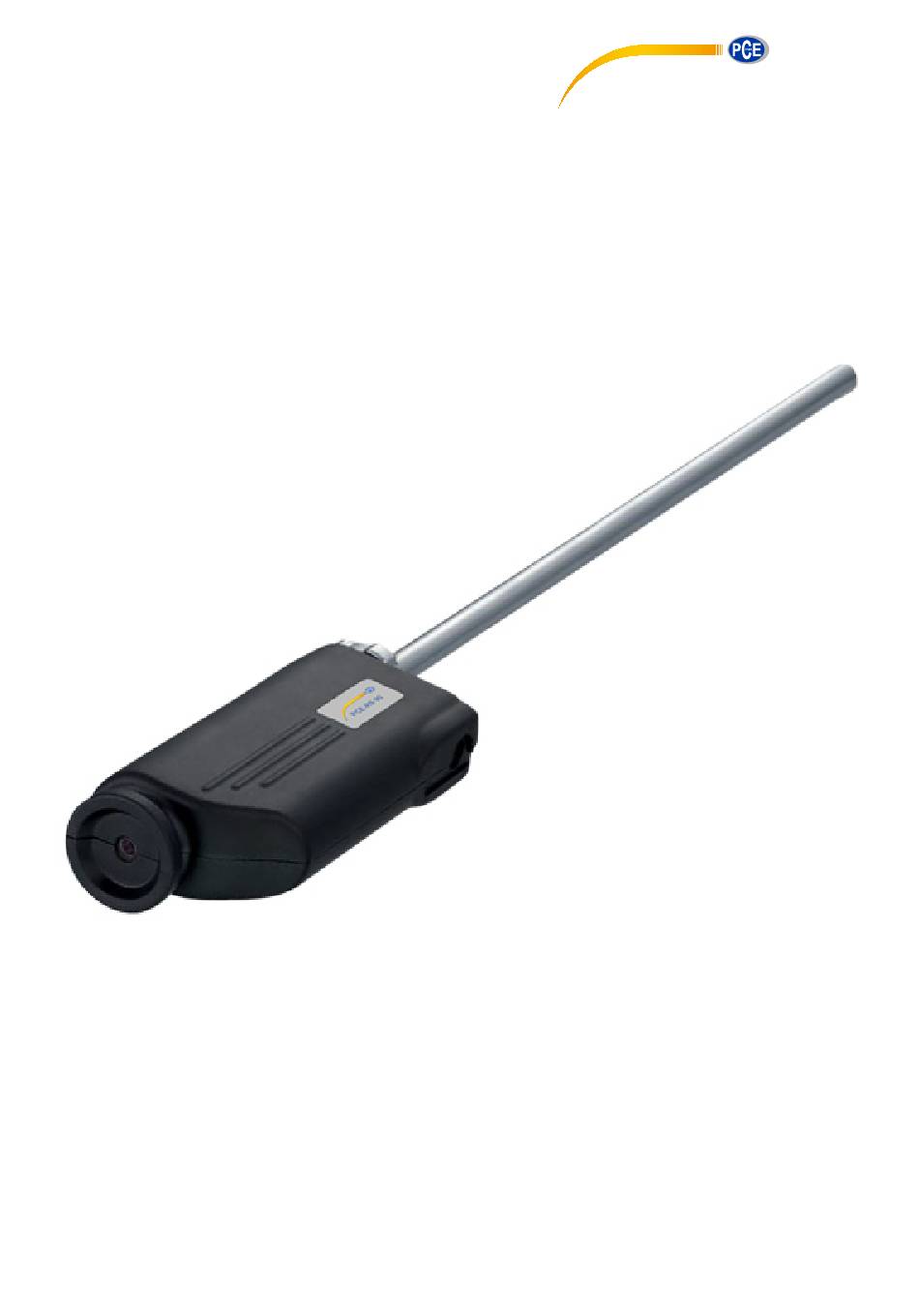

User Manual
Borescope
PCE-RS Series
Advertisement
Table of Contents
Related Manuals for PCE Americas PCE-RS Series
Summary of Contents for PCE Americas PCE-RS Series
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Safety Instructions
1. General Information Keep the operating instructions on getting your endoscope. This equipment has to be used according to specifications developed for this purpose. Other applications as well as changes to the endoscope are not allowed Full compliance with the safety instructions are part of the intended use of the endoscope - Other applications as well as changes to the endoscope are not allowed. -
Page 3: Intended Use
1.2.3 Intended Use - Safe operation is only guaranteed when scope is intended used according to the instruction manual. The use and maintenance of the device must always be in accordance with national provisions - The device is used for damage diagnosis of technical devices, buildings, etc. This endoscope may not be used for medical applications! Do not look directly into the LED, blinding! -
Page 4: Technical Data
1. Operation 2.1 Technical Data - Diameter: 9 mm and 5mm (Art. No. 8300011990 and 8300009958 ) - Working length: 275 (9mm version)and 350mm (5mmVersion) - Illumination: High-Power-LED 1W - Direction of view: 90° - Battery Li Ion 4,2 V 1,1 A Charger power supply 100-240V 50-60Hz, 5V DC secondary Description of the endoscope elements A) Button ON/+ and OFF/-... -
Page 5: Led Indicators
E) Battery carger socket 2.3.ON/Off Button to A) Buttons for switching on and off or adjust the Econoscopes LED intensity over seven levels of brightness. Press the Off button for five seconds to turn off the illumination. The red LED will flash briefly, the button can be released and the Econoscope turns off. - Page 6 2.5 Rotation to C) Wheel for the axial adjustment to vary the angle of view of 175 ° clockwise and counterclockwise. In this way, the viewing direction can be axially adjusted, without the endoscope with the handle must be rotated. 2.6 High Performance -LED to D) High performance LED with seven...
- Page 7 2.7 Charging the battery / mains operation To E) Socket for charging the battery. Please use only the supplied charger. As long as the green LED flashes, the charging is in progress. If the green LED lights continuously charging is completed. Overcharging the battery is not possible.
-
Page 8: Care And Maintenance
round without any cut off before bonding the adapter to the frame. It is also possible to use the scope adapter of endoscope-i which is only available for the I-Phone 4S and 5 Please also see manual of the App. 3.
