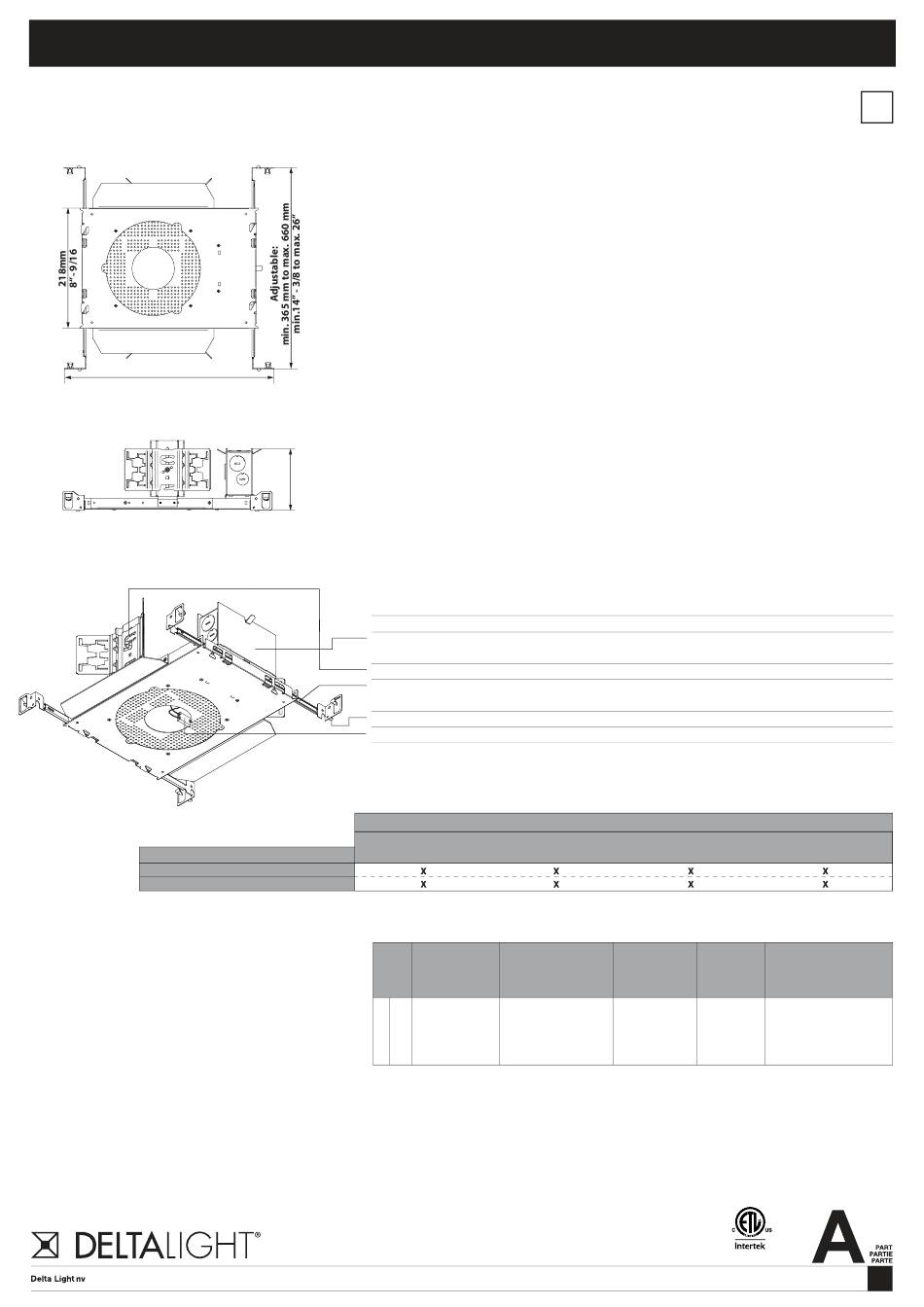

deltalight 6 202 0142 74 31 Installation Instruction

Installation instruction
Specification sheet / Installation instruction
6 202 0142 74 31 6 202 0146 74 11
NIC S 350mA-DC 12W NIC S 350mA-DC 11W
ED1 UNV EMP R89 ED8 120V EMP R89
Ø89mm
Ø3"-1/2
380mm
15"
COMPATIBLE FINISHING SECTION
CARREE RS LED
CARREE RS LED
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
6 202 0148 74 11
NIC S 350mA-DC 10W
120V EMP R89
APPLICATION
For use in new construction applications where no insulating material can be present.
DeltaLight EASY MUD FRAME already fit to the housing
Suitable for damp locations.
CEILING THICKNESS
For 5/8" ceiling standard
LED POWER SUPPLY
Included electronic power supply, 350mA class 2 secondary
6 202 0142 74 31: 60Hz / 120-277V / 1-10V dimmable / 100-1% lightoutput
6 202 0146 74 11: 60Hz / 120V / mains dimmable / 100-10% lightoutput
6 202 0148 74 11: 60Hz / 120V
6 202 0170 74 31: 60Hz 120-277V Lutron Hi-lume 1% EcoSystem/3-wire (100-1% lightoutput)
CONNECTOR
Housing and trim connection through snap-in connector
126 mm
DIMENSIONS
4"-15/16
Height:
Length:
Width:
Ceiling Cut out:
SPECIFICATION FEATURES
Galvanized steel construction
Junction box with snap-in internal cover and screw-on external cover.
Through circuit wiring with 4 in, 4 out #12 wire.
Preinstalled butterfly brackets, adjustable in height 2"- 3/4.
Standard Bar Hangers allow housing to be positioned and locked by squeezing lock tabs
with pliers. Standard Bar Hangers expand to max 26" - reduce to min 14"- 3/16.
Bar hanger foot aligns to bottom of construction joist
Snap-in connector female part
Gear comes with finishing section.
COMPATIBLE FINISHING SECTION
PLASTERFRAME A
6 202 0142 74 31
6 202 46 2812X
6 202 46 2912X
ORDER INFORMATION
Range Installation
type
6 202 01 - NIC Plasterframe S
6 202 01 - NIC Plasterframe S
6 202 01 - NIC Plasterframe S
6 202 01 - NIC Plasterframe S
NORTH AMERICAN EDITION
6 202 0170 74 31
NIC S 350mA-DC 13W
ED10 UNV EMP R89
126mm = 4"- 15/16
380mm = 15"
218mm = 8"- 9/16
Ø89mm = Ø3"-1/2
PLASTERFRAME SECTION
PLASTERFRAME B PLASTERFRAME C
6 202 0148 74 11
6 202 0146 74 11
Lamp Source Opening
42 - 350mA-DC 12W ED1 74 - EMP R89
46 - 350mA-DC 11W ED8 74 - EMP R89
48 - 350mA-DC 10W 74 - EMP R89
70 - 350mA-DC 13W ED10 74 - EMP R89
PLASTERFRAME
NIC
PLASTERFRAME D
6 202 0170 74 31
Voltage Mounting Option
1 - 120V
2 - 277V
0 - No bar hangers
3 - 120-277V 1 - Bar hangers standard
3 - 120-277V 1 - Bar hangers standard
1 - 120V 1 - Bar hangers standard
1 - 120V 1 - Bar hangers standard
3 - 120-277V 1 - Bar hangers standard
Conforms to ANSI/UL Std. 2108
Cert. to CAN/CSA Std. 22.2 No. 250.0
Last Update ALLU 07/07/2017
