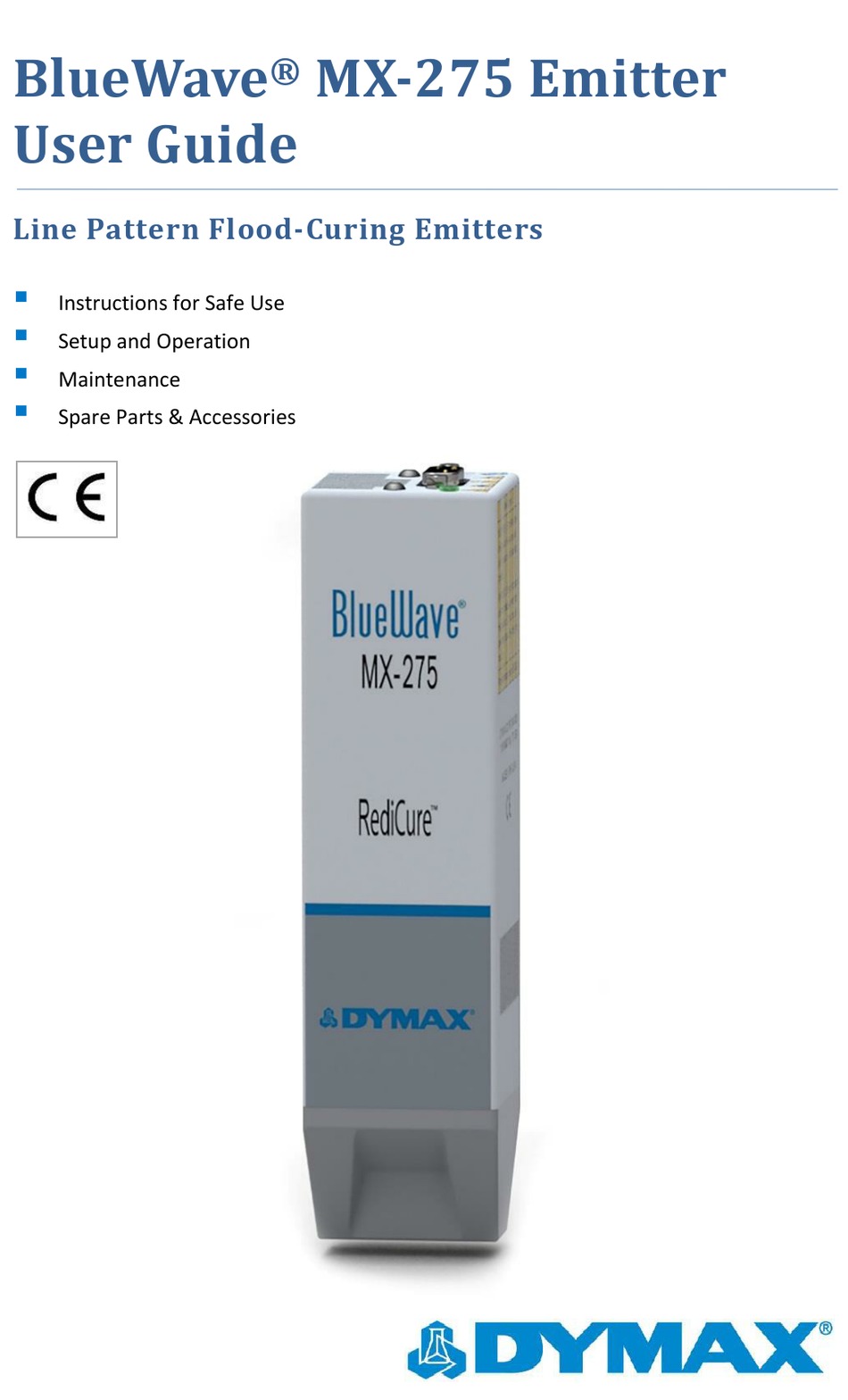

- Page 1 BlueWave MX-275 Emitter ® User Guide Line Pattern Flood-Curing Emitters Instructions for Safe Use Setup and Operation Maintenance Spare Parts & Accessories...
- Page 2 System designs enable stand-alone configuration or integration into your existing assembly line. Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Safety ......................... 5 General Safety Considerations ................5 Safety Symbol Index ....................5 Specific Safety Considerations ................6 Dymax UV Light-Curing System Safety Considerations .......... 6 Product Overview....................... 9 Description of BlueWave MX-275 Emitter ............. 9 Unpacking ........................ 10 Parts Included ...................... 10 Installation ....................... -
Page 4: Introduction
United States, Monday through Friday, from 8:00 a.m. to 5:30 p.m. Eastern Standard Time. You can also email Dymax at info@dymax.com. Contact information for additional Dymax locations can be found on the back cover of this user guide. Additional resources are available to ensure a trouble-free experience with our products: ... -
Page 5: Safety
Dymax LED light source. General Safety Considerations All users of Dymax LED light sources should read and understand this user guide before assembling and using the system. To learn about the safe handling and use of light-curable formulations, obtain and read the SDS for each product. -
Page 6: Specific Safety Considerations
UV Exposure Standard Dymax UV light-curing systems have been designed primarily to emit UVA and Visible energy (Figure 1). Depending on the model of LED head used, the energy emitted from a BlueWave MX-Series Emitter can either be in the upper end of the UVA portion of the spectrum (PrimeCure®... - Page 7 BlueWave® MX-275 Emitter User Guide ranges: UVA, UVB, and UVC. Although OSHA does not currently regulate UV-light exposure in the workplace, the American Conference of Governmental Industrial Hygienists (ACGIH) does recommend Threshold Limit Values (TLVs) for ultraviolet light. Figure 1. UV Spectrum The strictest interpretation of the TLV (over the UVA range) for workers’...
- Page 8 Flexible Film — Translucent UV-blocking, flexible urethane films can be used to quickly create workstation shielding. This UV-blocking, flexible urethane film is available from Dymax, call for assistance. High-Temperature Surfaces Surfaces exposed to high-intensity curing energy may rise in temperature. The intensity, distance, exposure time, cooling fans, and composition of the surface can all affect the rise in surface temperature.
-
Page 9: Product Overview
Product Overview Description of BlueWave MX-275 Emitter When paired with a MX-series controller, the BlueWave MX-275 functions as a line pattern flood-curing system with a 5 mm x 50 mm (0.2 in x 2 in) active curing area. Emitters are available in 365, 385, and 405 nm wavelengths. -
Page 10: Unpacking
Upon arrival, inspect all boxes for damage and notify the shipper of box damage immediately. Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. -
Page 11: Mounting/Connection
BlueWave® MX-275 Emitter User Guide Mounting/Connection The BlueWave MX-275 emitter has two sets of M3 x 0.5 mm holes that align with Dymax mounting stands and holders. Refer to Figure 2 for mounting hole locations. Figure 2. Dimensions - BlueWave® MX-275 Emitter ... -
Page 12: Operation
BlueWave® MX-275 Emitter User Guide Figure 3. Example of Installation using Array Stand Operation Note: Please see MAN090 – BlueWave® MX-Series Multichannel Controller User Guide for detailed instructions on controller operation. The BlueWave® MX-275 system will create a fan noise during startup and during high output operation. -
Page 13: Troubleshooting & Maintenance
BlueWave® MX-275 Emitter User Guide Troubleshooting & Maintenance Problem Possible Cause Corrective Action LED intensity adjustment Increase LED intensity setting. set to 0% or too low LED cycle time is set to 0 0 Seconds sets Manual Mode and seconds requires a trigger Verify interlock jumpers are in place. -
Page 14: Product Cleaning And Care
Glass Window Replacement If the glass window in your BlueWave MX-275 emitter becomes broken or contaminated and needs to be replaced, Dymax offers a glass window replacement kit (PN 43362). Follow the instructions below for proper replacement. -
Page 15: Compatible Devices
BlueWave® MX-275 Emitter User Guide NOTE: If the old window has shattered, be sure to remove all debris before attempting to install the new glass window. 4. Wearing vinyl or cotton gloves unwrap the new window and carefully clean with the enclosed alcohol swab. -
Page 16: Spare Parts & Accessories
43362 Personal Protection Equipment Three-Sided Acrylic Shield 41395 Protective Goggles — Green 35286 Protective Goggles — Gray (standard model included with unit) 35285 Face Shield 35186 Radiometer Dymax ACCU-CAL™ 50-LED Radiometer 40505 Stands Array Stand 43070 Emitter Mounting Stand 42390... -
Page 17: Specifications
Operating Environment 10 to 40°C (50°F to 104°F) * Measured using a Dymax ACCU-CAL™ 50-LED Radiometer w/3mm aperture prototype. This is preliminary intensity data for reference, tests using flood mode without an aperture will yield different results. Note: At the time of release of this manual, the ACCU-CAL™ 50-LED radiometer is being revised to support a fixturing aperture device with special “Line Mode”... -
Page 18: Warranty
BlueWave® MX-275 Emitter User Guide Warranty From date of purchase, Dymax Corporation offers a one-year warranty against defects in material and workmanship on all system components with proof of purchase and purchase date. Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. -
Page 19: Index
BlueWave® MX-275 Emitter User Guide Index Accessories, 16 Safety, 5 Cleaning, 14 Safety of UV Light Compatible Devices, 15 Bright Visible Light, 8 High-Temperature Surfaces, 8 Curing System Safety, 6 UV Exposure, 6 Emitter Components, 9 Spare Parts, 16 Glass Window Replacement, 14 Specifications, 17 Help, 4 Spectral Output, 17... - Page 20 Dymax standard Conditions of Sale published on our website. Dymax recommends that any intended application be evaluated and tested by the user to ensure that desired performance criteria are satisfied. Dymax is willing to assist users in their performance testing and evaluation by offering equipment trial rental and leasing programs to assist in such testing and evaluations.
