Fujikura 36S Quick Reference Manual

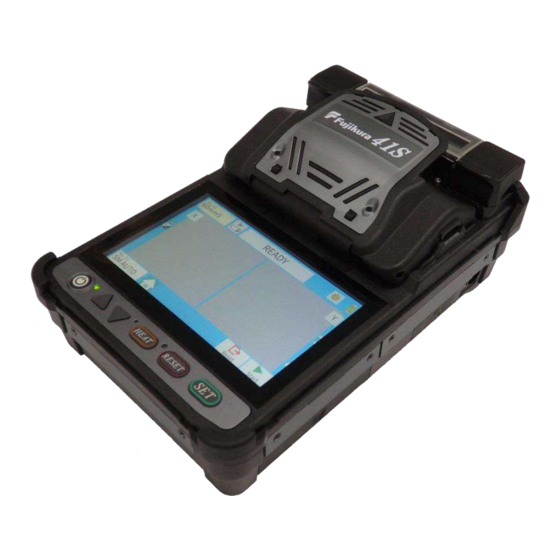

Fusion Splicer 36S/37S/38S/41S
Visible Splice Defects and Error Message
Bubble
Error Message
Too Long Fiber
Too Dusty Fiber
ZL/ZR Motor
Overrun
Large Cleave Angle
Cleave Shape NG
Fujikura Ltd.
Fujikura (CHINA) Co., Ltd.
Fujikura Asia Ltd.
Fujikura Europe Ltd.
AFL
Authorized Splicer Distributor
Separation
Reason
• The Cleave length (bare fiber
part) is too long.
• Dust or dirt is on the objective
lens cover.
• Dust or dirt is on the fiber
surface.
• Dust or dirt is on the objective
lens cover.
• [Cleaning Arc] time is too short
or "OFF".
• The fiber is correctly at the
bottom of the V-groove.
• The Cleave length (bare fiber
part) is too short.
• Bad fiber end-face.
• [Cleave Limit] is set too low.
• Bad fiber end-face.
Contact Address
1-5-1 Kiba, Koto-ku, Tokyo 135-8512 Japan
Phone : +81-3-5606-1164
7 Floor, Hang Seng Bank Tower 1000Lujiazui Ring Road, Pudong New Area ShanghaiZIP200120, China
th
Phone : +86-21-6841-3636
438A Alexandra Road,Block A Alexandra Technopark #08-03, Singapore 119967
Phone : +65-6278-8955
C51 Barwell Business Park, Leatherhead Road, Chessington, Surrey KT9 2NY. UK.
Phone : +44-20-8240-2000
260 Parkway East, Duncan, SC 29334 USA
Phone : +1-800-235-3423
Quick Reference Guide
Fat
Solution
• Cleave by forcing a holder tip of fiber cutting, and
pressing to a position.
• Execute the [Dust Check]. Clean the lens cover
when dust or dirt exists.
• Prepare the fiber again.
• Execute the [Dust Check]. Clean the lens cover
when dust or dirt exists.
• Set the [Cleaning Arc] time. When splicing carbon
coated fibers, set to more time.
• Press RESET, and set the fiber again to seat it
correctly at the bottom of the V-groove.
• Cleave by forcing a holder tip of fiber cutting, and
pressing to a position. Check the fiber length.
• Check the condition of the fiber cleaver. If the blade
is worn, rotate the blade to a new position.
• Increase the [Cleave Limit] to an adequate Limit.
• Check the condition of the fiber cleaver. If the blade
is worn, rotate the blade to a new position.
Fax : +81-3-5606-1534 https://www.fusionsplicer.fujikura.com
Fax : +86-21-6841-2070
Fax : +65-6273-7705
Fax : +44-20-8240-2010
Fax : +1-800 -926-0007
Too Thin
http://www.fujikura.com.cn
http://www.fujikura.com.sg
https://www.fujikura.co.uk
https://www.AFLglobal.com
Q-41S-E01
