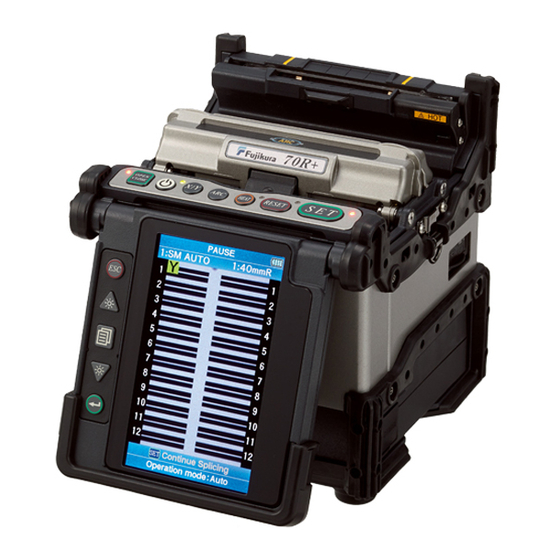

Fujikura 70R+ Quick Reference Manual

Fusion Splicer 19R+/70R+
Turning splicer ON
Confirming splice, heater and operation modes
Cleaning coating or sheath of fiber
Placing protection sleeve over fiber
Stripping fiber
Cleaning fiber
Cleaving fiber
Loading fiber onto splicer
Splicing start automatically
Visual inspection on LCD during splice
Removing spliced fiber
Centering protection sleeve in tube heater
Centering spliced point in tube heater
Heating start automatically
Completed
When using single holder
Adjusting the position of
the fiber coating edge to
holder edge

Splice Operation

• When splicing only standard SM fibers (ITU-T G.652),
"SM AUTO" mode is recommended.
• When splicing different types of fibers, "AUTO" mode is
recommended, but splice speed is slow.
• Hold lid firmly
• Free of any gel residue
• Make sure the stripped fiber is free
of coating debris or contamination.
• Use only 99% or better purity alcohol.
*Hold
Note
• When splicer indicates following message, splice
• Load prepared SM fibers onto splicer in order to
• When an altitude changes drastically, stabilizing
Quick Reference Guide
• Hold this point firmly
Placing Fiber Holder
• Do not reverse Fiber Holder
when placing onto splicer.
Set in the direction which sees
from the sheet key side and
can read the name of a holder.
* Hold the fiber at edge of splicer body.
** Apply tension to the fiber until heater
holds the fiber.
loss may be high
"Arc discharge is not stable. Electrodes should be
stabilized to reform the arc discharge."
stabilize electrodes. After completeing it, re-splice
fibers.
elctrodes must be excecuted before splicing.
**Pull
Marking
