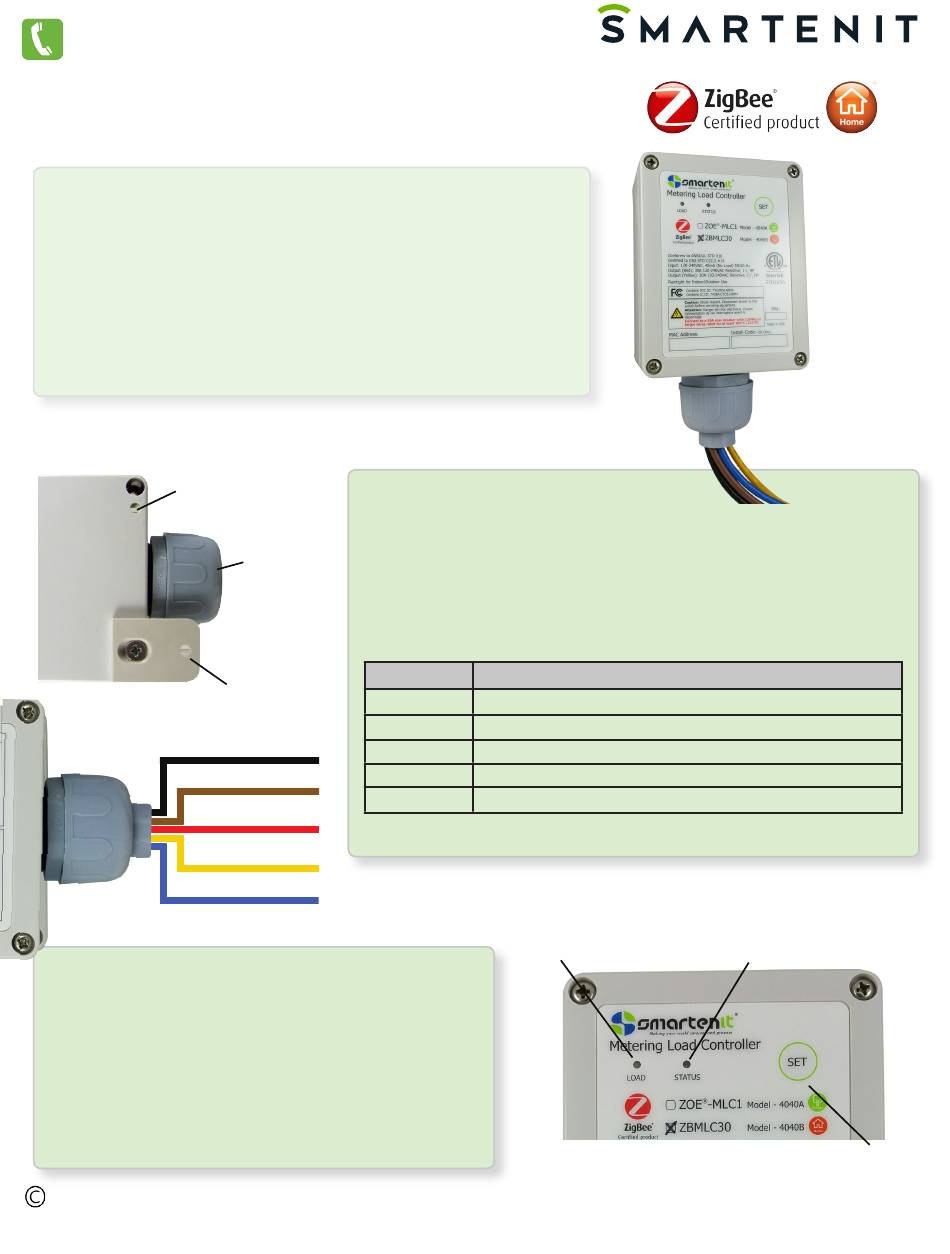

Quick Start Guide -
Wireless Triple-Relay Metering Load Controller

Product Brief

The ZBMLC30 interfaces wirelessly with ZigBee Pro controllers and
gateways in the Home Automation (HA) profile. This high power
load controller is ideal for applications that require control and
monitoring of loads up to 240VAC at 30Amps.
The device measures the energy delivered to the load in Kilo-
watt-Hours, enabling the intelligent management of large applianc-
es to maximize energy conservation. Two-speed appliances such
as pool pump motors are handled directly with an integrated third
relay.
Mounting Holes
Mounting Tabs
(sold separately)
Line 1 In
Line 2 In
Load 1 Out
Load 2 Out
Line 2 Out
Local Control & LED Indicators
SET Pushbutton - used to factory reset device, join
network, bind to other devices, and for local control. A
single tap cycles loads from OFF, to Load 2 ON (Red LED),
to Load 1 ON (Green LED) with each successive tap.
Load LED - Indicates when load is energized (Green if high
power, Red if low power. Green/Red flashing, both loads
on)
Status LED - Indicates network join and bind status.
2015 Compacta International, Ltd. - Rev.
ZBMLC30 and Smartenit are trademarks of Compacta International, Ltd.
ZigBee is a registered trademark of the ZigBee Alliance
ZBMLC30

Installation

The ZBMLC30 can be mounted indoors or outdoors
A water tight
Mounting
connector
and conduit
Can be mounted with #6 screws through mounting holes from the inside or
must be used
with optional Mounting tabs (sold separately).
for outdoor
all four mounting holes must be used or otherwise sealed.
installation
Wire Connections
Wire Color
Black
Brown
Red
Yellow
Blue
** High voltage installations should always be performed by a licensed professional **
8/2015
Model #4040B
Make Connection To
Electrical service Line1 (Hot for 120VAC or L1 for 240VAC)
Electrical service Line2 (Neutral for 120VAC or L2 for 240VAC)
L1 to Load 1 (High Speed if 2-speed appliance)
L1 to Load 2 (Low speed if 2-speed appliance)
L2 to Load (Common to Load 1 and Load 2)
LOAD LED
