Summary of Contents for Keller DCX Series

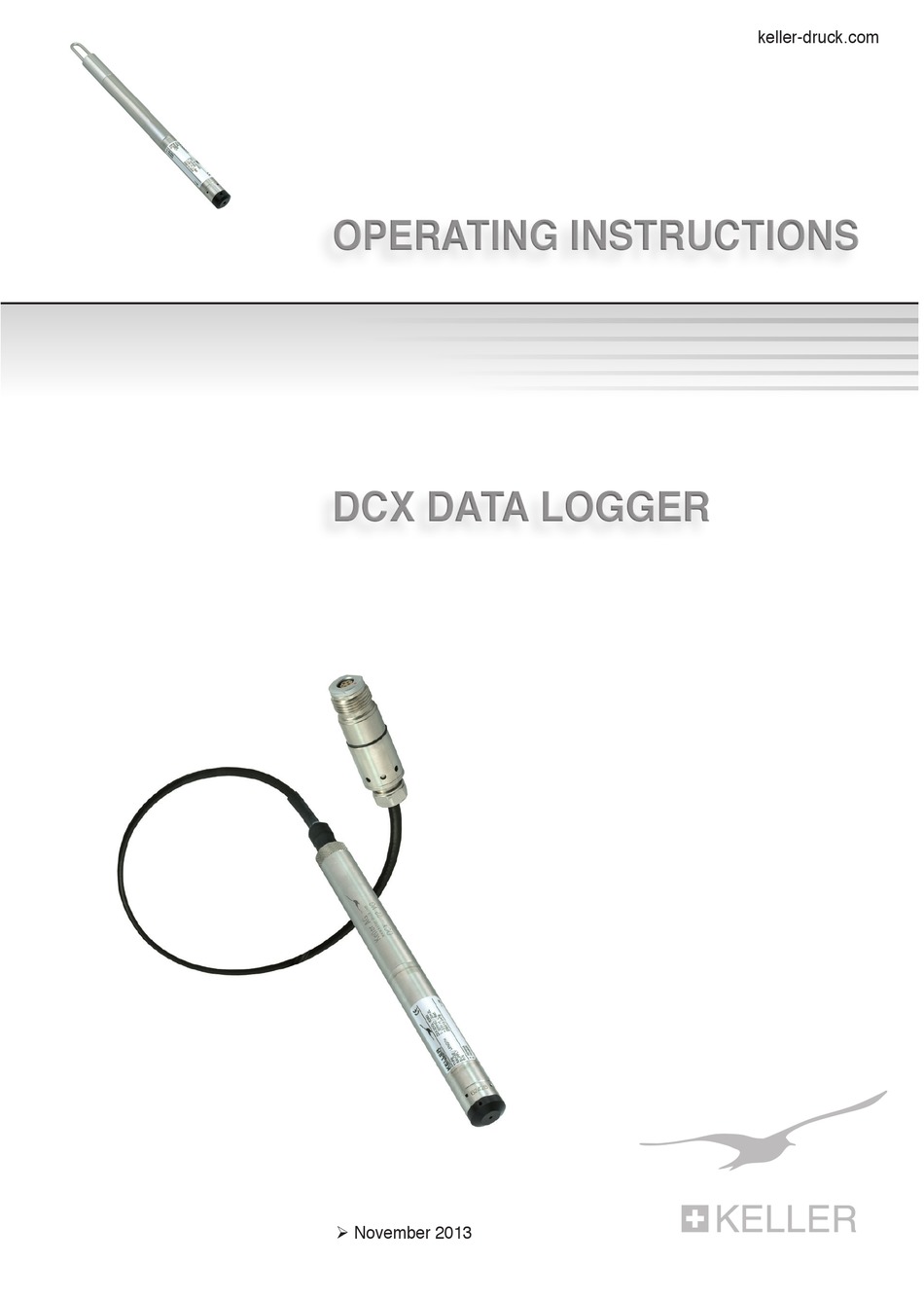

- Page 1 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS DCX DATA LOGGER DCX DATA LOGGER November 2013 1 ...
-
Page 2: Table Of Contents
Table of contents Product overview Overview of structural designs, Series DCX Measuring principle for Series DCX General Level measurement Relative pressure measurement (VG) Absolute pressure measurement (SG) Absolute/absolute pressure measurement (A/A) Level measurements in closed receptacles Functionality of the Series DCX data logger... -
Page 3: Product Overview
Product overview The data loggers in Series DCX are autonomous, battery-powered data collectors which can measure the water level (water column, i.e. pressure) and temperature over lengthy periods. Series DCX is designed for level measurements and is generally used for long-term data acquisition in applications with brackish water, salt water or fresh water. -
Page 4: Overview Of Structural Designs, Series Dcx
Overview of structural designs, Series DCX Different versions of the autonomous data loggers in Series DCX are available from KELLER in order to meet the requirements for the measuring point, the on-site environ- mental conditions and the fluid to be measured:... -
Page 5: Measuring Principle For Series Dcx
Measuring principle for Series DCX DCX- -AA version -VG version -SG version ③ optional ② Cable Surface of water ① ① ① ① ① ② ③ Level sensor Air pressure sensor Reference aperture P1 = medium pressure [bar] P2 = air pressure [bar] For physical compensation TOB1 = medium temperature [°C]... -
Page 6: General
General information Fluctuations in the groundwater level (or the levels of other fluids) can be determined and located precisely by measuring the prevailing (hydrostatic) pressure at a defined depth below the surface of the water. To convert the pressure [bar] into the water column level [mWS], it is only necessary to know the density of the fluid. -
Page 7: Level Measurements In Closed Receptacles
Absolute measurement method (SG) With the absolute measurement method, the prevailing total pressure on the level sen- sor is determined (= air pressure + hydrostatic water pressure). To compensate for the influence of fluctuations in air pressure, a second data logger is positioned on the surface as a barometer. -
Page 8: Functionality Of The Series Dcx Data Logger
Functionality of Series DCX Autonomous data loggers in Series DCX record the values measured for pressure and temperature together with the time of each measurement. The following types of recording and initial conditions are supported: Recording interval Constant Interval ≥ 1 second... -
Page 9: Installation Instructions
Service and Support For service and support, please contact your local dealer or contact us at www.keller- druck.com Guidelines on safe and efficient use • Treat the product with care and keep it in a clean place that is free of dust. -
Page 10: Warranty Conditions
KELLER’s instructions. Data security KELLER assumes no responsibility for data loss of any nature, and shall not pay com- pensatory damages in case of data loss. Data stored in the product may be lost if the product is repaired or replaced. -
Page 11: Fitting Instructions
Fitting instructions Requirements for the location The DCX logger unit is installed in a stable position at the measurement location in order to record a groundwater level. • If the logger is fully sunk into the ground (e.g. in a sewer shaft), free movement of... -
Page 12: Water Level Configuration
The DCX logger can be connected locally to a laptop via the interface converter cable. The Logger 5 software can now be used to configure the device or to transmit the measurement data stored in the DCX to the laptop. -
Page 13: Installation Of Relative Data Logger (Vg Versions)
Installation of relative data logger (VG versions) Ambient pressure is compensated physically on VG versions. The ambient pres- sure is fed to the back of the pressure sensor on the level sensor, via a capillary tube integrated into the sensor cable. -
Page 14: Dcx Time
The DCX is configured and read locally. The DCX is fitted in the measuring point and is connected to a laptop via the interface converter cable. • The Logger 5 Software Manual is available at www.keller-druck.com Installing the software Only connect the DCX and the converter cable to your computer after the software has been installed •... -
Page 15: Verifying Measured Data
Verifying measured data Ongoing measurements can be read out with no need to interrupt the measurement sequence. As you read ongoing measurements, you can set a flag (the measurement in progress will be terminated and a new measurement will be started immediately) or you can con- tinue the ongoing measurement. -
Page 16: Maintenance
Battery Series DCX Lithium battery (type AAA) Lithium battery (type AA) KELLER product no. 557005.0017 KELLER product no. 557005.0006 Batteries must never be disposed of in normal household waste. To prevent possible damage to the environment or to health due to uncontrolled waste disposal, this product must be separated from other waste and recycled correctly in order to ensure sustain- able use of the raw materials. -
Page 17: Watertightness
Battery plug Sealing rings Vor öffnen Datenlogger trocknen! Keep dry before opening! Battery sleeve Knurled nut To replace the battery, first unscrew the knurled nut and then pull off the battery sleeve. Carefully disconnect the battery from the plug and replace it. -
Page 18: Ventilation Diaphragm
Ventilation diaphragm (for VG versions only) The diaphragm used for ventilation generally requires no maintenance. The ventilation function of the diaphragm is impaired by matter adhering to or contami- nating the ventilation aperture, or by contact between the diaphragm and solvents, to such an extent that it may be necessary to replace the diaphragm. -
Page 19: Cleaning
Cleaning If the data logger is used in severely contaminated media, the pressure sensor must be checked for contamination from time to time, and must be cleaned as necessary. Never use sharp-edged tools such as screwdrivers, and never apply pressure at any point on the diaphragm. -
Page 20: Calibration
Testing by the manufacturer The DCX may also be sent to KELLER AG für Druckmesstechnik in order to verify its measurement accuracy or for calibration. The following test options may... - Page 21 Density [ρ] of the measured medium The density of fluids is temperature depen- Anomalous density dent. The density of most fluids decreases in 1000.0 linear proportion to the temperature. However, 999.0 998.0 water reaches its highest density at 3.98 °C;...
-
Page 22: Overview Of Dcx
DCX overview DCX-16 DCX-16 VG DCX-16 SG Designation KELLER product numbers are shown in the list of accessories (starting on page 26). interface plug RS485 Sealing ring for interface plug Sealing ring for battery compartment DCX-22…38 VG: AA lithium battery... - Page 23 DCX-18 VG DCX-18 DCX-18 SG Designation KELLER product numbers are shown in the list of accessories (starting on page 26). Knurled nut Battery sleeve Cap lock for interface plug Ventilation aperture (only present on VG versions) Screw nut Circlip...
- Page 24 DCX-22 DCX-22 AA DCX-22 VG 24 ...
- Page 25 DCX-22 SG DCX-25 PVDF DCX-38 VG 25 ...
-
Page 26: Accessories
Accessories DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. Software CD Supplied with product 750505.0001 Contains all KELLER software including USB driver for K-114/K-104 Can be downloaded free of charge at: www.keller-druck.com Adapter rings for DCX Optional (can be supplied as an option) - Page 27 DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. Cap lock, DCX Optional 2” 506815.0009 3” 506815.0040 4” 506815.0041 5” 506815.0042 6” 506815.0043 Adapter ring to match Optional DCX cap lock 3” 506810.0085 4” 506810.0085 5” 506810.0087 2“ 6” 506810.0078 to install the DCX logger →...
- Page 28 DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. End cap for DCX-16 Supplied with product 507205.0033 for DCX-16 End cap for DCX-18 Supplied with product 507220.0109 for DCX-18 End cap for Supplied with product 507220.0001 DCX-22 & DCX-25 PVDF for DCX-22...
- Page 29 DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. Plug-type power unit, 15 V Supplied with product 309010.0087 (U.K.) for K-114M DC plug Input: 230 VAC Output: 15 VDC, 360 mA Cable length: 2 m Plug-type power unit, 15 V Supplied with product 309010.0086...
- Page 30 DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. Flange socket Supplied with product for 508415.0004 for connection socket with DCX-16/DCX-22/ hexagon socket screw DCX-38 VG (Inox/stainless steel M3 x 6) for securing Circlip Supplied with product for 508830.0002 DIN: 471 (BN: 682) AA/VG/SG versions Ø...
- Page 31 DESCRIPTION SCOPE OF DELIVERY PRODUCT NO. Interface converter Optional 309010.0002 K-103A (not for DCX-18 ECO) For communication between PC and DCX-16/22. Connection to serial interface (converter RS232 – RS485) Interface converter Optional 309010.0075 K-114A with Fischer plug/ 5-pin: • Supply via USB for...
- Page 32 EN 61000-6-2: 2005 EN 61000-6-3: 2007 EN 61000-6-4: 2007 EN 61326-2-3: 2006 This declaration applies to the manufacturer: Keller AG, St. Gallerstrasse 119, 8404 Winterthur, Switzerland submitted by: Keller GmbH, Schwarzwaldstrasse 17, D-79798 Jestetten Jestetten, November 12, 2013 H.W. Keller, Director with legally valid signature KELLER AG für Druckmesstechnik...
