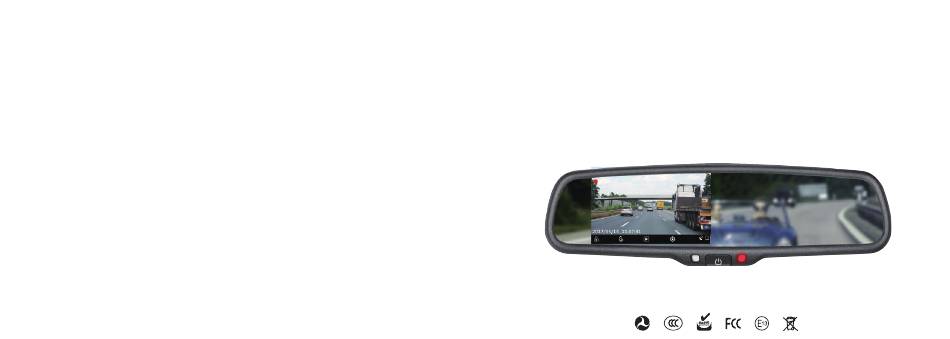

- Page 1 Master Tailgaters Rear View Mirror with HD DVR Recording U S E R M A N U A L M o d e l : M R - 4 3 E 2 D V R 2 Serial No.: 2018EV3043LAB120118...
-
Page 2: Table Of Contents
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: TABLE OF CONTENTS (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. 01 PACKAGE ity to operate the equipment. -
Page 3: Package
PACKAGE The package contains the following: 01 Full HD DVR rear view mirror 05 Remote control 02 Wire harness 06 SD card (optional) 03 User manual 07 GPS antenna (optional) 04 Wire cover For the items listed above, please check your packing contents. If any damage, please contact the distributor or the agent as soon as possible. -
Page 4: General Introduction
GENERAL INTRODUCTION SPECIFICATIONS This full HD DVR mirror monitor adopts Ambarella A12 chipset with HD recording. Ambarella A12 The professional processing technology of wide dynamic makes the abundant details available by capturing images in Flash S34ML02G1 different lengths, and uniting two frames into one at the same time. K4B4G1646D The 140°... -
Page 5: Basic Operating Instructions
Note: For the best performance and durability of video recording, we recommend to use C10 U1 level TF card or better. BASIC OPERATING INSTRUCTIONS 1. SD cards can be made by several different ways using different memory types and formatting types. In general, two types are commonly found, MLC and TLC. -
Page 6: How To Wire
HOW TO WIRE Noted: Only special models come with exterior antenna. Black to GND Camera power to reversing power Power button GPS antenna connector (option) Back up camera DVR: short press to turn off the screen; long press to restart Windshield bracket Green to back car singal short press to adjust the brightness... -
Page 7: How To Install Mirror Monitor
CAUTION! the bracket. Master Tailgaters will not be responsible for damage caused to your car by faulty installation of the mirror. Car factory original mirror... -
Page 8: Back Up Camera Display
MENU SETTING BACK UP CAMERA DISPLAY The menu can only be set by remote control. When the car is reversing, the monitor will automatically display back up camera image. Menu parameter increases Enter picture menu Menu parameter decreases Guide line up Guide line left Guide line right Enter guide line adjustment... -
Page 9: Adjustable Guide Line
How to adjust the guide line ADJUSTABLE GUIDE LINE According to the sight of standard reference line, put a reference object in the back up camera line of sight. About guide line Compare with the marked references, adjust the lines and angles of two guide lines displayed on the monitor. You will get the accurate and safety guide lines once it coincides with the reference object. -
Page 10: Settings
Language Time setting SETTINGS There are 7 system languages available. System time can be marked on the video. Sound recording on/off Press “ ” button to enter system setting Press “ ” button to enter system setting menu. Find “Time setting ” by “ ”... - Page 11 Video size Record recycle G sensor To ensure enough memory, new recorded video will The full HD DVR mirror can record video in 3 kinds of With G-sensor function, mirror can automatically save the video as read-only le when it detects acceleration of gravity automatically overwrite the pre-recorded one.
- Page 12 Parking mode Once you choose “parking mode” working length from After pressing “ ” , you will nd another warning: 30min/ 1 hour /6 hours/12 hours, you will nd a warning Please use this function cautiously, otherwise it would make the engine fail. message: PLEASE USE THIS FUNCTION CAUTIOUSLY, OTHERWISE IT...
-
Page 13: Video Recording
Battery monitor Lcd auto off VIDEO RECORDING The battery voltage monitoring is activated automatically Press “ ” button to enter system setting menu. Find when the parking mode is on. It can be set to 11.8V, “Lcd auto off” by “ ”... -
Page 14: Playback
PLAYBACK OPTIONAL FUNCTIONS GPS tracker When you enter into “Normal video” list, press “ ” or Press “ ” button to enter into playback menu. Find “ ” to switch video and press “ ” “ ” to and choose “ Normal video” or “Emergence video” by This function requires the installation of external GPS antenna module. - Page 15 ADAS Connect the mirror to external antenna. Press “ ” 2. Forward Collision Warning System button to enter system setting menu. Find “GPS” and Only connect the mirror to GPS antenna and GPS successfully xed the location, the function will be 000:00:50 “ADAS”...
-
Page 16: Trouble Shooting
Auto-dimming (optional) TROUBLE SHOOTING The auto dimming of our mirror works automatically when you start the engine, and the indicator will light up . The light sensor in the back of the rearview mirror will always detect the ambient light. The auto-dimming doesn't work in the broad day for the adequate daylight.
