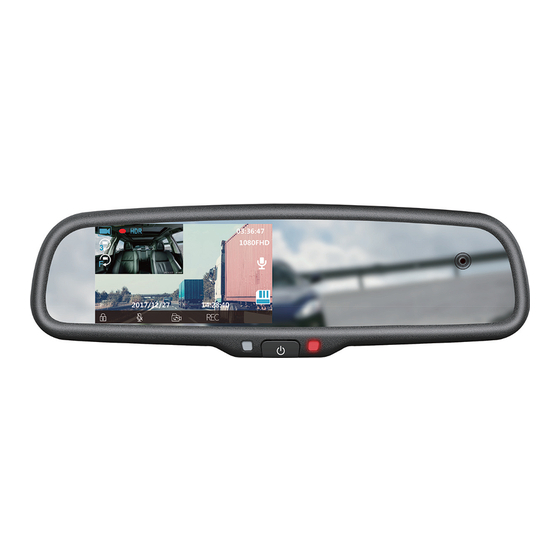

- Page 1 Master Tailgaters Rear View Mirror with HD DVR Recording and In Cabin Facing Camera U S E R M A N U A L M o d e l : M R - 4 3 - E 2 D V R 3 Serial No.: 2018AV5043LAN58TX1109...
-
Page 2: Table Of Contents
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: TABLE OF CONTENTS (1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could avoid the user's author- ity to operate the equipment. -
Page 3: Package
PACKAGE FEATURES The package contains the following: High brightness display screen Parking mode recording 01 Full HD DVR rear view mirror 04 Wire cover Dual way recording Motion detection recording 02 Wire harness 05 Extension cable Front camera recording 1080P Loop recording 03 User manual 06 SD card (option) -
Page 4: Basic Operating Instructions
Note: For the best performance and durability of video recording, we recommend to use C10 U1 level SD card or better. BASIC OPERATING INSTRUCTIONS 1. SD cards can be made by several different ways using different memory types and formatting types. In general, two types are commonly found, MLC and TLC. - Page 5 HOW TO WIRE Short press: switch front and rear video screen Long press: open the Wi-Fi. In recording/stop recording state: start/stop recording In the Wi-Fi interface: turn off Wi-Fi Cabin camera SD card slot (max 32GB) Speaker Cable connector Red to ignition +12V Windshield Bracket Yellow to battery Camera Lens...
-
Page 6: How To Install Mirror Monitor
NOTE: Always use caution, DO NOT force the mount. Master Tailgaters not be responsible for broken HOW TO INSTALL MIRROR MONITOR windshields. If you are not sure how to remove or re-install the mirror seek trained, professional help. Remove the original mirror Different cars have different brackets. -
Page 7: Back Up Camera Display
CABIN AND DASH CAMERA LIVE VIEW MODES BACK UP CAMERA DISPLAY 03:36:47 The cabin and dash cameras record automatically. The When the car is reversing, the monitor will automatically display back up camera image. 1080FHD files are split into two seperate files for each camera. A live view of each camera can be displayed on the LCD screen. -
Page 8: Mobile Phone App Connection And Operation
5. Once the device is connected successfully, user can check the recording video and operate accordingly. MOBILE PHONE APP CONNECTION and OPERATION Built- in WiFi module system allows to connect mobile phone through Android or IOS APP, please check below for its setup. 1.
