PSL PQube Installation & User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

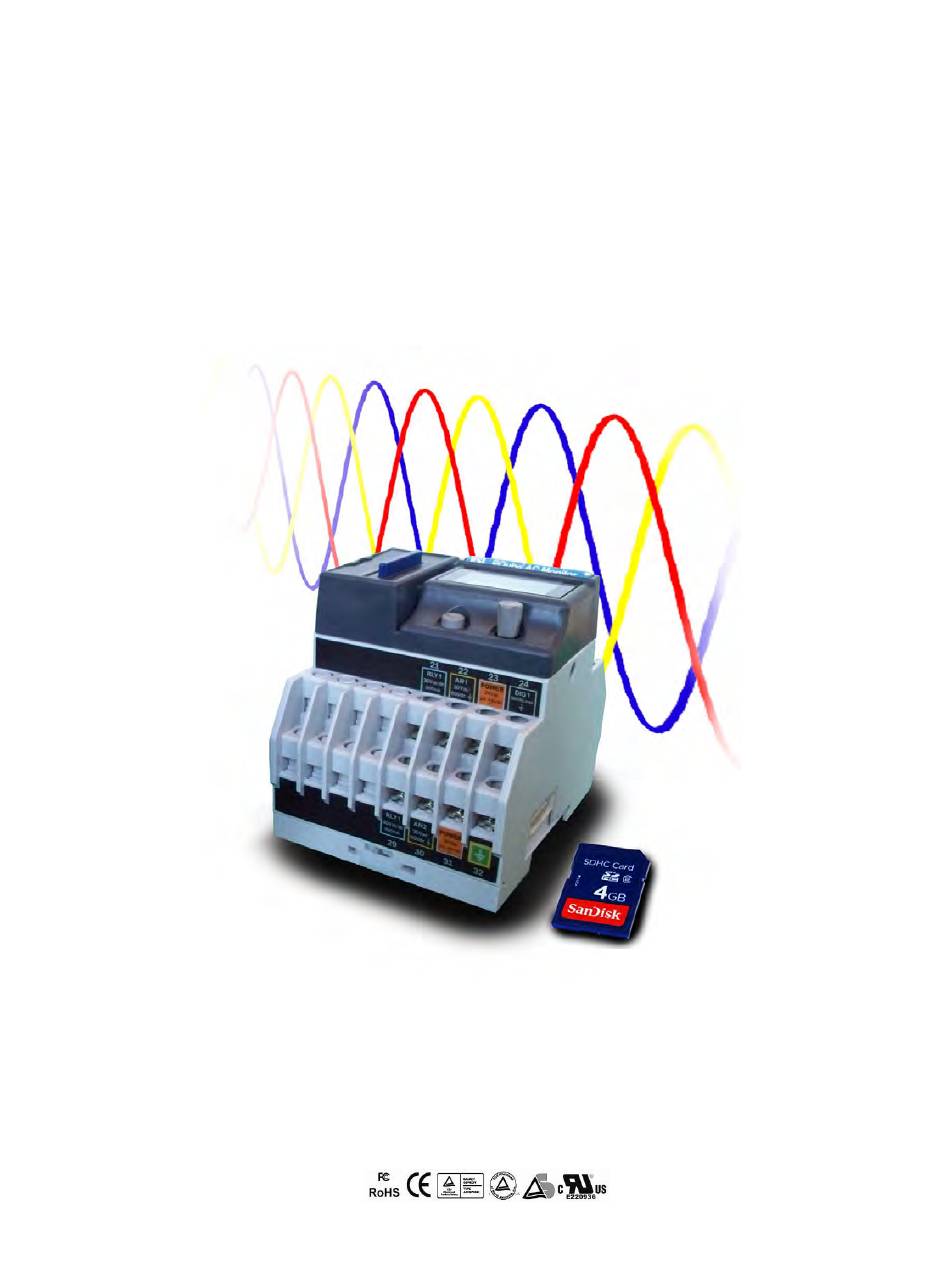

PQube User Manual 2.1
®
PQube
Installation & User's Manual
Firmware Rev 2.1
PSL
Power Standards Lab
2020 Challenger Drive #100
Alameda CA 94501 USA
www.PowerStandards.com
© 2008-2012 Power Standards Lab
Page 1 of 113

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PQube and is the answer not in the manual?

Questions and answers

Related Manuals for PSL PQube

Summary of Contents for PSL PQube

  • Page 1 PQube User Manual 2.1 ® PQube Installation & User’s Manual Firmware Rev 2.1 Power Standards Lab 2020 Challenger Drive #100 Alameda CA 94501 USA www.PowerStandards.com © 2008-2012 Power Standards Lab Page 1 of 113...
  • Page 2 LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE. PSL shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. If you do not accept this limitation on liability, please return the product to PSL prior to use.

  • Page 3: Table Of Contents

    Mount your PQube securely ............................13 PQube instrument power ............................14 Connecting the wires ..............................14 Using your PQube with external Potential Transformers ..................16 Include overcurrent protection and a disconnecting device ..................17 Protect the operator from the hazardous terminals ....................17 Protect antenna terminals from lightning .........................
  • Page 4 Customize your Analog channels ..........................38 User Guide Using Your PQube ........................39 Your PQube’s Display and User Interface ........................39 Inserting and Removing Your SD Card ..................44 What Channels Does My PQube Measure? ................44 Standard PQube Channels ............................44 Additional Channels Available With Optional Current Module ................
  • Page 5 Changing the configuration during a measurement interval ................... 59 File Formats ................................59 Manually Trigger Snapshots or Daily Trends ......................61 User Counter ................................61 Getting Data Into and Out of Your PQube ................. 62 SD Card ..................................62 ETH1 .................................... 62 Maintenance ..........................65 Upgrading Your PQube’s Firmware ...........................

  • Page 6: Introduction

    When equipped with an optional ETH1 Ethernet module, your PQube can automatically send you e-mails whenever it detects an event. You can send your PQube a new setup file, or even update its firmware via e-mail. The Ethernet module also includes a web server, an FTP server, and MODBUS over TCP, giving you even more ways to communicate with your PQube.

  • Page 7: How Is Your Pqube Different

    Store years of data on standard SD cards. – Your PQube comes with a 4GB SD card which will store about 2 years’ worth of data.  Small size – The PQube is tiny (a little bit bigger than your fist), and that makes it easier to integrate into your product. ...

  • Page 8: Applications

    Your PQube records events, trends, and statistics by monitoring your AC mains voltages. It also measures two analog input channels for additional signals (for example, the output of a power supply), a digital input channel, an output relay, and a full color display. Your PQube records all information to a standard SD memory card.

  • Page 9: Measure Current, Power, And Energy

    Measure Current, Power, and Energy Are you interested in measuring current, power, or energy? If so, you’ll need a PQube current module. There are three versions; please pick the one that is best for you. XCT4 – External CTs with current secondary outputs If you already have CTs (Current Transformers) with current outputs, you can use an XCT4.

  • Page 10: Power Your Pqube From 100~240Vac

    PQube User Manual 2.1 Power your PQube from 100~240Vac Do you want to power your PQube from 100~240Vac (50/60Hz)? If you have 24~48Vdc or 24Vac, you can use your PQube’s internal power supply (just connect to the power supply screw terminals). If you want to use 100~240Vac, you’ll need an optional PS1 Power supply module.

  • Page 11: Installation

    PQube User Manual 2.1 Installation Quickstart Snap your PQube (and any plug-in modules) on to your DIN rail. Don’t have an ETH1, XCT4 or CT4 plug-in module? Go to step 3. a) ETH1 module? Connect your Ethernet cable. b) XCT current interface module? Connect your current transformer to the screw terminals of your XCT module.
  • Page 12 PS1 or PS2 Power Supply module and connect 100~240VAC to it. Use the joystick and pushbutton to change settings …. … and check that your PQube has correctly determined your mains voltage Page 12 of 113...

  • Page 13: General Installation

    PQube User Manual 2.1 Your PQube is recording power quality events on its SD card. If you have an XCT or a CT4, your PQube is also measuring energy. Edit your Setup.ini file on your SD card to set location, thresholds, transformer ratios, email access, and other settings.

  • Page 14: Pqube Instrument Power

    24Vdc~48Vdc +/- 20%, supplied by a certified isolating power supply. PQube instrument power Your PQube can take its operating power from three different sources: its Power screw terminals [23][31], its internal Lithium Polymer rechargeable battery, or an optional PS1 Power Supply module.
  • Page 15 For mains connections and current connections, PSL recommends snap-on forked terminals, such as 3M Scotchlok P/N MU18- 6FL or MU14-6FL, or Panduit P10-6lF. For other connections, PSL recommends wire ferrules for stranded wire, such as Panduit F77 series, for example Panduit F77-6-M.

  • Page 16: Using Your Pqube With External Potential Transformers

    Examples are electricity meters and measurements on primary overcurrent protection devices and ripple control units.” Using your PQube with external Potential Transformers If you want to measure nominal voltages higher than 690 volts, you can connect your PQube voltage inputs to the secondary windings (low voltage windings) of any standard Potential Transformer.

  • Page 17: Include Overcurrent Protection And A Disconnecting Device

    This device must be clearly marked as the disconnecting device for your PQube, and must be marked to indicate the disconnection function. Do not install your PQube in such a way that it becomes difficult to operate this disconnecting device. The disconnecting device must not disconnect the earth connection.

  • Page 18: Protect Antenna Terminals From Lightning

    PQube. The rectangular opening in the Plexiglass should be 74mm x 47mm (for your PQube alone), or 110mm x 47mm (for your PQube and the ETH1 module, or your PQube and the PS1 module), or 146mm x 47mm (for your PQube and both the ETH1 and PS1 modules).

  • Page 19: Installing Your Ps1 Or Ps2 Power Supply Module

    PS2 Power Supply modules contain an internal fuse. Installing Current Modules If you want to measure current with your PQube you can install an optional module. Simply plug the module into the side of your PQube. PQube current modules provide transformer-based electrical isolation, except for the XCT5-0.333V, XCT5-01V, XCT5-05V, and XCT5-10V, which take low-voltage inputs.
  • Page 20 PQube User Manual 2.1 In general, the accuracy of your PQube’s current measurements are so precise (roughly ±0.1%) that the accuracy of your current measurements will be determined almost entirely by the current transformer that you select. CT4 Current Module If you don’t already have CTs, but you want to measure current, you...

  • Page 21: Wiring Diagrams

    PQube User Manual 2.1 Wiring Diagrams Single-Phase L-N (a) PQube monitors complete Voltage Quality (b) With CT4 Current Module (c) With XCT4 Current Module, 1 current transformer (d) With XCT5/CTE1 Current Module, 1 current transformer Page 21 of 113...

  • Page 22: Split-Single-Phase L-N-L

    PQube User Manual 2.1 Split-Single-Phase L-N-L (b) With CT4 Current Module (a) PQube monitors complete Voltage Quality (d) With XCT5/CTE1 Current Module, 2 current (c) With XCT4 Current Module, 2 current transformers transformers (f) With XCT5/CTE1 Current Module, 4 current...

  • Page 23: Single-Phase L-L

    PQube calculates current on other phase (f) With XCT5/CTE1 Current Module, 2 current (e) With XCT5/CTE1 Current Module, 1 current transformers – PQube measures current on both transformer – PQube calculates current on other phase phases Page 23 of 113...

  • Page 24: Delta

    – PQube measures current on all phases (e) With XCT5/CTE1 Current Module, 2 current (f) With XCT5/CTE1 Current Module, 3 current transformers – PQube calculates current on third phase transformers – PQube measures current on all phases Page 24 of 113...

  • Page 25: Wye/Star

    (b) With CT4 Current Module (d) With XCT4 Current Module, 4 current transformers (c) With XCT4 Current Module, 3 current transformers – PQube measures current on phase and neutral – PQube calculates current on neutral conductor conductors Page 25 of 113...

  • Page 26: Wye/Star (Continued)

    Wye/Star (continued) (e) With XCT5/CTE1 Current Module, 3 current (f) With XCT5/CTE1 Current Module, 4 current transformers – PQube calculates current on neutral transformers – PQube measures current on phase and conductor neutral conductors (g) With XCT5/CTE1 Current Module, 5 current (h) With XCT5/CTE1 Current Module, 5 current transformers –...

  • Page 27: Overview Of Connections And Controls

    Always disconnect all mains connections, and verify disconnections, prior to servicing. Calibration Information for Your PQube Every PQube is calibrated and traced to NIST at the factory. You can download a free NIST trace certificate that contains the specific calibration information for your PQube by entering your PQube’s serial number at www.powerstandards.com/CalibCerts.htm.

  • Page 28: Setting Up Your Pqube

    If you are using your PQube for DC monitoring only, and do not wish to record AC voltage, you can set your Power Configuration to “NONE” in your setup file.

  • Page 29: Potential Transformers With Calibrated Ratios

    PQube User Manual 2.1 Potential_Transformer_Ratio=100:1 Note that, if you choose to set the nominal voltage in your PQube’s Setup.ini file, you would set Nominal_Phase_To_Neutral_Voltage=24000 even though the voltage at your PQube’s terminals is 240 volts nominal. Potential Transformers with Calibrated Ratios In Firmware 2.1, you can now apply a gain correction factor for the mains voltage terminals, with a...

  • Page 30: Setting Up Your Optional Current Module

    Setting up Your Optional Current Module Setting Current Transformer Ratio If you are using a CT4 current sensing module, you don’t need to set a CT ratio – your PQube will set it automatically. If you are using an XCT4 current sensing module, you will need to set the CT ratio so that your PQube can correctly display the amount of current, as well as correctly calculate power and energy usage.

  • Page 31: Fix Installation Errors, Simply And Easily

    PQube User Manual 2.1 current in the missing CT. Note that if you calculate the current in a missing CT, your PQube will incorrectly show any earth current as flowing in the calculated phase. If you want to use this feature, change the setting in the Setup.ini file.

  • Page 32: Setting Up Your Optional Eth1 Ethernet Module

    DHCP. Email Setup Creating an e-mail account for your PQube Your PQube needs its own email account in order to send email. This is because your PQube is an email client, just like your computer. PQube.com email address Your PQube comes with its own PQube.com email account! By default, all of the email server information is already filled out for you.
  • Page 33 Creating an email account with your own domain If you are unable to use the default PQube.com email account, you can create an email account for your PQube using your own domain. You will need to give your email system administrator some information, have him or her set up an account for your PQube, and then fill in the [Email_Server_Settings] section of the Setup.ini file on your SD card.
  • Page 34 Sending a test e-mail from your PQube After you have set up your PQube to use email, it is a good idea to send a test e-mail from your PQube. Use the joystick to go to the “Send test e-mail” screen, just to the left of your “Configuration”...

  • Page 35: Web Server Setup

    64). FTP Setup Your PQube contains a FTP server that you can use to get files from your SD card. FTP (File Transfer Protocol) is a simple system used for transferring files between two computers that are connected by a network. The FTP server is disabled by default, you can enable it by changing the FTP_Server setting the Setup.ini file to...

  • Page 36: Simple Network Management Protocol (Snmp)

    Simple Network Management Protocol (SNMP) A beta version of SNMP is included in Firmware 2.0. SNMP is a common meter reading protocol that is used in data centers worldwide. For easy SNMP installation, a PQube MIB file is included with 1.4 release files.

  • Page 37: The Setup.ini File

    If you plug in an SD card that does not include a Setup.ini file, your PQube will use the Setup that it previously stored in its flash memory. So you can easily configure your PQube once, then use blank SD cards from then on.

  • Page 38: Dc Monitoring

    AN2-E_Channel_Ratio=50:4 DC Power and Energy Your PQube can multiply the AN1-E channel by the AN2-E channel to display DC Power. Connect your DC voltage source to AN1-E and the output of your DC current sensor to AN2-E, and your PQube will calculate the DC Power and Energy. Navigate to the [Analog_Ratios] section of your setup file and edit the following tag: ;...

  • Page 39: User Guide

    To force your PQube to reset, hold the button (A) down for 10 seconds. The PQube Display Use the joystick on the front of your PQube to navigate through these screens. Use the select button to choose an item outlined by an orange box.
  • Page 40 If your e-mail does not go through, you will see a red X with an error message. See WARNING Do not assign your personal email address to your PQube. Your PQube must have its own dedicated email address that it can use to send and receive email. Power Standards Lab is not responsible for any loss of data.
  • Page 41 DIG1 signal. AN/DIG1 (AN_Energy_Mode only): With an ATT2 module, your PQube can monitor High Voltage DC systems. After you have enabled the AN_Energy_Mode tag in your setup file,...
  • Page 42 Setup.ini file. The 1-minute and N-minute readings are automatically synchronized to your PQube’s real time clock. These readings can be useful for evaluating inrush current and circuit breaker settings, and for sizing power conditioning devices such as UPS and voltage regulating transformers.
  • Page 43 PQube is taking power from its battery. Cycle count shows the number of times your PQube has taken power from this battery. You can reset the cycle count by holding down the select button for 3 seconds. The date shows the last time the cycle count was reset.

  • Page 44: Inserting And Removing Your Sd Card

    Your PQube will automatically reset when you re-insert a SD card. Inserting and Removing Your SD Card To insert the SD card, push it gently into the slot until it clicks. Your PQube will automatically reset itself. To remove the SD card, go to the menu screen and select “Remove SD Card”.
  • Page 45 RMS measurements are better than ±0,1% of nominal voltage, and sampled at 256 samples per cycle to ensure full accuracy for all measurements. Your PQube’s sampling rate is automatically locked to the frequency, and tracks the frequency as it changes at a rate of up to ±3 Hz per second.
  • Page 46 (on three meter screens). Snapshots In your Setup.ini file, you can set your PQube to take full snapshots every 3, 6, or 24 hours. Each snapshot includes full harmonic and interharmonic spectra. The data is available in GIF images, CSV spreadsheets, and PQDIF format.
  • Page 47 PQube’s SD card. Digital Input Your PQube has a single digital input called DIG1. It is a voltage input with respect to your PQube’s Earth terminal. It is rated at 60VDC or 30VAC, maximum, with respect to earth. The digital input is wetted with +5.4Vdc at 3μA, and has a logic threshold of approximately +1.5V with respect to your PQube’s...

  • Page 48: Additional Channels Available With Optional Current Module

    0.333-volt, 1-volt, 5-volt, or 10-volt outputs. The crest factor for all PQube current modules is 3.5 (in other words, a PQube current module that is rated at 100 amps can measure instantaneous current up to ±350 amps).

  • Page 49: Temperature And Humidity

    Your PQube measures watts, VA, and tPF. “VA” is apparent power, the product of the RMS voltage times the RMS current. Your PQube correctly calculates VA and Power for all power configurations, including delta configurations, for which it creates a digital metering neutral.

  • Page 50: Pqube Recordings

    It is important to note that, as long as your PQube is running, it is almost impossible for it to miss an event (your PQube can miss an event if more than 4 events of any one type occur within 4 seconds of each other).
  • Page 51 Every event graph has information in the header that tells you details about the event recorded and information about your PQube that recorded the event. This makes it easy to send a graph file to another person without having to explain the context of the recording.
  • Page 52 [Phase_To_Phase_Events] Voltage Swells A voltage swell is a brief increase in the line voltage. Your PQube records voltage swells according to IEC 61000-4-30 class A. A swell begins when the 1-cycle RMS of any voltage goes above the threshold (110% of nominal by default) and ends when all voltages are beneath the threshold,...
  • Page 53 When your PQube detects a high frequency impulse it will make a standard event recording. Note that the sampling rate of your PQube is 256 samples per cycle, so you may not see the impulse in the recording, but the exact time of the impulse is marked and recorded.
  • Page 54 Trend_Harmonic_Interval_In_Minutes tag. Long Events A long event is an event that is 1 minute or longer. In general, your PQube makes its reports after an event concludes: this is necessary to determine the event duration, the worst-case voltage during the event, and so on.
  • Page 55 PQube User Manual 2.1 Waveshape Change Your PQube triggers a Waveshape Change when the voltage waveform changes abruptly. It uses the “Floating Window” algorithm to compare each cycle to the previous cycle. It is especially useful for detecting Power Factor Correction capacitor switching. In your Setup.ini file, locate the following tags: Voltage_Threshold_In_Percent_Of_Nominal=20.00...

  • Page 56: Trends And Statistics Recordings

    PQube User Manual 2.1 Current Triggering Your PQube triggers events on the Phase Current channels, the Neutral Current channel, and the Earth Current channel. There are two ways to trigger a current event: Overcurrent You can set the overcurrent threshold by editing the tags called Level_Threshold_In_Amps and the Level_Hysteresis_In_Amps in your Setup.ini file.

  • Page 57: Trends And Statistics Channels

    PQube User Manual 2.1 GIF Flags Whenever an event occurs during a measurement, your PQube will flag the measurement at the appropriate time interval. For GIF Trends and Statistics: This is a voltage dip/swell/interruption as defined by IEC 61000-4-30. This is a non-IEC 61000-4-30 event. These include frequency changes, high frequency impulses, and analog dips and swells.
  • Page 58 , and P for each channel. inst Power By default, your PQube displays power, VA, VAR, and true power factor trends as single values where applicable: The minimum value is the lowest U value out of all the channels. RMS½...

  • Page 59: Changing The Configuration During A Measurement Interval

    Any settings in the Trend_Settings section of your Setup.ini file. In Firmware 2.0, your PQube will automatically generate a partial recording of today’s Daily Trends (if your PQube has been recording for at least 1 hour). Then it will begin a new trend recording based on the new settings.
  • Page 60 PQDIF (Power Quality Data Interchange Format) Your PQube will produce PQDIF files that you can use with most PQDIF viewers. These files are useful if you use PQDIF files already or if you want to use standard files that utilities and other power quality experts understand.

  • Page 61: Manually Trigger Snapshots Or Daily Trends

    DIG1_Swell_Threshold=0.5 DIG1_Event_Hysteresis=0.1 Every time the DIG1 value changes from 1 to 0, your PQube will increment the User Counter by 1. The Energy per Count is automatically refreshed when the User Counter is incremented. You can reset the User Counter by resetting the accumulated energy at the Energy screen.

  • Page 62: Getting Data Into And Out Of Your Pqube

    Getting Data Into and Out of Your PQube SD Card The SD card is the hard drive of your PQube. All of the data is recorded to the SD card. At any time you can remove the SD card by following the directions in for...
  • Page 63 Subject_Must_Begin_With your setup file. By default this word is “PQube” without the quotes. For example, to send your PQube a new setup file, write an email to your PQube with subject: PQube New Setup File and include the new setup file as an attachment. The subject is case sensitive.
  • Page 64 Under the Meters tab, you can view the total memory usage in your SD card. This value appears as 0% full after reset, and is updated every evening. After you set up your PQube’s FTP server (see FTP Setup on page 35), you can access your PQube using any standard FTP client, with the following restrictions: ...

  • Page 65: Maintenance

    PQube’s SD card. This will cause your PQube to reset and power down (as there is no power available). If your PQube resets and begins to start up again, you have not removed all instrument power.

  • Page 66: Pqube Specifications

    Measurement Channels Standard: AN1-Earth, AN2-Earth, AN1-AN2. DC Energy Mode: DC Power and DC Energy. Accuracy ±0.2% rdg ±0.2% FS typical (10% ~ 100% FS), ANx-Earth. Every PQube factory tested at better than ±0.1% rdg ±0.1% FS AC DIGITAL INPUT Connection...
  • Page 67 Sampling Rate 12.8 kHz or 15.4 kHz (sampled at same rate as mains voltage measuring channels) Accuracy ±0.2% rdg ±0.2% FS typical (10% ~ 120% FS). Every PQube factory tested at better than ±0.15% rdg ±0.15% FS. Burden less than 0.1VA Conductors 0.34 inches (8.6 mm) max.
  • Page 68 200:1 Accuracy DC: ±0.1% rdg ±0.1% FS 50/60Hz: ±0.15% rdg ±0.15% FS At 23ºC ±3ºC, 10% – 100% FS, in addition to error in PQube analog channels Thermal drift of offset voltage ±0.005 mV/ºC typical Thermal drift of gain ±0.01% rdg/ºC typical...
  • Page 69 PQube User Manual 2.1 OUTPUTS Signal Relay Connection RLY1 PQube screw terminals [21], [29]. RLY2 PQube screw terminals [20], [28] with factory installed RLY option. RLY3 PQube screw terminals [19], [27] with factory installed RLY option. Rating 30 VAC/30 VDC, 300 mA max.
  • Page 70 AGENCY APPROVALS AND LISTINGS UL-recognized, cULus – File Number E220936 RoHS Certified – PSL Construction File PQube-001 Certified - PSL Construction File PQube-001, TUV CB Test Certificate US-TUVR-4368-A2 Certified – 20080102-01-CE, 20080326-01-RI TUV Bauart-mark Certified – TUV Report 30880881.009 ABS Shipyard Certified –...

  • Page 71: Appendix 1: Modbus

    59600.00 . 213.567 MWh is presented as an IEEE floating point number: 213567000.000 . If no data is available, your PQube uses a float value of NaN (not a number) to indicate “no data”, and your PQube uses an integer value of 32,767 (7FFF hex) to indicate “no data”.

  • Page 72: Pqube Modbus Register Table

    PQube User Manual 2.1 may experience delayed response times, ranging from a few seconds up to several minutes, depending on which parameters are being recorded. PQube Modbus Register Table Firmware Version 2.0 Offset Register Format Units Comments L1-E Float L1 to earth – U...
  • Page 73 2-hour value. For L2 and L3 see 228- 76-77 L1 Flicker P Float 239. Number of new events recorded by PQube since last time this register was polled. This register is New Event Recordings Integer incremented when the files are fully available for download.
  • Page 74 PQube User Manual 2.1 fundamental Volts calculates a metering Neutral for magnitude this parameter. L3-N voltage 108-109 fundamental Float degrees Range: ±180.0º angle L1 current 110-111 fundamental Float Amps magnitude L1 current 112-113 fundamental Float degrees Range: ±180.0º angle L2 current...
  • Page 75 Float degrees Harmonic order specified in 166 current angle Harmonic Range: 1-50, selected by user on Integer order of PQube harmonic meters screens – (Read/Write) interest defaults to 3 harmonic 0 = not installed 1 = not locked GPS status...
  • Page 76 Integer Range: 1 – 31 Set this register to 1 to reset the Reset Energy Accumulators Write-only energy accumulators in your PQube Set this register to 1 to reset the Reset Analog Energy Write-only analog energy accumulators in your Accumulators...
  • Page 77 PQube User Manual 2.1 PQube Modbus – Static Information The following registers change only when the PQube is reset: Offset Register Format Units Comments PQube Firmware – Typically formatted as “1.1.2” or similar 1000 Integer Major rev – Major.Minor.Bugfix PQube Firmware –...

  • Page 78: Appendix 2 - Setup File Guide

    Demonstrator" 63 characters Note_2="(Located in PSL Calibration Lab)" Power_Configuration=AUTO Set this tag to AUTO if you want your PQube to AUTO automatically choose its Power Configuration Single_Phase_L1_N based on the voltage it finds on its input terminals when it starts up.
  • Page 79 PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example Time_Zone= Enter the time zone where your PQube is Any combination located. UTC sometimes called Greenwich Mean of 3 or 4 capital Time (GMT) letters Offset_From_UTC_In_Hours= Choose the number of hours your PQube should...
  • Page 80 Setup.ini Tags Comments Valid Values Example Nominal_Frequency=AUTO By default, your PQube will automatically detect AUTO your nominal frequency if it is 50, 60, or 400 Hz. You can also manually set the frequency to 50, number 60, or any frequency between 320 and 560Hz.
  • Page 81 PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example Behavior_When_SD_Card_is_Full=DISCARD_OLDEST_MONTH When the SD card becomes full, your PQube can DISCARD_OLDEST_MONTH automatically delete the oldest month of data, or STOP_RECORDING you can choose to stop recording. Budeanu_VARs_Column_in_Event_CSV_Files=AUTO Enable this option to show Budeanu VARs in AUTO event CSV files.
  • Page 82 PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example Record_Neutral_Current=ON Record_Earth_Current=ON [Measurement_Setup] Peak_Demand_Interval_In_Minutes=15 There are three Peak Measurement screens in your PQube: Peak Amps Peak Demand Peak VA For each screen, three measurement intervals are provided: 1-cycle 1-minute 15-minute The 15-minute interval is user configurable using this tag.
  • Page 83 PQube User Manual 2.1 This method produces a single value of unbalance. It is widely used in North America. The IEC unbalance method considers both three- phase magnitudes and the angles between the phases. It is limited to the fundamental voltage or current only –...
  • Page 84 PQube User Manual 2.1 lamp voltage for Flicker measurements according to IEC 61000-4-15. Rotation_Convention_On_Vectors_Screen= The rotation convention used on the Vectors display screen. CLOCKWISE Counter-clockwise: COUNTER_CLOCKWISE COUNTER_CLOCKWISE NOTE: This tag does not affect measurements or rotation errors. To fix rotation errors, swap any two phases in the [Adjust_Phase_Connections] section.
  • Page 85 Invert_L1_Current_Channel=OFF If your CTs have been installed backwards, you can reverse the polarity here. Invert_L2_Current_Channel=OFF Invert_L3_Current_Channel=OFF Invert_N_Current_Channel=OFF Invert_E_Current_Channel=OFF Calculate_Current_Channel=OFF If you have current transformers on all conductors except one, your PQube can calculate the remaining channel. Page 85 of 113...
  • Page 86 10000:1 AN2-E_Channel_Ratio=1:1 Resistive_Attenuator_Correction=OFF To increase accuracy, you should set this to ON if you are using an optional external ATT1-600V or ATT1-1200V module with your PQube’s AN1 and AN2 screw terminals. Analog_Measurement_Mode=DC_RMS Increases accuracy by applying a small adjustment AC_RMS factor that compensates for digital filtering.

  • Page 87: Configure Event Triggering

    Setup.ini Tags Comments Valid Values Example [Phase_To_Neutral_Events] Phase_To_Neutral_Events=AUTO Use the AUTO setting to let your PQube decide to AUTO record Phase-Neutral events or not. If your Power Configuration includes a Neutral conductor, your PQube will record Phase-Neutral events. Dip_Threshold_In_Percent=90.00 Set thresholds for Voltage Dips, Swells, and Interruptions.
  • Page 88 HF_Impulse_Events=ON Set this tag to ON to begin recording transients or high frequency impulses. The detection threshold is 450V peak. Your PQube can detect transients as short as 1 microsecond. [Snapshot_Events] Waveform_Snapshot_Interval_In_Hours=24 Your PQube is scheduled to record a Snapshot of your electric power at this interval.
  • Page 89 Enable_Snapshot_Harmonics=ON Set this tag to ON to include a harmonics spectrum for voltage (and current, where applicable) when a Snapshot is generated. NOTE: Your PQube’s sampling rate must be set to 128. [AN1_E_Events] AN1_E_Events=OFF Set this tag to ON to enable event triggering on your Analog channel 1.
  • Page 90 DIG1_Event_Hysteresis=0.1 [Phase_Current_Events] Phase_Current_Events=OFF Trigger events for current on L1, L2, and/or L3. Level_Threshold_In_Amps=AUTO Set the level threshold here. Your PQube will record an event when the current exceeds this Level_Hysteresis_In_Amps=AUTO level. Inrush_Threshold_In_Amps=AUTO Set the inrush threshold here. Your PQube will...
  • Page 91 Valid Values Example [Neutral_Current_Events] Neutral_Current_Events=OFF Trigger events for current on the Neutral channel. Level_Threshold_In_Amps=AUTO Set the level threshold here. Your PQube will record an event when the current exceeds this Level_Hysteresis_In_Amps=AUTO level. Inrush_Threshold_In_Amps=AUTO Set the inrush threshold here. Your PQube will...
  • Page 92 PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example [Major_Dip_Events] Major_Dip_Threshold_Settings=OFF Major Dips are defined selected depth/duration curve. This is useful for emulating ITIC PSL’s PQ1 Power Quality Relay. CBEMA SEMI F47 When a dip exceeds the thresholds as specified by...
  • Page 93 PQube User Manual 2.1 [Waveshape_Change_Events] Waveshape_Change_Events=ON Trigger a Waveshape Change when the voltage waveform changes abruptly. This is useful for detecting power factor correction capacitor switching. Voltage_Threshold_In_Percent_Of_Nominal=20.00 If the voltage change from one cycle to the next exceeds the selected threshold, for the selected Duration_Threshold_In_Percent_Of_Cycle=10.00...
  • Page 94 Probe_2_Low_Humidity_Events="OFF" Probe_2_Low_Humidity_Threshold_in_Percent_RH=0 Probe_2_High_Humidity_Threshold_in_Percent_RH=1 Probe_2_Humidity_Event_Hysteresis_in_Percent_RH= [Event_Relay_Trigger] Trigger_Relay_On_Dip=OFF Your PQube triggers for many types of events. You Trigger_Relay_On_Dip=1 can choose which of these events will open one or Trigger_Relay_On_Major_Dip=OFF Trigger_Relay_On_Major_Dip=3 more relays. Each relay will remain open for 3 seconds or the event duration, whichever is longer.

  • Page 95: Network Configuration

    If you are automatically assigned an IP address by Use_DHCP your network, use DHCP. If you are using a static Use_Fixed_IP IP, use Fixed IP. Publish_IP_Address=ON Specify whether you want your PQube’s emails to include the IP address or not. Ethernet_Link_Speed_Duplex=AUTO AUTO 10HALF 10FULL...
  • Page 96 Your PQube needs its own e-mail account. Do not try to share your personal e-mail PQube_Email_User_Name= account with your PQube – if you do, it will try very hard to receive all of your e-mails. You can get a free, PQube_Email_Password= temporary PQube e-mail account from PSL.
  • Page 97 Subject: PQube Send Logs Subject: PQube Reset PQube Email_Must_Be_From_1= If this list is left blank, then your PQube will accept emails from anyone. Email_Must_Be_From_2= Email_Must_Be_From_3= If any email addresses are added to this list, then Email_Must_Be_From_4= your PQube will only accept emails from recipients on this list.
  • Page 98 Send_Trends_Emails=OFF Setup.ini Tags Comments Valid Values Example Email_Subject_Begins_With=PQube All emails sent from your PQube will have a Subject beginning with this keyword. Email_Body_Type=Human_Readable_HTML Select the format of the email body. Human_Readable_HTML Human_Readable_Text Machine_Readable_XML...
  • Page 99 Setup.ini Tags Comments Valid Values Example [Web_Server_Settings] Web_Server=ON Enable your PQube’s HTTP Web Server Web_Server_port=DEFAULT Require_HTTP_Authorization=OFF Restrict general access to your PQube’s Web Server HTTP_User_Name= HTTP_Password= Require_HTTP_Admin_Authorization=ON Restrict access to the Commands section of your PQube’s Web Server. HTTP_Admin_User_Name=admin HTTP_Admin_Password=admin...
  • Page 100 Little Endian byte order stores the least significant number in the first byte. [Output_Formatting] Decimal_Separator="." Set the Decimal, Date, Time, and CSV separator characters here. These affect the PQube display, Date_Separator="/" the meters on the web interface, emails, and output files. Time_Separator=":"...

  • Page 101: Setting Up Your Trends And Statistics

    PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example [SNTP_Settings] Enable_SNTP=OFF Synchronize your PQube’s time clock using SNTP SNTP_Server=pool.ntp.org SNTP_Update_Interval_In_Hours=24 1 to 24 Setting up your Trends and Statistics Setup.ini Tags Comments Valid Values Example [Carbon_Footprint] CO2_Emissions=Generated Typically, you choose “generated” if you are Generated measuring a load, like a building;...
  • Page 102 Trend_Individual_Phases=ON If OFF, your PQube records worst-case and average of all phases. If ON, your PQube also records the values of individual phases. This data is available for Voltage, Current, and Power.
  • Page 103 Example Trend_Harmonic_Interval_In_Minutes=OFF Specify the recording interval for harmonics trending. Your PQube will take a 10/12 cycle sample of data every 10 or 15 minutes. NOTE: Your PQube automatically adjusts the sampling rate to 128 samples per cycle if you turn this on.
  • Page 104 PQube User Manual 2.1 Setup.ini Tags Comments Valid Values Example Min_Frequency_of_Interest_in_Percent_of_Nominal=A The AUTO values are determined by the AUTO Underfrequency and Overfrequency thresholds. Any number [Hz] Max_Frequency_of_Interest_in_Percent_of_Nominal=A Min_AN1_E_of_Interest_in_RMS_volts=AUTO The AUTO values are determined by the Dip and Swell AUTO thresholds on Analog Channel 1.

  • Page 105: Appendix 3 - Ride-Through Curves

    Samsung Power Vaccine, ITIC, CBEMA, MIL-STD 704E, and MIL-STD 1399. These standards define ride-through curves based on the depth and duration of voltage dips. When the voltage dips below the ride-through curve, your PQube will trigger a Major Dip event. You can specify which standard to use in your Setup.ini file.

  • Page 106: Semi F47

    PQube User Manual 2.1 SEMI F47 NOTE: Use this curve to guarantee that a Major Dip is detected for events that lie directly on the SEMI F47 boundary. Samsung Power Vaccine Page 106 of 113...

  • Page 107: Itic

    PQube User Manual 2.1 ITIC CBEMA Page 107 of 113...

  • Page 108: Mil-Std 704E

    PQube User Manual 2.1 MIL-STD 704E MIL-STD 1399 Page 108 of 113...

  • Page 109: Appendix 4 -Mib Table For Snmp

    Appendix 4 –MIB Table for SNMP A beta version of SNMP support is included. SNMP is a common meter reading protocol that is used in data centers worldwide. For easy SNMP installation, a PQube MIB file is available for download from http://www.PowerStandards.com/PQube...
  • Page 110 Float 10-minute value Flicker P(LT) Float 2-hour value Number of new events recorded by PQube since last time this register was polled. This register is incremented New Event Recordings Integer when the files are fully available for download. This register is cleared by reading it.
  • Page 111 Grams Also, see registers 131-133: Energy accumulated accumulated since [date] Earth current Float RMS Amps rms10/12 L1-N voltage For delta systems, the PQube calculates fundamental Float RMS Volts a metering Neutral for this parameter. magnitude L1-N voltage fundamental Float degrees Range: ±180.0º...
  • Page 112 Harmonic order specified in 166 current angle Harmonic – L3 Float degrees Harmonic order specified in 166 current angle Range: 1-50, selected by user on PQube Harmonic order Integer harmonic meters screens – defaults to of interest harmonic 0 = not installed...
  • Page 113 Nominal frequency Float Hertz PT (potential Float transformer) ratio CT (current Float transformer) ratio PQube serial PQube serial number, without leading Float number “P” and leading zeros AN1 (Analog 1-E) Float multiplier AN2 (Analog 2-E) Float multiplier Used for calculating IEEE 519 Current...
