Fimco MS-25BU Owner's Manual

Fimco MS-25BU Owner's Manual

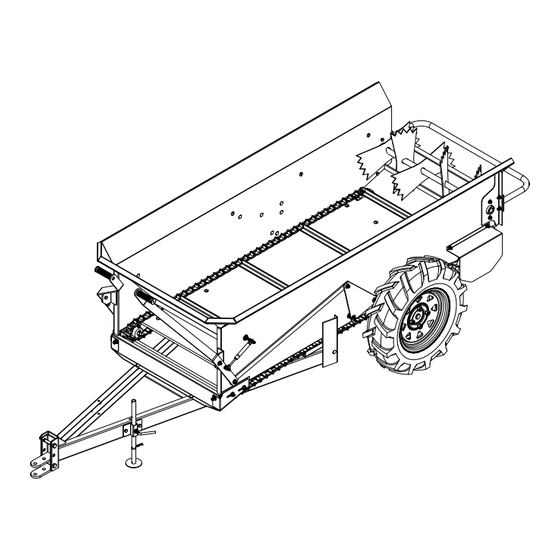

25 bushel pull-behind manure spreader

Advertisement

Quick Links

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
manure spreader. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects for home owner
usage and 90 days for commercial usage.
For technical assistance, visit our website @
www.fimcoindustries.com or call: TOLL FREE @ 1-800-831-0027
Our Technical Support Representatives will be happy to help you.
To obtain prompt, efficient service, always remember to give the
following information...
Correct Part Description and/or part number
Model #/Serial # of your sprayer
Part descriptions and numbers can be obtained from the illustrated
parts list section(s) of this manual.
OWNER'S MANUAL
Model: MS-25BU
(5301194)
(25 Bushel Pull-Behind
Manure Spreader)
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004582
(02/17)]
