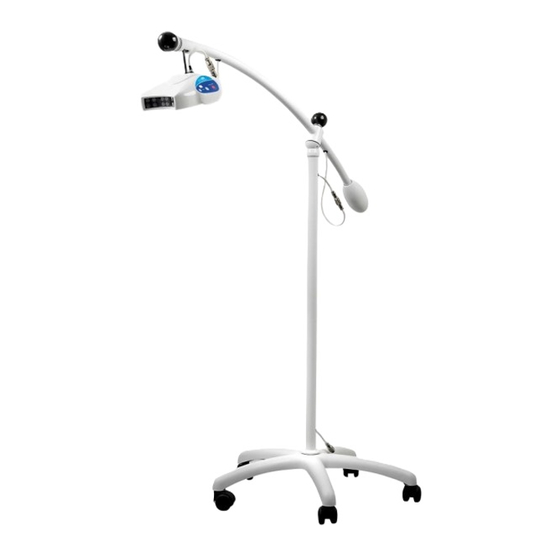

Blancone Arcus Operation Manual

Led bleaching system unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

ARCUS
Led BLEACHING SYSTEM
OPERATIONS GUIDE
ARCUS
LED BLEACHING SYSTEM UNIT
rev. 0 (08/08/2016)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arcus and is the answer not in the manual?

Questions and answers

Related Manuals for Blancone Arcus

Summary of Contents for Blancone Arcus

  • Page 1 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE ARCUS LED BLEACHING SYSTEM UNIT rev. 0 (08/08/2016)
  • Page 2 SYMBOLS SERVICE DATA I. UNIT DESCRIPTION AND FUNCTION ARCUS BLANCONE BLEACHING SYSTEM is intended to whiten the hard dental tissue by activating bleaching gel used in dental practice. The device consists of Bleaching head and Stand. ARCUS BLANCONE BLEACHING SYSTEM is produced in conformity with MDD...

  • Page 3: Technical Data

    ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE II. TECHNICAL DATA 1. Operating Voltage – 100-240V / 50-60Hz (see unit label) 2. Power consumption – 0,4-0,2 A 3. Dimensions: - Bleaching head lenght – 220 mm width – 155 mm height – 95 mm - stand lenght (in assembled state) –...
  • Page 4 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE III. COMPONENTS 1. power cable 10. front panel 2. adapter 100-240VCA/24VCC 11. “+” timer button or “pause” 3. horizontal arm 12. “-” timer button or “pause” 4. central fixator 13. Start/Stop button 5. front fixator 14.

  • Page 5: Safety Precautions

    Absence of chemically active or flammable substances 3. ARCUS BLEACHING SYSTEM is a source of exceptionally intensive light in blue-green range, to wich human eye is high sensitive. That is why serious measures must be taken towards patients, medical personnel and nearby people, animals and plants.
  • Page 6 Before moving the bleaching unit, make sure that wheel stoppers are released. 8. Only factory-authorized it open and repair the unit. 9. Only original ARCUS BLEACHING SYSTEM spare parts should be used to replace defective parts. The unit warranty does not cover any damage resulting from the use on non-original replacement parts.

  • Page 7: Preparation And Sequence Of Operation

    V. PREPARATION AND SEQUENCE OF OPERATION ARCUS BLEACHING SYSTEM UNIT is designed for use as a free-standing unit. The unit must be used only in premises with horizontal flooring. ARCUS BLEACHING SYSTEM UNIT has the following principle of action: 12 pcs.
  • Page 8 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE 4. Mount the counterweight at the bottom part of the horizontal arm 5. Mount the bleaching head at the front part of horizontal arm – screw around the stick with normal effort until tightened. It is desirable to fix the...
  • Page 9 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE 6. With help of the two fixators fix The horizontal arm in a suitable position 7. Connect the cables by the power jacks 8. Examine all moving parts for omissions 9. The mains plug of the power cable is switched into the adapter 10.
  • Page 10 OPERATIONS GUIDE PREPARATION BEFORE START OF WORK 1. Take LED bleaching unit ARCUS BLEACHING SYSTEM out of the packing and assemble it by following the above steps. Place the unit on a horizontal surface. 2. Connect the power adapter to the mains outlet 3.

  • Page 11: Routine Care And Maintenance

    “On” and microcooling fan works continuously for 1 min. After cooling work can be resumed. ARCUS BLEACHING SYSTEM Unit has built-in micro fan cooling and overheating protection should be activated only in emergency situations if the fan stops working, if the vents of the fan become obstructed, etc.

  • Page 12: Warranty Conditions

    ACTIVATION THROUGH BLANCONE ARCUS Use the BlancOne ARCUS arc light to activate gel on both arches simultaneously. Position the head of the light 5-10 cm from the teeth and activate according the BlancOne treatment selected (see below Table).
  • Page 13 5. This warranty becomes null and void if any repair to or servicing of the product I performed by any unauthorized party or if other than original ARCUS LED BLEACHING SYSTEM spare parts are used therefore. If any damage is noticed on electric cables, the device must be brought immediately to manufacturer’s...
  • Page 14 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE VIII. BLANCONE ARCUS BLEACHING SYSTEM DATA SERIES NUMBER: LOT: DATE OF PRODUCTION: PACKER: DATE OF PURCHASE: 2274 IX. SIMBOLS Manufacturer BG LIGHT LTD, 155, Vasil Aprilov Bul., 4027 Plovdiv, Bulgaria Pursuant to Directive CE/2002/96, this symbols shows that the product must not be disposed of as urban waste at the end of its operating life.

  • Page 15: Declaration Of Conformity

    ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE DECLARATION OF CONFORMITY Directive Agreement with 93/42/CEE...
  • Page 16 ARCUS Led BLEACHING SYSTEM OPERATIONS GUIDE IDS S.p.A. Via Valletta San Cristoforo 28/10 17100 Savona SV - ITALY Tel +39 019 862080 Fax +39 019 2304865 www.idsdental.it info@idsdental.it...
