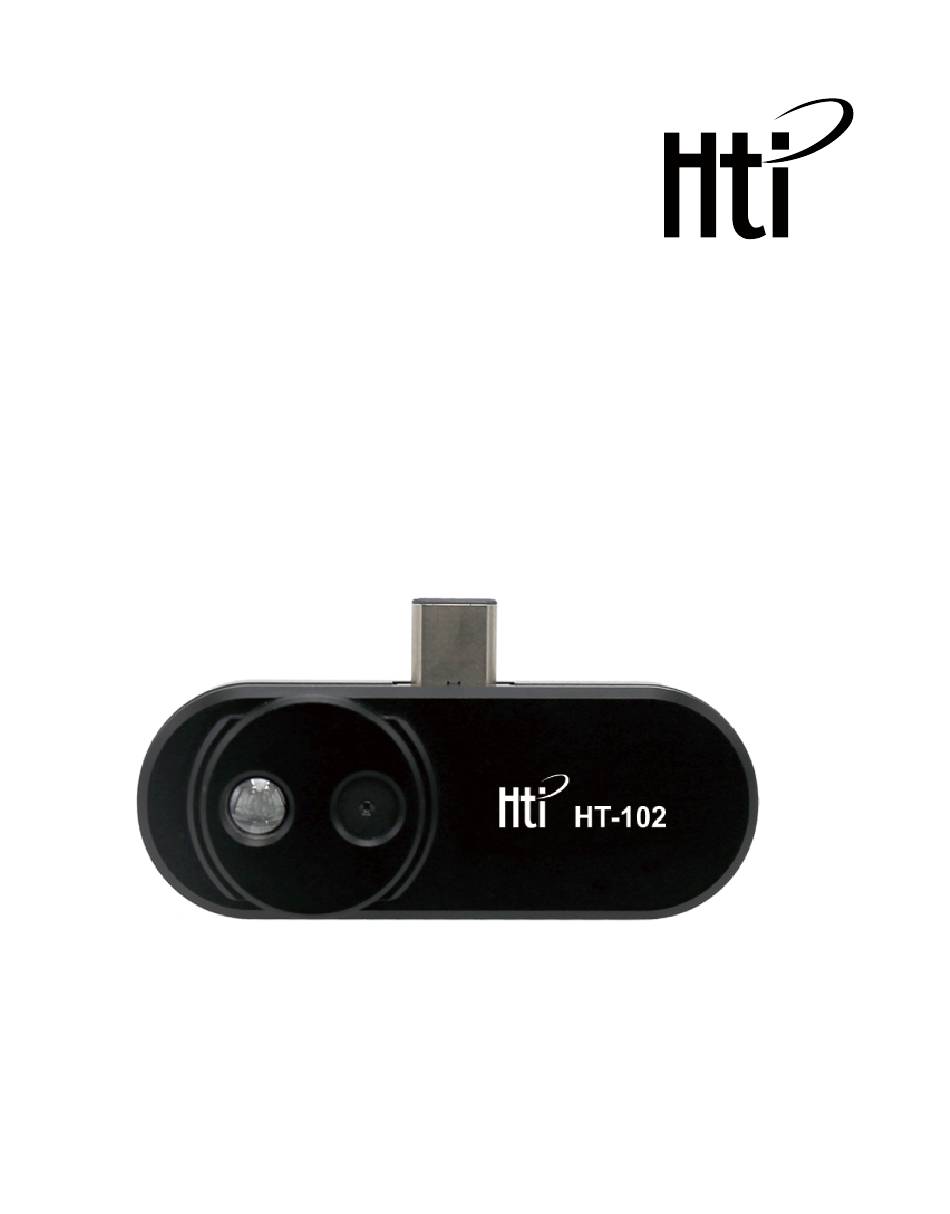

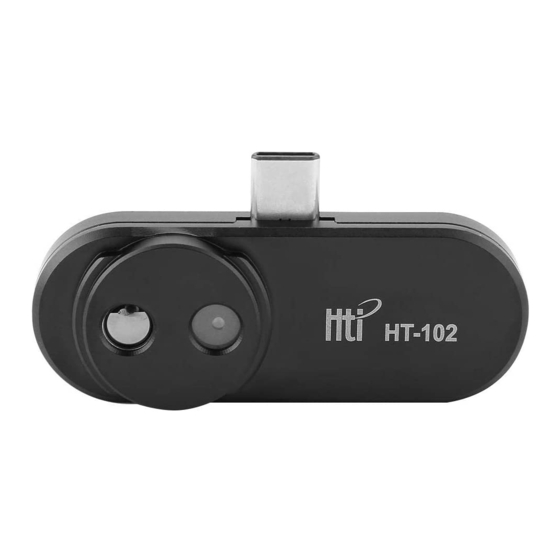

- Page 1 Mobile Phone Thermal Imager Instruction Manual HT-102...
- Page 2 Overview This product is operated by the “Thermal Viewer” software on the mobile phone after connecting to the mobile phone of Android system. It is very simple to view the infrared image or measure the surface temperature of the objects, this product can be used for HVAC, building heat difference detection, equipment troubleshooting, preventive and predictive maintenance, etc.
-
Page 3: Phone Connection
2. Phone Connection Insert the thermal imager into your phone and the “Thermal Viewer” software will be opened automatically. If your phone doesn't have USB Type C interface, please use original adapter for conversion. 3. Center Point Temperature As shown in the figure, the upper right corner shows the temperature value of display area's center point. - Page 4 4. Point Temperature Measurement If you want to check the temperature of a point on the object being measured, click it on the screen and the temperature value will be displayed. 5. Image Fusion After the thermal imager and the phone are successfully connected, the visible light image is displayed by default.
-
Page 5: Temperature Unit Setting
6. Mirroring Click the ‘’ ” button at the top left of the screen, and the image effects of the left side and right side will be interchanged. 7. Temperature Unit Setting Click the “ ” button at the top right of the screen to open the setting interface, click “Temperature Display Unit”, and select one of the units in the pop-up dialog box as shown... - Page 6 8. Palette Setting Click the “ ” button at the top right of the screen to open the setting interface, click “Color Filter”, and select one of the palettes in the pop-up dialog box as shown below. 9. Face Detection On/off Click the “...
- Page 7 11. Video Recording Click the “ ” button at the bottom of the screen to start recording video, click the button again to stop recording video, and the recorded video will be automatically saved to the phone. 12. Picture/Video Viewing Click the “...
-
Page 8: Pictures And Videos
Technical Parameters Measurement Temperature range: -20 ℃ to 300 ℃ Accuracy: ±3℃ or ±5% of reading Resolution: 0.1 ℃ or 0.1 ℉ Working band: 8 – 14μm Pictures & Videos Horizontal viewing angle / vertical viewing angle: 43°±1°/ 43°±1° Infrared image resolution: 32x32 Visible image resolution: 640x480 Image format: png Video format: mp4... -
Page 9: Environmental Conditions
Environmental Conditions Operation temperature range: 0 ℃ to 35 ℃ Storage temperature range: -20 ℃ to 60 ℃ Miscellaneous Plug: USB Type-C Power supply: Power supply from external devices, such as Android phones Weight: 20g Size: 59.4mm×30.3mm×12mm Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No.
