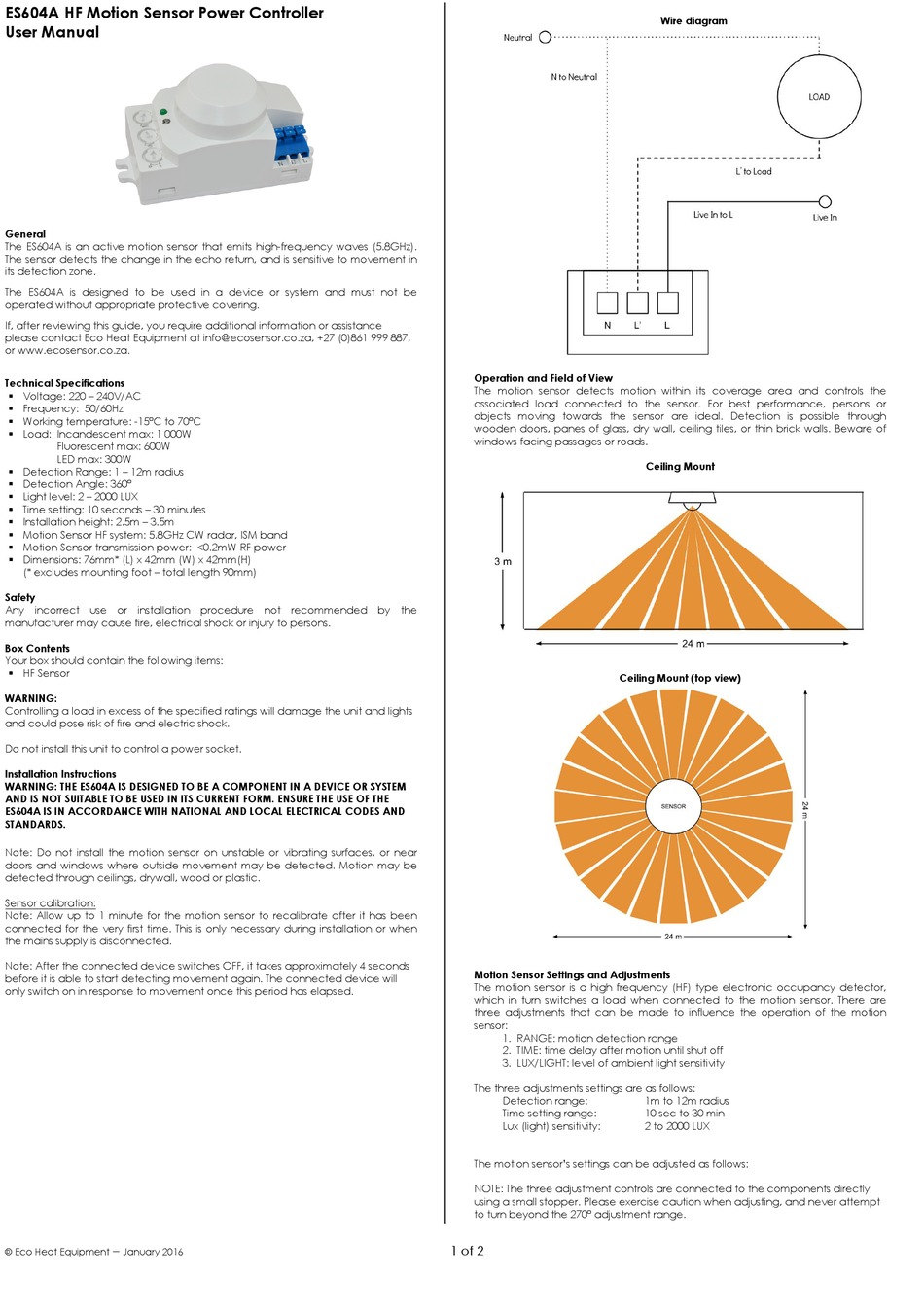

Eco Sensor ES604A User Manual

ES604A HF Motion Sensor Power Controller

User Manual

General

The ES604A is an active motion sensor that emits high-frequency waves (5.8GHz).
The sensor detects the change in the echo return, and is sensitive to movement in
its detection zone.
The ES604A is designed to be used in a device or system and must not be
operated without appropriate protective covering.
If, after reviewing this guide, you require additional information or assistance
please contact Eco Heat Equipment at info@ecosensor.co.za, +27 (0)861 999 887,
or www.ecosensor.co.za.

Technical Specifications

§ Voltage: 220 – 240V/AC
§ Frequency: 50/60Hz
§ Working temperature: -15°C to 70°C
§ Load: Incandescent max: 1 000W
Fluorescent max: 600W
LED max: 300W
§ Detection Range: 1 – 12m radius
§ Detection Angle: 360°
§ Light level: 2 – 2000 LUX
§ Time setting: 10 seconds – 30 minutes
§ Installation height: 2.5m – 3.5m
§ Motion Sensor HF system: 5.8GHz CW radar, ISM band
§ Motion Sensor transmission power: <0.2mW RF power
§ Dimensions: 76mm* (L) x 42mm (W) x 42mm(H)
(* excludes mounting foot – total length 90mm)

Safety

Any incorrect use or installation procedure not recommended by the
manufacturer may cause fire, electrical shock or injury to persons.

Box Contents

Your box should contain the following items:
§ HF Sensor
WARNING:
Controlling a load in excess of the specified ratings will damage the unit and lights
and could pose risk of fire and electric shock.
Do not install this unit to control a power socket.

Installation Instructions

WARNING: THE ES604A IS DESIGNED TO BE A COMPONENT IN A DEVICE OR SYSTEM
AND IS NOT SUITABLE TO BE USED IN ITS CURRENT FORM. ENSURE THE USE OF THE
ES604A IS IN ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES AND
STANDARDS.
Note: Do not install the motion sensor on unstable or vibrating surfaces, or near
doors and windows where outside movement may be detected. Motion may be
detected through ceilings, drywall, wood or plastic.
Sensor calibration:
Note: Allow up to 1 minute for the motion sensor to recalibrate after it has been
connected for the very first time. This is only necessary during installation or when
the mains supply is disconnected.
Note: After the connected device switches OFF, it takes approximately 4 seconds
before it is able to start detecting movement again. The connected device will
only switch on in response to movement once this period has elapsed.
–
© Eco Heat Equipment January 2016

Operation and Field of View

The motion sensor detects motion within its coverage area and controls the
associated load connected to the sensor. For best performance, persons or
objects moving towards the sensor are ideal. Detection is possible through
wooden doors, panes of glass, dry wall, ceiling tiles, or thin brick walls. Beware of
windows facing passages or roads.
Ceiling Mount (top view)

Motion Sensor Settings and Adjustments

The motion sensor is a high frequency (HF) type electronic occupancy detector,
which in turn switches a load when connected to the motion sensor. There are
three adjustments that can be made to influence the operation of the motion
sensor:
1. RANGE: motion detection range
2. TIME: time delay after motion until shut off
3. LUX/LIGHT: level of ambient light sensitivity
The three adjustments settings are as follows:
Detection range:
Time setting range:
Lux (light) sensitivity:
The motion sensor's settings can be adjusted as follows:
NOTE: The three adjustment controls are connected to the components directly
using a small stopper. Please exercise caution when adjusting, and never attempt
to turn beyond the 270° adjustment range.
1 of 2

Wire diagram

Ceiling Mount

1m to 12m radius
10 sec to 30 min
2 to 2000 LUX
