Summary of Contents for Seneca AV ST31

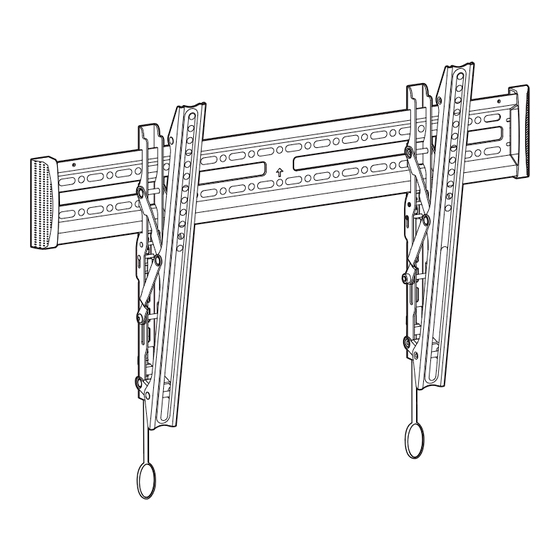

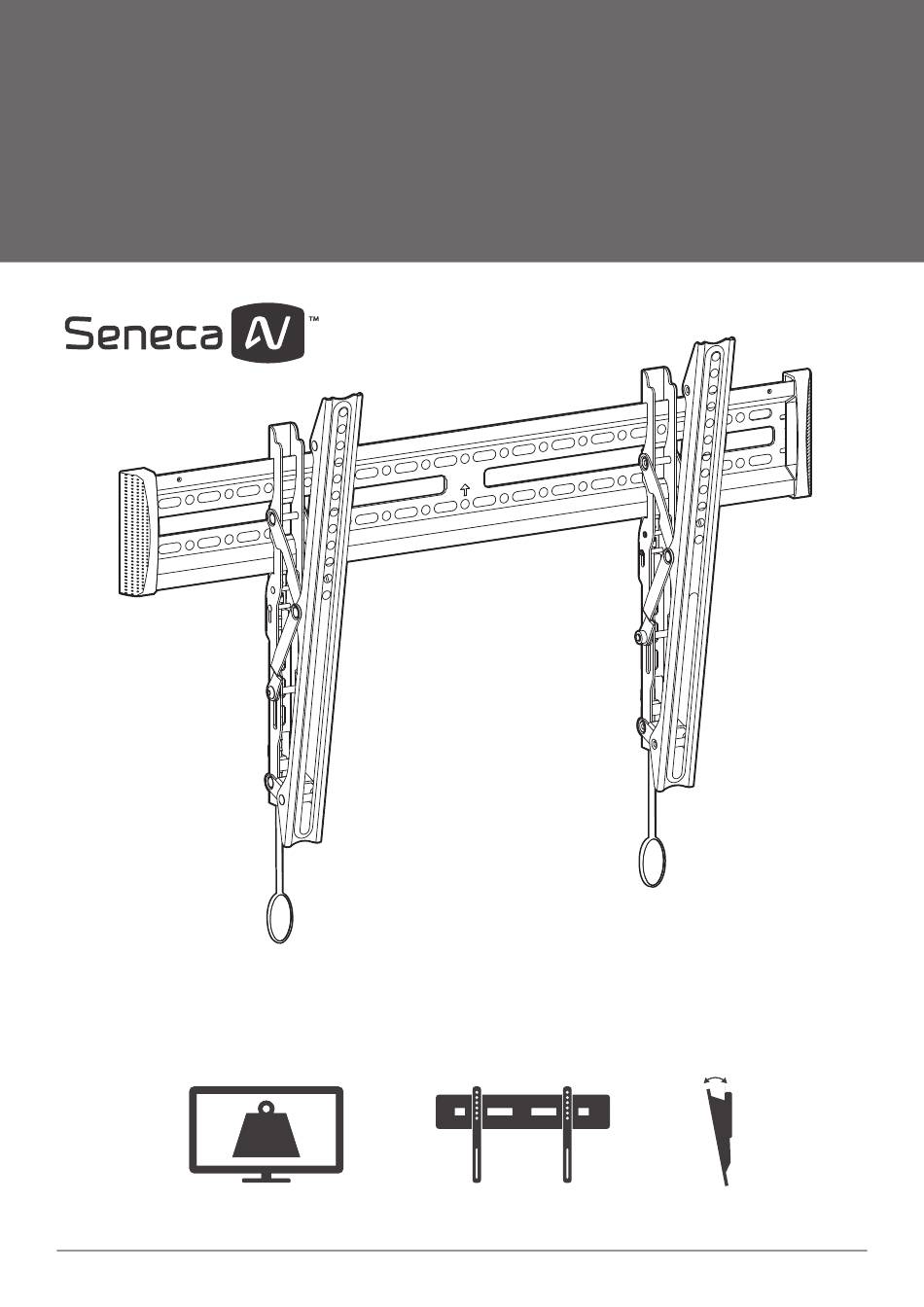

- Page 1 ST31 TV Mount English User Manual TILTING FLAT PANEL TV MOUNT 32”-60” 80 lbs 100x100 - 600x400 2° 1-152 cm 36 kg VESA www.senecaav.com...
- Page 2 Setup - Steps 5 to 6 ......7 Other Seneca AV Products ....8 Warranty .
-
Page 3: Supplied Parts And Hardware
L: 14mm Plastic Spacer Stud Socket Finder F: M6 x 35mm Bolt Phillips Screwdriver Level M: Washer Hammer G: M8 x 25mm Bolt (for concrete Drill installs) 5/32” 3/8” Wood Masonry H: M8 x 35mm Bolt ST31 Manual | www.senecaav.com... - Page 4 There are a wide variety of TVs available that use an assortment of bolt sizes. We provide a selection of mounting bolts to fit most TVs. If you have any concerns about this mounting hardware or installation call Seneca AV directly at 1-855-430-4708 or email support@senecaav.com.
- Page 5 If drywall is over 5/8” (I). Each lag bolt must be located in the center of a thick custom lag bolts must be used. Concrete must be wood stud. a minimum of 2000psi in density. ST31 Manual | www.senecaav.com...
-
Page 6: Step 4: Attach Tv To Wall Plate
CAUTION Read this section carefully prior to install. Step 3: Trim Quick Releases The ST31 arms feature quick release tabs that are used if you want to remove your television from the mount in the future. So that they do not hang below the... - Page 7 0° − 12° Step 5: Tilt the TV The ST31 can tilt up to +12° downwards. Simply pull the top of the TV towards you until you reach the desired viewing angle. If you wish to lock the TV at that position, tighten the screws on the sides of the Quick Release Arms, as shown in Diagram F.
-
Page 8: Warranty
24 months parts and labour. If equipment fails because of such defects and Seneca AV or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice, Seneca AV will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
