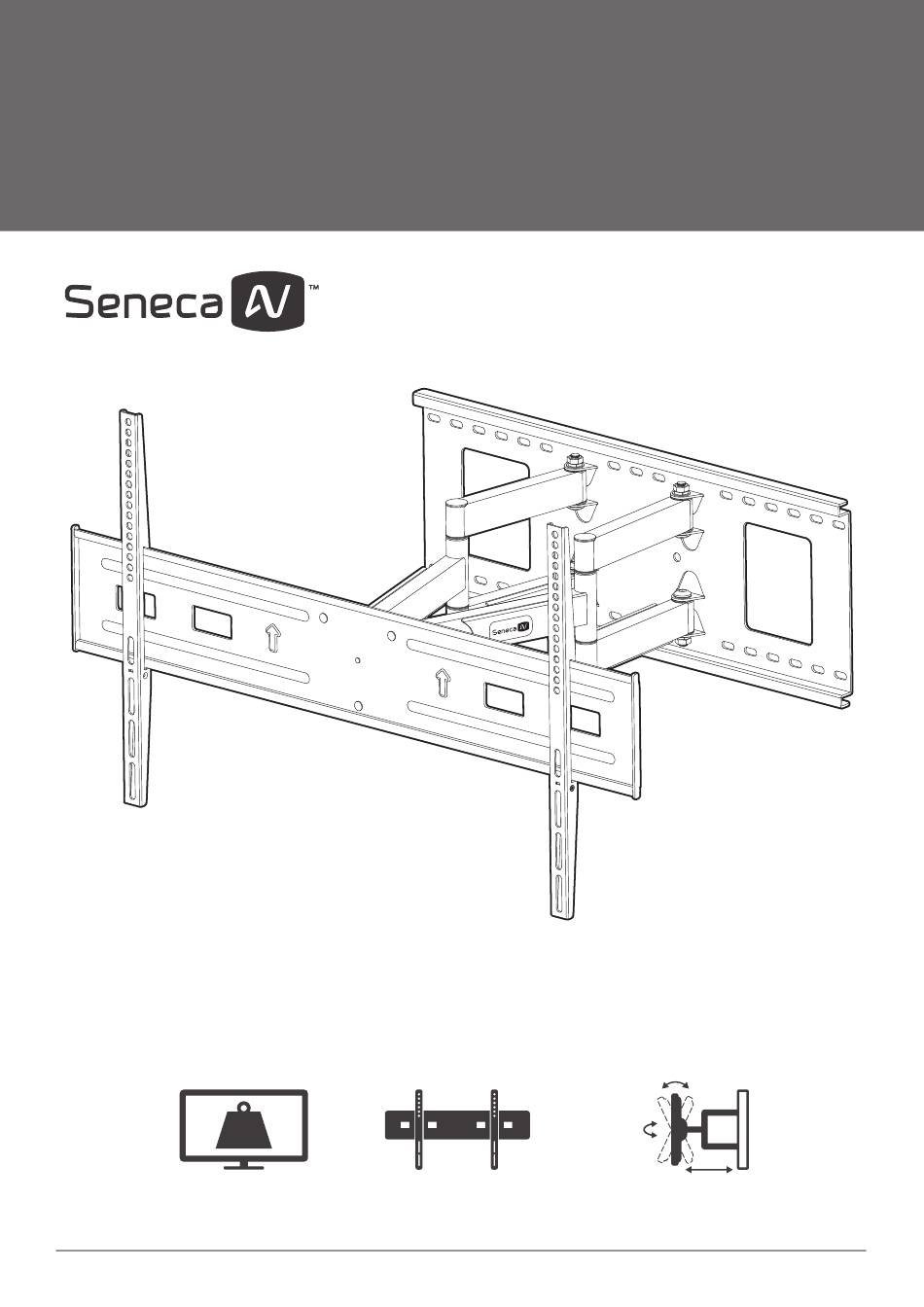

- Page 1 SA51 TV Mount English User Manual FULL MOTION FLAT PANEL TV MOUNT 37”-80” 130 lbs 75x75 ~ 800x450 ° ° ±80° 94-203 cm 59 kg VESA 3.2”-20” (8.2-51 cm) www.senecaav.com...
- Page 2 Setup - Steps 5 to 6 ......7 Other Seneca AV Products ....8 Warranty .
-
Page 3: Supplied Parts And Hardware
Lag Bolt Washer Phillips Screwdriver Level E: M6 x 35mm L: Lag Bolt Hammer Bolt (for concrete Drill installs) 3/8” Crescent M: Concrete Anchor Masonry Wrench F: M8 x 40mm 7/32” Bolt Wood N: Allen Key SA51 Manual | www.senecaav.com... - Page 4 There are a wide variety of TVs available that use an assortment of bolt sizes. We provide a selection of mounting bolts to fit most TVs. If you have any concerns about this mounting hardware or installation call Seneca AV directly at 1-855-430-4708 or email support@senecaav.com.
- Page 5 If drywall is over 5/8” lag bolt must be screwed into a wood stud. thick custom lag bolts must be used. Concrete must be a minimum of 2000psi in density. SA51 Manual | www.senecaav.com...
- Page 6 Diagram E Step 4: Level the TV The SA51 comes pre-tensioned at the factory to allow you to level the TV ±5° by simply holding the TV and twisting up or down, as shown in Diagram F. If you need to tighten or loosen the level mechanism, use a crescent wrench on the two top nuts, as shown in Diagram G.
-
Page 7: Step 6: Cable Management
Step 5: Tilt the TV The SA51 will tilt +14/-8° to provide the ideal viewing angle. Loosen the tilt lever on the right side by rotating it counter-clockwise from bottom to top as shown in Diagram H. (Loosen the tilt lever on the left side by rotating it counter-clockwise from top to bottom). -
Page 8: Warranty
24 months parts and labour. If equipment fails because of such defects and Seneca AV or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice, Seneca AV will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
