ETM ETM9420-1 Quick Start Manual

Hspa plus/umts/gsm/gprs terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

etm9420_9440_Quick_Start_Guide 201705RV01

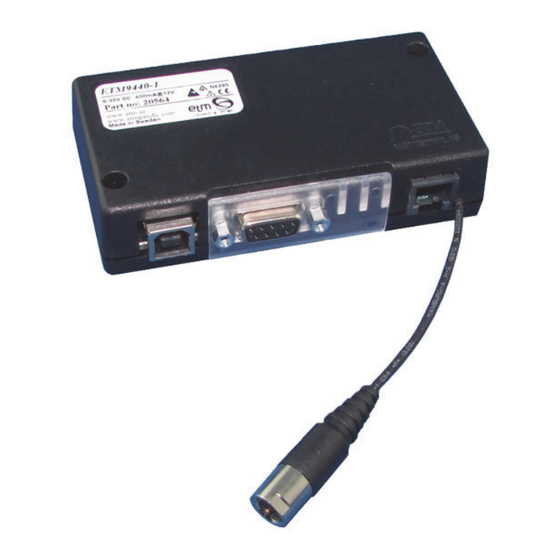

HSPA+/UMTS/GSM/GPRS Terminal – ETM9440-1
GSM/GPRS Terminal – ETM9420-1

Quick Start Guide

Features:
◩ 3G (HSPA+/UMTS) Connectivity – ETM9440-1 only
◩ 2G (GSM/GPRS) Connectivity
◩ Standard RS232 9DF serial port
◩ USB port
(older units may have combined serial and power on an RJ45 connector in lieu of USB Port)
◩ 6V to 35V power input on RJ12 connector
◩ FME M antenna connector
◩ Low power consumption
◩ Wide Operating Temperature Range
◩ TCP/IP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETM9420-1 and is the answer not in the manual?

Questions and answers

Related Manuals for ETM ETM9420-1

Summary of Contents for ETM ETM9420-1

  • Page 1 201705RV01 HSPA+/UMTS/GSM/GPRS Terminal – ETM9440-1 GSM/GPRS Terminal – ETM9420-1 Quick Start Guide Features: ◩ 3G (HSPA+/UMTS) Connectivity – ETM9440-1 only ◩ 2G (GSM/GPRS) Connectivity ◩ Standard RS232 9DF serial port ◩ USB port (older units may have combined serial and power on an RJ45 connector in lieu of USB Port) ◩...

  • Page 2: Table Of Contents

    Indicator Lights ..........................6  ETM9420-1 ............................ 6  ETM9440-1 ............................ 6  Common AT Commands ........................7  SMS Specific Commands ......................... 7  AT Commands for Incoming Circuit Switch Data Calls ..............7  Typical AT Commands Applied to the ETM9420-1 / ETM9440-1 ............. 7  201705RV01 Etm9420_9440_Quick_Start_Guide...

  • Page 3: Introduction

    Or support@etmpacific.com.au Introduction Nomenclature The ETM9420-1 incorporates the Cinterion TC63i engine and is intended for worldwide use (network and regulatory approvals permitting). The ETM9440-1 incorporates the Cinterion EU3-E or PH8-P engine and is intended for use within Europe, Australasia and Asia (network and regulatory approvals permitting).

  • Page 4: Interfaces

    USB - the application software may not recognise the USB after reset. Contact ETM for guidance. Combined RS232 Serial & Power Input (in lieu of USB Port - fitted to some older units) This port is connected in parallel with the above RJ12 (power) and DB9 (serial) interfaces.

  • Page 5: Antenna

    Page 5 of 8 For Support Contact +61-2-9956-7377 Or support@etmpacific.com.au Antenna The ETM9420-1/9400-1 Terminal has a standard FME Jack (Male) antenna Plug on the end of an approximately 90mm cable. FME M Antenna Connector SIM Card The SIM card connector is located on the underside of the ETM9xxx (x) Terminal. The unit supports both 3V and 1.8V SIMs.

  • Page 6: Indicator Lights

    For Support Contact +61-2-9956-7377 Or support@etmpacific.com.au Indicator Lights ETM9420-1 The operation of the units LED is determined by the setting of the AT^SSYNC command as default the unit is set to AT^SSYNC=1. Refer to the AT command list for more details.

  • Page 7: Common At Commands

    REL ASYNC will be answered. Note, no external access to the voice channel is provided on the ETM9420-1/9400-1. Typical AT Commands Applied to the ETM9420-1 / ETM9440-1 The following settings are typically made to the ETM9420-1 / ETM9440-1 prior to delivery, specific customers may have different or no (default for module TC63i/PH8-P) settings. ETM9420-1...
  • Page 8 Tel: +46 (0)8 25 28 75 Tel: +61 (0)2 9956 7377 Fax: +46 (0)8 80 11 10 Fax: +61 (0)2 9956 5791 Email: etm@etm.se Email: info@etmpacific.com.au Web: www.etm.se Web: www.etmpacific.com.au © ETM Matteknik AB · Subject to change without notice.

This manual is also suitable for:

Etm9440-1
