Make sure to use only the power adapter (5V 2A Output AC/DC) that came with PM45. In case your phone does not work as expected, you are strongly recommended to restart it by pressing and holding the power button for at least 8 seconds until the startup screen appears.

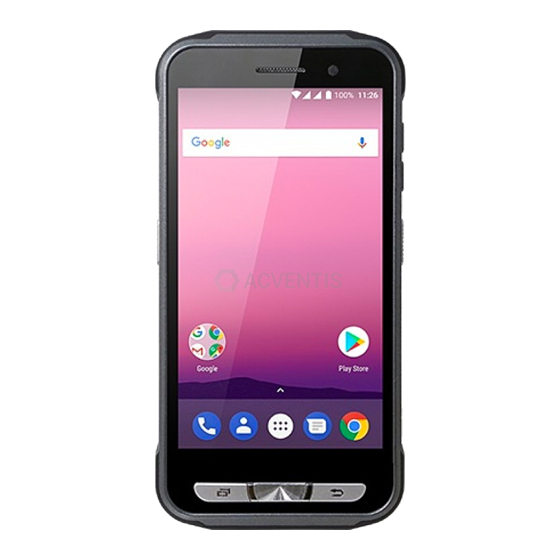

PM45 Android 7.1.2 User Manual Table of Contents User Manual ..................................1 Table of Contents ................................. 2 Getting Started ..................................4 Major Parts ..................................4 Accessary ..................................5 Setup PM45..................................7 Charge PM45 .................................. 11 Turn On/Off PM45 ................................12 Learning the basics ................................
Page 4
PM45 Android 7.1.2 User Manual Factory data reset ................................90 Factory data reset from Settings ..........................90 Force Factory data reset ............................... 92 EmKit ....................................96 EmKit Secure .................................. 97 EmKit Remote ................................100 EmKit Tools ................................... 108 EmKit Demos ................................116...
Page 9
PM45 Android 7.1.2 User Manual Getting ` Star ted Setup PM45 Getting Started Insert the Battery 1. Insert Battery from the top first, and then put in the bottom 2. Insert the battery cover from the bottom first 3. Push down the battery cover lock...
Page 10
PM45 Android 7.1.2 User Manual Getting ` Star ted Setup PM45 Getting Started Install SIM card / microSD card 1. Insert the SIM Tray Eject Pin into the tray eject hole. 2. Push the pin all the way into the hole until the tray ejects, and then pull the tray out...
Page 11
Getting Started 3. Insert the SIM/micro SD card into the slot. Please insert SIM card and SD Card as shown below. (PM45 is Dual SIM Dual Standby model) Gold contacts should face down Note: Your device only supports the Nano SIM cards. Do not insert a modified card which is thicker than the standard Nano SIM card.
Getting Started 1. Insert USB Type-C cable into the adapter and connect to an electrical socket to charge first. Connect another side USB cable to the PM45. (You can also charge the PM45 with optional accessory such as cradle) 2. LED indicator will display charging status.
Turn On 1. Press and hold the “Power Key” for a few seconds. 2. When PM45 enter to the boot mode, it will display “SMART BEYOND RUGGED” logo 3. Release the “Power Key” and wait until PM45 finish booting Note: If you cannot turn on your PM45, try below steps To turn on PM45, battery needs to be charged certain level.
PM45 Android 7.1.2 User Manual Learni ng the basics Use a k ey pad Use a keypad Learning the basics Power key Press Lock the screen / Light up the screen. Press and hold Display the power menu “Power Off / Restart / Airplane mode”...
Page 15
PM45 Android 7.1.2 User Manual Learni ng the basics Use a keypad Learning the basics Front panel Recent Apps key Press to see recently used apps. Home key From any apps or screens, press to return to the Home screen.
PM45 Android 7.1.2 User Manual Learni ng the basics Use a touch scr een Use a touch screen Learning the basics Touch One-finger press Double touch One-finger press, lift, one-finger press, lift for “Zoom in” Long press One-finger press, wait, lift for “Select an item”...
Language Selection Choose your language during setup process. Touch here to start setup your device You can copy other device’s settings to your PM45 or setup as a new device Copy your data You can copy your settings from other Android...
Page 19
Setup Wiz ard Setup Wizard Learning the basics Copy your data To copy your settings, please connect your PM45 to Wi-Fi network Please select Wi-Fi network and input the password (If required) Icon means: Open Wi-Fi network. You don’t need to enter the password Icon means: Secured Wi-Fi network.
Page 21
Setup Wizard Learning the basics Setup as new Touch here to set your PM45 as your new device During setup process, Google services setup required. Please connect your device to your Wi-Fi network. You can skip the Wi-Fi connection process and set later.
Page 22
PM45 Android 7.1.2 User Manual Setup Wizard Learning the basics Please select Wi-Fi network and input the password (If required) Icon means: Open Wi-Fi network. You don’t need to enter the password Icon means: Secured Wi-Fi network. To connect this Wi-Fi, you need to enter the password Please sign in to your Google Account.
Page 23
PM45 Android 7.1.2 User Manual Setup Wizard Learning the basics After your Google account login, you can set PM45’s name. Touch here to set a name Choose security option for lock screen. You set specific pattern or PIN or password here.
Page 24
PM45 Android 7.1.2 User Manual Setup Wizard Learning the basics To review the Google services option, please touch MORE button. You can turn On/Off specific service After your reviewing and set Google services option, touch AGREE button for next step...
Page 25
PM45 Android 7.1.2 User Manual Setup Wizard Learning the basics Touch to setup another e-mail account Touch to use Smart Lock On-body detection If you set up is done, touch ALL SET extra Touch an icon to run an app, open folder, etc...
Page 27
PM45 Android 7.1.2 User Manual basic s Home Screen, Apps and Widget Learning the basics To access app folder (Google collections) Touch the app folder then you will see apps in the folder. To change app folder’s name, touch the bottom area of the folder.
Page 28
PM45 Android 7.1.2 User Manual Learni ng the basics Home Screen, Apps and Widget Learning the basics Organize the app icon in the home screen Long-press drag the app icon and place where you want. You may place app icon to next panel If you want to remove the app icon, drag it to “Remove”...
Page 29
PM45 Android 7.1.2 User Manual Home Screen, Apps and Widget Learning the basics Notification panel When there is notification from the Android (system) or the App, you can check details by drag down the “Status Bar”. Quick setting panel You can access “Quick setting panel” by drag down the “Notification panel”.
Page 31
Home Screen, Apps and Widget Learning the basics Touch the App drawer icon, to see apps in your PM45 All installed apps are listed alphabetically Tap app icon to run. Long press, specific app icon to place to the “Home Screen”.
Page 33
PM45 Android 7.1.2 User Manual Learni ng the basics Home Screen, Apps and Widget Learning the basics To add a Widget in the Home screen, long press the empty space. Then you will see WALL PAPERS, WIDGETS, SETTINS menu. Touch WIDGETS Available widgets are listed.
Page 34
PM45 Android 7.1.2 User Manual Learni ng the basics Home Screen, Apps and Widget Learning the basics By pressing the Recent button in the keypad, you can see app list which you access Touch the app, if you want to use or access the app.
Page 35
PM45 Android 7.1.2 User Manual Learni ng the basics Home Screen, Apps and Widget Learning the basics Now primary app is selected. Touch another app to see in the screen. By selecting another app, you can see two apps in the...
PM45 Android 7.1.2 User Manual Learni ng the basics Status & Notific ations Ic ons Status & Notifications Icons Learning the basics Status icons GPRS connected GPRS in use EDGE connected EDGE in use 3G connected 3G in use 4G connected...
Page 38
PM45 Android 7.1.2 User Manual Status & Noti fications Icons Status & Notifications Icons Learning the basics Notification icons Missed call New SMS or MMS message New Email Connected to VPN network Upcoming event Screenshot captured SD card removed, Preparing SD card...
PM45 Android 7.1.2 User Manual Learni ng the basics Set a Lock screen Set a Lock screen Learning the basics “App drawer” icon → “Settings” and then Touch “Lock Screen” You can see Screen lock type which is currently set.
Page 40
PM45 Android 7.1.2 User Manual Learni ng the basics Set a Lock screen Learning the basics None : PM45 screen unlock immediately Swipe : To unlock the screen, user should swipe the screen Pattern : To unlock the screen, user draw the pattern...
Page 43
Manage a display Learning the basics To change the brightness level, please adjust the slider If you let PM45 auto adjust the brightness level, please touch “Auto” or enable “Adaptive brightness” option By setting this option, PM45 change warm level of color...
PM45 Android 7.1.2 User Manual Learni ng the basics Make a call Make a call Learning the basics Touch icon in the Favorite tray apps Slide to access the “FAVORITE”, “RECENTS” and “CONTACTS”. To make a call from recent call list or missed call, select “RECENTS”...
PM45 Android 7.1.2 User Manual Learni ng the basics Add to a contact Add to a contact Learning the basics Touch icon in the Favorite tray apps Touch to see Contacts options Touch to add a new contact Labels which you set in your google account...
PM45 Android 7.1.2 User Manual Learni ng the basics Send a mes sag e Send a message Learning the basics Touch icon in the Favorite tray apps Touch to send a new message Touch to use a dialer Touch to type a name, phone number or email...
Page 53
PM45 Android 7.1.2 User Manual Learni ng the basics Send a message Learning the basics Touch to add other contacts to send a message Your message display here Touch to send the composed message You can attach photo, saved picture, voice or location Note: You may allow granting “Message App”...
Page 54
PM45 Android 7.1.2 User Manual Learni ng the basics Send a message Learning the basics Android ask a grant app’s specific permission access for first time use. To send a photo or a saved media file or a voice recode file or a location, please touch ALLOW You can review granted permission info at “App drawer”...
Page 56
PM45 Android 7.1.2 User Manual Change a SIM car d settings Change a SIM card settings Learning the basics Select SIM card for mobile data or turn off mobile data Select SIM card for calling. You can select Both SIM cards...
PM45 Android 7.1.2 User Manual Learni ng the basics Connect to your Wi-Fi network Connect to your Wi-Fi network Learning the basics “App drawer” icon → “Settings” and then Touch “Wi-Fi” Touch to turn On/Off the W-Fi You can see nearby Wi-Fi network. Each AP’s SSID information listed by signal strength Icon means: Open Wi-Fi network.
Page 61
PM45 Android 7.1.2 User Manual Make a Wi-Fi hots pot Make a Wi-Fi hotspot Learning the basics Touch to turn On/Off the W-Fi hotspot Touch to set Wi-Fi hotspot setting Set hotspot name Set hotspot security type : None / WPA2PSK Set password for hotspot Set hotspot band : 2.4GHz / 5GHz...
PM45 Android 7.1.2 User Manual Learni ng the basics Use a C amer a Use a Camera Learning the basics “App drawer” icon → Touch icon in the favorite tray or “Camera” icon Swipe to change the Camera / Video mode or Settings...
Page 67
PM45 Android 7.1.2 User Manual Make a Wi-Fi hots pot Use a Camera Learning the basics Swipe to enter the menu Touch to change the Camera mode / Video mode Touch to change resolution and image quality Set rear camera image saving quality...
Page 68
PM45 Android 7.1.2 User Manual Make a Wi-Fi hots pot Use a Camera Learning the basics Camera Menu Timer option : 3seconds / 5seconds Grid On / Off HDR option Flash option : Auto flash / Flash / No flash Change Rear / Front camera Take a photo.
Page 71
PM45 Android 7.1.2 User Manual Make a Wi-Fi hots pot Manage files and folders Learning the basics Share a file Long tap the file and touch share icon in the menu Now you can share selected file to nearby device or attach to Gmail or upload to Google Drive.
Page 75
PM45 Android 7.1.2 User Manual Make a Wi-Fi Mak e a Wi-Fi hotspot Manage files and folders Learning the basics Touch the storage where copy or move to Note: Please format the SD card as FAT32 and make sure set the label as below screenshot from the computer Touch “Copy”...
Learni ng the basics MTP c onnecti on with PC MTP connection with PC Learning the basics To browse files and folder in the PM45 in your PC, please change USB connect option Scroll down the notification panel Touch USB connect option...
PM45 Android 7.1.2 User Manual Learni ng the basics Use a Google Assis tant Use a Google Assistant Learning the basics Touch and hold the home button key to use Google Assistant function If Google Assistant doesn’t work, please try followings “App drawer”...
PM45 Android 7.1.2 User Manual OS U pdate OS Imag e update from a Storag e OS Image update from a Storage OS Update To update OS image, copy or place OS image file into the root folder of “Internal Storage” or “External Storage”...
Page 87
Touch “Update” button By touching the “CONTINUE” button, your PM45 start to update the OS image. During this time, you cannot use your PM45. Please save the data before start, the OS update process. Note: Remaining battery level must be higher than 20%.
Page 89
OS U pdate OS Image update from the FOTA OS Update PM45 will compare the OS image between FOTA server and current OS image. If there is newer OS image in the FOTA server, FOTA server will suggest downloading. Touch the nearby server from your region Touch “OK”...
Factory data res et from Setti ngs Factory data reset from Settings Factory data reset When your PM45 system is unstable and abnormal behavior occur but could not recover by rebooting, you may need to “Factory data reset” your PM45 “App Drawer”...
Page 92
PM45 Android 7.1.2 User Manual Factory data reset from Settings Factory data reset Please note, all apps and data in the internal storage will be deleted and restored to “Factory default” and this process cannot “Undo” Touch RESET PHONE button to start “Factory Reset”...
Force Factory data reset your PM45 You can perform “force” factory data reset your PM45. When your PM45 turned off, press “Power” + “Volume Up” + “Home” button all together. After you see “Smart Beyond Rugged” logo display, you may release the keys.
Page 96
PM45 Android 7.1.2 User Manual data Reset Force Factory data reset Factory data reset After Force factory reset, if PM Android Device locked by Factory Reset Protection, then please enter to Fast Boot mode and execute command fastboot erase config...
Enterprise Mobility Kit – Truly, what Enterprise needs Point Mobile announces new software solution – called “EmKit” is new software solution for enterprise mobility users. Our every Android device shall have EmKit pre-installed and every use can access them for free of charge*.
EmKit Secure EmKit Power Launcher You can lock your Point Mobile Android model’s Home Screen and limit to access app drawer or specific function. This function as known as Kiosk mode. Hide Quick Settings : Limit to access quick setting...
PM45 Android 7.1.2 User Manual EmKit Rem ote EmKit Remote EmKit To install the AirWatch agent to Point Mobile Android device, please touch AirWatch icon App provides AirWatch agent install via Google Play or Web URL. Google Play method requires Google account login.
Page 104
PM45 Android 7.1.2 User Manual EmKit Rem ote EmKit Remote EmKit SOTI Mobi Control installer is pre-installed to Point Mobile Android device. To start enrollment process, please touch MobiControl icon Mobi Control app request permission grant during enrollment process. Please allow it.
Page 106
PM45 Android 7.1.2 User Manual EmKit Rem ote EmKit Remote EmKit To install the TeamViewer QS app to Point Mobile Android device, please touch TeamViewer icon App provides TeamViewer QS app install via Google Play or Web URL. Google Play method requires Google account login.
Page 110
PM45 Android 7.1.2 User Manual EmKit Tools EmKit Tools EmKit Scan2Set Scan2Set is designed for the network environment. Point Mobile Android device downloads the Direct Clone file from the FTP, Web server and Google Drive with just one QRcode Scan!
Page 111
EmKit Step 2. Upload Direct Clone file to your FTP site or Web server Copy the Direct Clone file from the Point Mobile Android device Upload this file to your FTP site or Web Server. You may change file name...
Page 115
Turn on your Point Mobile Android device. Press the Power Button, then you will see the Scan2Set in the menu Read the generated QRcode. Point Mobile Android device will download the file from the FTP site or Web server and restore Direct Clone file...
Page 116
PM45 Android 7.1.2 User Manual EmKit Tools EmKit Tools EmKit System information All of SW and HW information available here and can save it to the file. Touch Save to file. devinfo.html file saved to root folder of the internal storage.
EmKit Dem os EmKit Demos EmKit GPS Demo Developer can demonstrate or check Point Mobile Android model’s GPS signal strength, Satellite info, NMEA info. Some of demo app only available for specific Hardware feature integrated SKU (Stock Keeping Unit) NFC Demo Developer can demonstrate or check Point Mobile Android model’s NFC Read/Write solution.
