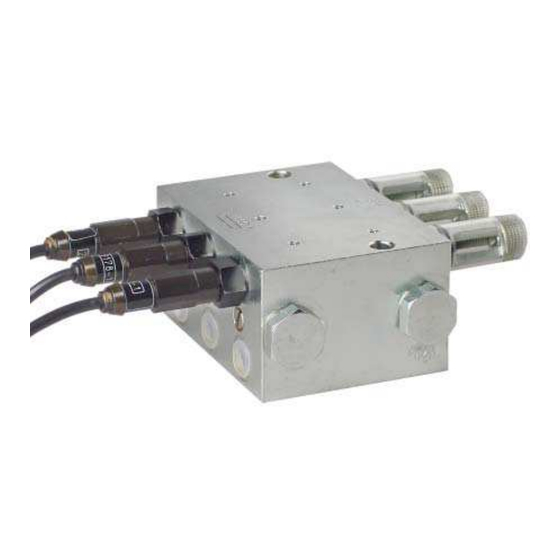

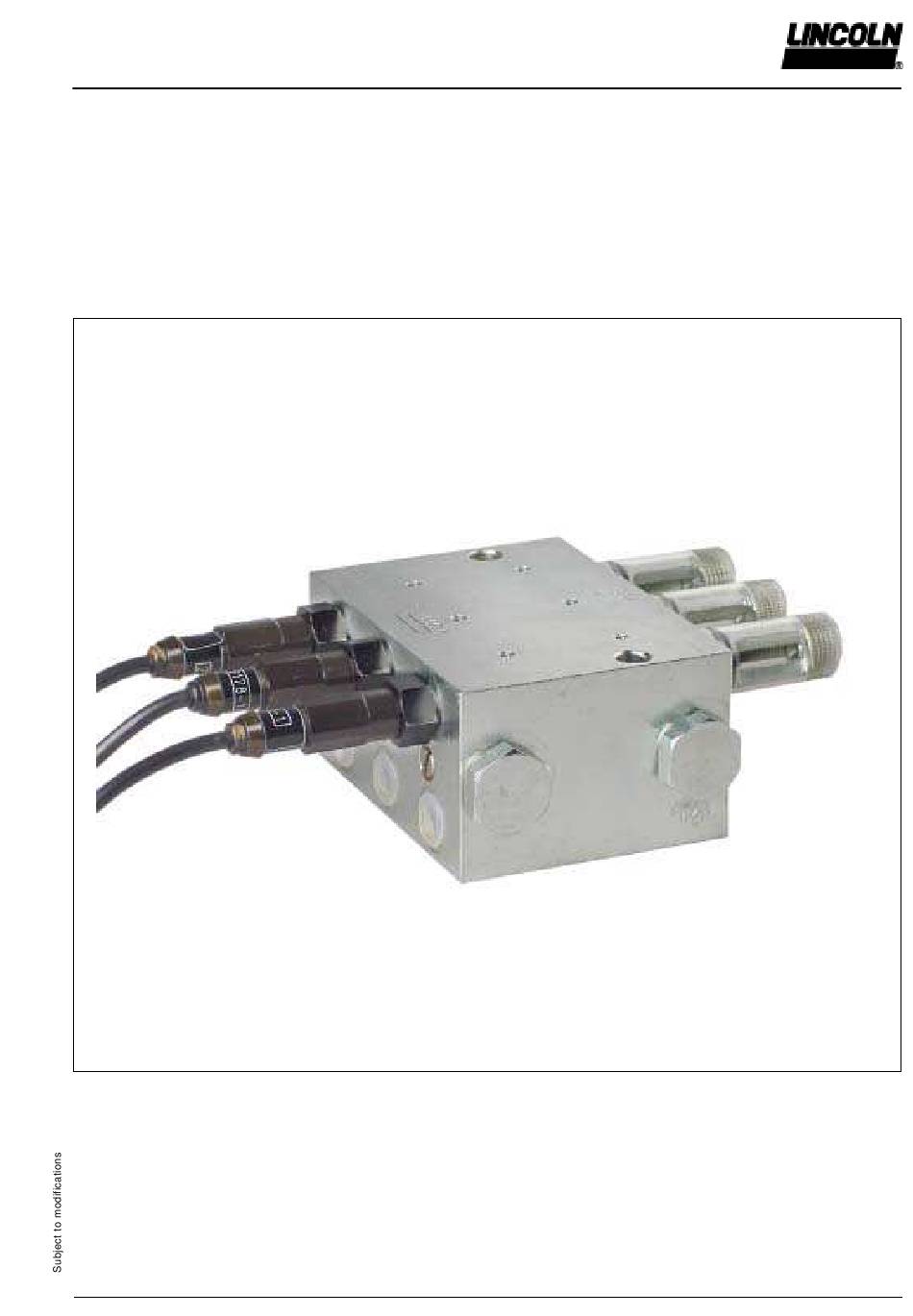

- Page 1 Operating Instructions and Spare Parts Lists 1.2A-28001-C05 Two-line Lubricant Metering Devices Model VSG-KR / VSL-KR 4289a00 Page 1 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 2: Table Of Contents
Adhere to the rules valid in the country where the unit For the VSG-KR-NP version: will be in operation. Data sheet „Piston detector“ (9.3A-20016-A00) Page 2 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 3: Technical Data
/stroke, adjustable Operating pressure: = 400 bar, = 35 bar Main line connection: Feed line connection: Page 3 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 4 /stroke, adjustable Operating pressure: = 400 bar, = 35 bar Maine line connection: Feed line connection: Page 4 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 5: Model Identification
(2.2 or 5 cm when no other specification is indicated. Page 5 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 6: Description Of Operation
I and II and the cycle will be repeated as described in stage 1. 1125a95 Fig. 4 Page 6 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 7 (Table 1). 1127a95 Fig. 6 1131a95 Fig. 7 Page 7 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 8 The D variant is recommended for extreme conditions of 1129a95 1130b95 operation: high temperatures or aggressive media. Fig. 9 Fig. 10 Page 8 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 9 (table 5). These are found for example in download progressive metering devices. 1133b95 Fig. 13 Page 9 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
-
Page 10: Installation
1135b95 Fig. 15 Page 10 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 11: Accessories
GERV 8 - L G 1/4A VC 223-13052-2 10 mm GERV 10-L G 1/4A VC 223-13052-3 Page 11 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... -
Page 12: Spare Parts
O-ring 6 x 2 219-12451-5 Closure plug 303-17526-2 *includ. item. 8 (O-ring 12 x 2) Page 12 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259... - Page 13 O-ring 6 x 2 219-12451-5 Closure plug 303-17526-2 *includ. item. 8 (O-ring 12 x 2) Page 13 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
- Page 14 Applied harmonized standards in particular EN 292 T1/T2 prEN 809 Walldorf, December 1994, ppa. Z. Paluncic Page 14 of 14 LINCOLN GmbH & Co. KG • Postfach 1263 • D-69183 Walldorf • Tel +49 (6227) 33-0 • Fax +49 (6227) 33-259...
