Device Overview
Network Indicator
Getting Started
Powering Up and Pairing
1. Remove the keypad and keypad battery door
from box. (Important: The battery door must
be mounted to wall before you snap keypad to
battery door)
2. Set your touch screen to pairing mode and then
pull the "Remove to Pair" tab to put device into
pairing mode.

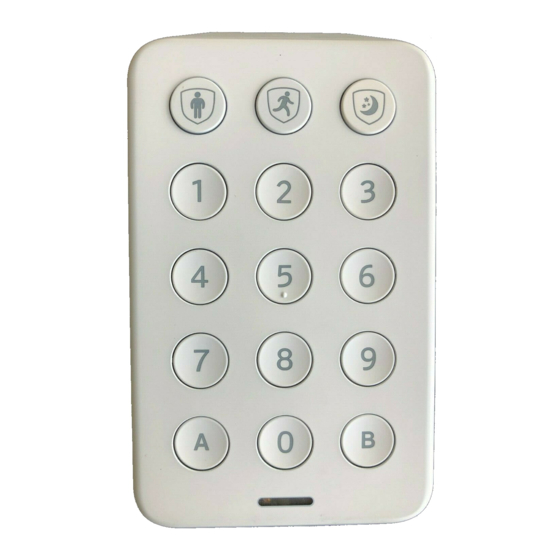

Security Keypad
Low Battery
Status LED/Proximity Sensor
Quick Start Guide
XFINITY HOME
SECURITY • CONTROL • ENERGY
Battery Compartment
Pairing/Tamper Button
3. The keypad should start the joining process
automatically. When the keypad is not joined
to a network, the network indicator will be off.
Once it is joined, the network icon will become
solid anytime that the keypad is awake.
Once the keypad has successfully joined the
network, the pairing LED will turn solid, the
network indicator will turn on, and the touch
screen should indicate that it has paired with
the keypad.
Advertisement
Related Manuals for Comcast Security Keypad
Summary of Contents for Comcast Security Keypad
-
Page 1: Getting Started
Security Keypad Quick Start Guide XFINITY HOME SECURITY • CONTROL • ENERGY Device Overview Battery Compartment Pairing/Tamper Button Low Battery Network Indicator Status LED/Proximity Sensor Getting Started Powering Up and Pairing 1. Remove the keypad and keypad battery door 3. The keypad should start the joining process from box. - Page 2 Status security code to arm in away mode. There is one system status LED located at the bottom of the Security Keypad. Different colors represent the Arm Night Button following system status: Press this button and enter your 4 digit Green: Ready/Not Armed security code to arm in night mode.
