Dell Embedded Box PC 5000 Installation And Operation Manual page 5

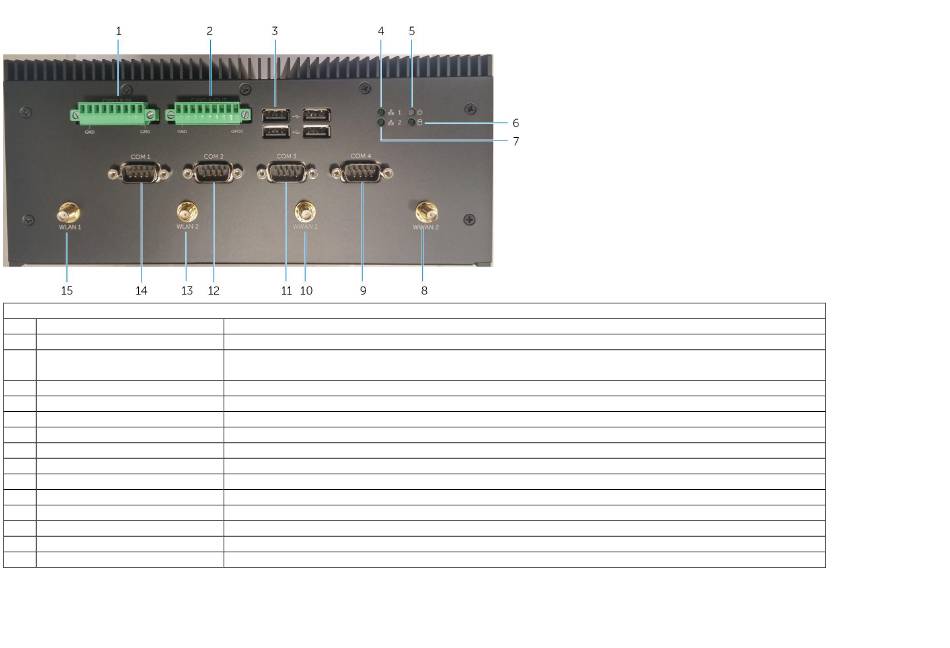

Bottom - View
Feature
1 GPIO-in 9 pin port
2 GPIO-out 9 pin port
3 USB 2.0 port (4)
4 Network status light
5 Power status light
6 Hard-drive activity light
7 Network status light
8 Mobile broadband antenna port 2
9 RS232 port 4
10 Mobile broadband antenna port 1
11 RS232 port 3
12 RS232 port 2
13 Wireless antenna port 2
14 RS232 port 1
15 Wireless antenna port 1
Connect to a GPIO-out enabled device or dongles
Connect to a GPIO-in enabled device or dongles
Connect peripherals such as storage devices, printers, displays and so on. Provides data transfer
speeds up to 480 Mbps.
Indicates the connectivity status and network activity of the network port one.
Indicates the power‑state of the system.
Turns on when the system reads from or writes to the hard drive.
Indicates the connectivity status and network activity of the network port two.
Connect an antenna to increase the range and strength of the mobile broadband signals.
Connect a RS232 cable to configure the system.
Connect an antenna to increase the range and strength of the mobile broadband signals.
Connect a RS232 cable to configure the system.
Connect a RS232 cable to configure the system.
Connect a wireless antenna to increase the range and strength of the wireless signals.
Connect a RS232 cable to configure the system.
Connect a wireless antenna to increase the range and strength of the wireless signals.
