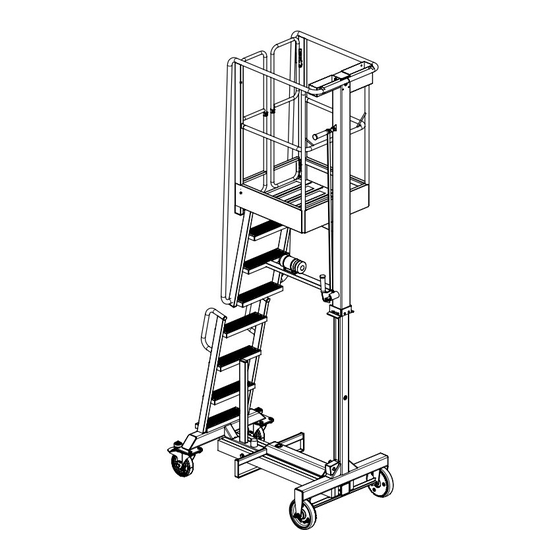

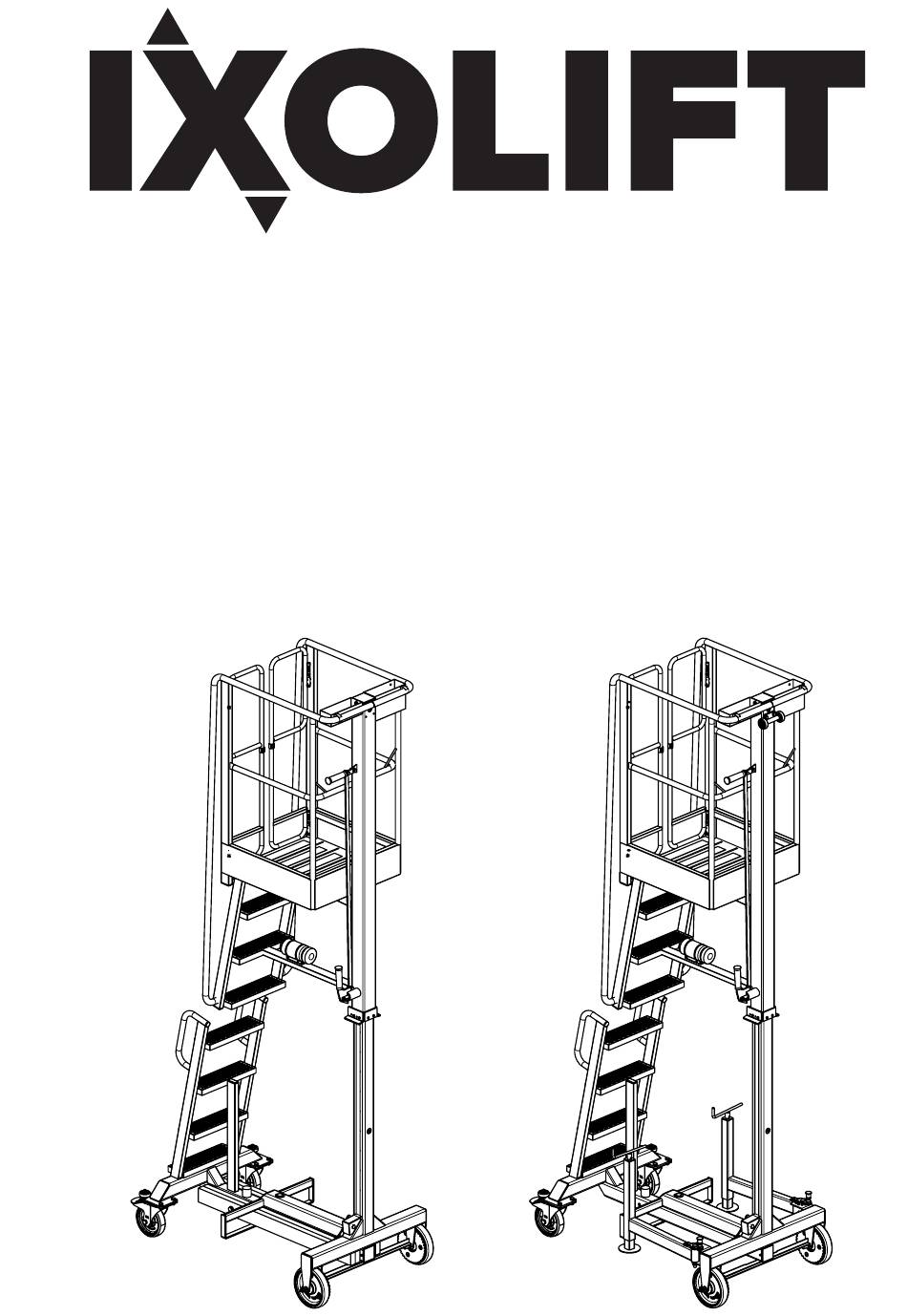

- Page 1 OPERATING MANUAL FOR IXOLIFT 400 SERIES LIGHTWEIGHT NON-POWERED ACCESS PLATFORM • MAX. WORKING HEIGHT 3974 MM • SAFE WORKING LOAD 150 KG • WEIGHT 140-239 KG IXOLIFT 400S IXOLIFT 400W...
-
Page 2: Table Of Contents
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS INDEX TECHNICAL SPECIFICATIONS FEATURES OPERATING INSTRUCTIONS CHECKS PRIOR TO USE CORRECT USE OF STABILISERS TRANSPORTATION LIST OF LABELS LABELS EC CONFORMITY CERTIFICATE VERSION 1.1... -
Page 3: Technical Specifications
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 1. TECHNICAL SPECIFICATIONS IXOLIFT 400W IXOLIFT 400S IXOLIFT 400WS Safe Working Height 3974 mm Safe Working Load (SWL) 150 kg Maximum Platform Height 1974 mm Minimum Platform Height 974 mm Platform Size... -
Page 4: Features
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 2. FEATURES 1. Automatic, anti-surfing brakes 2. Advanced gas spring hoisting mechanism 3. Lockable swivel castor wheels 4. Automatic finger protection system 5. Automatically closing gates 6. Tool boxes 7. Safety harness connector points 8. - Page 5 OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 3. OPERATING INSTRUCTIONS 1. ALWAYS READ the Operating Manual 2. CHECK the unit condition - DO NOT USE a damaged unit 3. APPLY brakes on castor wheels 4. ONLY USE on HARD and LEVEL surface 5.
-
Page 6: Checks Prior To Use
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 4. CHECKS PRIOR TO USE 1. All guard rails and hand rails must be securely fitted and undamaged. Gates must be lubricated and operate freely. 2. All steps must be securily fitted and free from dents and bends. -
Page 7: Correct Use Of Stabilisers
5. CORRECT USE OF STABILISERS WALL 6. TRANSPORTATION IXOLIFT 400S / 400W / 400WS - TRANSPORT IN VERTICAL POSITION Apply castor wheel brakes Lock anti-surfing brakes by raising the basket to the first locking position Lift with forklift. Lifting points are marked on the mast side end of the unit. - Page 8 OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 7. LIST OF LABELS LABEL NUMBER QUANTITY LABEL TEXT 400W 400S 400WS IXO400-002S ALWAYS DEPLOY STABILISERS ✓ IXO400-002WS DEPLOY STABILISERS WHEN USED OUTDOORS ✓ IXO400-003 LIFT HANDLE TO LOWER STEPS ✓...
-
Page 9: Labels
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 8. LABELS MANUFACTURER MANUFACTURER ALWAYS DEPLOY STABILISERS IXO400-002S TILLINMÄENTIE 3 TILLINMÄENTIE 3 FI-02330 ESPOO, FINLAND FI-02330 ESPOO, FINLAND DEPLOY STABILISERS IXOLIFT 400S IXOLIFT 400WS MODEL MODEL WHEN USED OUTDOORS SERIAL NO... -
Page 10: Always Read The Operating Manual
OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 8. LABELS CONTINUED OPERATING OPERATING OPERATING INSTRUCTIONS INSTRUCTIONS INSTRUCTIONS ALWAYS READ INDOOR USE ONLY INDOOR USE ONLY THE OPERATING MANUAL ALWAYS READ ALWAYS READ CHECK THE UNIT CONDITION: THE OPERATING MANUAL... - Page 11 OPERATING MANUAL FOR IXOLIFT 400S / 400W / 400WS 9. EC DECLARATION OF CONFORMITY MANUFACTURER IXOLIFT LTD. Tillinmäentie 3 B118 FI-02330 ESPOO FINLAND PERSON AUTHORISED TO COMPILE THE Mikael Stendahl TECHNICAL FILE DESCRIPTION IXOLIFT 400 Serial Number _________ TECHNICAL FILE...
- Page 12 MANUFACTURED IN FINLAND IXOLIFT LTD. Tillinmäentie 3 FI-02330 ESPOO FINLAND +358 50 506 7339 sales@ixolift.com www.ixolift.com...
