  6. Operating instructions manual

NBB Nano-L SMJ Operating Instructions Manual

Receiver r-18, r-can, compact-m, compact-m2, compact-v, pnn-bus-3
Hide thumbs

Advertisement

Table of Contents

OPERATING INSTRUCTIONS

Receiver Type
/ Version
Factory No.
Frequency
X
Nano-L SMJ
Receiver
R-18, R-CAN
Compact-M, Compact-M2
Compact-V, PNN-BUS-3
USA/Canada
Transmitter Type
/ Version
Factory No.
Frequency
X
X
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano-L SMJ and is the answer not in the manual?

Questions and answers

Related Manuals for NBB Nano-L SMJ

Summary of Contents for NBB Nano-L SMJ

  • Page 1: Operating Instructions

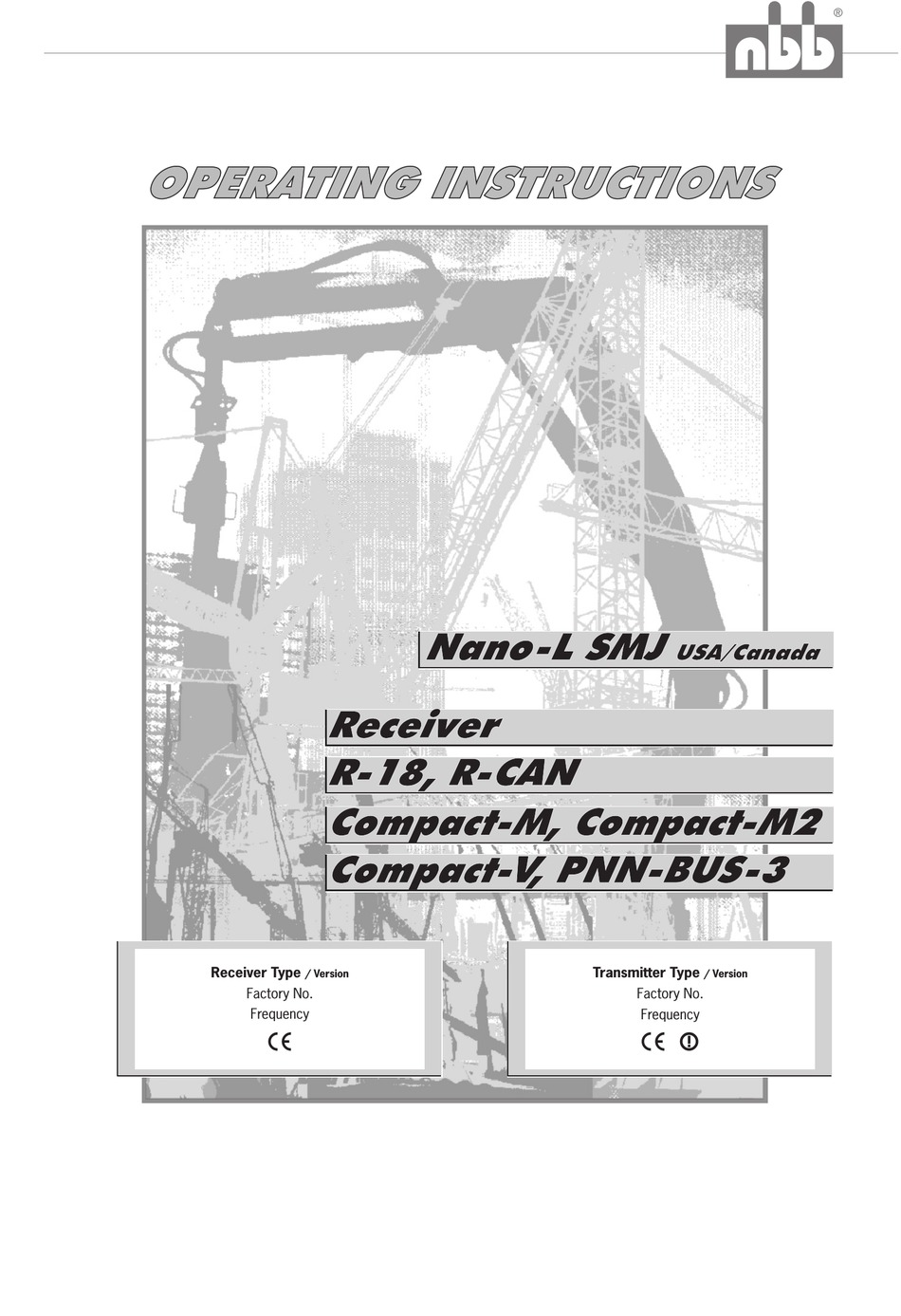

    ® OPERATING INSTRUCTIONS Nano-L SMJ USA/Canada Receiver R-18, R-CAN Compact-M, Compact-M2 Compact-V, PNN-BUS-3 Receiver Type Transmitter Type / Version / Version Factory No. Factory No. Frequency Frequency...

  • Page 2: Standard Specification

    NBB radio control equipment. Components, etc. built into the NBB equipment for safety purposes must be regularly inspected. If the NBB radio control unit develops a fault, it must be shut down immediately. The transmitter should be switched off with the STOP key, resp. EMERGENCY STOP switch.
  • Page 3 Transmitter with Emergency-Stop switch The power supply to the transmitter is activated with the “STOP” key, resp. EMERGENCY STOP switch. (When pressed, the EMERGENCY STOP switch can also be secured by removing the key cap. EMERGENCY STOP key No. 19 ). As a confirmation the horn will be activated briefly two times in a row.
  • Page 4 Changing the Joysticks: Unscrew and remove the 4 screws from the joystick (witch a Torx T10 screwdriver) (1) and move out the joystick. Insert the new joystick. Attend the orientation from the connectors (2). Fix the joystick with the 4 screws. After the changing, start the joystick teachmode.
  • Page 5 BATTERY CHARGER For charging NiCd and NiMH batteries (7,2V). L-AD72A2 Optional: Integrated battery charger if DC-supply: In the receivers R-16, R-CAN, Com- pact-M and Compact-V rapid charging in about 1 hour. In PNN-BUS-3 about 3 hours. Use this battery charger only in closed rooms. 2.250.1449 Universal-charger (12V/24V DC), (without cable), black...
  • Page 6 Before first use, fully charge batteries! 7,2 V Battery To prevent damage to the batteries never use discharged batteries! Only charge fully discharged batteries! Therefore please work with your control until the capacity of the battery is totally exhaus- ted. The battery reaches the maximum energy storage capacity only after at least 5 times char- ging and discharging completely! Discharge the battery completely in the operating unit before charging once more.

  • Page 7: Operating The Unit

    After switch-on of the facility to be controlled, this key is used for repeated emission of the horn signal in accordance with working regulations. If the NBB radio remote control is not used for a long period, it is urgently recom- FREQUENCY CHANGE mended - if you use rechargeable batteries - that they should be charged now and again (about every 4 weeks).
  • Page 8 5. RECEIVER R-18, R-CAN, Compact-M, R-18 R-CAN Compact-M Compact-M2 Compact-M2, Compact-V PNN-BUS-3 Compact-V PNN-BUS-3 The receiver is connected to the unit to be controlled with the multi-pin connecting cable supplied. Please observe the instructions issued by the manufacturer of the unit to be controlled! We recommend urgently to realize this connection via a cen- tral, well accessible, multi-pin plug connector (for example HTS-plug connec- tor series HE/HB/HN/HA or comparable ones of other manufacturers) to...

  • Page 9: Function Check

    To maintain operational safety, a regular function check of the NBB radio remote control is 6. FUNCTION CHECK necessary. In single-shift day-to-day operation, we recommend performing this check at least once a week. Checking is possible using the display lights provided on the receiver.

  • Page 10: Rating Plates

    NBB. NBB shall not be liable for indirect damage and reserves the right to decide on repair or re- placement. Do not attempt to continue working with a defective NBB radio remote control. Even initial- 10.
  • Page 11 11. US-FCC and CANADA IC USA: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 12: Technical Data

    10 mW Weight (without battery) 1,0 kg Size (L x W x H) Nano-L SMJ: 24,7 x 13,9 x 11,7 cm Planar NL SMJ: 24,8 x 13,7 x 9,6 cm Power supply 2 x rechargeable batteries 1,2V AA NiMH (or 2 x batteries 1,5V - not rechargeable) Operating duration Planar NL SMJ: >30h (2000mA/h NiMH Akkus)

  • Page 13: Approvals And Certificates

    Obtainable at demand: M-Zert mbH Certificate DIN EN ISO 9001:2000-12 No. 03022 © NBB Controls + Components GmbH Otto-Hahn-Straße 3-5 DE-75248 Ölbronn-Dürrn Tel.: 0 72 37 / 9 99 - 0 Fax: 0 72 37 / 9 99 - 1 99 eMail: sales nbb.de...
