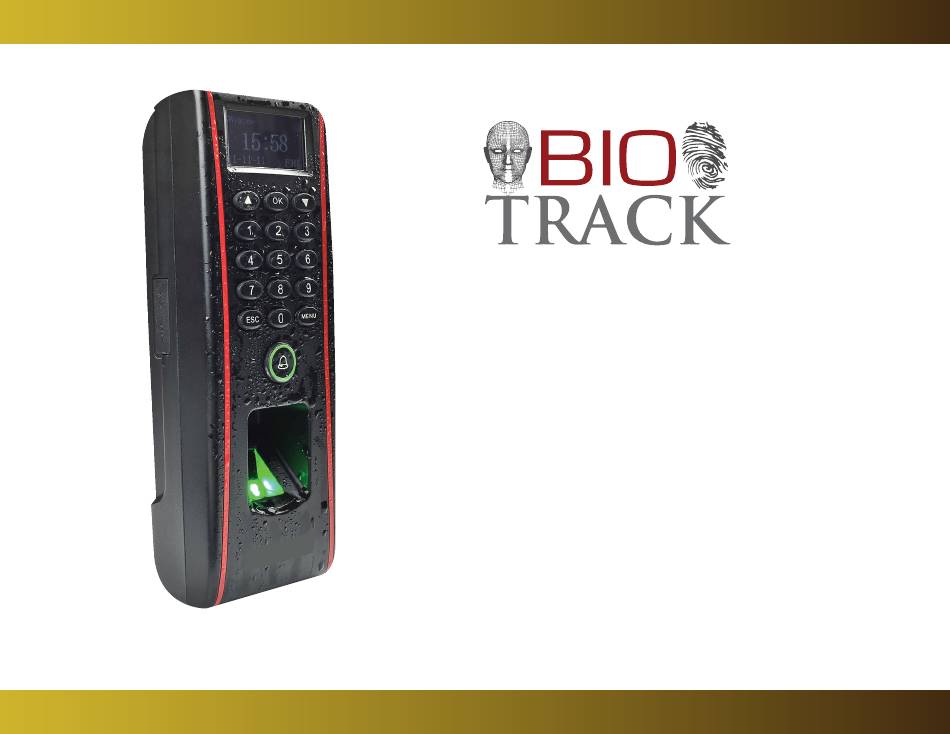

- Page 1 BioExterior INSTALLATION GUIDE www.BioTrackSoftware.com...
-
Page 2: Safety Precautions
Safety Precautions The following precautions are to keep user’s safe and prevent any damage. Please read carefully before installation. • Do not place a magnet near the product. • Do not install the device in an area subject Magnetic field from magnets, CRT, TV, monitor •... - Page 3 Safety Precautions The following precautions are to keep user’s safe and prevent any damage. Please read carefully before installation. • Do not disassemble, repair or • Do not use the device for any • Do not drop the device. alter the device.
-
Page 4: How To Place A Finger
How to Place a Finger ingerprint readers will give optimal results for fingerprint matching if the following recommendations and suggestions are followed. Select a finger to enroll It is recommended to use an index finger or a middle finger. ... - Page 5 How to Place a Finger Tips for different fingerprint conditions Fingerprint products are designed to verify fingerprints with highest security irrespective of the conditions of the skin of the finger. However, in case a fingerprint is not read on the sensor, please refer to the followings tips.
-
Page 6: Event Logs
How Does Reader work Register finger Identification Feature extraction Verified successfully Open door Thank you ! Verify feature Verification Door closed failed Please try again ! Fingerprint database Create Event logs Stored... -
Page 7: Basic Contents
Wall Mounting Screws – 3 pcs. Wall Plugs– 3 pcs Star-shape Screw for Software CD Mini-USB Cable -1 pc Mounting Plate -2 pcs BioExterior Installation Guide 2 pin, 5 pin, 7 pin, 10 pin Mounting Paper cables – each 1 pc... -
Page 8: Optional Accessories
Product Contents Optional accessories 12VDC, 3A Power Weigand Card Reader Slave Fingerprint Reader Exit Button Adaptor Prox Card RS485 Convertor... -
Page 9: Fingerprint Reader
Product PIN Diagram Side View Front View OLED Screen 3 x 5 Keypads USB-host Reset Doorbell/LED Fingerprint Reader... -
Page 10: Bottom View
Product PIN Diagram Back View Bottom View Tamper switch (Magnetic Contact) Star-shaped screw hole for fixing reader to the back plate Cables and Connectors... -
Page 11: Product Dimension
Product Dimension 62.5mm 65mm (2.46in.) (2.56in.) 185mm (7.28in.) 185mm 132mm (7.28in.) (5.20in.) 41.5mm (1.63in.) -
Page 12: Cables And Connectors
Cables and Connectors Aux. input and Relay output Weigand input and Power out Weigand Output and RS485 Ethernet Power In... - Page 13 Stick the mounting template on the wall and make plate on the wall with the help of the holes as per the markings. supplied screws. Secure BioExterior by fixing two Mount terminal on the Back plate screws at the bottom.
-
Page 14: Power Connection
12V DC (Red) Power Supply GND (Black) Recommended power supply Regulated 12VDC, 1A Comply with standard IEC/EN 60950-1. To power other devices from the power supply of BioExterior, use a power supply with higher current rating. -
Page 15: Ethernet Connection
Ethernet Connection Ethernet Connection PIN DESCRIPTION WIRE RJ45-1 YELLOW RJ45-2 GREEN RJ45-3 RJ45-6 BLACK TCP/IP TCP/IP... - Page 16 Ethernet Connection Direct connection with PC PIN DESCRIPTION WIRE RJ45-1 YELLOW To connect with a PC directly, connect both devices with a straight CAT-5 cable. RJ45-2 GREEN As the supports auto MDI/MDIX feature, it is not necessary to use a crossover RJ45-3 cable.
-
Page 17: Important Notes
PC RS485 Connection PIN DESCRIPTION WIRE PC RS485 Connection GREEN WHITE BLACK RS232 485+ BLUE 485- YELLOW RS485- RS485+ Important Notes Do’s and Dont’s for RS485 connection 1. RS485 communication wires should be a shielded or twisted pair cable. -
Page 18: Lock Relay Connection
Lock Relay Connection PIN DESCRIPTION WIRE BLUE For Normally Open Lock COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Electric Strike BLACK Power Supply GARY (BULE) COM1 (RED) - Page 19 Lock Relay Connection PIN DESCRIPTION WIRE BLUE For Normally Closed Lock COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Electric Strike BLACK Power Supply GARY COM1 (RED) (YELLOW)
-
Page 20: Aux. Input Connection
Aux. Input Connection PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE BLACK GARY Door Sensor Exit Button (WHITE) (BLACK) (10) (GARY) -
Page 21: Aux. Output Connection
Aux. Output Connection PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Alarm BLACK Power Supply GARY (ORANGE) COM2 (GREEN) - Page 22 Aux. Output Connection PIN DESCRIPTION WIRE BLUE COM1 YELLOW ORANGE COM2 GREEN BELL- PURPLE BELL+ BROWN WHITE Door Bell BLACK Power Supply GARY BELL- (PURPLE) BELL+ (BROWN)
-
Page 23: Rfid Reader
Weigand Input Connection PIN DESCRIPTION WIRE +12V BLACK INWD1 WHITE INWD0 GREEN RLED BLUE GLED GARY BEEP PURPLE DC+(6-14V) +12V (RED) (BLACK) INWD1 (WHITE) INWD0 (GREEN) Green LED GLED (GARY) Beeper BEEP (PURPLE) RFID Reader... -
Page 24: Access Control Panel
Weigand Output Connection PIN DESCRIPTION WIRE GREEN WHITE BLACK 485+ BLUE 485- YELLOW (GREEN) (WHITE) (BLACK) 485+ (BLUE) 485- (YELLOW) Access Control Panel... -
Page 25: Installation Reference
Installation Reference Standalone Reader Installation LOCK Alarm Door Sensor Exit button Door... -
Page 26: Specification
Specification Item Specification Fingerprint capacity 3,000 Transaction capacity 100,000 Hardware Platform ZEM720 6001, 400Mhz Memory 128MB Flash, 32MB SDRAM Optical sensor Fingerprint Sensor Display 128*64 OLED screen LED Indicator Red, Green Communication Ethernet（10/100M）, RS485, USB-HOST, Weigand signal Wiegand Input and Wiegand Output Identification speed ≤1 sec ≤0.0001%... -
Page 27: Electrical Specification
Electrical Specification Min. Typ. Max. Notes Working power supply Voltage(V) 14.4 Use regulated DC power adaptor only Current(A) Electronic lock relay output Switching voltage(V) Use regulated DC power adaptor only Switching Current(A) Switch Aux. input Pull-up resistance (Ω) 4.7k The input ports are pulled up with 4.7k resistors WEIGAND Input Voltage(V) 10.8... -
Page 28: Troubleshooting
Troubleshooting Fingerprint can not be read or it takes too long. Check whether a finger or fingerprint sensor is stained with sweat, water, or dust Retry after wiping off finger and fingerprint sensor with dry paper tissue or a mildly wet cloth. ...
