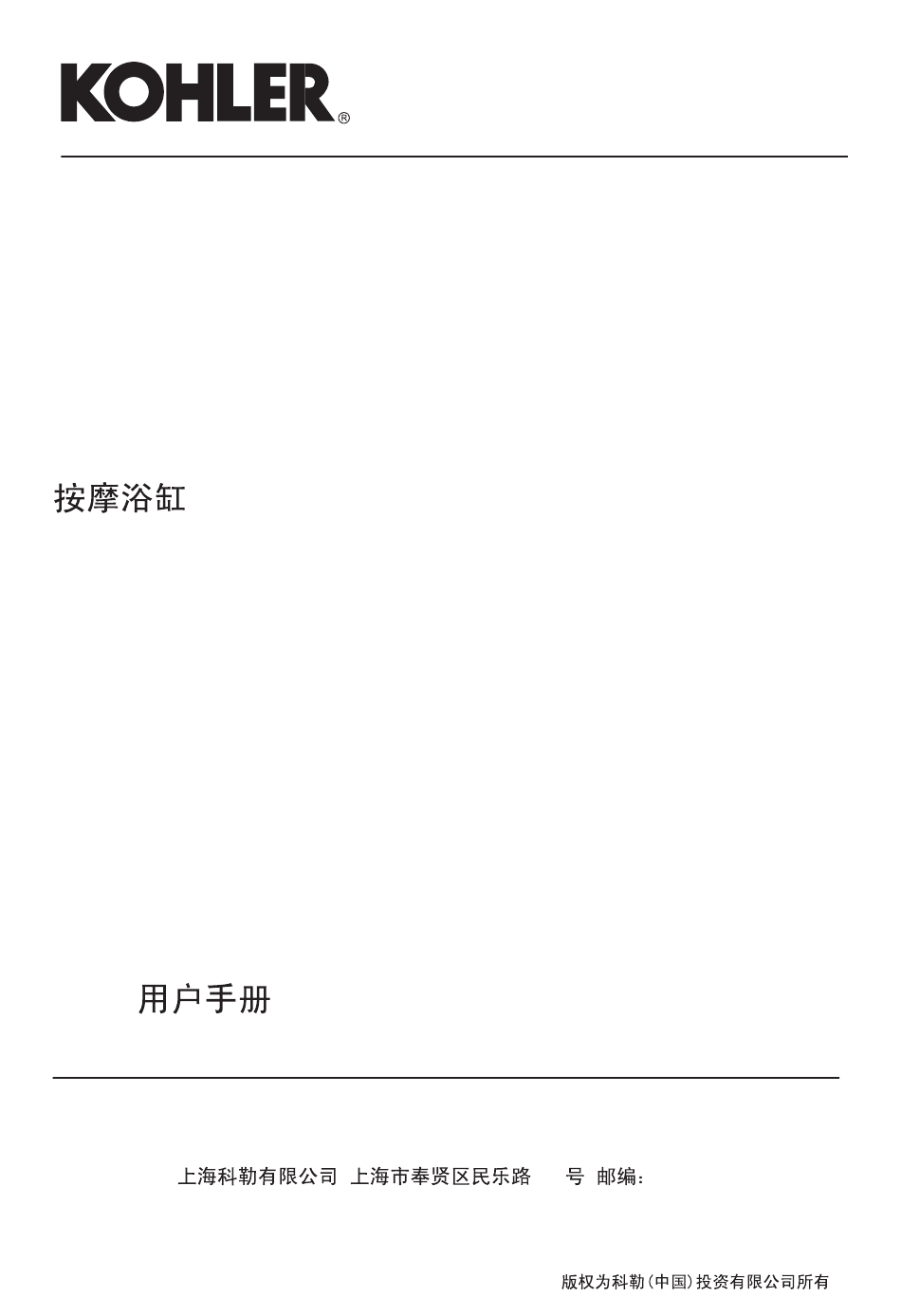

- Page 1 WHIRLPOOL BATH OWNER S MANUAL SHANGHAI KOHLER LTD., NO.368, MIN LE ROAD, FENG XIAN DISTRICT, SHANGHAI, CHINA POST CODE 201419 201419 © Copyright Kohler China Investment Co., Ltd. 2016 1283904-T01-B © 2016...
-
Page 2: Table Of Contents
The dependability and beauty of your new whirlpool bath will surpass your highest expectations. We're proud of our whirlpool bath here at Kohler, and we know you will be too. -
Page 3: Important Information
30 mA. WARNING: Risk of personal injury. To avoid injury, exercise care when entering or exiting the whirlpool bath. WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal hyperthermia. -
Page 4: Your Kohler Whirlpool Bath
ELECTRICAL SHOCK, OR INJURY TO PERSONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS Use this whirlpool bath only for its intended purpose as described in this manual. Do not use attachments not recommended by the manufacturer. Never drop or insert any object into any opening. -
Page 5: Keypad Instructions
KEYPAD INSTRUCTIONS Display Panel: Water Temperature, Massage Strength, Drain, Pipe Cleaning Power On/Off Electronic Drain On/Off Pipe Cleaning Massage Pump On/Off Massage Pump On Massage Strength Adjustment Massage Strength Adjustment Display Panel Display water temperature in the bath and display air temperature when the bath is empty. -
Page 6: Keypad Display
KEYPAD DISPLAY Pipe Clean 2 Seconds E Drain 1 Second Overflow 1 Second OPERATION INSTRUCTIONS If the unit does not function properly, please refer to the "Troubleshooting" section. Press power on/off " " to start system. Press the electronic drain on/off button " "... - Page 7 OPERATION INSTRUCTIONS (CONT) OPERATION OF WATER PILLOW (Optional) ! Rotate this button anti-clockwisely to close water pillow. Rotate it clockwisely to increase water flow. Rotating Button OVERFLOW STATUS Water level reaches overflow level. The electronic drain automatically opens. Overflow animation is displayed and sound alarm starts. Turn off the tap.
- Page 8 OPERATION INSTRUCTIONS (CONT) Pipe Cleaning Operation Press the purge button " " and pipe cleaning animation is displayed. The bath automatically drains when it is filled with water. The electronic drain automatically shuts and the bath automatically fills. The electronic drain automatically shuts and the bath automatically fills when it is empty.
-
Page 9: Care And Cleaning Instructions
CARE AND CLEANING INSTRUCTIONS A. Cleaning Your Acrylic Bath Do not use powdered cleaners unless the cleaner is fully dissolved in water. Solid substances could block the air jets. Do not use full strength bleach or ammonia cleaning solutions. Chemically active cleaning solutions can damage the bath surface. - Page 10 CARE AND CLEANING INSTRUCTIONS(CONT) ! Turn the rod 90 . ! Pull the rod outwards to pull out the nozzle. Turn the rod 90 to pull it out of the nozzle. Keep the rod for future use. Insert the new nozzle into the flange and press tight. The replacement process is finished.
-
Page 11: Troubleshooting Procedures
TROUBLESHOOTING PROCEDURES This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor. Troubleshooting The Bath System With Electronic Drain SYMPTOMS... - Page 12 12. The bath fails to drain A. Drain pipe on is higher than bath A. Keep drain pipe close to the ground to water. bottom. make it lower than bath bottom. 2. 20 A.RCD 3. 20 Kohler 1283904-T01-B...
- Page 13 Troubleshooting The Bath System With Air Switch Control SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION 1. Whirlpool bath does not A. Pump does not work. A. Replace pump. start. B. Air tube between switch and water B. Reconnect or replace air tube.
