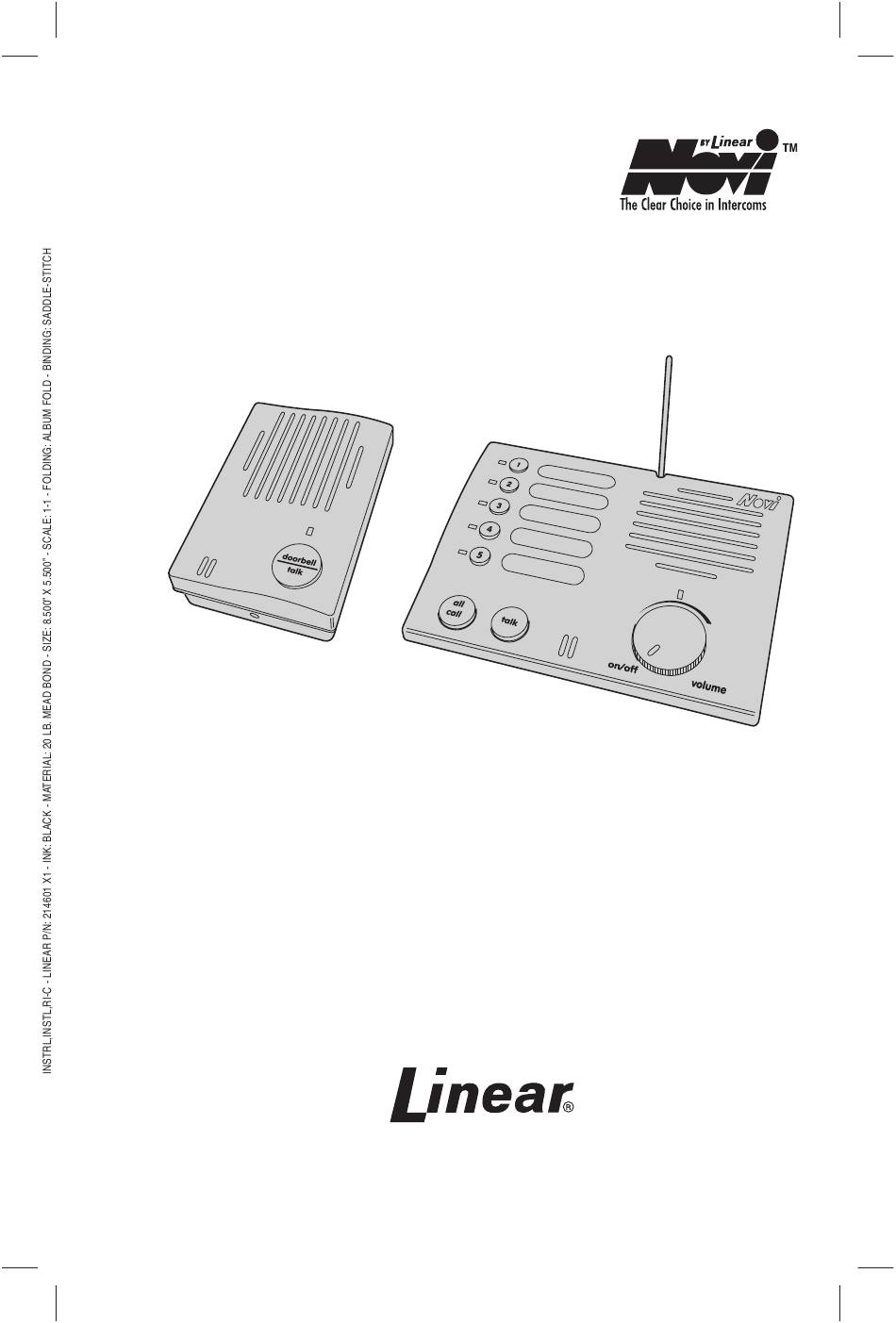

- Page 1 WIRELESS INTERCOM SYSTEM 5-CHANNEL RADIO INTERCOM Installation & Operation Instructions (760) 438-7000 • FAX (760) 438-7043 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com 214601 X1 - IMAGE 1...
-
Page 2: Table Of Contents
Wireless Doorbell Intercom units. The intercom uses digital signals to control the stations called and provide a unique “security code” that prevents other nearby Novi 5-channel intercoms from accessing the system. Either of two radio frequencies can be selected for the intercoms to further eliminate the chance of interference from adjacent systems. -
Page 3: Console Features
When ON, the Console will not sound Doorbell Intercom chime tones or respond to All Call signals. 12. FREQUENCY SWITCH Selects frequency A or B. All intercoms used in the same system must be set to the same frequency. 214601 X1 - IMAGE 3... -
Page 4: Doorbell Features
Sets the Doorbell to station 4 or 5. When set for station 5, the Doorbell will sound a “ding-dong” chime at the Console. When set for station 4, the Doorbell will sound a “dong” chime at the Console. 11. CASE LOCKING SCREW Secures the Doorbell to the mounting plate. 214601 X1 - IMAGE 4... -
Page 5: Console Antenna
CONSOLE ANTENNA SWING ANTENNA OUT FROM BOTTOM OF CASE FOR TABLE OR SHELF MOUNTING... SWING ANTENNA ALL THE WAY UP FOR WALL MOUNTING... POINT ANTENNA STRAIGHT UP FROM CASE 214601 X1 - IMAGE 5... -
Page 6: Programming The Stations
UNTIL TWO BEEPS SOUND; THEN RELEASE THE PROGRAM BUTTON ON CONSOLE(S), PRESS & HOLD DOWN ALL CALL & TALK BUTTONS; THEN TURN POWER ON WITH THE VOLUME KNOB. WHEN ALL STATION LIGHTS FLASH, RELEASE BUTTONS. 214601 X1 - IMAGE 6... -
Page 7: Programming The Stations
TURN CONSOLE(S) OFF TO COMPLETE PROGRAMMING, TURN POWER OFF ON ALL CONSOLES NOTE: FOR THE CONSOLE TO EXIT THE PROGRAM MODE, THE POWER MUST BE SWITCHED OFF TURN VOLUME KNOB COUNTERCLOCKWISE UNTIL POWER IS OFF 214601 X1 - IMAGE 7... -
Page 8: Wall Mounting The Doorbell
PLATE USING THE SCREWS PROVIDED TILT DOORBELL INTO MOUNTING PLATE SECURE DOORBELL TO MOUNTING PLATE WITH THE CASE LOCKING SCREW NOTE: WAIT UNTIL AFTER ADJUSTING THE DOORBELL AUDIO VOLUME BEFORE FULLY TIGHTENING THE LOCKING SCREW 214601 X1 - IMAGE 8... -
Page 9: Wall Mounting The Console
LEFT SCREW EXPOSED TO EXCESSIVE MOISTURE, DUST, OR IN DIRECT SUNLIGHT ROUTE TRANSFORMER WIRE INTO WIRING SLOT MARK SCREW LOCATIONS AND DRIVE IN SCREWS LEAVING HEADS MOUNT CONSOLE ABOUT 1/4" OUT ON WALL SCREWS RIGHT SCREW 214601 X1 - IMAGE 9... -
Page 10: Operating The Doorbell & Console
THE TALK BUTTON WHILE SPEAKING, RELEASE THE TALK BUTTON AFTER SPEAKING THE CONVERSATION GOES BACK AND FORTH, WITH EACH PERSON PRESSING THEIR OWN TALK BUTTON CONSOLE NOTE: DOORBELLS WILL GO ON STANDBY AFTER 15 SECONDS OF NO TALKING 214601 X1 - IMAGE 10... -
Page 11: Operating Multiple Consoles
SPEAKING, RELEASE THE TALK BUTTON AFTER SPEAKING THE CONVERSATION GOES BACK AND FORTH, WITH EACH PERSON PRESSING THEIR OWN TALK BUTTON NOTE: CONSOLES WILL GO ON STANDBY KITCHEN CONSOLE AFTER 20 SECONDS OF NO TALKING 214601 X1 - IMAGE 11... - Page 12 THE TALK BUTTON WHILE SPEAKING, RELEASE THE TALK BUTTON AFTER SPEAKING THE CONVERSATION GOES BACK AND FORTH, WITH EACH PERSON PRESSING THEIR OWN TALK BUTTON CONSOLES WILL GO ON STANDBY GARAGE CONSOLE AFTER 20 SECONDS OF NO TALKING 214601 X1 - IMAGE 12...
-
Page 13: Troubleshooting
TROUBLESHOOTING 214601 X1 - IMAGE 13... -
Page 14: Changing System Settings
CHANGE THE CONSOLE'S SECURITY CODE THEN: REFER TO THE "PROGRAMMING THE STATIONS" SECTION IN THIS MANUAL AND PERFORM STEPS #3, #5, & #6 THIS WILL PROGRAM THE NEW "SECURITY CODE" INTO ALL OF THE OTHER UNITS 214601 X1 - IMAGE 14... -
Page 15: Linear Limited Warranty
• This device complies with FCC Part 15 and Industry Canada Rules and Regulations. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 214601 X1 - IMAGE 15... - Page 16 Copyright © 2001 Linear Corporation 214601 X1 214601 X1 - IMAGE 16...
