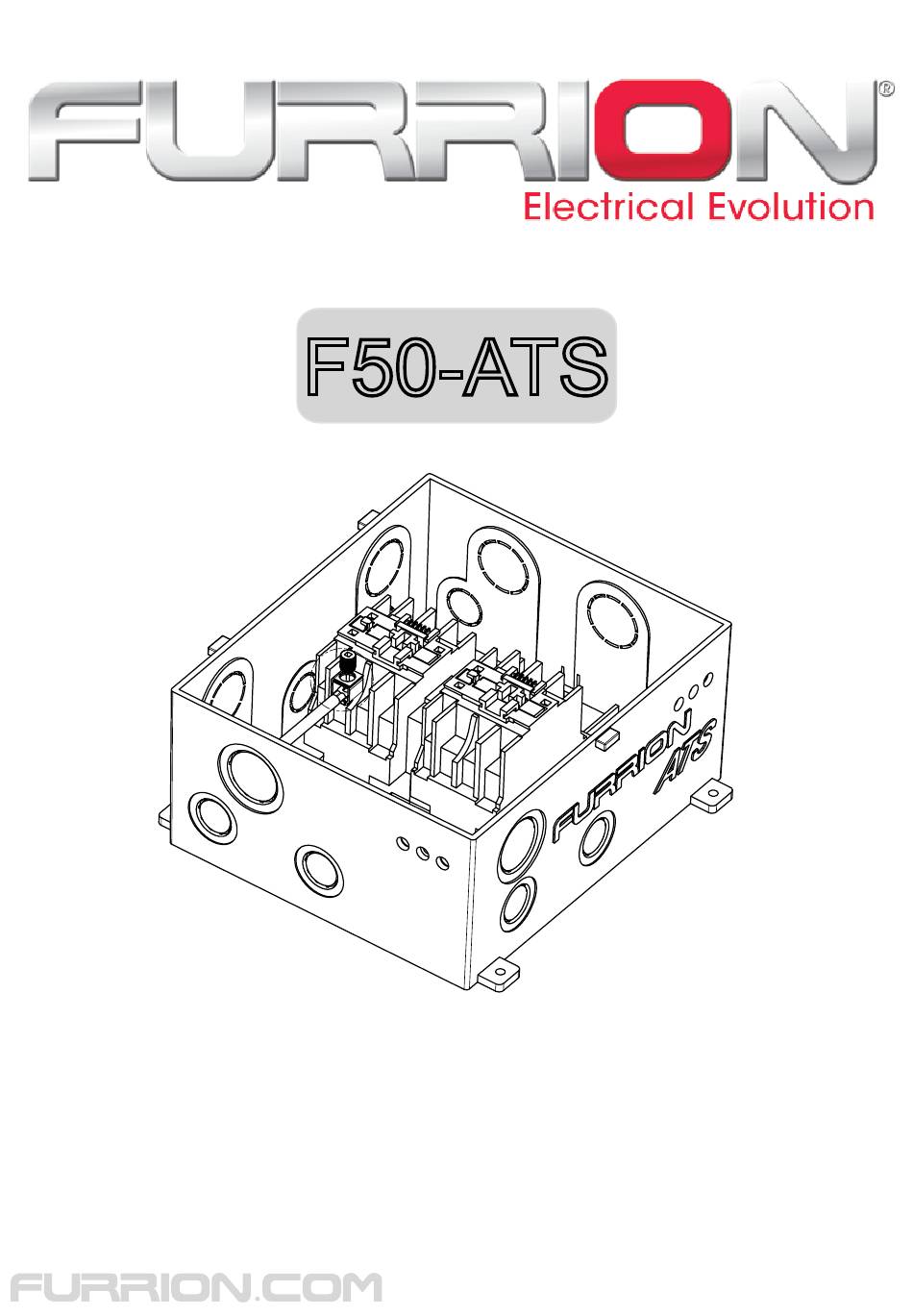

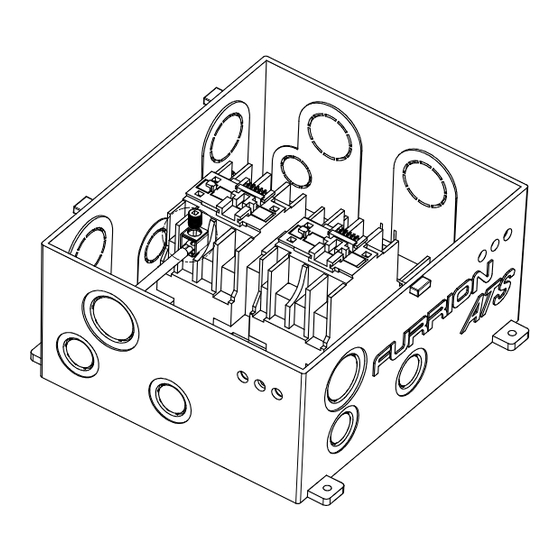

- Page 1 F50-ATS 50amp 125/250V Automatic Transfer Switch Furrions ATS is used to safely switch automatically between mutiple power sources...
- Page 2 Generator, shore power cord or inverter. The function of the Furrion Automatic Transfer Switch is to provide a safe and smooth switch over from an inverter or shore power cord automatically when a generator is...
- Page 3 INSTALLING YOUR F50-ATS: There are 3 common installation con gurations for the Furrion ATS series: Con guration 1: Double power feed This is the standard installation used between a shore power cord and generator. EXAMPLE. 1 DISTRIBUTION PANEL / BRANCH CIRCUITS...
- Page 4 SHORE POWER CORD GENERATOR 50Amp 125/250 VAC 12KW 50Amp 125/250 VAC 12KW Generator FURRION PULL SMART PLUG FEATURED BELOW F50-ATS Transfer switch Input 1 Input 2 Warning: The Furrion F50-ATS is not suitable to be used with Medical life support equipment.
- Page 5 1 x Philips screw driver #2 MOUNTING YOUR F50-ATS: The Furrion ATS is best mounted indoors or in a location sheltered from outdoor elements. The selected area must be free from the possibility of contaminates and away from water pipes, pumps, battery compartments and storage areas for ammable liquids.
- Page 6 WIRING YOUR F50-ATS: 50amp 125/240VAC Wiring Ground = Bare copper wire or green Neutral = White Live/Hot L1 = Black Live/Hot L2 = Red 50amp 120VAC Wiring Ground = Bare copper wire or green Neutral = White Live/Hot = Black Using the quick reference wiring guide on the lid of the ATS box, arrange the wires to be fed into the ATS for connection at the corresponding terminals.
-
Page 7: Before Testing
PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS... Follow the below steps to test the function of the F50-ATS. BEFORE TESTING Ensure air conditioning units and other high current users are switched o . It is harmful for the transfer switch to switch over power sources while under load. Shut down all power sources to the RV Label power sources clearly that testing is in progress. - Page 8 If the PCB’s green LED is not illuminated while generator voltage is present indicates the PCB has been damaged and will need replaced. Contact your nearest Furrion Dealer, RV OEM or email support@furrion.com POSSIBLE CAUSES FOR F50-ATS PROBLEMS INGRESS OF FOREIGN OBJECTS INSIDE ENCLOSURE:...
- Page 9 There are 2 options for mounting the Furrion F50-ATS: Option One: Using the external lugs which are located on the outside of the box. Mounting dimensions for the external lugs are: Outer Lugs : 189 x 220mm (7 / x 8 / ) Option Two: Using the 4 x internal holes which are located on the inside of the box.
