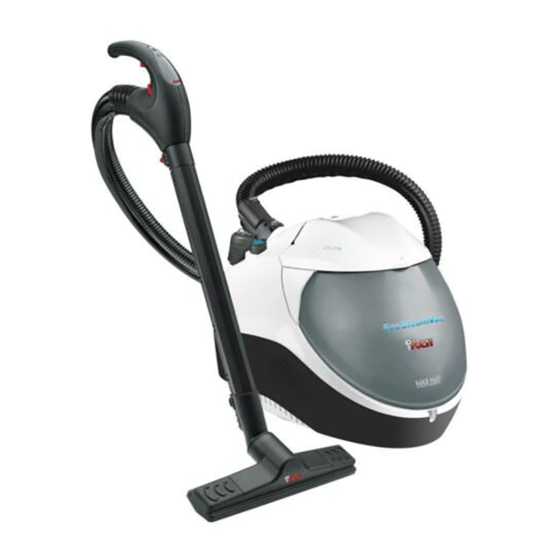

POLTI EcoSteamVac Dual Manual

Hide thumbs Also See for EcoSteamVac Dual:
Table of Contents

Advertisement

Quick Links

Download this manual
DUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoSteamVac Dual and is the answer not in the manual?

Questions and answers

Related Manuals for POLTI EcoSteamVac Dual

Summary of Contents for POLTI EcoSteamVac Dual

  • Page 1 DUAL...
  • Page 2 Fig. 5 Fig. 6 Fig. 6a Fig. 7 Fig. 8 Fig. 9 Fig. 10a Fig. 10c Fig. 11 Fig. 10b Fig. A1 Fig. A2 Fig. A3 Fig. B Fig. C Fig. D Fig. E EcoSteamVac Dual - M0S10604 Edizione 2T07...
  • Page 3 MAX 19 A4 A2 OPTIONAL S1 S2 S4...
  • Page 4 The heart of the filtration system is represented by the exclusive “Eco-Active” water filter, patented by Polti. The “Eco-Active” water filter uses the natural purifying force of water to trap dirt, preventing dispersion of dust into the environment. In addition, the EPA filter collects impurities including pollen as well as dust mites.

  • Page 5: Table Of Contents

    CONTENTS - TECHNICAL SPECIFICATIONS................page 4 - IDENTIFICATIONS ....................page 4 - IMPORTANT SAFETY INSTRUCTIONS..............page 5 - SAFETY INFORMATIONS ................page 6 page GROUNDING INSTRUCTIONS ..................page 7 PRECAUTIONS ........................- KEY .........................page 11 - CORRECT USE OF THE PRODUCT ..............page 12 - SYMBOLS SHOWN ON THE MACHINE AND/OR ACCESSORIES .......page 12 - UNPACKING ......................

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS BOILER TANK STAINLESS STEEL fl oz Max capacity psig Max pressure DIRTY COLLECTION CONTAINER fl oz Max clean water capacity fl oz Max dirty collecting capacity POWER SUPPLY Voltage Frequency Vacuum motor (rated power) Boiler power 1500 Total max power 1500 HANDLE VOLTAGE 12 (Safety Low Voltage)

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS AND WARNINGS AND MAKE SURE YOU UNDERSTAND THEM BEFORE USING THE PRODUCT. SAFETY ALERT SYMBOL: This symbol indicates that a potential risk of injury exists. The safety messages will follow the safety alert symbol with the words “DANGER”...

  • Page 8: Safety Informations

    ECOSTEAMVAC DUAL SAFETY INFORMATIONS This product is intended for household use only. GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equip- ped with a cord having an equipment-grounding conductor and grounding plug.

  • Page 9: Precautions

    ECOSTEAMVAC DUAL PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE OR INJURY: Read all instructions carefully before using the appliance. • The wiring system to which the appliance is connected must always comply with applicable laws and regulations.
  • Page 10 ECOSTEAMVAC DUAL PRECAUTIONS Steam may cause serious injury if in contact with body. Always allow the steamer to cool down before handling • Do not direct the steam jet at electrical equipment or the appliance itself. • Never place your hands or any body parts in the steam jet.
  • Page 11 • Do not put any detergent or chemical substance in the self-filling tank. • For best results, use original Polti products only, as products of other brands may not be suita- ble for use in Polti appliances and could cause damage.
  • Page 12 MAX 19 A4 A2 OPTIONAL S1 S2 S4...

  • Page 13: Key

    D2) Short window cleaning frame for steam+vacuum nozzle D3) Bristle frame for steam+vacuum nozzle E) Steam concentrator 1) Main switch E1) Steam crevice tool 2) Boiler button – wood-terracotta floor E3) Colored brushes for steam concentrator function O1) Terry cloth 3) “Out of water”...

  • Page 14: Correct Use Of The Product

    • Clean and sanitizing surfaces with steam; • Vacuum and steaming at the same time; Polti S.p.A. declines all liability for any damage or accident deriving from any use of this appliance which is not in accordance with the instructions contained in this booklet.

  • Page 15: Unpacking

    UNPACKING Unpack the machine and make sure it is in the proper condition. Keep the original package for any returns to the manufacturer should maintenance under warranty be necessary. Please note that: ♦ Bioecologico, our anti-foaming solution is stored inside the dirt collection container of the machine.

  • Page 16: Prepare To Use The Steam

    PREPARE TO USE THE STEAM FILLING THE BOILER TANK Steam may cause serious injury if in con- tact with body. Always allow the steamer to cool down before handling To reduce the risk of personal injury unplug the power cord from the electrical outlet and let the appliance and the accessories cool down completely before handling ♦...

  • Page 17: Starting The Machine

    STARTING THE MACHINE ♦ Open the monoblock socket door (9). ♦ Insert the monoblock plug (A6) of the flexible hose (A) pushing it until you hear the click of the loc- king mechanism (A7) (fig. 6-6a). ♦ Connect the power plug to a suitable electric outlet. Always connect to properly grounded outlet (see “Grounding Instructions”, page 6).

  • Page 18: Steam Only Mode

    STEAM ONLY MODE Steam may cause serious injury if in con- tact with body. Always allow the steamer to cool down before handling To reduce the risk of personal injury unplug the power cord from the electrical outlet and let the appliance and the accessories cool down completely before handling ♦...

  • Page 19: Steam + Vacuum Mode

    (1) and (2). SPECIAL WASHING FUNCTION FOR WOOD-TERRACOTTA FLOOR EcoSteamVac Dual has a special steam+vacuum function that can be used for cleaning wood-floor and delicate floors. This function involves the combined action of a delicate intermittent flow of steam with adeguate vacuum force.

  • Page 20: Safety Cap

    SAFETY CAP IMPORTANT: This appliance is equipped with a patented safety cap which prevents the boiler tank being opened even accidentally, as long as there is minimum pressure inside. Therefore, to be able to unscrew it, it is necessary to perform specific operations which are described below. Every time the water is depleted, proceed as follows: Always make sure that the appliance is unplugged before performing maintenance work of any kind, including adding water or cleaning the appliance.

  • Page 21: After Use

    AFTER USE OPERATIONS TO BE CARRIED OUT AFTER USE Always make sure that the appliance is unplugged before performing maintenance work of any kind. ♦ Switch off the appliance by pressing the main switch (1). ♦ Disconnect the plug from the electric outlet. ♦...

  • Page 22: Assembling The Accessories

    (Fig. 8). CONNECTING THE ACCESSORIES All the EcoSteamVac Dual accessories can be connected directly to the accessories (A1) or to the extension tubes (B or B1), previously assembled. To connect the specific accessories for the vacuum and steam features (B-B1-C-D-E) proceed as follows: ♦...

  • Page 23: Fitting Frames

    FITTNG FRAMES (C1 - C2 - C3) TO THE UNIVERSAL BRUSH ♦ Move outwards the two slides (C4) on the back of the brush. ♦ Fit the frame into the lower part of the brush. ♦ Lock it by moving the slides (C4) inwards. FITTNG FRAMES (d1 - d2 - d3) TO THE STEAM-VACUUM NOZZLE...

  • Page 24: How To Use The Accessories

    HOW TO USE THE ACCESSORIES BIOECOLOGICO (T): ANTI-FOAMING AND DEODORIZER DO NOT SWALLOW Keep out of the reach of children. The BIOECOLOGICO (included) contains: Eugenol, Citral, Cinnamal*. Avoid contact with the eyes and skin. In case of contact with the eyes, flush with cold water for 15 minutes.
  • Page 25 KALSTOP (u): ANTI LIMESCALE PRODUCT DO NOT SWALLOW Keep out of the reach of children. The Kalstop FP2003 supplied with the appliance contains vegetable origin tannic complex, in alkaline aqueous solution. Avoid contact with the eyes and skin. In case of contact with the eyes, flush with cold water for 15 minutes.
  • Page 26 UNIVERSAL BRUSH Use this brush on large surfaces, ceramic, marble and wood-floors, carpets, etc. INSERTS USE Bristle flame (C1) for suction only Rubber frame (C2) for washing floors and picking up any moisture Rigid frame (C3) for rugs and carpets ♦...
  • Page 27 STEAM + VACUUM NOZZLE We suggest to use this accessory on large windows, large mirrors and smooth surfaces, or to clean up- holstery surfaces such as sofas, mattresses, etc. STEAM / VACCUM NOZZLE + FRAMES COMBINATIONS Long window clea- For larger windows and surfaces ning frame (D1) Short window clea- For smaller windows...

  • Page 28: Optional Accessories

    EcoSteamVac Dual can quickly become an extremely efficient ironing system, allowing you to iron more quickly and with less effort. Simply connect the iron accessory to EcoSteamVac Dual.
  • Page 29 HOSE EXTENDER You may adjust the length of the hose extender from a minimum of about 2 ft (60 cm) to a maxi- mum of 3.3 ft (1 m). Press button (IA) and extend or reduce length as desired. MINI TURBO BRUSH The mini turbo-brush is especially suitable for cleaning armchairs and sofas, the inside of cars, fa- bric-lined walls, etc.

  • Page 30: General Maintenance

    GENERAL MAINTENANCE To reduce the risk of personal injury unplug the power cord from the electrical outlet and let the appliance and the accessories cool down completely before handling Before any kind of maintenance, make sure that the power cord is not plugged into electrical outlet. After using the brushes, we recommend letting the bristles cool down in their natural position, in order to avoid any deformation.

  • Page 31: How To Replace A Spare Gasket

    HOW TO REPLACE A SPARE GASKET Regularly check the status of the green gasket located in the monoblock socket (A6). If necessa- ry, replace it with the appropriate spare part (P) as below. Fig. F - Remove the broken / damaged green gasket. - Insert the new one on the steam nozzle and push until it is seated.

  • Page 32: Troubleshooting

    TROUBLESHOOTING POSSIBLE PROBLEMS, CAUSES AND SOLUTIONS PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTIONS No suction No power Check the cable, plug and socket Low suction power Increase the suction power by pres- sing the button on the handle The upholstery nozzle, the Disconnect the flexible hose from the The vacuum power drops flexible tube or the extension...

  • Page 33: To Obtain Assistance

    TO OBTAIN ASSISTANCE For technical support go to www.polti.com and select customer care / technical support or call: - USA: 1-888-99-POLTI (1-888-997-6584) Monday - Friday: 8am - 6pm EST - CAN: 1-888-697-65-84...

  • Page 34: Limited Warranty

    WHAT IS COVERED Subject to the exclusions contained below, Polti USA, Inc. warrants this product to be free from defects in ma- terials and workmanship for a period of 1 (one) year from the date of purchase.
  • Page 35 IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL POLTI USA, INC. BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY...
  • Page 36 Distributed by Polti USA Inc. MADE IN ITALY by Polti S.p.A. - 22070 Bulgarograsso (CO) - Italy - Via Ferloni, 83 www.polti.com...
  • Page 37 For any queries please visit us at www.polti.com web site or contact: 1-888-99-POLTI (1-888-997-6584) Monday - Friday: 8am - 6pm EST Pour de plus amples informations, veuillez visiter notre site www.polti.com ou nous contacter: 1-888-697-65-84 Para cualquier pregunta por favor visitar www.polti.com...
