AMX NXC-REL10 Quick Start Manual

NetLinx Control Cards and NetModules
NetLinx Control Cards can be installed in either the NXF CardFrame, or
NetModules. This document provides basic specifications and wiring
information for the NetLinx Control cards. For detailed information on the
cards, refer to the NetLinx CardFrame, Control Cards, and NetModules
Instruction Manual.
NXC-REL10 Specifications
The NXC-REL10 Relay Control Card provides ten relays supporting
devices that employ simple momentary or latching contact-closure control,
with LED feedback.
NXC-I/O10 Specifications
Power Requirements: 200 mA @ 12 VDC
Operation: Relay 1-10: ten relays, 1A, 28VAC / 24VDC
LEDs: Ten red LEDs light to show ON status activity for each relay.
Wiring: • Two 10-pin 3.5 mm captive-screw terminals
• Commoning strip (metal)
Models: • NXC-REL10 Relay 10 Card
• NXM-REL10 Relay 10 NetModule
Pinouts and Functions:
NXC-REL10 Pinouts and Functions
Pin Function Pin Function
1 Relay 1A 11 Relay 6A
2 Relay 1B 12 Relay 6B
3 Relay 2A 13 Relay 7A
4 Relay 2B 14 Relay 7B
5 Relay 3A 15 Relay 8A
6 Relay 3B 16 Relay 8B
7 Relay 4A 17 Relay 9A
8 Relay 4B 18 Relay 9B
9 Relay 5A 19 Relay 10A
10 Relay 5B 20 Relay 10B
NXC-REL10
NXC-REL10 Channel Assignments:
Channels 1-10 represent relays 1-10.
NXC-REL10 Connections/Wiring:
The NXC-REL10 Control Card has 10 relays that are independently
controlled and electrically isolated. The relay contacts are rated for a
minimum of 1A @ 0-24VAC or 0-28VDC (resistive). Jumpers located on the
Card allow you to select Normally Open (NO) or Normally Closed (NC)
contact settings:

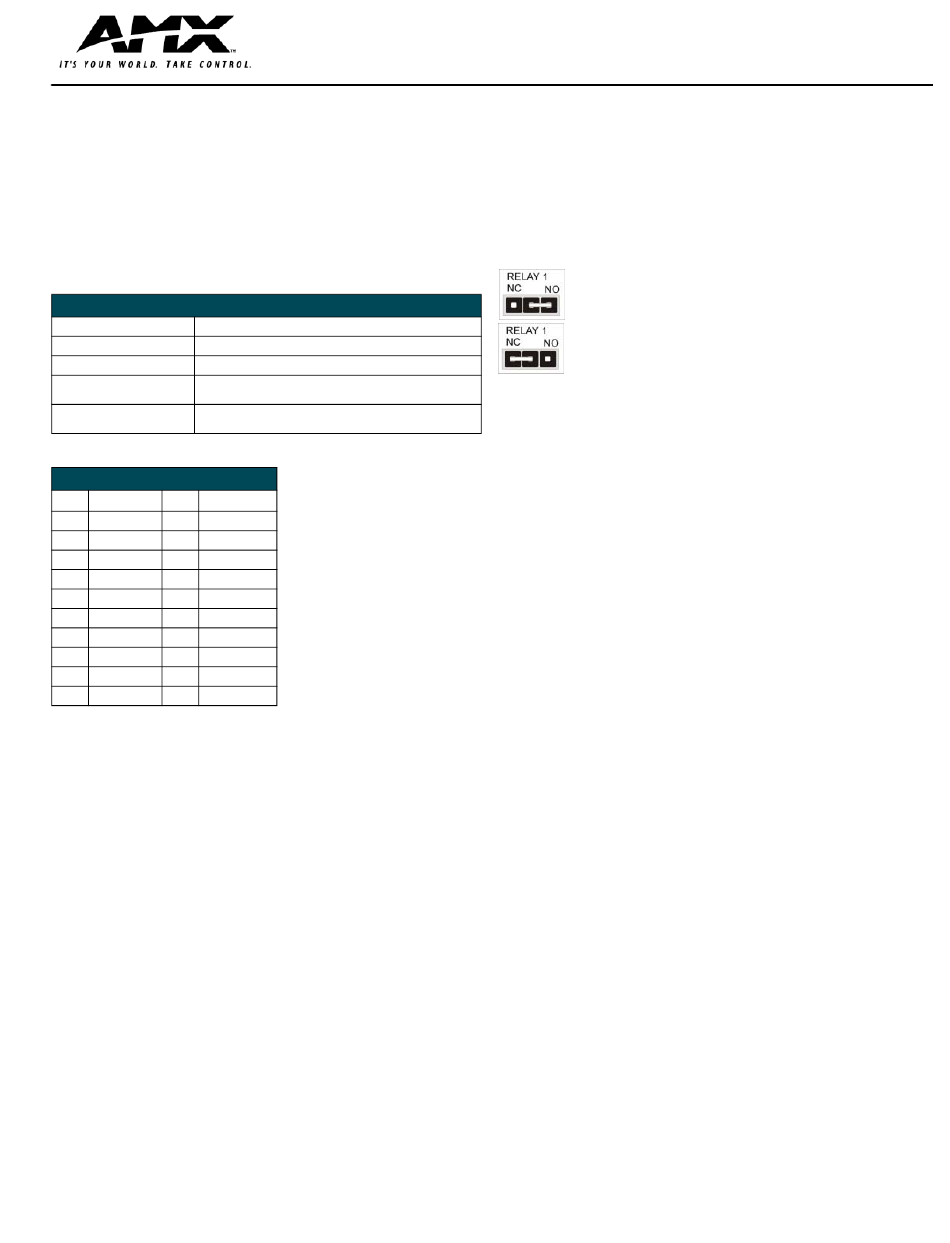

Normally open (NO) mode setting on jumper
pins 1 and 2 (default).
Normally closed (NC) mode setting on jumper
pins 2 and 3.
Quick Start Guide
Relay Control Card
