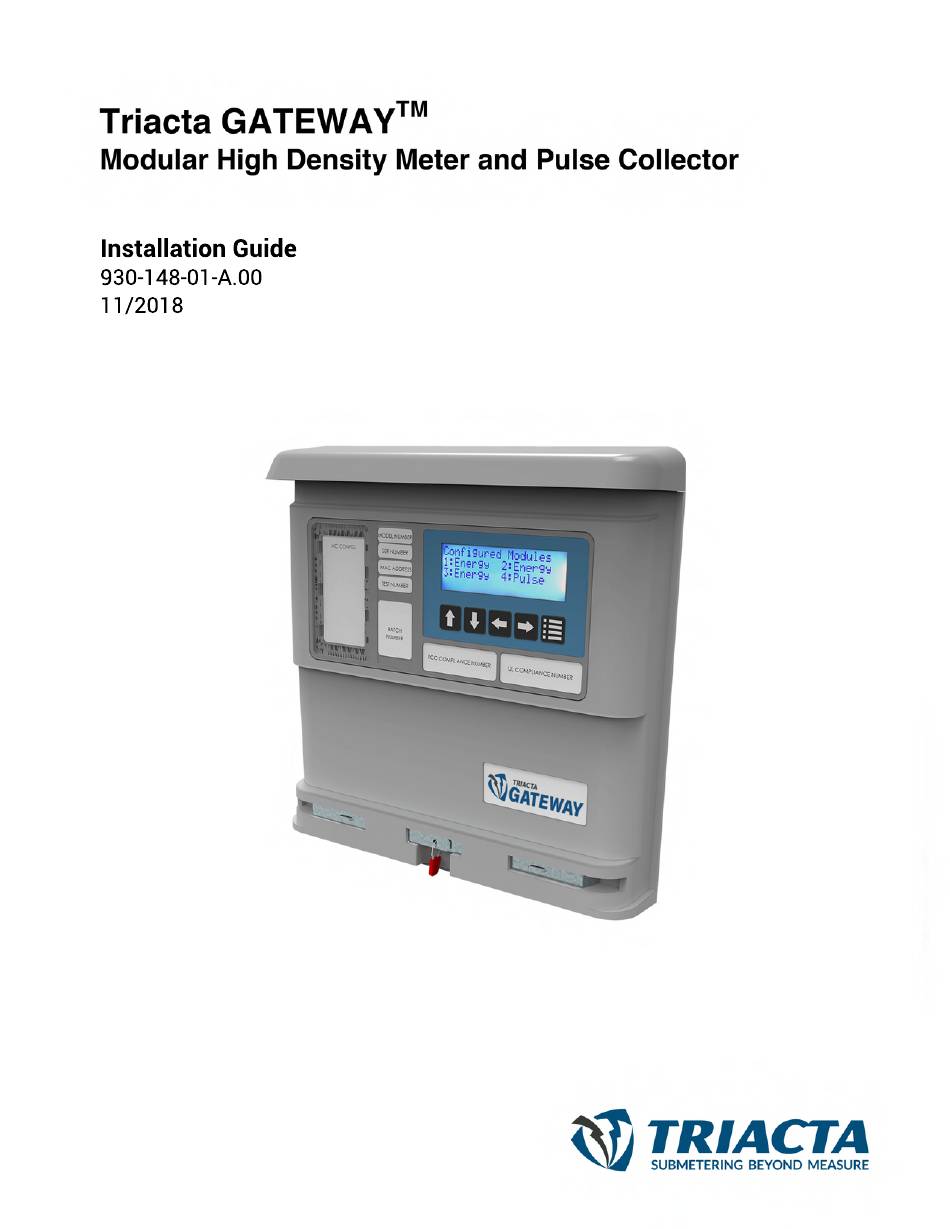

Triacta GATEWAY Installation Manual

Modular high density meter and pulse collector

Hide thumbs Also See for GATEWAY:

Installation manual (38 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Installation Guide

930-148-01-A.00

11/2018

Table of Contents

Need help?

Do you have a question about the GATEWAY and is the answer not in the manual?

Questions and answers

Summary of Contents for Triacta GATEWAY

Page 2 Please note Electrical equipment should be installed, operated, serviced and maintained only by qualified personnel. No responsibility is assumed by Triacta for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved.
Page 3 L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC and Industry Canada notices for Wi-Fi 2.4GHz IC ID: 23814-GATEWAY FCC ID: SCR-GATEWAY © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 4 Slot 3 = 333mV Measurement Module Slot 4 = Pulse Counter Measurement module Note: Measurement modules can appear in any order and can be any mix of types, including one type only. © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 5: Table Of Contents
Triacta GATEWAY Meter Head ............................ 13 Triacta GATEWAY Meter Base ............................ 13 Triacta GATEWAY Voltage Module ..........................13 Triacta GATEWAY CT / Pulse Wiring Modules ......................15 Triacta GATEWAY Flex configuration .......................... 16 Pre-Installation Instructions ............................17 Site Planning ................................17 Access to Power and Lighting .............................
Page 6 CT Shorting and Termination ............................34 CT/Pulse Wiring Modules ............................34 CT Naming designations .............................. 35 Appendix 2: Triacta GATEWAY Part Number Configuration Guide ................37 Equipment servicing and access ............................. 38 © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 7: Introduction
See “Safety Precautions” on page 7. Scope This Guide is for the mechanical and electrical installation of the Triacta GATEWAY. Refer to the Triacta GATEWAY Configuration and Operations Guide for device configuration, commissioning, and operation of the Triacta GATEWAY.
Page 8: Safety Precautions
NEVER short the secondary of a Potential Transformer (PT). • Always short the secondary of a current transformer prior to disconnecting current input loads. Failure to follow these instructions will result in death or serious injury. © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 9: System Specifications
Triacta GATEWAY System Specifications Table 1 lists the system specifications of the Triacta GATEWAY Table 1: Triacta GATEWAY specifications Type Description Mechanical Dimensions Height: 15.52 in. (39.4 cm) Width: 12 in. (38.9 cm) Depth: 2.125 in. (9.0 cm) Weight 8.77 lb (3.98 kg)
Page 10 If the equipment is installed or used in a manner other than that specified in this document, it may void your warranty or impair the protection of the equipment © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 12: System Description
Base and Meter Head units. The Meter Base can be installed, and the electrical connections terminated by electrical contractors, independently of the TRIACTA GATEWAY Meter Head. The Triacta GATEWAY Meter Head may be installed at a later time by a technician with no electrical accreditation.
Page 13: Triacta Gateway Meter Head
Triacta GATEWAY Figure 3: Triacta GATEWAY Internal view Figure 2 shows the internal view of the Triacta GATEWAY . Triacta GATEWAY Meter Head The Meter Head unit supports the following: One to four measurement modules each supporting twelve inputs for 80mA CTs, 100mA CTs, 333mV CTs or pulse counters.
Page 14 Separate control and sense voltage wiring is required when using the Triacta GATEWAY with a Triacta PT Module, or when the meter is expected to be ON at all times - even when the sense voltage source is OFF. I.E. the sense voltage is from an emergency power panel that is not always ON.
Page 15: Triacta Gateway Ct / Pulse Wiring Modules
Each CT / Pulse Wiring Module supports 12 inputs pairs, numbered P1 to P12. The Triacta GATEWAY Meter Base unit supports up to 4 CT / Pulse Wiring Modules for a total of 48 input pairs. The number of inputs available of each type depends on the number of measurement modules and CT / Pulse Wiring Modules installed in the meter.
Page 16: Triacta Gateway Flex Configuration
Triacta GATEWAY Triacta GATEWAY Flex configuration The following diagram illustrates how the Triacta GATEWAY could be connected to two different voltage panels using two different types of CTs and different numbers of elements per meter point from each panel. Figure 6: Example Flex Configuration Wiring...
Page 17: Pre-Installation Instructions
CT types – 80mA, 100mA and/or 333mV Determine the number of pulse inputs required 3. Determine the number of Triacta GATEWAY systems to be installed and ensure adequate space. For clearances, see Figure 7. Determine the number and types of Measurement Modules required for each Triacta GATEWAY system.
Page 18: Installation Instructions
3wire delta application. The installation procedures must be performed in the following order: Mount the Meter Base Module The Triacta GATEWAY can be mounted on a wall as a complete system with the Meter Head unit pre-installed or as just the Meter Base unit with the Meter Head unit to be installed later.
Page 19: Install Ct / Pulse Wiring Modules Into The Meter Base Unit
Figure 8: Installing CT / Pulse Wiring Modules into the Meter Base Unit Install disconnect devices for sense and control voltages Each Triacta GATEWAY device must be connected to all sense and control voltages through properly rated (15 Amp) disconnects or breakers that disconnect all line wires so that they can be powered down.
Page 20 4. If more than one meter is being installed, repeat this procedure for each additional meter NOTE: The phase wiring sequence A, B, C between the Triacta GATEWAY meter and the circuit breaker panel must match or the measurement readings will be incorrect. If the circuit breaker panel does not designate phase A, phase B and phase C feeds, make your own designation and use it for the rest of the installation.
Page 21 120/240V or 230/460V Gateway B C N Gateway B C N Voltage Voltage Module Module A B C N A B C N Gateway Gateway CT Wiring CT Wiring Module Module X2 X1 © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 23 CT Wiring CT Wiring Module Module X2 X1 Fig 20: Auxiliary Voltage Connection (120VAC Min to 277VAC Max) B C N Gateway Voltage Module A B C N Gateway CT Wiring Module © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 24: Install And Connect Cts
• Always use a properly rated voltage sensing device to confirm the power is off. • NEVER open circuit a CT; Connecting CTs to a Triacta GATEWAY CT / Pulse Wiring Module will ensure that the CT wire pairs are always either shorted or terminated by the Meter Head.
Page 25 300 ft (100 m) / 22 AWG (from converter to meter) When installing 5 Amp output CTs Where 5A output CTs are required, they can be connected to a Triacta GATEWAY 80mA CT CT / Pulse Wiring Module using Triacta 5A:80mA CT converters.
Page 26: Connect Pulse Inputs
Each pulse input is compatible with both dry (reed) and solid-state Form A contacts. When the pulsing device provides solid-state form A outputs, the negative terminal from the source device must be connected to the negative (-) terminal of the Triacta GATEWAY pulse in terminal block.
Page 27: Connect The Ethernet Cable
Connect the Ethernet Cable Connect the Triacta GATEWAY to a 10/100BaseT 802.3-2002 compliant IP network or device by connecting a CAT5 Ethernet cable to the RJ45 Ethernet port on the Meter Head unit.
Page 28: Record The Meter Map
A copy of Figure 23, which is organized to resemble a breaker panel, is provided with each Triacta GATEWAY, and is to be completed and delivered to your system administrator.
Page 29 Wire Mod. # CT Amps Description circuit phase circuit CT Amps Description Laundry 1 Suite 100 Laundry 2 Laundry 3 Suite 101 Air Handler Suite 102 Suite 103 Elevator Penthouse 1 Penthouse 2 © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 30: Maintenance
Always use a properly rated voltage sensing device to confirm the power is off. Remove the outer cover from the unit. Locate fuse F1 on the Triacta GATEWAY Voltage Module as shown in Figure 4. Replace fuse F1 with a fuse that meets the specifications listed in Table 1.
Page 31: Meter Head Servicing Or Replacement
Triacta GATEWAY Meter Head Servicing or Replacement Before removing the Meter Head, be sure to turn off all the power feed/s to the Triacta GATEWAY Meter Base unit. Always use a properly rated voltage sensing device to confirm power is off.
Page 32: Appendix 1: Current Transformers Overview
0.333 V 300 ft (100 m) / 22 AWG As shown in table 5, 5 Amp secondary CTs can work with the Triacta GATEWAY by using Triacta 5A:100mA or 5A:80mA CT convertors (figure 24). One convertor is required for each 5A secondary CT.
Page 33: Ct Orientation
The X1/X2 outputs from each CT for each circuit must be connected to the X1/X2 inputs of each corresponding CT input connection on the appropriate Triacta GATEWAY CT input module. When installing CTs in a panel, ensure that all CT wiring is labeled with the proper X1/X2 designations, or that it follows a standard X1/X2 colour pair mapping.
Page 34: Ct Shorting And Termination
CT/Pulse Wiring Modules Two types of CT/Pulse Wiring modules are available for the Triacta GATEWAY. A CT/Pulse Wiring - Screw Terminal module and a CT/Pulse Wiring - 12Pair Cable Module.
Page 35: Ct Naming Designations
Typically, the CT/Pulse Wiring - 12Pair Cable Module would be used when all CTs are located in the same distribution panel. The CT cable can be easily routed from the Triacta GATEWAY to the distribution panel and the CTs can then be direct connected to the CT cable inside the panel.
Page 37: Appendix 2: Triacta Gateway Part Number Configuration Guide
Triacta GATEWAY Appendix 2: Triacta GATEWAY Part Number Configuration Guide © 2018 Triacta Power Solutions LP All Rights Reserved...
Page 38: Equipment Servicing And Access
Component servicing Individual components are not user-serviceable, and must be returned to Triacta Power Solutions for repair. If an equipment fault occurs, do not attempt to repair the faulty component. All maintenance activities should be performed by qualified personnel only. Do not perform any operating or maintenance procedures that are not described in the product documentation.
