Summary of Contents for PERCo WHD-15

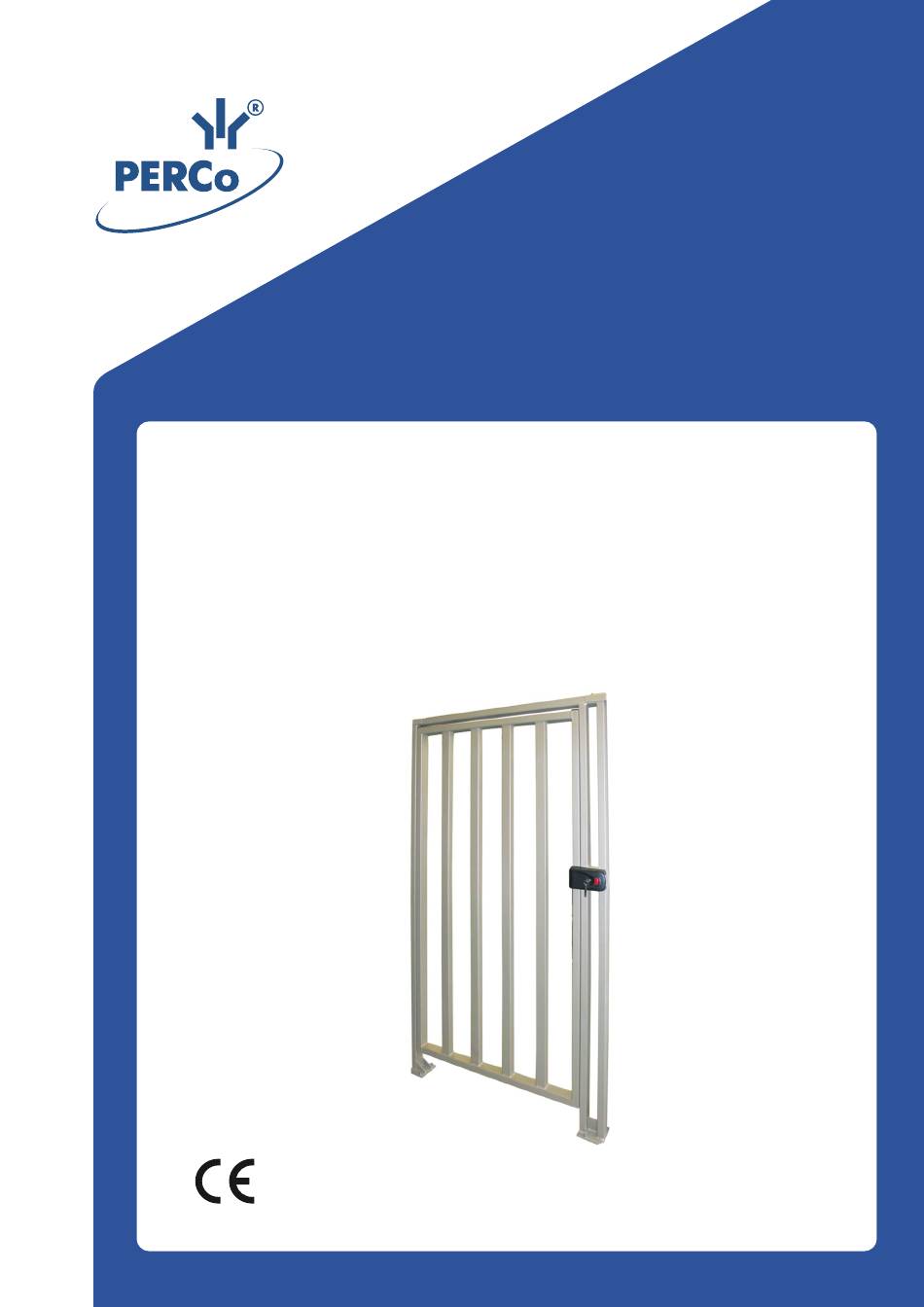

- Page 1 Full Height Security Gate WHD-15 INSTALLATION AND OPERATION MANUAL...
- Page 2 Full Height Security Gate Installation and Operation Manual...
-
Page 3: Table Of Contents
CONTENT APLICATION ....................... 3 OPERATION CONDITIONS ..................3 TECHNICAL SPECIFICATIONS ................. 3 DELIVERY SET ......................4 Standard delivery set ..................... 4 Optional equipment and mounting hardware ............4 DESIGN AND OPERATION ..................5 Main features ......................5 Design and operation .................... 5 MARKING AND PACKAGING .................. -
Page 4: Aplication
WHD-15 Full Height Security Gate Dear customers! We thank You for choosing the turnstile manufactured by PERCo. You have purchased a high quality product, which will be long lasting in operation provided that installation and operation rules are observed. The Installation and Operation Manual (hereinafter – the Manual) contains the instructions you need for safety transportation, storage, installation, operation, and maintenance of the WHD-15 full height security gate (hereinafter –... -
Page 5: Delivery Set
Installation and Operation Manual 4 DELIVERY SET 4.1 Standard delivery set Primary parts: Assembled gate with rim electric lock ..............1 Set of keys to electric lock ..................1 Door closer with fasteners ..................1 Assembling tools: Hex key S4 ......................1 Technical documentation: Gate installation and operation manual .............. -
Page 6: Design And Operation
WHD-15 Full Height Security Gate 5 DESIGN AND OPERATION 5.1 Main features The gate meets current requirements to such equipment in compliance with GOST P 51241. Main features of the gate are as follows: • possibility of remote gate unlocking;... - Page 7 Installation and Operation Manual Fig. 1 General view of the WHD-15 gate 1 – frame; 2 – leaf; 3 – electric lock; 4 – door closer Fig. 2. Overall dimensions of the WHD-15 gate...
- Page 8 WHD-15 Full Height Security Gate When the lock is operated from the control pushbutton, it is unlocked by a momentary press of the control pushbutton which gives a potential pulse of minimum 500 ms duration. Once the transmission is over, the lock switches to the «Open» mode and can remain in it indefinitely.
-
Page 9: Marking And Packaging
Installation and Operation Manual 6 MARKING AND PACKAGING The gate marking contains the product name, its date of manufacture and serial number. Optional accessories and items are marked according to their respective technical documentation. The standard delivery set is packed into a package box to protect the gate from damage during storage and transportation. -
Page 10: Installation
WHD-15 Full Height Security Gate 8 INSTALLATION 8.1 Main guidelines Proper installation is critical to performance and serviceability of the gate. We strongly advise to study this section before installation work is commenced, and follow the instructions to the letter over the course of the installation. -
Page 11: Installation Of Standard And Optional Equipment
Installation and Operation Manual Table 1 Anchor type Drill bit diameter, mm Drilling depth, mm Q-ty PFG IR 12-20 Mark out on the mounting surface mounting holes for the gate installation according to Fig. 3. Fig 3. Mounting hole pattern 8.2.5 Prepare the mounting holes for the gate installation. -
Page 12: Installation Checkup
• power supply units for the turnstile and the walkway downlights; • a wireless remote control, remote light indicators, an intrusion detector and a siren. Contact PERCo Technical Support Department if you need further consulting. 8.4 Installation checkup Clear the passageway of all foreign objects. - Page 13 PERCo Polytechnicheskaya str., 4, block 2 194021, Saint Petersburg Russia Tel: +7 812 247 04 64 E-mail: export@perco.com support@perco.com www.perco.com...
- Page 14 www.perco.com...
