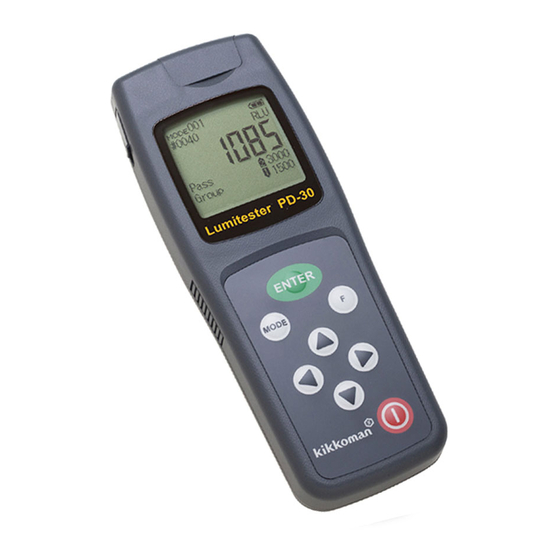

Lumitester PD-30
Instruction Manual
Thank you very much for purchasing the Lumitester PD-30.
All of this Instruction Manual must be read before operation of
this product for safe and proper use.
This Instruction Manual should be kept for future reference.

Table of Contents

.........................................................................................
........................................................................................
2. List of contents
................................................................................
...........................................................................................
.......................................................................................
..................................................................................
...........................................................................................................
.....................................................................
...........................................................................
......................................................................
4.3 How to insert batteries
.....................................................................
4.4 Initial power-on setting
...................................................................................
...................................................................................
5.1.1
5.1.2
5.1.3
...................................................................
5.1.3.1 Rank judgement
5.1.3.2 Measurement procedure
5.1.4
How to turn off the power
.............................................................................
5.2.1
.................................................................................
5.2.2
.......................................................................
5.2.3
........................................................................
5.2.4
5.2.5
Temperature compensation setting
...............................................................................
5.2.6
5.2.7
5.2.8
Memory data clear
.....................................................................................
.............................................................................................
.................................................................
......................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
..................................................................................
...................................................
................
............................................................
.....................................................
..................................................
......................................................
..................................
..............................................................
...............................................................
........................................................
........................................
..........................................
1
5
6
6
7
8
9
9
9
9
10
11
11
11
12
13
13
13
14
15
15
16
17
17
18
19
19
19
20
21
21
21
22
23
23
25
26
27
28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumitester PD-30 and is the answer not in the manual?

Questions and answers

Related Manuals for Kikkoman Lumitester PD-30

Summary of Contents for Kikkoman Lumitester PD-30

  • Page 1: Table Of Contents

    MODE measurement and PLAN measurement ............5.1.3 MODE measurement ..............5.1.3.1 Rank judgement Thank you very much for purchasing the Lumitester PD-30............5.1.3.2 Measurement procedure All of this Instruction Manual must be read before operation of ..........5.1.4 How to turn off the power this product for safe and proper use.

  • Page 2: Read This First

    For safe use Read This First Warnings described bellow should be followed as shown. The Lumitester PD-30 designed for Kikkoman’s Rapid Hygiene Monitoring. Do not use this instrument for any other application. Warning When abnormality is observed, turn off the power...
  • Page 3 For proper use...

  • Page 4: Instrument

    Cover used for insert and remove batteries. This Quick Manual is designed so that even beginners can have a quick understanding of the usage and convenience of Lumitester PD-30 and LuciPac Pen. Measurement chamber Cover for measurement chamber. For correct use and precautions of the reagents and instrument, refer the relevant manuals.

  • Page 5: Display Panel

    3.2 Display panel 3.3 Operation panel ⑦ Reagent warning ① MODE number or or measurement PLAN number chamber cover warning ② Data number or ① ENTER PLAN name ⑧ Battery indicator ③ Measured ⑨ Unit value ⑩ Level 2 or date ④...

  • Page 6: Setup

    Setup ① When the power is turned on for ② Select a language using keys, the first time, "Lumitester" is displayed and and press ENTER key. The Date/ the language selection display appears. Time setting display appears. 4.1 How to attach the strap Attach the strap as shown below.

  • Page 7: Operation Method

    5.1.2 MODE measurement and PLAN measurement Operation Method Used for hygiene control, the Lumitester PD-30 provides two measurement methods ; simple [MODE measurement] without using a computer, and [PLAN measurement] that can be used in a variety of situations by using the Please thoroughly read "1 Read This First"...
  • Page 8 5.1.3.2 Measurement procedure Caution When the reagent warning blinks and the buzzer sounds after Caution pressing ENTER key, no reagent has been placed in the measurement Use the reagent of dedicated disposable type. chamber. Follow the instruction manual for the reagent. In order to cancel the measurement, press ENTER key again.

  • Page 9: F (Function) Setting

    5.2 F (function) setting ・ Normally memory data is not erased while the power is off. However, when When using many F (function) settings at the same time, use the control software the measurement is continued with low battery level, or when the batteries for efficient settings.

  • Page 10: Date/Time Set

    5.2.3 Date/Time Set 5.2.5 Temperature compensation setting The reagent has a characteristic in which luminescence varies depending on the  ① During standby state, press F key. Date temperature.  ② Press keys to make "Date" blink. The temperature compensation is a function that corrects the temperature  ③...

  • Page 11: Self-Check

    5.2.6 Self-check 5.3 PC Connection  By connecting this instrument with a personal computer (PC), memory data can Keep the measurement chamber clean. Failure to do so may cause poor precision for measurements.  be saved and the level and other settings can be set via PC. The self-check is a function to confirm the degree of  Refer the Instruction manual for control software.

  • Page 12: Maintenance

    6.3 Replacement of batteries Maintenance Replace the batteries when the battery indicator is displayed as shown on the right. 1. Turn the power off. 6.1 Maintenance of the main body 2. Remove the battery cover on the back of the instrument. If the instrument becomes contaminated, wipe with a dry cloth or soft 3.

  • Page 13: Troubleshooting

    List of Error codes Troubleshooting The details of Error codes and countermeasures are described below. In the case of that the error code is still displayed after countermeasures are taken, check the model and serial No. affixed inside the battery cover, and contact the dealer or us.

  • Page 14: Other Problems And Countermeasures

    7.2 Other problems and countermeasures Specifications The details of problems, causes, and countermeasures other than those for error displays are described below. When the normal condition is not recovered after the countermeasure is taken, when any problem other than these occurs, or when requesting repairs, check the model and the serial No.

  • Page 15: External View

    External View After-sales Service Warranty Approx. 65 Approx. 32 Period of warranty of LUMITESTER is one year from the date of purchase, except that it is two years from the date of purchase in member states of EU where EU Directive 1999/44/EC is in effect.
  • Page 16 Trademark ● ● Lumitester is a registered trademark of Kikkoman Corporation. Issued by: http://biochemifa.kikkoman.co.jp/e/ 2014.03 59-2074-0...
